2021 Lamborghini AVENTADOR S AUSTRALIA ELECTRICS (907.04.00)

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER	Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

TAV: 907.04.00 - ELECTRICS

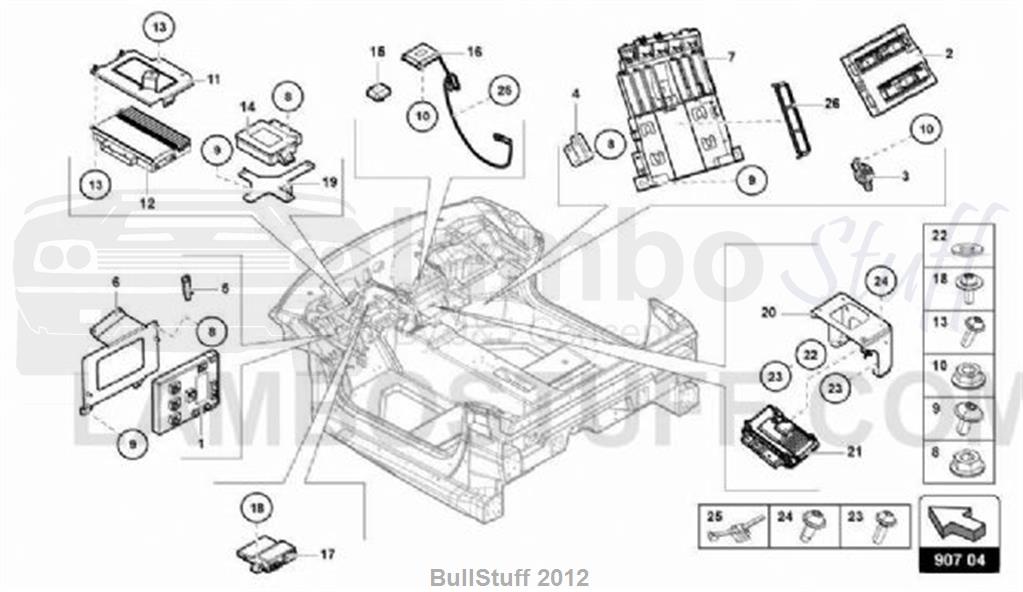

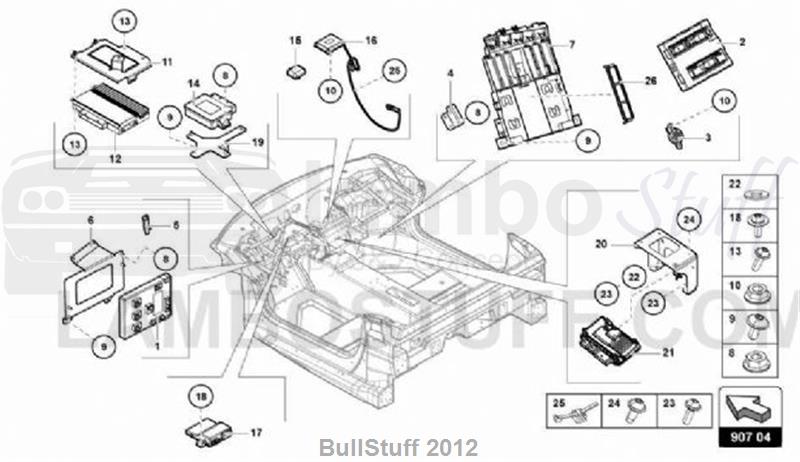

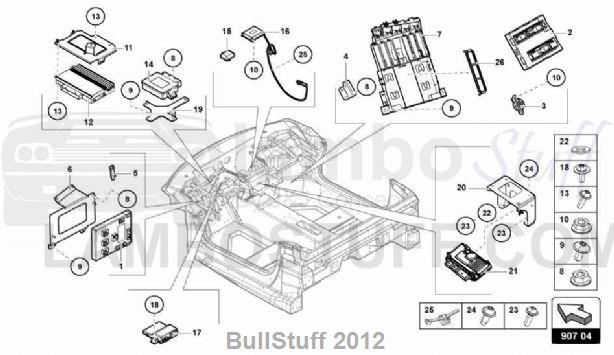

2021 Lamborghini AVENTADOR S AUSTRALIA ELECTRICS (907.04.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0		- NEW ZEALAND - THAILAND - INDIA - PHILIPPINE - AZERBAIJAN -	0 req
0		VIETNAM)	0 req
0		TURKEY)	0 req
0		CHILE)	0 req
1	8K0907063BE	BODY COMPUTER ONBOARD SUPPLY CONTROL UNIT	1 req	Avail to order Our Price: $591.04
2	8K0907064KF	BODYCOMPUTER CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM (868 MHZ - EU - SCANDINAVIA - SWEDEN - GB - SOUTH AFRICA - SINGAPORE -	1 req	Avail to order Our Price: $605.93
2	8K0907064KM	BODYCOMPUTER CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM (315 MHZ - USA - CANADA - JAPAN - MEXICO - TAIWAN - HONG KONG - MACAO -	1 req	Avail to order Our Price: $583.60
2	8K0907064KR	BODYCOMPUTER CENTRAL CONTROL UNIT FOR CONVENIENCE SYSTEM (433,92 MHZ - RUSSIA - ARABIA - DUBAI - BRAZIL - SUD KOREA - CHINA - AUSTRALIA	1 req	Avail to order Our Price: $553.82
3	8E0919279	LOUDSPEAKER,PARK WARNING BUZZER	1 req	Avail to order Our Price: $38.49
4	470907298	HOLDER,ELECTR. ARM	1 req	Avail to order Our Price: $174.19
5	470907333	BRACKET ARM	2 req	Avail to order Our Price: $35.89
6	472907324	BRACKET BRACKET ( RHD)	1 req	Avail to order Our Price: $85.76
7	470971301	BRACKET KABELFUEHRUNG BRACKET	1 req	Avail to order Our Price: $132.06
8	N01508210	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	6 req	Current Stock: 17 Our Price: $2.09
9	N10653201	HEXAGON FLANGE HEX COLLARED BOLT (M6X16)	8 req	Current Stock: 12 Our Price: $2.17
10	N10017307	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M5)	4 req	Avail to order Our Price: $2.01
11	472035535	BRACKET,AMPLIFIER BRACKET ( RHD)	1 req	Avail to order Our Price: $64.62
12	470035223A	AMPLIFIER AMPLIFIERS	1 req	Avail to order Our Price: $2,136.37
13	N10569501	HEXALOBULAR SOCKET ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD (M5X16)	5 req	Avail to order Our Price: $2.39
14	470907801	CONTROL UNIT, CONTROL UNIT WITH SOFTWARE FOR ELECTROMECHANICAL PARKING BRAKE -EPB-	1 req	Avail to order Our Price: $2,970.09
15	420919889	GLOBAL POSITIONING AERIAL	1 req	Avail to order Our Price: $308.92
16		AERIAL (VALID FOR USA/CANADA MARKETS)	1 req
17	8R0907468AA	EL.CONTROL UNIT DIAG. ADR. 19 DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)	1 req	Avail to order Our Price: $328.28
17	8R0907468AD	EL.CONTROL UNIT DIAG. ADR. 19 DIAGNOSIS INTERFACE FOR DATA BUS (GATEWAY)	1 req	Avail to order Our Price: $328.28
18	N10738101	HEXALOBULAR SOCKET HEX SOCKET HEAD BOLT (COMBI) (M5X16)	2 req	Current Stock: 6 Our Price: $2.00
19	470907471	BRACKET BRACKET	1 req	Avail to order Our Price: $41.54
20	470863345A	BRACKET TUNNEL RETAINER FOR CENTRE CONSOLE	1 req	Avail to order Our Price: $83.97
21	8K0907144N	CONTROL UNIT,POWERDYNAMIKLENKUNG CONTROL UNIT FOR ACTIVE STEERING	1 req	Avail to order Our Price: $2,590.44
22	N01166623	WASHER WASHER (6,4X18X1,6)	2 req	Current Stock: 8 Our Price: $2.00
23	N10558102	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)	2 req	Current Stock: 9 Our Price: $4.54
24	N10543501	IN-6RD-FLSH-SHR M5GFX12.0 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD (M5X12)	4 req	Avail to order Our Price: $2.00
25	5M0971838A	CABLE TIE BASE CABLE TIE WITH TERMINAL SOCKET (4,6X200MM HORIZONTAL 1-3MM 90 DEGREE ANGLE)	1 req	Avail to order Our Price: $2.84
26		COVER FOR FUSE HOLDER (NOT YET AVAILABLE)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
