2020 Lamborghini AVENTADOR S USA DRIVER AND PASSENGER DOOR (837.02.00)

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Avail to order Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER	Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

TAV: 837.02.00 - DRIVER AND PASSENGER DOOR

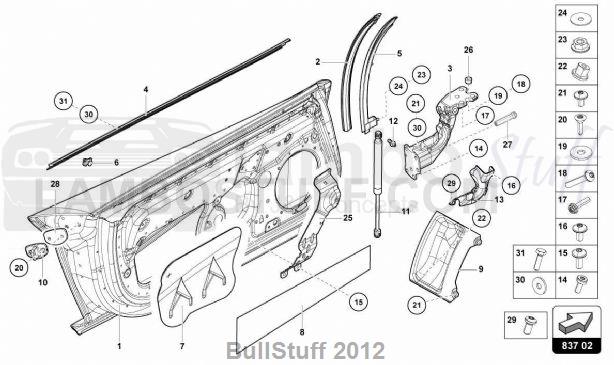

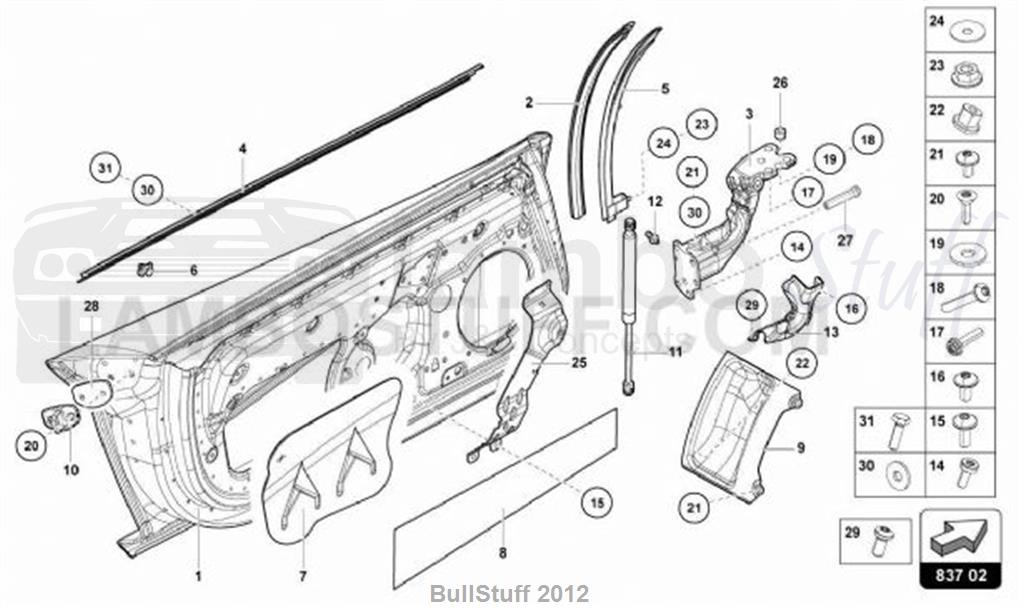

2020 Lamborghini AVENTADOR S USA DRIVER AND PASSENGER DOOR (837.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470831051G	DOOR-IN-WHITE DOOR (CONTACT YOUR AREA MANAGER-LEFT)	1 req	Avail to order Our Price: $16,601.25
1	470831052G	DOOR-IN-WHITE DOOR (RIGHT)	1 req	Avail to order Our Price: $16,569.90
2	470837349D	COVER DOOR SEAL (LEFT)	1 req	Avail to order Our Price: $661.02
2	470837350D	COVER DOOR SEAL (RIGHT)	1 req	Avail to order Our Price: $558.29
3	470831411G	DOOR HINGE DOOR HINGE (LEFT)	1 req	Avail to order Our Price: $7,402.01
3	470831412G	DOOR HINGE DOOR HINGE (RIGHT)	1 req	Avail to order Our Price: $7,402.01
4	470837703F	SEAL,OUTER WINDOW APERTURE SEAL (LEFT)	1 req	Avail to order Our Price: $191.31
4	470837704F	SEAL,OUTER WINDOW APERTURE SEAL (RIGHT)	1 req	Avail to order Our Price: $191.31
5	470837403F	GUIDE RAIL ALZAVETRO WINDOW GUIDE (FROM VIN ELA02674-LEFT)	1 req	Avail to order Our Price: $684.84
5	470837404F	GUIDE RAIL ALZAVETRO WINDOW GUIDE (FROM VIN ELA02674-RIGHT)	1 req	Avail to order Our Price: $684.84
6	14	CLIP	0 req
7	470837917A	WATER DEFLECT DOOR SEAL (LEFT)	1 req	Avail to order Our Price: $74.45
7	470837918A	WATER DEFLECT DOOR SEAL (RIGHT)	1 req	Avail to order Our Price: $43.85
8	8J0837805A	ANTI-DRUMMING COATING SOUND ABSORBER (SELF-ADHESIVE) (600X120/80X2,7)	2 req	Avail to order Our Price: $16.46
9	470831437B	CAP COVER (LEFT)	1 req	Avail to order Our Price: $130.12
9	470831438B	CAP COVER (RIGHT)	1 req	Avail to order Our Price: $130.12
10	8E0837033	STRIKER LH LOCK STRIKER	2 req	Current Stock: 2 Our Price: $20.55
11	470837723B	SPRING FROM CH#CLA01033 SPRING	2 req	Avail to order Our Price: $245.65
12	470837646A	SPRING BALL STUD	4 req	Avail to order Our Price: $11.24
13	470831547D	COVER COVER (LEFT)	1 req	Avail to order Our Price: $29.56
13	470831548D	COVER COVER (RIGHT)	1 req	Avail to order Our Price: $33.65
14	10	HEXAGON BOLT (M8X20)	0 req
15	10	OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	0 req
16	N10586401	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M5X10)	8 req	Current Stock: 13 Our Price: $2.00
17	N10665002	12-POINT SOCKET FLAT HEAD MULTI-POINT SOCKET BOLT (M8X30)	8 req	Avail to order Our Price: $6.25
18	N10554005	screw ROUND HD. SCREW (M6X35)	4 req	Avail to order Our Price: $2.98
19	N01152527	WASHER WASHER (8,4X16X1,6)	4 req	Current Stock: 15 Our Price: $2.00
20	WHT005435	TRIPLE SQUARE OVAL HEAD BOLT COUNTERSUNK BOLT (M8X30)	4 req	Avail to order Our Price: $4.85
21	N91096601	HEXALOBULAR SOCKET HEXAGON SOCKET FLAT HEAD BOLT (M6X12)	4 req	Current Stock: 6 Our Price: $2.00
22	N10015101	HEX.NUT A5 HEXAGON NUT	1 req	Avail to order Our Price: $2.00
23	N10017307	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M5)	4 req	Avail to order Our Price: $2.01
24	N91109201	WASHER WASHER (5,3X20X1)	4 req	Current Stock: 103 Our Price: $2.00
25	470831121D	REINF.DOOR HANDLE RINF.MANIGL.PORTA REINFORCEMENT FOR DOOR HANDLE (LEFT)	1 req	Avail to order Our Price: $70.72
25	470831122D	REINF.DOOR HANDLE RINF.MANIGL.PORTA REINFORCEMENT FOR DOOR HANDLE (RIGHT)	1 req	Avail to order Our Price: $70.72
26	470831400A	SUPPORT PART GROMMET	4 req	Avail to order Our Price: $19.06
27		SOCKET HEAD BOLT (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 3)	0 req
28	470837779A	DISTANZSTUECK INTERMEDIATE LAYER	2 req	Avail to order Our Price: $218.85
29	N91030702	HEXALOBULAR SOCKET PAN HEAD HEXAGON SOCKET FLAT HEAD BOLT (M4X8)	2 req	Avail to order Our Price: $2.00
30	WHT000778	SPRING LOCK WASHER WASHER (30X36X1)	2 req	Current Stock: 15 Our Price: $2.00
31	N10854301	HEXAGON HEAD BOLT M4X14 HEXAGON BOLT (M4X14)	2 req	Avail to order Our Price: $2.23
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
