2020 Lamborghini AVENTADOR S USA TUNNEL (863.03.00)

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Avail to order Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER	Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

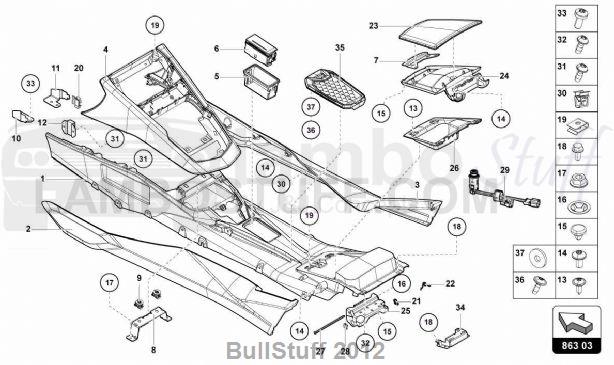

TAV: 863.03.00 - TUNNEL

2020 Lamborghini AVENTADOR S USA TUNNEL (863.03.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0		LHD)	0 req
0		LHD)	0 req
1	471863242D	CENTER CONSOLE CENTR.CONS.ANT. CENTRE CONSOLE, LOWER PART (WITH ASHTRAY - LEATHER INTERIOR - WITHOUT MIRROR LINK CONNECTIONS - SUPPLY VIN-	1 req	Avail to order Our Price: $2,032.17
1	471863242C	CENTER CONSOLE CENTR.CONS.ANT. CENTRE CONSOLE, LOWER PART (WITHOUT ASHTRAY - LEATHER INTERIOR - WITHOUT MIRROR LINK CONNECTIONS -SUPPLY VIN-	1 req	Avail to order Our Price: $2,501.12
1	471863242L	CENTRE CONSOLE, LOWER PART (WITHOUT ASHTRAY - LEATHER INTERIOR - MIRROR LINK - SUPPLY VIN-CENTER)	1 req
2	470863667N	LINING FIANCH.SX TUNNEL SIDE PANEL TRIM FOR CENTRE CONSOLE (LEATHER - SUPPLY VIN)	1 req	Avail to order Our Price: $1,771.63
2	470863667P	LINING FIANCH.SX TUNNEL SIDE PANEL TRIM FOR CENTRE CONSOLE (ALCANTARA - SUPPLY VIN-LEFT)	1 req	Avail to order Our Price: $1,771.63
2	470863667S	SIDE PANEL TRIM FOR CENTRE CONSOLE (ARTIFICIAL LEATHER - SUPPLY VIN- LHD)	1 req
3	470863668F	LINING FIANCH.DX TUNNEL SIDE PANEL TRIM FOR CENTRE CONSOLE (SEMIANILINA UPHOLSTERY - SUPPLY VIN)	1 req	Avail to order Our Price: $1,771.63
3	470863668P	LINING FIANCH.DX TUNNEL SIDE PANEL TRIM FOR CENTRE CONSOLE (ALCANTARA - SUPPLY VIN-RIGHT)	1 req	Avail to order Our Price: $1,771.63
3	470863668Q	LINING FIANCH.DX TUNNEL SIDE PANEL TRIM FOR CENTRE CONSOLE	1 req	Avail to order Our Price: $1,771.63
3	470863668R	LINING FIANCH.DX TUNNEL SIDE PANEL TRIM FOR CENTRE CONSOLE (ALCANTARA + Q-CITURA WITH CUP HOLDER)	1 req	Avail to order Our Price: $1,771.63
3	470863668T	LINING FIANCH.DX TUNNEL SIDE PANEL TRIM FOR CENTRE CONSOLE (SEMI- ANILINA + Q- CITURA WITH CUP HOLDER)	1 req	Avail to order Our Price: $1,771.63
4	470863315A	EXTENSION,CENTER C LINING FOR CONSOLE (LEATHER INTERIOR - SUPPLY VIN)	1 req	Avail to order Our Price: $1,511.10
5	472863849	BRACKET CORNER TRIM	1 req	Avail to order Our Price: $147.39
6	4G8857406A6PS	ASHTRAY ASHTRAY (SOUL (BLACK))	1 req	Avail to order Our Price: $70.27
7	470868186	FINGER PLATE T-BAR	1 req	Avail to order Our Price: $115.98
8	470863253	BRACKET ATTACHMENT BARS (CENTER)	1 req	Avail to order Our Price: $30.75
9	8E0806193	RETAINING PART COMPENSATING PIECE ( 3,4MM)	2 req	Avail to order Our Price: $16.53
10	470863583	BRACKET ATTACHMENT BARS (LEFT FRONT)	1 req	Avail to order Our Price: $17.05
11	470863584	BRACKET ATTACHMENT BARS (RIGHT FRONT)	1 req	Avail to order Our Price: $17.05
12	470863346	BRACKET BRACKET	2 req	Avail to order Our Price: $30.90
13	N90986803	FLANGE TAPPING HEXAGON SOCKET HEAD PANEL BOLT (4,2X13)	4 req	Avail to order Our Price: $2.00
14	16	HEXAGON SOCKET HEAD BOLT (M5X8.0)	0 req
15	470861147	CATCH STOP BUFFER (4,5X2,2X8,6)	2 req	Avail to order Our Price: $15.41
16	N90657502	CLAMPING WASHER CLAMPING WASHER (5X11,75)	1 req	Avail to order Our Price: $2.00
17	N01508210	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	3 req	Current Stock: 17 Our Price: $2.09
18	N10653201	HEXAGON FLANGE HEX COLLARED BOLT (M6X16)	4 req	Current Stock: 12 Our Price: $2.17
19	N0154487	SPEED NUT SPEED NUT (4,2X16,3X11)	4 req	Current Stock: 11 Our Price: $2.00
20	4D0857949A	GROMMET GROMMET	2 req	Avail to order Our Price: $8.71
21	470863285	SPRING SPRING (LEFT)	1 req	Avail to order Our Price: $42.88
22	470863286	SPRING SPRING (RIGHT)	1 req	Avail to order Our Price: $42.88
23	470863761	COVER COVER FOR DRAWER (LEATHER INTERIOR - SUPPLY VIN-LEATHER (STANDARD))	1 req	Avail to order Our Price: $509.16
23	470863761A	COVER COVER FOR DRAWER (ALCANTARA UPHOLSTERY - SUPPLY VIN-ALCANTARA)	1 req	Avail to order Our Price: $850.09
23	470863761B	COVER TUNNEL COVER RIV. COVER FOR DRAWER (SEMI- ANILINA - SUPPLY VIN-CARBON EFFECT)	1 req	Avail to order Our Price: $850.09
23	470863761C	COVER COVER FOR DRAWER (ALCANTARA + Q-CITURA - SUPPLY VIN)	1 req	Avail to order Our Price: $850.09
24	470863273A	COVER,CENTER TRIM (INNER)	1 req	Avail to order Our Price: $260.54
25	470861871C	BRACKET,TRAY TUNNEL COVER SECURING BRACKET	1 req	Avail to order Our Price: $69.68
26	470863300A	TRAY GLOVE COMPARTMENT	1 req	Avail to order Our Price: $181.64
27	470863348	PIVOT PIN	1 req	Avail to order Our Price: $36.48
28	418880324	FRICTIONING MECHANISM BRAKE ELEMENT	2 req	Avail to order Our Price: $17.42
29	8J0919303	CIGAR LIGHTER CIGARETTE LIGHTER (LIGHTER)	1 req	Avail to order Our Price: $24.42
29	8J0919303A	CIGAR LIGHTER SOCKET (OUTLET 12V)	1 req	Avail to order Our Price: $20.32
30	8T0853107	CLAMP CLIP	6 req	Avail to order Our Price: $2.00
31	10	HEXAGON SOCKET FLAT HEAD BOLT	0 req
32	N10721401	SCREW OVAL HD. SELF-TAPP FITT. SCREW	3 req	Avail to order Our Price: $2.00
33	N10405604	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT	4 req	Avail to order Our Price: $2.00
34		ARM (NOT FOR THIS MODEL - ONLY FOR ROADSTER)	0 req
35	470862371A	HOLDER,TELEPHONE BRACKET FOR TRANSCEIVER FOR TELEPHONE	1 req	Avail to order Our Price: $760.76
36	N90918702	SCREW HEXAGON SOCKET HEAD PANEL BOLT (4X12)	4 req	Current Stock: 8 Our Price: $2.00
37	N90531001	WASHER WASHER (5,5X16X2)	4 req	Current Stock: 19 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
