2020 Lamborghini AVENTADOR S USA OUTER COMPONENTS FOR GEARBOX (301.04.00)

Maintenance Parts:

Common repairs and upgrades

PN	Item	Diagram
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter		Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615		Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Avail to order Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item	Diagram
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER		Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS		Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,		Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE		Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR		Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR		Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

TAV: 301.04.00 - OUTER COMPONENTS FOR GEARBOX

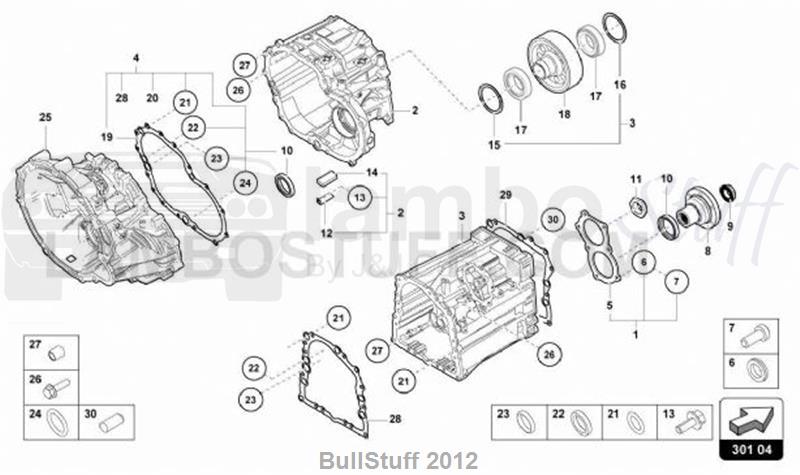

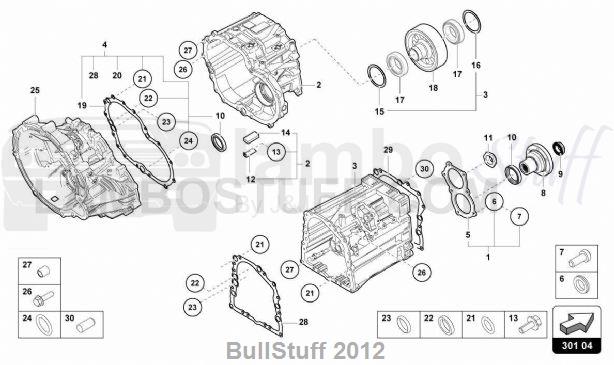

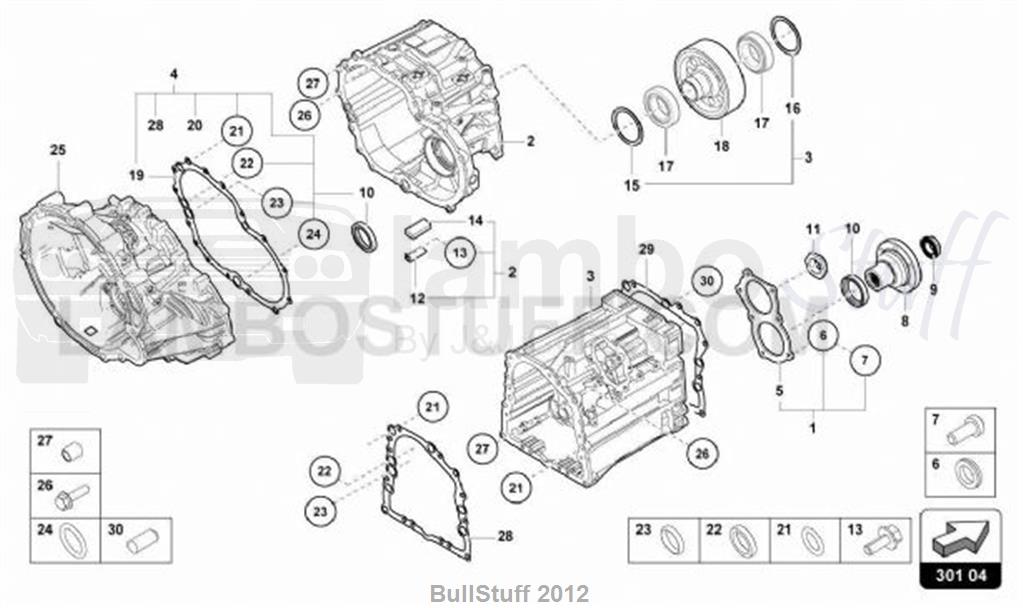

2020 Lamborghini AVENTADOR S USA OUTER COMPONENTS FOR GEARBOX (301.04.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470398008D	1 SET SPACER PLATES 1 SET: SPACER PLATES (KIT)	1 req	Avail to order Our Price: $428.76
2	470398008E	MAGNETS MAGNETS (KIT)	1 req	Avail to order Our Price: $54.05
3	470398008F	PACKING PLATE SHIM (DROP KIT)	1 req	Avail to order Our Price: $232.99
4	470398008H	1 SET SEALING BEARING 1 SET: SEALING BEARINGS	1 req	Avail to order Our Price: $3,111.51
5		BEARING PLATE (NOT SOLD SEPARATELY - ORDER REF 1)	1 req
6		WASHER (NOT SOLD SEPARATELY - ORDER REF 1)	7 req
7		SCREWED SOCKET (NOT SOLD SEPARATELY - ORDER REF 1)	7 req
8	0CE311807	FLANGE FOR GEARBOX FLANGE	1 req	Avail to order Our Price: $836.69
9	0CE301618A	THREADED PIECE GEARBOX DRAIN PLUG HEXAGON NUT	1 req	Avail to order Our Price: $67.22
10	0CE311556	SEALING RING FOR GEARBOX SHAFT OIL SEAL (45X62X10)	2 req	Avail to order Our Price: $168.98
11	0CE311667	INSERT NUT BEARING RING FOR DIFFERENTIAL	1 req	Avail to order Our Price: $61.27
12		SQUARE WASHER (NOT SOLD SEPARATELY - ORDER REF 2)	1 req
13		SCREWED SOCKET (NOT SOLD SEPARATELY - ORDER REF 2)	3 req
14		MAGNETS (NOT SOLD SEPARATELY - ORDER REF 2)	1 req
15		GEARBOX MOUNTING (NOT SOLD SEPARATELY - ORDER REF 3)	1 req
16		GEARBOX MOUNTING (NOT SOLD SEPARATELY - ORDER REF 3)	1 req
17	0CE311590A	ANGULAR CONTACT CUSC.45.242X77.788 MOUNTING	2 req	Avail to order Our Price: $370.71
18	0CE311099A	DRIVE GEAR CHANGE GEAR	1 req	Avail to order Our Price: $3,148.73
19		SEAL (NOT SOLD SEPARATELY - ORDER REF 4)	1 req
20		SEAL (NOT SOLD SEPARATELY - ORDER REF 4)	1 req
21		O-RING (NOT SOLD SEPARATELY - ORDER REF 4)	0 req
22		O-RING (NOT SOLD SEPARATELY - ORDER REF 4)	0 req
23		O-RING (NOT SOLD SEPARATELY - ORDER REF 4)	0 req
24		O-RING (NOT SOLD SEPARATELY - ORDER REF 4)	0 req
25	0CE323209C	CLUTCH HOUSING CAMPANA FRIZIONE BELL HOUSING	1 req	Avail to order Our Price: $9,788.60
26	29	SCREW	0 req
27	086301153B	SLEEVE DOWEL SLEEVE (11X12)	4 req	Avail to order Our Price: $6.11
28		SEAL (NOT SOLD SEPARATELY - ORDER REF 4)	1 req
29		GASKET FOR COVER (SEE ILLUSTRATION : 325.01 REF 2)	1 req
30	470311684	CENTRING PIN CENTRING PIN	2 req	Avail to order Our Price: $18.69
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
