Maintenance Parts:

Drivetrain

PN Item Diagram
07M115561B SPIN-ON FILTER CARTUCCIS FIL.OLIO
SPIN-ON FILTER CARTUCCIS FIL.OLIO
Current Stock: 2
Our Price: $39.98
SPIN-ON FILTER    CARTUCCIS FIL.OLIO

Fuel-Air

PN Item Diagram
470133843A FILTER ELEMENT
FILTER ELEMENT
Current Stock: 1
Our Price: $129.50
FILTER ELEMENT

Ignition

PN Item Diagram
470905619 SPARK PLUG
SPARK PLUG
Avail to order
Our Price: $80.33
SPARK PLUG
470905619A SPARK PLUG
SPARK PLUG
Avail to order
Our Price: $82.49

Misc

PN Item Diagram
400093050D CTEK US-CD BATTERY CHARGER
Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month
Avail to order
Our Price: $241.25
6Q0819653B ODOR FILTER
ODOR FILTER
Avail to order
Our Price: $41.77
ODOR FILTER
N0300574 KEY - Spanner Murcielago-Aventador-Huracan
Wrench Spanner Murcielago-Aventador-Huracan
Avail to order
Our Price: $7.23
KEY - Spanner Murcielago-Aventador-Huracan
Open All

Select Group and TAV

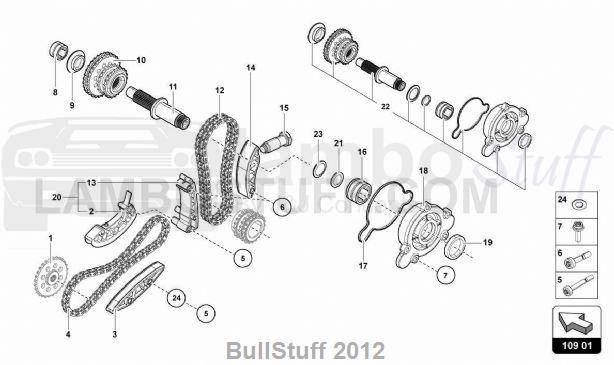

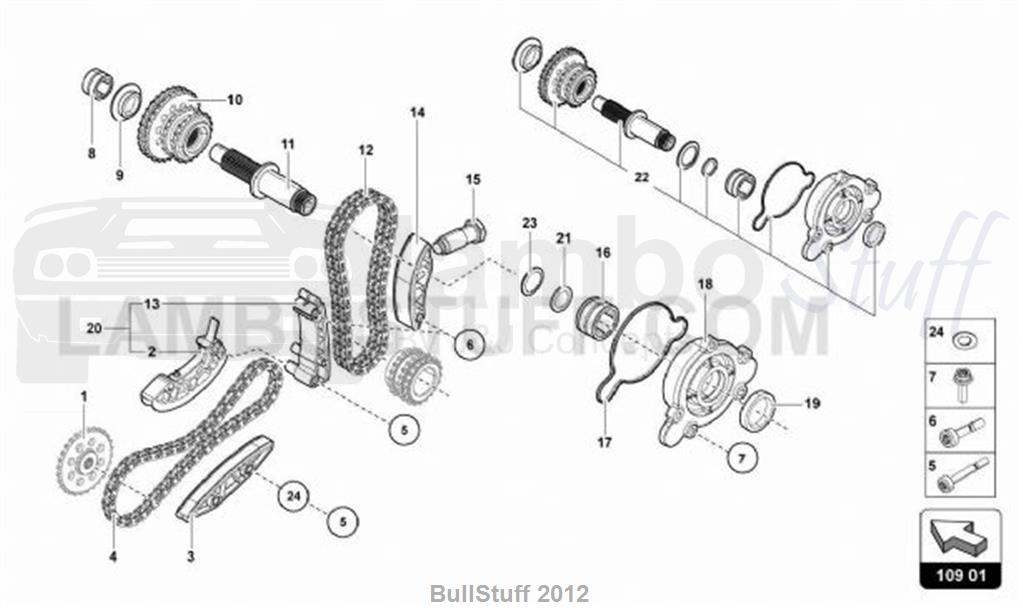

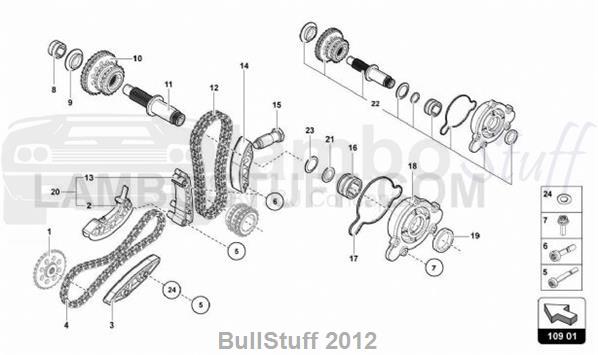

TAV: 109.01.00 - TIMING CHAIN

2016 Lamborghini AVENTADOR SV LP750-4 ROADSTER ENGLAND TIMING CHAIN (109.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 GEAR (NOT AVAILABLE) 0 req
2 CHAIN TENSIONER (CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 20) 0 req
3 07M115235B GUIDE RAIL
SLIDING SHOE
1 req Avail to order
Our Price: $111.38
4 07M109120B ROLLER CHAIN
ROLLER CHAIN
1 req Avail to order
Our Price: $141.34
5 WHT005010A 12-POINT SOCKET
COUNTERSUNK BOLT (M8X60)
3 req Avail to order
Our Price: $42.59
6 WHT005401A 12-POINT SOCKET
COUNTERSUNK BOLT (M8X44)
2 req Avail to order
Our Price: $40.06
7 N10689302 12-POINT SOCKET FLANGE BOLT
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M8X25)
5 req Avail to order
Our Price: $2.00
8 07M109307 AXIAL BEARING
BEARING SHELL
1 req Avail to order
Our Price: $151.63
8 BEARING SHELL (NOT AVAILABLE) 0 req
9 07M109350B SPACER RING DIST.ALBERO INTERM
LENGTH-MEASURING DEVICE
1 req Avail to order
Our Price: $94.54
10 07M109567D DOUBLE GEAR ROCCHETTO INTERMED
GEAR
1 req Avail to order
Our Price: $391.25
11 07M109225G DRIVE FLANGE SHAFTALBERO INTERMEDIO
AXLE SHAFT
1 req Avail to order
Our Price: $610.27
12 07M109229A BUSH CHAIN
TIMING CHAIN (LOWER)
1 req Avail to order
Our Price: $255.53
13 GLIDE PIECE (CANNOT BE SOLD SEPARATELY, INCLUDED IN REF. 20) 0 req
14 07M109077C SPROCKET
CHAIN TENSIONER
1 req Avail to order
Our Price: $106.70
15 03F109507B CHAIN TENSIONER
CHAIN TENSIONER
1 req Avail to order
Our Price: $58.55
16 07M109248 BUSH
BEARING SHELL
1 req Avail to order
Our Price: $173.16
17 07M103147 Gasket
GASKET FOR FLAP
1 req Avail to order
Our Price: $23.77
18 07M103171F SEALING FLANGE
COVER FOR TIMING CASE
1 req Avail to order
Our Price: $351.94
19 07M103070 SEAL
SEAL
1 req Avail to order
Our Price: $49.33
20 07M109498 CHAIN TENSIONER
CHAIN TENSIONER
1 req Avail to order
Our Price: $281.74
21 07M109133C BRACKET
BRACKET
1 req Avail to order
Our Price: $11.75
22 GEAR SET (VALID FOR MY12) 1 req
23 07M109264A BEARING
MOUNTING
1 req Avail to order
Our Price: $26.68
24 WHT003048 Annealed Copper Washer 22x28x1
WASHER (22.0X28.0X1. 5)
1 req Current Stock: 11
Our Price: $2.50
Annealed Copper Washer 22x28x1

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
