![HURACAN EVO COUPE 2WD](/content/ls/huracan.png?r=t&w=274&h=96")
| PN | Item | Diagram | ||
|---|---|---|---|---|
| 400093050D |
CTEK US-CD BATTERY CHARGER
Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month |
Avail to order
Our Price: $317.22
|
|
Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

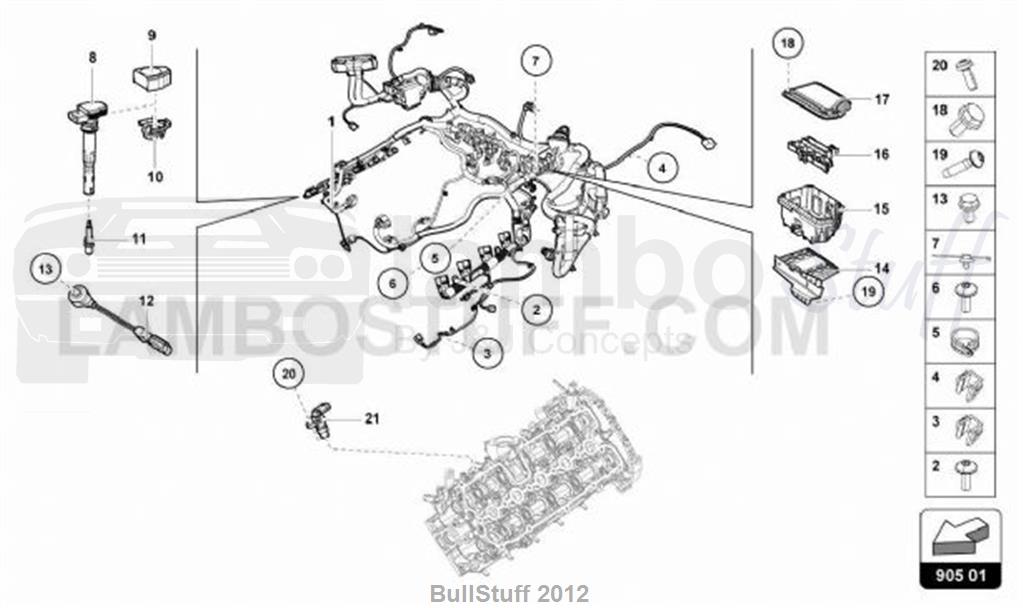

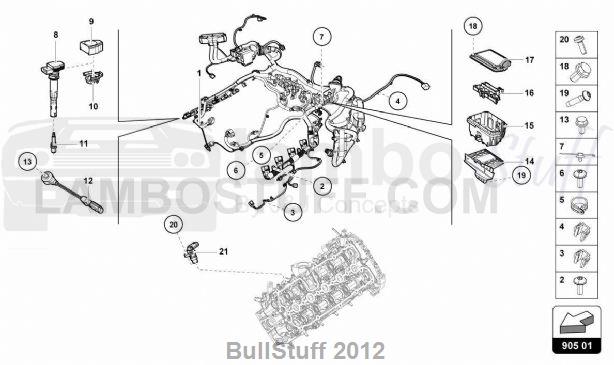

| Item # | PN | Item | Qty Req * | ||
|---|---|---|---|---|---|
| 1 | 4S8971713A |
HARNESS,ENGINE 5,2L V10 FSI DL800
HARNESS FOR ENGINE COMPARTMENT |
1 req |
Avail to order
Our Price: $3,652.33
|
|
| 2 | N10464802 |
HEXAGONAL SOCKET SCREW
OVAL HEXAGON SOCKET HEAD BOLT (4X12) |
3 req |
Current Stock: 16
Our Price: $2.00
|
|
| 3 | 12 | CABLE TIE WITH TERMINAL SOCKET (4,6X200 3,0-6,0MM OUTER) | 0 req | ||
| 4 | 12 | CABLE TIE WITH TERMINAL SOCKET (4,6X200MM) | 0 req | ||
| 5 | N91123701 |
HOLDING CLIP
CLAMP (1-40X15) |
2 req |
Avail to order
Our Price: $4.81
|
|
| 6 | N90833202 |
DUO HEXAGON FLANGE
HEXAGON BOLT (M6X22) |
2 req |
Avail to order
Our Price: $2.00
|
|
| 7 | N10646101 |
CABLE TIE BASE A5/4.6X143
CABLE TIES |
2 req |
Avail to order
Our Price: $2.00
|
|
| 8 | 10 | IGNITION COIL | 0 req | ||
| 9 | 10 | PROTECTIVE CAP (UPPER) | 0 req | ||
| 10 | 10 | PROTECTIVE CAP (LOWER) | 0 req | ||
| 11 | 10 | SPARK PLUG LONGLIFE | 0 req | ||
| 12 | 06E905377J |
KNOCK SENSOR WITH
KNOCK SENSOR WITH WIRING HARNESS (GREEN - CYLINDER 4,5-GREEN 465MM 3 PIN) |
1 req |
Avail to order
Our Price: $84.25
|
|
| 12 | 06E905377K |
KNOCK SENSOR WITH
KNOCK SENSOR WITH WIRING HARNESS (GREY - CYLINDER 9, 10_-GREY 480MM) |
1 req |
Avail to order
Our Price: $84.25
|
|
| 12 | 07L905377E |
KNOCK SENSOR WITH
KNOCK SENSOR WITH WIRING HARNESS (ORANGE - CYLINDER 1- 3 _-565MM ORANGE) |
1 req |
Avail to order
Our Price: $49.30
|
|
| 12 | 07L905377F |
KNOCK SENSOR WITH
KNOCK SENSOR WITH WIRING HARNESS (BROWN - CYLINDER 6-8-590MM BROWN) |
1 req |
Avail to order
Our Price: $49.30
|
|
| 13 | N01024425 |
HEXAGON HEAD BOLT
HEXAGON BOLT (M8X30-M8X30) |
1 req |
Avail to order
Our Price: $2.73
|
|
| 14 | 4S0937539B |
BRACKET E-BOX LI
BRACKET (LEFT) |
1 req |
Avail to order
Our Price: $55.68
|
|
| 14 | 4S0937540B |
BRACKET E-BOX RE
BRACKET (RIGHT) |
1 req |
Avail to order
Our Price: $55.68
|
|
| 15 | 4S0937113A |
ELECTRONICS BOX
HOUSING FOR CONTROL UNITS (LEFT) |
1 req |
Avail to order
Our Price: $33.15
|
|
| 15 | 4S0937114A |
ELECTRONICS BOX
HOUSING FOR CONTROL UNITS (RIGHT) |
1 req |
Avail to order
Our Price: $33.15
|
|
| 16 | 4S0937503 |
RELAY PLATE
RELAY PLATE (RIGHT) |
1 req |
Avail to order
Our Price: $22.89
|
|
| 16 | 4S0937507 |
RELAY PLATE
RELAY PLATE (LEFT) |
1 req |
Avail to order
Our Price: $16.79
|
|
| 17 | 4S0937554A |
COVER E-BOX RE
COVER (RIGHT) |
1 req |
Avail to order
Our Price: $17.08
|
|
| 17 | 4S0937555A |
COVER E-BOX LI
COVER (LEFT) |
1 req |
Avail to order
Our Price: $17.08
|
|
| 18 | N90739704 |
SCREW
PANEL SCREW (TP5X22-5X22) |
2 req |
Current Stock: 16
Our Price: $2.00
|
|
| 19 | N10653201 |
HEXAGON FLANGE
HEX COLLARED BOLT (M6X16-M6X16) |
2 req |
Current Stock: 12
Our Price: $2.01
|
|
| 20 | N10196103 |
HEXALOBULAR SOCKET
OVAL SOCKET HEAD BOLT WITH HEX DRIVE (M6X16-M6X18) |
4 req |
Avail to order
Our Price: $2.00
|
|
| 21 | 04C907601K |
PULSE GENERATOR
IMPULSE SENDER |
4 req |
Avail to order
Our Price: $77.36
|
|
|
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts. |
|||||
