2020 HURACAN EVO COUPE 2WD - AUSTRALIA

Maintenance Parts:

Brakes

PN	Item	Diagram
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G		Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0823359	GAS SPRING GAS SPRING	Current Stock: 2 Our Price: $82.49
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32
079115561J	SPIN-ON FILTER SPIN-ON FILTER	Avail to order Our Price: $83.92
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series	Current Stock: 7 Our Price: $89.92
1K0906283A	EGR VALVE ELECTR.CHANGEOVER EGR VALVE	Current Stock: 3 Our Price: $72.36

Fuel-Air

PN	Item
4T0133843	FILTER ELEMENT FILTER ELEMENT FILTER ELEMENT	Avail to order Our Price: $477.90
06E906051K	FUEL PRESSURE SENSOR FUEL PRESSURE SENSOR	Current Stock: 1 Our Price: $123.28
4s0819439	Filter Element Filter Element	Current Stock: 6 Our Price: $104.52
07L127025S	FUEL PUMP FUEL PUMP	Avail to order Our Price: $695.26

Gaskets

PN	Item	Diagram
N0138493	WASHER WASHER		Current Stock: 47 Our Price: $4.18

Ignition

PN	Item	Diagram
0BZ911024D	STARTER STARTER		Current Stock: 1 Our Price: $1,307.14

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
4S0906262F	LAMBDA PROBE BACK RIGHT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $571.69
4S0906262G	LAMBDA PROBE BACK LEFT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $343.91
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98

Open All

Select Group and TAV

< Previous Next >

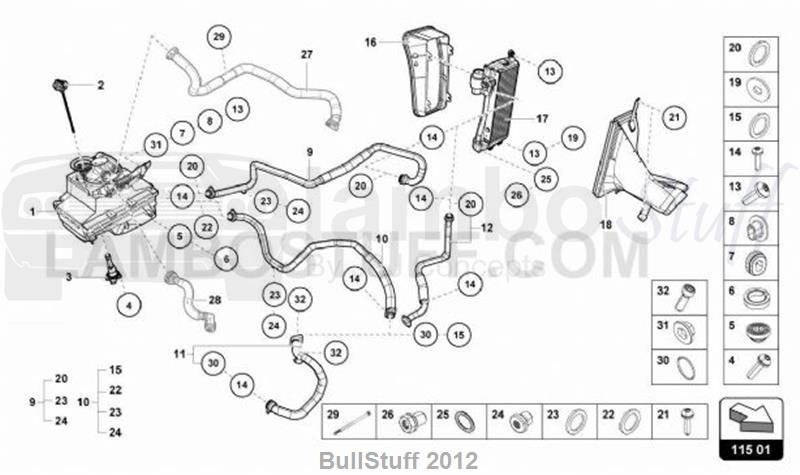

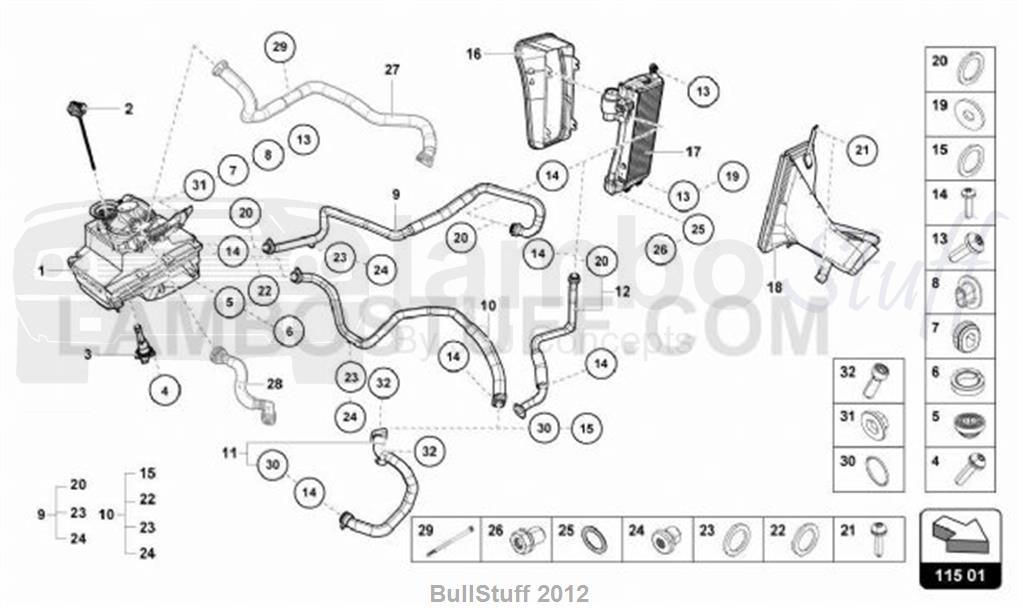

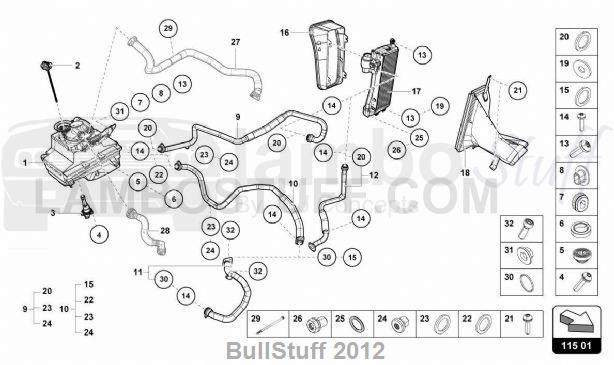

TAV: 115.01.00 - HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT.

2020 Lamborghini HURACAN EVO COUPE 2WD AUSTRALIA HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT. (115.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4S0115373D	OIL RESERVOIR TROCKENSUMPF OIL CONTAINER	1 req	Avail to order Our Price: $2,754.21
2	420103485F	OIL FILLER CAP ENTFALL CASTROL END CAP	1 req	Avail to order Our Price: $32.76
3	079907660A	OIL AND TEMP SENSOR OIL LEVEL SENSOR	1 req	Avail to order Our Price: $171.22
4	11	HEXAGON SOCKET FLAT HEAD BOLT (M6X28)	0 req
5	8K0129669C	GROMMET GROMMET	1 req	Avail to order Our Price: $4.85
6	8K0129697	CAP COVER CAP	1 req	Avail to order Our Price: $2.00
7	8K0129669C	GROMMET GROMMET	1 req	Avail to order Our Price: $4.85
8	8K0129734C	SPACER BUSH	1 req	Avail to order Our Price: $8.34
9	4S0115689F	OIL HOSE V10 OIL PIPE	1 req	Avail to order Our Price: $1,448.57
10	4S0115687C	OIL HOSE OELTANK-DRUCKPUMPE OIL HOSE	1 req	Avail to order Our Price: $744.39
11	4S0115223A	HOSE OIL HOSE	1 req	Avail to order Our Price: $132.21
12	4S0117413F	HOSE SAUGP.-OELKUEHLER OIL HOSE	1 req	Avail to order Our Price: $1,141.89
13	N91054201	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT, SELF-LOCKING (M6X28)	5 req	Current Stock: 8 Our Price: $2.00
14	N10124306	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (NOT AVAILABLE-M6X20)	1 req	Current Stock: 1 Our Price: $2.00
15	WHT007432	O-RING 30X2-N O-RING (30X2)	2 req	Avail to order Our Price: $4.18
16	4T0317025	AIR DUCT ELEMENT AIR GUIDE (RIGHT)	1 req	Avail to order Our Price: $27.29
17	4S0117015B	OIL COOLER MOT-LUFT-OELK. OIL COOLER	1 req	Avail to order Our Price: $1,182.29
18	4T0117335B	AIR DUCT ELEMENT RR.LATERAL DUCT FL AIR GUIDE (LEFT)	1 req	Avail to order Our Price: $217.68
19	N01167026	WASHER WASHER (8,4X24X2)	1 req	Avail to order Our Price: $2.00
20	N90958101	O-RING O-RING (26X3)	4 req	Avail to order Our Price: $28.97
21	N90900401	HEXALOBULAR SOCKET M6x20 HEX SOCKET OVAL HEAD COLLARED (M6X20)	3 req	Current Stock: 2 Our Price: $2.00
22	N90295401	O-RING 29.2X3-N O-RING (29,2X3)	4 req	Avail to order Our Price: $6.63
23	N0138128	SEAL RING SEAL RING (12X15,5X1,5)	1 req	Current Stock: 1 Our Price: $3.51
24	N10637901	SCREW PLUG SEALING PLUG (M12X1,5X12)	2 req	Current Stock: 1 Our Price: $6.92
25	N0138157	O-RING SEAL RING (14X20)	1 req	Current Stock: 1 Our Price: $4.18
26	N90813202	SCREW PLUG OIL DRAIN PLUG (M14X1,5X19)	2 req	Avail to order Our Price: $12.66
27		BREATHER LINE (SEE ILLUSTRATION 103.07 REF 5)	1 req
28		BREATHER LINE (SEE ILLUSTRATION 103.07 REF 6)	1 req
29		CABLE TIES (SEE ILLUSTRAION 103.07 REF 10-7,6X302)	2 req
30	WHT007432	O-RING 30X2-N O-RING (30X2 WHT 007 432)	2 req	Avail to order Our Price: $4.18
31	N91205301	PREV.TORQUE TYPE HEXAGON FLANGE NUT, SELF-LOCKING (M6)	2 req	Avail to order Our Price: $2.39
32	N10517303	TRIPLE SQUARE BOLTM8X22 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M8X22)	1 req	Avail to order Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
