Maintenance Parts:

Tools and Tookits

PN Item Diagram
400093050D CTEK US-CD BATTERY CHARGER
Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month
Avail to order
Our Price: $317.22
CTEK US-CD BATTERY CHARGER
Open All

Select Group and TAV

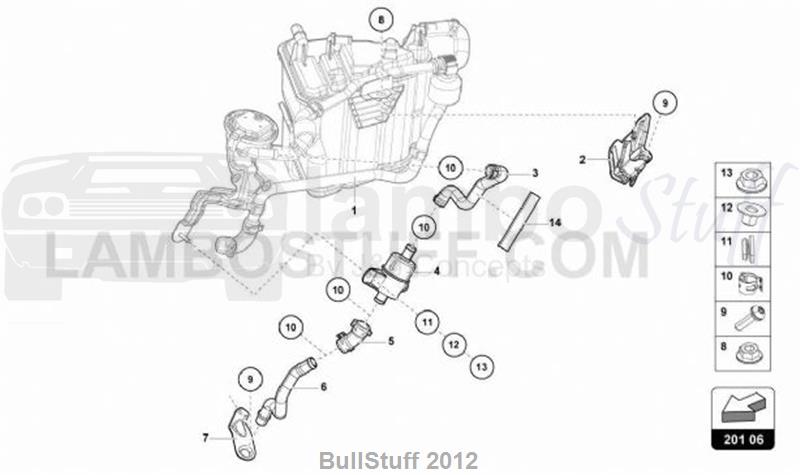

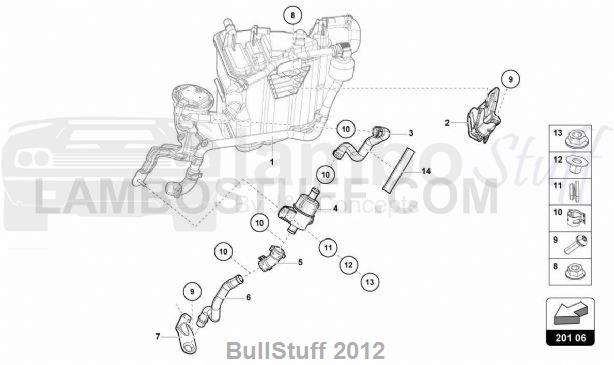

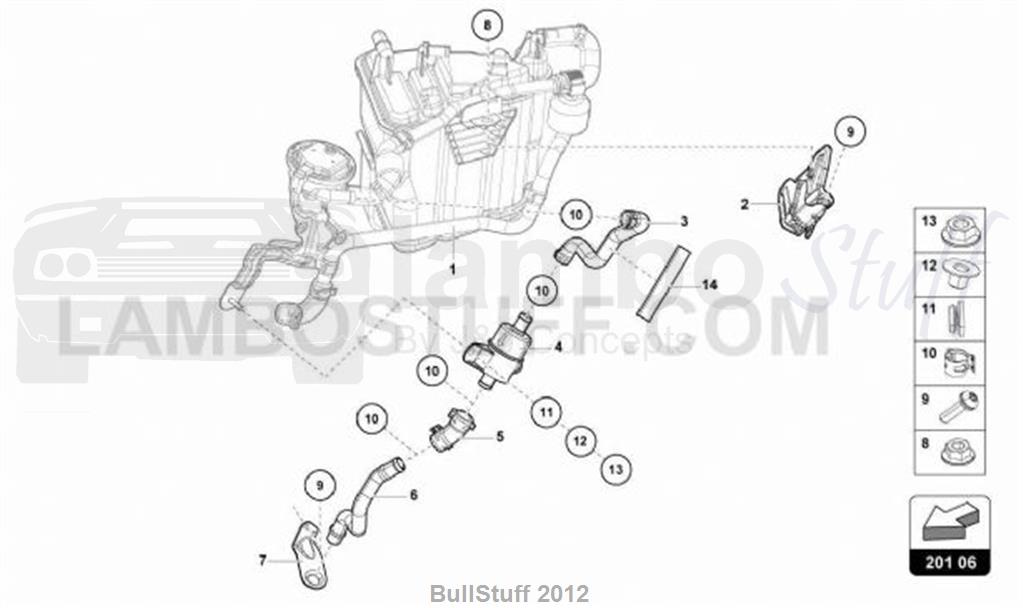

TAV: 201.06.00 - ACTIVATED CHARCOAL CONTAINER

2020 Lamborghini HURACAN EVO COUPE 2WD AUSTRALIA ACTIVATED CHARCOAL CONTAINER (201.06.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 ACTIVATED CHARCOAL CONTAINER (SEE ILLUSTRATION : 201.02) 0 req
2 4S0201187E BRACKET AKF HINTEN
BRACKET
1 req Avail to order
Our Price: $42.05
3 4S0906272B HOSE LDP
HOSE
1 req Avail to order
Our Price: $15.07
4 4S0201752 COMBINATION VALVE
KOMBI VALVE
1 req Avail to order
Our Price: $159.30
5 4S0201389C VENTILATION LINE
AIR LINE
1 req Avail to order
Our Price: $5.96
6 4S0201411G VENTILATION LINE AKF
AIR LINE
1 req Avail to order
Our Price: $15.07
7 4S0201171 BRACKET ENTLUEFTUNGSLTG.
BRACKET
1 req Avail to order
Our Price: $11.56
8 N91205301 PREV.TORQUE TYPE
HEXAGON FLANGE NUT, SELF-LOCKING (M6)
1 req Avail to order
Our Price: $2.23
9 N0902619 HEX. BOLT WITH
HEXAGON HEAD BOLT (COMBI) (M6X20)
2 req Avail to order
Our Price: $1.94
10 4B0422379A SPRING CLAMP
SPRING BAND CLAMP (25X12)
2 req Avail to order
Our Price: $1.94
11 431129669 GROMMET
GROMMET
1 req Avail to order
Our Price: $7.18
12 1K0129734B SPACER
BUSH
1 req Avail to order
Our Price: $8.12
13 N01508210 HEXAGON FLANGE NUT
HEXAGON COLLAR NUT (M6)
3 req Current Stock: 17
Our Price: $1.94
14 4T0127237 HEAT SHIELD
HEAT SHIELD
1 req Avail to order
Our Price: $2.00

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
