Maintenance Parts:

Brakes

PN Item Diagram
4S0698451 Rear Brake Pad Set
Rear Brake Pad Set 1 SET OF BRAKE PADS FOR DISK BRAKE
Current Stock: 1
Our Price: $633.05
Rear Brake Pad Set
4T0698010 Ceramic Brake Pad Kit
BIADHESIVEE PADS KIT
Avail to order
Our Price: $86.57

Drivetrain

PN Item Diagram
079198405E Oil Filter Gallardo/Huracan LP Series
Oil Filter Gallardo LP Series
Current Stock: 9
Our Price: $67.74
Oil Filter Gallardo/Huracan LP Series

Fuel-Air

PN Item Diagram
420133844E ENGINE AIR FILTER HURACAN
AIR FILTER SEE PN 420133844EZ for K&N performance filter
Avail to order
Our Price: $93.96
ENGINE AIR FILTER HURACAN

Ignition

PN Item Diagram
06H905601C SPARK PLUG
SPARK PLUG
Avail to order
Our Price: $28.05
101905631G Spark Plug - Gallardo/Huracan LP Series
Spark Plug Champion
Current Stock: 58
Our Price: $27.24
Spark Plug - Gallardo/Huracan LP Series

Misc

PN Item Diagram
4H0805615 TOWING EYE FOR HURACAN
TOWING EYE
Avail to order
Our Price: $31.91
4T1864435E FLOOR MAT - HURACAN
customizable sticthing or border
Avail to order
Our Price: $704.35
FLOOR MAT - HURACAN
N0300574 KEY - Spanner Murcielago-Aventador-Huracan
Wrench Spanner Murcielago-Aventador-Huracan
Avail to order
Our Price: $7.14
KEY - Spanner Murcielago-Aventador-Huracan
Open All

Select Group and TAV

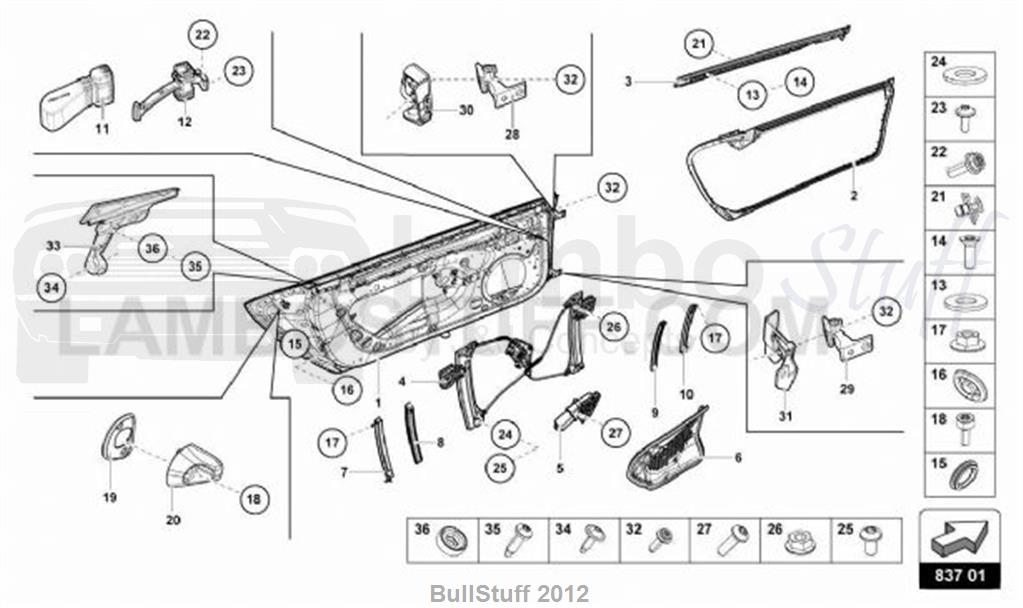

TAV: 837.01.00 - DOORS

2017 Lamborghini HURACAN LP610-4 SPYDER ENGLAND DOORS (837.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 4T7831051B DOOR-IN-WHITE
DOOR (CONTACT YOUR AREA MANAGER-LEFT)
1 req Avail to order
Our Price: $8,623.50
1 4T7831052B DOOR-IN-WHITE
DOOR (CONTACT YOUR AREA MANAGER-RIGHT)
1 req Avail to order
Our Price: $8,623.50
2 4T0837911C DOOR SEAL ESTERNA
DOOR SEAL (LEFT OUTER)
1 req Avail to order
Our Price: $246.40
2 4T0837912C DOOR SEAL RH
DOOR SEAL (RIGHT OUTER)
1 req Avail to order
Our Price: $246.40
3 4T7837477A WIN. WEATHERSTRIP
WINDOW APERTURE SEAL (LEFT)
1 req Avail to order
Our Price: $223.73
3 4T7837478A WIN. WEATHERSTRIP
WINDOW APERTURE SEAL (RIGHT)
1 req Avail to order
Our Price: $223.73
4 4T0837397C WINDOW LIFT
WINDOW REGULATOR WITHOUT MOTOR (UNTIL VIN HLA06645 ORDER ALSO RIGHT PART-LEFT)
1 req Avail to order
Our Price: $369.96
4 4T0837398C WINDOW LIFT
WINDOW REGULATOR WITHOUT MOTOR (UNTIL VIN HLA06645 ORDER ALSO LEFT PART-RIGHT)
1 req Avail to order
Our Price: $369.96
5 8K0959801B MOTOR,WINDOW
WINDOW REGULATOR MOTOR (LEFT)
1 req Avail to order
Our Price: $102.55
5 8K0959802B MOTOR,WINDOW
WINDOW REGULATOR MOTOR (RIGHT)
1 req Avail to order
Our Price: $110.27
6 4T0837917 WATER DEFLECT RIPARO ACQUA
DOOR SEAL (LEFT)
1 req Avail to order
Our Price: $26.18
6 4T0837918 WATER DEFLECT RIPARO ACQUA
DOOR SEAL (RIGHT)
1 req Avail to order
Our Price: $26.18
7 4T0837405 GUIDE RAIL
WINDOW GUIDE (LEFT)
1 req Avail to order
Our Price: $52.65
7 4T0837406 GUIDE RAIL
WINDOW GUIDE (RIGHT)
1 req Avail to order
Our Price: $52.65
8 4T0837933B WINDOW GUIDE
SEAL (LEFT A. RIGHT REAR)
2 req Avail to order
Our Price: $38.68
9 4T0837349B COVER
SEAL (LEFT A. RIGHT FRONT)
2 req Avail to order
Our Price: $21.65
10 4T0831619 GUIDE RAIL VORN
WINDOW GUIDE (WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-LEFT)
1 req Avail to order
Our Price: $52.65
10 4T0831620 GUIDE RAIL VORN
WINDOW GUIDE (WARNING UP TO VIN CLA00425 USE ALSO RIF. 2-RIGHT)
1 req Avail to order
Our Price: $52.65
11 8V0837267 COVER,DOOR AUSSEN
COVER (LEFT A. RIGHT FRONT)
2 req Avail to order
Our Price: $3.36
12 8S0837249 DOOR ARRESTER
DOOR CATCH (LEFT A. RIGHT FRONT)
2 req Avail to order
Our Price: $25.43
13 WHT000778 SPRING LOCK WASHER
WASHER (30X36X1)
8 req Current Stock: 4
Our Price: $2.00
SPRING LOCK WASHER
14 N10459201 screw M5x12.0CH
HEXAGON SOCKET HEAD BOLT (M5X12)
8 req Avail to order
Our Price: $2.00
15 4H0839111 GROMMET
COVER CAP (16,2)
4 req Avail to order
Our Price: $2.00
16 1Z0971904A PLUG
BUNGS
4 req Avail to order
Our Price: $2.00
17 N90663602 HEX.NUT W/ FLANGE
HEX. NUT WITH WASHER (M5)
4 req Current Stock: 18
Our Price: $2.00
18 N91203201 12-POINT SOCKET M8X22
FLAT HEAD MULTI-POINT SOCKET BOLT (M8X22)
2 req Avail to order
Our Price: $2.00
19 4T0831431 SEAL,HINGE
DOOR SEAL (LEFT)
1 req Avail to order
Our Price: $8.34
19 4T0831432 SEAL,HINGE
DOOR SEAL (RIGHT)
1 req Avail to order
Our Price: $8.34
20 4T0831121A REINF.DOOR HANDLE SUP.
REINFORCEMENT FOR DOOR HANDLE (LEFT)
1 req Avail to order
Our Price: $39.63
20 4T0831122A REINF.DOOR HANDLE SUP.
REINFORCEMENT FOR DOOR HANDLE (RIGHT)
1 req Avail to order
Our Price: $39.63
21 8L3837199B Please Check Manual for description
CLIP
22 req Current Stock: 36
Our Price: $2.00
Please Check Manual for description
22 N91084201 12-POINT SOCKET
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) (M8X25)
4 req Avail to order
Our Price: $2.00
23 WHT003237 HEXALOBULAR SOCKETM6X12
HEXAGON SOCKET FLAT HEAD BOLT (M6X12)
6 req Avail to order
Our Price: $2.00
24 N01166623 WASHER
WASHER (6,4X18X1,6)
4 req Current Stock: 2
Our Price: $2.00
WASHER
25 N10124308 screw
OVAL HEXAGON SOCKET HEAD BOLT (M6X20)
4 req Current Stock: 20
Our Price: $2.00
screw
26 N10017307 HEXAGON FLANGE NUT
HEXAGON COLLAR NUT (M5)
4 req Avail to order
Our Price: $2.00
27 8Z0837691C SCREW
HEXAGON SOCKET HEAD PANEL BOLT (5X22)
6 req Current Stock: 4
Our Price: $2.00
SCREW
28 4G0831401A DOOR HINGE
DOOR HINGE (LEFT UPPER)
1 req Avail to order
Our Price: $25.49
28 4G0831402A DOOR HINGE
DOOR HINGE (RIGHT UPPER)
1 req Avail to order
Our Price: $25.49
29 4G0831401B DOOR HINGE
DOOR HINGE (LEFT LOWER)
1 req Avail to order
Our Price: $43.70
29 4G0831402B DOOR HINGE
DOOR HINGE (RIGHT LOWER)
1 req Avail to order
Our Price: $43.70
30 4T0831329B HINGE REINF.
HINGE REINFORCEMENT (LEFT UPPER)
1 req Avail to order
Our Price: $60.40
30 4T0831330B HINGE REINF.
HINGE REINFORCEMENT (RIGHT UPPER)
1 req Avail to order
Our Price: $60.40
31 4T0831333B REINFORCEMENT SCHARNIER UNTEN
HINGE REINFORCEMENT (LEFT LOWER)
1 req Avail to order
Our Price: $60.40
31 4T0831334B REINFORCEMENT SCHARNIER UNTEN
HINGE REINFORCEMENT (RIGHT LOWER)
1 req Avail to order
Our Price: $60.40
32 8H0831701 SCREW
HEX SOCKET HEAD COLLARED BOLT (M10X34)
4 req Current Stock: 3
Our Price: $2.00
SCREW
33 4T7837901B TRIM
TRIM FOR DOOR WINDOW FRAME (LEFT)
1 req Avail to order
Our Price: $581.21
33 4T7837902B TRIM
TRIM FOR DOOR WINDOW FRAME (RIGHT)
1 req Avail to order
Our Price: $581.21
33 TRIM FOR DOOR WINDOW FRAME (ONLY FOR SPYDER VERSION-RIGHT) 0 req
34 N91138701 DUO BOLT W.WASHER M5X30-S1
HEXAGON BOLT WITH INNER HEX ROUND HEAD (COMBI) (M5X30)
2 req Avail to order
Our Price: $2.00
35 N10595002 HEXALOBULAR SOCKET
ROUND HD. SCREW (M5X18)
4 req Avail to order
Our Price: $2.00
36 4T7837173 CLAMP DOOR TRIANGLE BUSH
BUSH
4 req Avail to order
Our Price: $26.98

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
