2017 HURACAN LP610-4 AVIO EDITION - USA

Maintenance Parts:

Brakes

PN	Item
4T0698010	Ceramic Brake Pad Kit BIADHESIVEE PADS KIT	Avail to order Our Price: $124.46
4S0698451	Rear Brake Pad Set Rear Brake Pad Set 1 SET OF BRAKE PADS FOR DISK BRAKE	Avail to order Our Price: $721.61
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G	Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item
900000384B	HURACAN CAR COVER ORANGE STITCHING INDOOR INT. 62X CAR COVER ORANGE STIT. NOTE: The orange color Lamborghini uses for this cover is very light and is almost yellow. This is normal and their intended color for this cover	Avail to order Our Price: $403.63
079115561J	SPIN-ON FILTER SPIN-ON FILTER	Avail to order Our Price: $83.92
1K0906283A	EGR VALVE ELECTR.CHANGEOVER EGR VALVE	Current Stock: 3 Our Price: $72.36
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 4 Our Price: $48.32
4T0823359	GAS SPRING GAS SPRING	Current Stock: 2 Our Price: $82.49
G052529A2	TRANSMISSION FLUID TRANSMISSION FLUID	Avail to order Our Price: $39.00

Drivetrain

PN	Item	Diagram
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series		Current Stock: 7 Our Price: $89.92

Fuel-Air

PN	Item
420133844E	ENGINE AIR FILTER HURACAN AIR FILTER SEE PN 420133844EZ for K&N performance filter	Avail to order Our Price: $148.14
06E906051K	FUEL PRESSURE SENSOR FUEL PRESSURE SENSOR	Current Stock: 1 Our Price: $123.28
07L127025S	FUEL PUMP FUEL PUMP	Avail to order Our Price: $695.26
4s0819439	Filter Element Filter Element	Current Stock: 6 Our Price: $104.52
4T0133843	FILTER ELEMENT FILTER ELEMENT FILTER ELEMENT	Avail to order Our Price: $477.90

Gaskets

PN	Item	Diagram
N0138493	WASHER WASHER		Current Stock: 47 Our Price: $4.18

Ignition

PN	Item
06H905601C	SPARK PLUG SPARK PLUG	Avail to order Our Price: $36.40
101905631G	Spark Plug - Gallardo/Huracan LP Series Spark Plug Champion	Current Stock: 48 Our Price: $35.14
0BZ911024D	STARTER STARTER	Current Stock: 1 Our Price: $1,307.14

Misc

PN	Item
4T1864435E	HURACAN SET OF 2 FLOOR MATS PICK BORDER COLOR HURACAN SET OF 2 FLOOR MATS PICK BORDER COLOR customizable sticthing or border	Avail to order Our Price: $865.25
4H0805615	TOWING EYE FOR HURACAN TOWING EYE	Avail to order Our Price: $41.92
4T0898201	SEE PN 4T0998200A PAIR OF DOOR LIGHTS WITH LAMBORGHINI SCRIPT WRITING KIT LIGHTS THE GROUND WITH THE LAMBORGHINI SCRIPT ILLUMINATED FROM THE DOOR Replaces - 4E0947415A	Avail to order Our Price: $224.30
4T0898200	SEE PN 4T0998200 DOOR LIGHT WITH LAMBORGHINI LOGO KIT Replaces - 4E0947415A	Avail to order Our Price: $224.30
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
4T0054690	CRUISE CONTROL KIT, LEATHER 610-4 CRUISE CONTROL KIT, LEATHER	Avail to order Our Price: $1,509.15
4T0054690A	CRUISE CONTROL KIT, ALCANTARA 610-4 CRUISE CONTROL KIT, ALCANTARA	Avail to order Our Price: $1,509.15
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78
4T0864537	TRIM COVER PLATE TRIM COVER PLATE	Avail to order Our Price: $78.13

Sensors

PN	Item
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

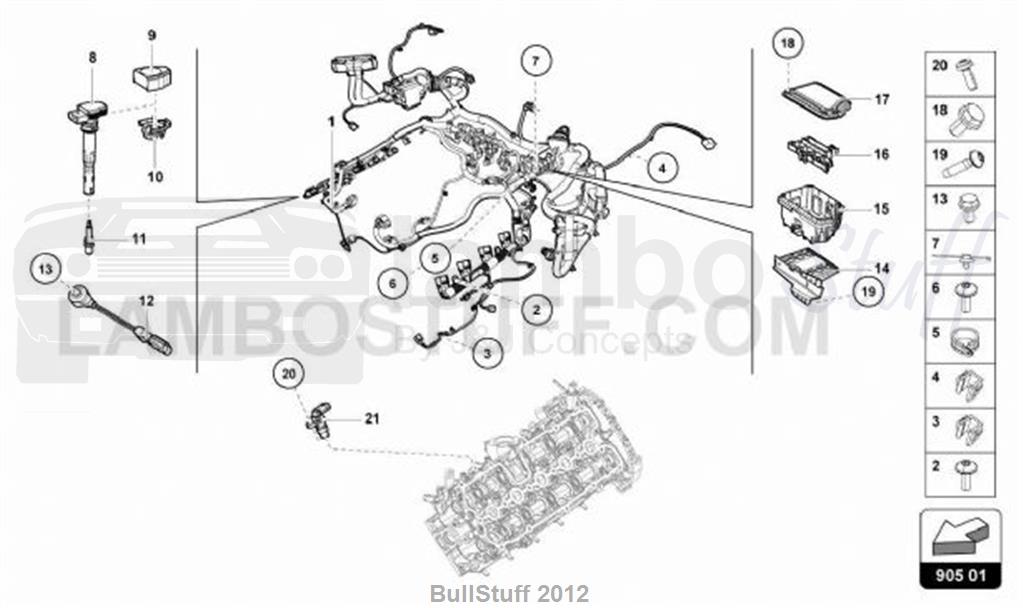

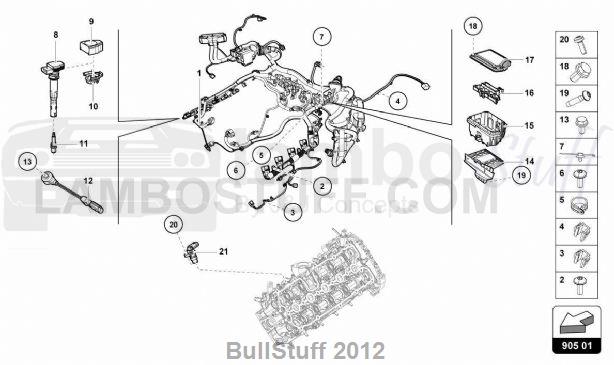

TAV: 905.01.00 - IGNITION SYSTEM

2017 Lamborghini HURACAN LP610-4 AVIO EDITION USA IGNITION SYSTEM (905.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4S8971713A	HARNESS,ENGINE 5,2L V10 FSI DL800 HARNESS FOR ENGINE COMPARTMENT	1 req	Avail to order Our Price: $3,788.90
1	4T8970159	HARNESS,ENGINE ENGINE LIGHTS HARNESS FOR ENGINE COMPARTMENT (ENGINE HARNESS WITH ENGINE ILLUMINATION)	1 req	Avail to order Our Price: $66.25
2	N10464802	HEXAGONAL SOCKET SCREW OVAL HEXAGON SOCKET HEAD BOLT (4X12)	3 req	Current Stock: 16 Our Price: $2.00
3	WHT001999	CABLE TIE BASE 200.00X4.00-45.00 CABLE TIE WITH TERMINAL SOCKET (OUTER 3,0-6,0MM)	12 req	Avail to order Our Price: $2.39
4	5M0971838	CABLE TIE BASE CABLE TIE WITH TERMINAL SOCKET (4,6X200MM)	12 req	Current Stock: 4 Our Price: $2.84
5	N91123701	HOLDING CLIP CLAMP (1-40X15)	2 req	Avail to order Our Price: $5.14
6	N90833202	DUO HEXAGON FLANGE HEXAGON BOLT (M6X22)	2 req	Avail to order Our Price: $2.00
7	N10646101	CABLE TIE BASE A5/4.6X143 CABLE TIES	2 req	Avail to order Our Price: $2.00
8	079905115	Ignition Coil IGNITION COIL	10 req	Avail to order Our Price: $78.76
8	079905115A	IGNITION COIL IGNITION COIL	10 req	Avail to order Our Price: $86.65
9	07L905142	PROTECTIVE CAP PROTECTIVE CAP (UPPER)	10 req	Avail to order Our Price: $5.14
10	07L905116B	PROTECTIVE CAP PROTECTIVE CAP (LOWER)	10 req	Avail to order Our Price: $8.34
12	06E905377A	KNOCK SENSOR KNOCK SENSOR WITH WIRING HARNESS (GREEN - CYLINDER 4,5)	1 req	Avail to order Our Price: $166.75
12	06E905377C	KNOCK SENSOR KNOCK SENSOR WITH WIRING HARNESS (GREY - CYLINDER 9, 10_)	1 req	Avail to order Our Price: $153.35
12	07L905377C	KNOCK SENSOR KNOCK SENSOR WITH WIRING HARNESS (ORANGE - CYLINDER 1- 3 _)	1 req	Avail to order Our Price: $135.63
12	07L905377D	KNOCK SENSOR KNOCK SENSOR WITH WIRING HARNESS (BROWN - CYLINDER 6-8)	1 req	Avail to order Our Price: $134.00
13	N01024425	HEXAGON HEAD BOLT HEXAGON BOLT (M8X30-M8X30)	1 req	Current Stock: 1 Our Price: $2.98
14	4S0937539B	BRACKET E-BOX LI BRACKET (LEFT)	1 req	Avail to order Our Price: $57.76
14	4S0937540B	BRACKET E-BOX RE BRACKET (RIGHT)	1 req	Avail to order Our Price: $57.76
15	4S0937113A	ELECTRONICS BOX HOUSING FOR CONTROL UNITS (LEFT)	1 req	Avail to order Our Price: $34.39
15	4S0937114A	ELECTRONICS BOX HOUSING FOR CONTROL UNITS (RIGHT)	1 req	Avail to order Our Price: $34.39
16	4S0937503	RELAY PLATE RELAY PLATE (RIGHT)	1 req	Avail to order Our Price: $23.75
16	4S0937507	RELAY PLATE RELAY PLATE (LEFT)	1 req	Avail to order Our Price: $17.42
17	4S0937554A	COVER E-BOX RE COVER (RIGHT)	1 req	Avail to order Our Price: $17.72
17	4S0937555A	COVER E-BOX LI COVER (LEFT)	1 req	Avail to order Our Price: $17.72
18	N90739704	SCREW PANEL SCREW (TP5X22-5X22)	2 req	Current Stock: 16 Our Price: $2.00
19	N10653201	HEXAGON FLANGE HEX COLLARED BOLT (M6X16-M6X16)	2 req	Current Stock: 12 Our Price: $2.17
20	N10196103	HEXALOBULAR SOCKET FILLISTER HEAD BOLT WITH MULTI-POINT SOCKET HEAD (M6X16-M6X18)	4 req	Avail to order Our Price: $2.00
21	04C907601	CAM SENSOR IMPULSE SENDER (M6X16)	4 req	Avail to order Our Price: $114.49
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
