2017 HURACAN LP580-2 COUPE - EUROPE

Maintenance Parts:

Brakes

PN	Item	Diagram
4T0698010	Ceramic Brake Pad Kit BIADHESIVEE PADS KIT		Avail to order Our Price: $116.39
4S0698451	Rear Brake Pad Set Rear Brake Pad Set 1 SET OF BRAKE PADS FOR DISK BRAKE		Avail to order Our Price: $676.23

Common repairs and upgrades

PN	Item
900000384D	NLA (No Longer Available) INT. 62X CAR COVER WHITE STITCHING INDOOR	Avail to order Our Price: $398.89
900000384A	NLA (No Longer Available) Huracan Indoor Cover - Green Stitching	Avail to order Our Price: $398.89
900000384B	HURACAN CAR COVER ORANGE STITCHING INDOOR INT. 62X CAR COVER ORANGE STIT. NOTE: The orange color Lamborghini uses for this cover is very light and is almost yellow. This is normal and their intended color for this cover	Avail to order Our Price: $398.89
900000384C	NLA (No Longer Available) INT. 62X CAR COVER YELLOW STIT.	Avail to order Our Price: $398.89
900000384E	NLA (No Longer Available) INT. 62X CAR COVER GREY STIT.	Avail to order Our Price: $398.89
900000384F	NLA (No Longer Available) INT. 62X CAR COVER RED STITCHING INDOOR	Avail to order Our Price: $398.89

Drivetrain

PN	Item	Diagram
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series		Avail to order Our Price: $86.68

Fuel-Air

PN	Item	Diagram
420133844E	ENGINE AIR FILTER HURACAN AIR FILTER SEE PN 420133844EZ for K&N performance filter		Avail to order Our Price: $142.80

Ignition

PN	Item	Diagram
06H905601C	SPARK PLUG SPARK PLUG		Avail to order Our Price: $35.09

Misc

PN	Item
4T1864435E	HURACAN SET OF 2 FLOOR MATS PICK BORDER COLOR HURACAN SET OF 2 FLOOR MATS PICK BORDER COLOR customizable sticthing or border	Avail to order Our Price: $865.25
4H0805615	TOWING EYE FOR HURACAN TOWING EYE	Avail to order Our Price: $40.41
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19
4T0072192B	Aero Kit RWD Huracan LP580-2 Coupes and Spyders includes: front splitter, side skirts, rear diffuser, rear wing, and fixing parts. Fender louvers not included	Avail to order Our Price: $13,392.99
4T0898201	SEE PN 4T0998200A PAIR OF DOOR LIGHTS WITH LAMBORGHINI SCRIPT WRITING KIT LIGHTS THE GROUND WITH THE LAMBORGHINI SCRIPT ILLUMINATED FROM THE DOOR Replaces - 4E0947415A	Avail to order Our Price: $221.94
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22
4T0853251A	NLA (No Longer Available) Not available in USA market	Avail to order Our Price: $133.67
4T0853252A	NLA (No Longer Available) Not available in USA market	Avail to order Our Price: $133.67
4T0898200	SEE PN 4T0998200 DOOR LIGHT WITH LAMBORGHINI LOGO KIT Replaces - 4E0947415A	Avail to order Our Price: $221.94
4T0945119B	NLA (No Longer Available) Not available in the USA market.	Avail to order Our Price: $228.02
4T0945120B	NLA (No Longer Available) Not available in USA market.	Avail to order Our Price: $228.02

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

TAV: 121.05.00 - COOLER FOR COOLANT

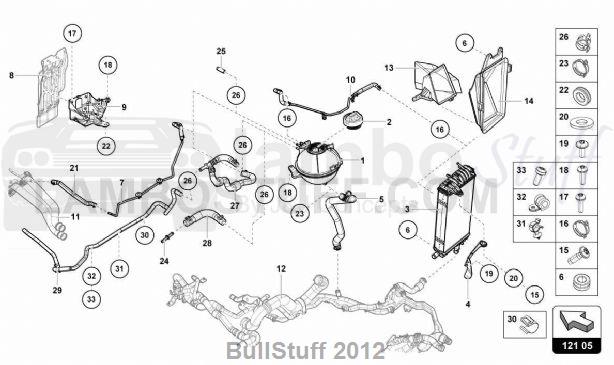

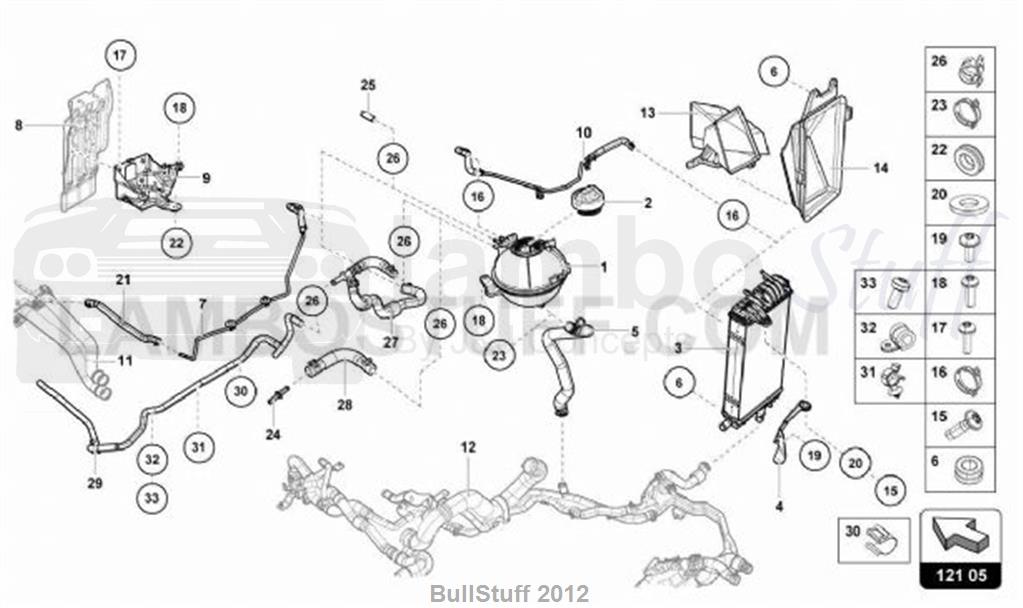

2017 Lamborghini HURACAN LP580-2 COUPE EUROPE COOLER FOR COOLANT (121.05.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4S0121403B	EXPANSION TANK RESERVOIR	1 req	Avail to order Our Price: $142.08
2	420121321	COVER END CAP	1 req	Avail to order Our Price: $138.06
3	4S0121212B	AUXILIARY RADIATORIM SIDEBLADE RE. ADDITIONAL COOLER FOR COOLANT (RIGHT)	1 req	Avail to order Our Price: $364.52
4	4S0121256A	BRACKET ZWK IM SIDEBLADE BRACKET	1 req	Avail to order Our Price: $29.49
5	4S0121106A	COOLANT HOSE AGB BEFUELLSCHL. COOLANT HOSE	1 req	Avail to order Our Price: $43.64
6	4S0121275B	BEARING KUEHLER RUBBER BUSH	4 req	Avail to order Our Price: $7.68
7	4S0121081M	COOLANT HOSE HWK LB624 COOLANT PIPE	1 req	Avail to order Our Price: $49.87
8		RETAINING BASE (CANNOT BE SOLD SEPARATELY)	0 req
9	4S0121214C	BRACKET AGB ADAPTER RETAINER FOR RESERVOIR	1 req	Avail to order Our Price: $114.10
10	4S0121081D	COOLANT HOSE ZWK SB BREATHER LINE (RIGHT)	1 req	Avail to order Our Price: $40.90
11		COOLANT PIPE (SEE ILLUSTRATION :- 121-030)	0 req
12		COOLANT PIPE (SEE ILLUSTRATION :- 121-040)	0 req
13	4T0121694B	AIR DUCT ELEMENT AIR GUIDE (RIGHT)	1 req	Avail to order Our Price: $53.47
14	4T0121694	AIR DUCT ELEMENT AIR GUIDE (RIGHT)	1 req	Avail to order Our Price: $83.64
15	N90731503	SCREW HEXAGON SOCKET HEAD PANEL BOLT (6X25)	1 req	Avail to order Our Price: $2.00
16	N91184901	NLA (No Longer Available) SPRING BAND CLAMP (14X12)	2 req	*See Description
17	N91096801	HEXALOBULAR SOCKET HEXAGON SOCKET FLAT HEAD BOLT (M6X20)	1 req	Current Stock: 6 Our Price: $2.00
18	N91069601	HEXALOBULAR SOCKETM6X22 HEXAGON SOCKET FLAT HEAD BOLT (M6X22)	1 req	Current Stock: 14 Our Price: $2.00
19	N91096701	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	5 req	Current Stock: 8 Our Price: $2.00
20	N90225901	WASHER 6.2X24X2 WASHER (6,2X24X2)	14 req	Avail to order Our Price: $2.00
21		COOLANT PIPE (INCLUDED IN REF. 7)	1 req
22	4H0121585	GROMMET RUBBER BUSH	1 req	Avail to order Our Price: $2.30
23	N90687001	SPRING CLAMP SPRING BAND CLAMP (27X12)	2 req	Avail to order Our Price: $7.53
24	4S0121140	HOSE CONNECTOR HOSE CONNECTOR	1 req	Avail to order Our Price: $3.01
25		BUNGS (NO PART - VALID FOR ANOTHER MODEL)	0 req
26	N90686701	SPRING CLAMP SPRING BAND CLAMP (14X12)	3 req	Avail to order Our Price: $1.94
27		COOLANT HOSE (NO PART - VALID FOR ANOTHER MODEL)	0 req
28	8K0121107AE	COOLANT HOSE R4 TDI COOLANT HOSE	1 req	Avail to order Our Price: $17.87
29	07L121086G	COOLANT HOSE VENT HOSE	1 req	Avail to order Our Price: $69.61
30	07L133847	CLAMP HOSE BRACKET	1 req	Current Stock: 9 Our Price: $2.00
31	N10743901	SECURING PIN SWIVEL PIN	1 req	Avail to order Our Price: $3.30
32	N0206208	CLAMP CLAMP	1 req	Avail to order Our Price: $3.88
33	N10451408	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	1 req	Avail to order Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
