1996 Diablo Roadster - USA

Group :

Tav :

Maintenance Parts:

Belts

PN	Item
001736516	COOLANT PUMP ALTERNATOR BELT COOLANT PUMP ALTERNATOR BELT	Current Stock: 5 Our Price: $214.70
004534071	COMPRESSOR BELT COMPRESSOR BELT	Current Stock: 2 Our Price: $153.37
001736517	COOLANT PUMP ALTERNATOR BELT (FROM SE VIN 12043) COOLANT PUMP ALTERNATOR BELT	Avail to order Our Price: $139.99

Brakes

PN	Item
410615115D	E-BRAKE PAD - LATE DIABLO - MURCIELAGO SOLD EACH E-BRAKE PAD MURCIELAGO AND LATE DIABLO SOLD EACH	Current Stock: 1 Our Price: $52.15
0032000561	BRAKE PAD KIT -FRONT - LATE DIABLO - MURCIELAGO -4 PADS - 2 PER ROTOR BRAKE PAD KIT 4 PADS PER KIT. REAR AND FRONT BRAKE KITS ARE SAME PART NUMBER 0032000561 NLA FROM LAMBORGHINI (NO LONGER AVAILABLE) PRICING IS NOT UPDATED ON NLA PARTS. PLEASE CONTACT US FOR CURRENT PRICE AND AVAILABILITY	Current Stock: 1 Our Price: $1,042.91
003136085	BRAKE PAD KIT FRONT - DIABLO DIABLO BRAKE PAD KIT	Avail to order Our Price: $1,085.86
003236088	BRAKE PAD KIT REAR - DIABLO BRAKE PAD KIT REAR - DIABLO - FULL SET FOR REAR	Avail to order Our Price: $789.90
003334931	NLA (NO LONGER AVAILABLE) E-BRAKE PAD	Avail to order Our Price: $431.02

Common repairs and upgrades

PN	Item
0079004387	SHOCK ABSORBER SHOCK ABSORBER FOR ANTERIOR COWLING	Current Stock: 2 Our Price: $150.50
0092004388	SHOCK ABSORBER FOR ENGINE COWLING SHOCK ABSORBER FOR ENGINE COWLING	Current Stock: 4 Our Price: $228.45
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 7 Our Price: $27.66

Drivetrain

PN	Item
002137138	BALANCED ASSEMBLY (PRESSURE PLATE AND FLYWHEEL) - LATE MODEL DIABLO BALANCED CLUTCH 002137138 CLUTCH WHEEL SOLD SEPERATELY	Avail to order Our Price: $2,339.28
001505914	OIL FILTER - DIABLO - LM002 - COUNTACH - URRACO - JALPA OIL CARTRIDGE. NOTE: THESE ARE ORDERED DIRECTLY FROM THE FACTORY. BRAND/MODEL/COLOR MAY DIFFER FROM THE PICTURE. WE HAVE NO CONTROL AS TO WHAT IS SENT WHEN THEY ARE ORDERED.	Current Stock: 20 Our Price: $93.28
002135367	THROW OUT BEARING - LATE DIABLO THRUST BEARING VALEO952112LO	Avail to order Our Price: $555.97
002136948	SLAVE CLUTCH CYLINDER DIABLO / COUNTACH SLAVE CLUTCH CYLINDER	Current Stock: 1 Our Price: $144.85
004219984	MASTER CLUTCH CYLINDER CLUTCH CYLINDER CONTROL ASSEMBLY	Current Stock: 1 Our Price: $378.11
0017001862	WATER PUMP COMPLETE 1995 2001 - READ DESCRIPTION WATER PUMP COMPLETE 1995 2001 - READ DESCRIPTION HOWEVER THERE ARE TWO PULLEY TYPES, YOU MUST DOUBLE CHECK HOW YOUR POWER STEERING IS CONNECTED. THE OTHER VERSION IS PN 0017002472	Avail to order Our Price: $4,398.23
0017002472	WATER PUMP 1995 2001 - READ DESCRIPTION COOLANT PUMP COMPLETE - THIS PUMP FITS DIABLOS FROM 1995 TO 2001 - HOWEVER THERE ARE TWO PULLEY TYPES, YOU MUST DOUBLE CHECK HOW YOUR POWER STEERING IS CONNECTED. THE OTHER VERSION IS PN 0017001862	Avail to order Our Price: $3,589.10
002134687a	1995 - 2001 DIABLO CLUTCH ROD THIS IS AN AFTERMARKET CLUTCH ROD UPGRADE FOR DIABLO'S MANUFACTURED AFTER 1994 (1995 - 2001) THESE RODS ARE VERY PRONE TO BREAKAGE. FOR FULL ARTICLE AND INSTALLATION VISIT: HTTP://LAMBOWEB.COM/REPAIRS_SECTION/DIABLO_REPAIRS_BROKEN_CLUTCH_ROD.HTM HTTP://WWW.LAMBOWEB.COM/REPAIRS_SECTION/REPAIRS_CLUTCH_CONNECTING_ROD.HTM	Avail to order Our Price: $850.00
002135365R	CLUTCH DIABLO 1995 AND UP - RECONDITIONED CLUTCH DIABLO 1995 AND UP - RECONDITIONED PRESSURE PLATE ONLY	Current Stock: 1 Our Price: $533.30
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO	Current Stock: 10 Our Price: $201.60

Fuel-Air

PN	Item
07M133843	AIR FILTER - LM002, COUNTACH, DIABLO, MURCIELAGO PLEASE CHECK YOUR PART MANUAL FOR A DESCRIPTION FOR PERFORMANCE FILTERS SEE PN: 07M133843A	Current Stock: 14 Our Price: $28.63
400201511A	FUEL FILTER - DIABLO - GALLARDO - MURCIELAGO FUEL FILTER	Current Stock: 9 Our Price: $264.73
AMAIRD	HI-PERFORMANCE AFE AIR FILTER - DIABLO/MURCIELAGO - SPORT AIR FILTER MURCIELAGO - DIABLO AFTER MARKET AFE AIR FILTER 30-10133	Current Stock: 1 Our Price: $114.44
07M906031	FUEL INJECTOR (SOLD EA) PLEASE CHECK YOUR PART MANUAL FOR A DESCRIPTION	Avail to order Our Price: $1,350.72
002024396	FUEL INJECTOR (SOLD EA) MANIFOLD UPPER COVERINJECTOR	Avail to order Our Price: $365.53
002024398	FUEL PUMP FUEL PUMP	Current Stock: 6 Our Price: $820.33
002027648R	PRESSURE REGULATOR VALVE OE SPEC PRESSURE REGULATOR VALVE	Avail to order Our Price: $215.19
07M133843A	AIR FILTER - SPORT PERFORMANCE FILTER PERFORMANCE FILTER REPLACEMENT FOR 07M133843 AIR FILTER - MURCIELAGO SV LP 670-4	Avail to order Our Price: $706.90
07M133843KN	K&N AIR FILTER - LM002, COUNTACH, DIABLO, MURCIELAGO K&N'S REPLACEMENT AIR FILTERS ARE DESIGNED TO INCREASE HORSEPOWER AND ACCELERATION WHILE PROVIDING EXCELLENT FILTRATION. THESE FILTERS ARE WASHABLE AND REUSABLE AND ARE CUSTOM DESIGNED TO FIT INTO YOUR EXISTING FACTORY AIR BOX. THEIR DROP-IN DESIGN MEANS ADDING PERFORMANCE IS SIMPLE.	Avail to order Our Price: $55.37

Fuses-Bulbs-Relays

PN	Item
005937770	RELAY RELAY FOR LATE MODEL DIABLOS	Current Stock: 10 Our Price: $37.51
006030676	LIGHT RELAY LIGHT RELAY	Current Stock: 3 Our Price: $165.97
006034961	RELAY RELAY	Current Stock: 4 Our Price: $49.56
006036296	NLA (NO LONGER AVAILABLE) RELAY	Avail to order Our Price: $22.21
006036297	NLA (NO LONGER AVAILABLE) RELAY	Avail to order Our Price: $42.13
006038006	MICRO RELAY MICRO RELAY	Avail to order Our Price: $20.09
006038007	RELAY RELAY	Avail to order Our Price: $12.85
006137479	250A MAXI FUSE 250A MAXI FUSE	Current Stock: 3 Our Price: $13.68
006138003	DRL RELAY DRL RELAY	Avail to order Our Price: $33.59
006138010	80 A FUSE 80 A FUSE	Current Stock: 6 Our Price: $52.71
006311154	RELAY RELAY	Avail to order Our Price: $50.59
006311155	RELAY RELAY	Avail to order Our Price: $60.68
006329450	BULB HEADLIGHT BULB HEADLIGHT	Current Stock: 1 Our Price: $29.28
006329694	HEADLIGHT BULB HEADLIGHT BULB	Avail to order Our Price: $57.51
006329695	BULB FOR FOGLIGHT BULB FOR FOGLIGHT	Current Stock: 1 Our Price: $17.49
006329696	FRONT TURN SIGNAL BULB FRONT TURN SIGNAL BULB	Current Stock: 6 Our Price: $3.01
006617091	BULB 21W TAIL LIGHT 21W BULB	Current Stock: 4 Our Price: $12.20
006617094	LAMP BA 15S 21W BULB LAMP BA 15S 21W USED IN VARIOUS LAMPS (DEPENDING ON YOUR YEAR AND MODEL)	Current Stock: 76 Our Price: $8.94
006617095	LICENSE PLATE LAMP REPLACEMENT BULB LICENSE PLATE LAMP REPLACEMENT BULB	Current Stock: 42 Our Price: $10.00
N0177522	BULB HEADLIGHT LAMP 12V/3W	Current Stock: 10 Our Price: $2.12
006329698	BULB BULB	Avail to order Our Price: $8.13
410947413	RED DOOR LIGHT RED DOOR LIGHT - NLA (NO LONGER AVAILABLE) TO ORDER FROM FACTORY PLEASE CONTACT US FOR OTHER OPTIONS. PRICING IS NOT UPDATED ONCE IT GOES TO NLA STATUS. CHECK FOR CURRRENT PRICE AND AVAILABILITY	Avail to order Our Price: $91.93

Gaskets

PN	Item
001535287	ENGINE GASKET SET DIABLO VT / SV / ROADSTER DOES NOT INCLUDE VALVE GUIDES PN 07M109675 DIABLO VT GASKET KIT SEE PN 1535288 FOR THE GROMMET AND OIL SEAL SET	Avail to order Our Price: $2,683.81
001532102	GROMMET AND OIL SEALS SET - DIABLO 1991-1996 GROMMET AND OIL SEALS SET - DIABLO 1991-1996	Avail to order Our Price: $237.95
0015002552	ENGINE GASKET SET - DIABLO VT 1998 SEE PN 0015002553 FOR THE GROMMET AND OIL SEAL SET	Avail to order Our Price: $2,074.93
001535288	GROMMET AND OIL SEALS SET - DIABLO VT / SV / ROADSTER GROMMET AND OIL SEALS SET - DIABLO VT / SV / ROADSTER	Avail to order Our Price: $325.30
0011005351	ENGINE GASKET SET - DIABLO 1998-1999 UNTIL VIN 2219 ENGINE GASKET SET - DIABLO 1998-1999 UNTIL VIN 2219 SEE PN 15002553 FOR GROMMET AND OIL SEAL SET	Avail to order Our Price: $3,589.10
0011005352	ENGINE GASKET SET DIABLO 1998-1999 AFTER VIN 2219 ENGINE GASKET SET DIABLO 1998-1999 AFTER VIN 2219 SEE PN 15002553 FOR GROMMET AND OIL SEAL SET	Avail to order Our Price: $3,893.54
0015002553	GROMMET & OIL SEALS SET - DIABLO VT 1998 GROMMET & OIL SEALS SET - DIABLO VT 1998	Avail to order Our Price: $255.55
0R1320002	DIABLO REAR DIFFERENTIAL SEAL KIT DIF SEAL KIT	Current Stock: 1 Our Price: $43.77
600940141L	LATCH GASKET LEFT LATCH GASKET SET LEFT THIS IS THE RUBBER/PLASTIC GASKET THAT IS LOCATED ON THE LEFT SIDE BETWEEN THE OUTER DOOR LATCH AND THE DOOR FRAME	Current Stock: 4 Our Price: $19.07

Ignition

PN	Item
001630289	SPARK PLUG - DIABLO SPARK PLUG	Current Stock: 38 Our Price: $29.61
DiabloWireSet	SPARK PLUG WIRES 1991-1995 DIABLO - AFTERMARKET SPARK PLUG WIRES 1991 THROUGH 1995 ONLY FOR SYSTEMS USING A DISTRIBUTOR CAP	Avail to order Our Price: $644.69
0016004528	IGNITION COIL IGNITION COIL	Current Stock: 12 Our Price: $61.50
DiabloWireSet2	SPARK PLUG WIRES 1996 AND UP DIABLO - AFTERMARKET SPARK PLUG WIRES FOR DIABLOS WITH COIL PACK	Avail to order Our Price: $1,297.00

Misc

PN	Item
0061005005	MED 2000 ALARM REMOTE CONTROL PROGRAMMED MED 2000 ALARM REMOTE CONTROL. YOU MUST SUPPLY THE CARS VIN ALONG WITH PROOF OF OWNERSHIP (REGISTRATION AND PHOTO IDENTIFICATION) SCANNED AND EMAILED OR A COPY SENT TO US.	Avail to order Our Price: $258.91
006134045	DIAGNOSIS RESET CONNECTOR DIAGNOSIS RESET CONNECTOR ALSO SEE 006134045	Current Stock: 1 Our Price: $353.33
0071003278	WIPER BLADE WIPER BLADE	Avail to order Our Price: $36.60
008200605R	OE SPEC ALTERNATIVE FOR 008200605 M6 NCM 70 URAMA SIMMON NUT	Avail to order Our Price: $1.53
009420126	WINDSHIELD WIPER BLADE WINDSHIELD WIPER BLADE	Current Stock: 1 Our Price: $32.87
009920102	WIPER BLADE 29318521OSLV WIPER BLADE 29318521OSLV	Avail to order Our Price: $107.55
0R0000149	CLEANER FLUID 250ML CLEANER FLUID	Current Stock: 1 Our Price: $82.84
400093050D	CTEK US-CD BATTERY CHARGER INPUT 110-120VAC OUTPUT MAX 4.3A, 12V BACK DRAIN LESS THAN 1.5AM/MONTH	Avail to order Our Price: $417.39

Sensors

PN	Item
001327641	POTENTIOMETER TPS THROTTLE POSITION SENSOR DIABLO POTENTIOMETER TPS THROTTLE POSITION SENSOR DIABLO	Avail to order Our Price: $180.12
001536755	OIL TEMPERATURE THERMOSTAT OIL TEMPERATURE THERMOSTAT - ALSO USED ON DIABLO 91-93 2WD AND 94	Current Stock: 1 Our Price: $490.50
0017006576	THERMOSTAT FOR DIABLO OE APPROVED REPLACEMENT WATER THERMOSTAT - -NLA (NO LONGER AVAILABLE) DIRECT FROM LAMBORGHINI CONTACT US TO VERIFY AVAILABILITY FROM OTHER SOURCES. WE HAVE APPROVED THERMOSTAT FOR SALE	Current Stock: 3 Our Price: $99.99
001724565	FAN MOTOR THERMAL CONTACT FAN MOTOR THERMAL CONTACT	Avail to order Our Price: $263.59
002408637	REVERSE SWITCH REVERSE SWITCH	Avail to order Our Price: $123.23
0042001192	BRAKE SWITCH 11721.0 SWITCH 11721.0	Current Stock: 2 Our Price: $25.38
004526663	CABIN AIR TEMPERATURE SENSOR TEMPERATURE SENSOR	Avail to order Our Price: $2,115.02
0051001139	ABS SENSOR WHEEL SPEED SENSOR ABS SENSOR WHEEL SPEED SENSOR - DIABLO/MURCIELAGO NLA FROM FACTORY PLEASE CHECK WITH US FOR CURRENT PRICE AND AVAILABILITY	Avail to order Our Price: $265.47
07L919501A	WATER TEMPERATURE SENSOR WATER TEMPERATURE SENSOR	Current Stock: 3 Our Price: $371.24
07M905381	PHASE SENSOR PHASE SENSOR	Avail to order Our Price: $751.44
086927321	CRANK / FLYWHEEL / TIMING SENSOR ELECTROMAGNETIC PROBE	Avail to order Our Price: $129.03
0R1470226	LAMBDA (O2 OXYGEN) SENSOR - DIABLO - EARLY MURCIELAGO LAMBDA (O2 OXYGEN) SENSOR - DIABLO - EARLY MURCIELAGO	Current Stock: 9 Our Price: $220.65

Tools and Tookits

PN	Item	Diagram
004129973	DIABLO FRONT TOW HITCH ASSEMBLY DIABLO FRONT TOW HITCH ASSEMBLY		Avail to order Our Price: $1,377.52
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 92 Our Price: $15.26

Open All

Select Group and TAV

< Previous Next >

TAV: 61.02.00 - Electrical System

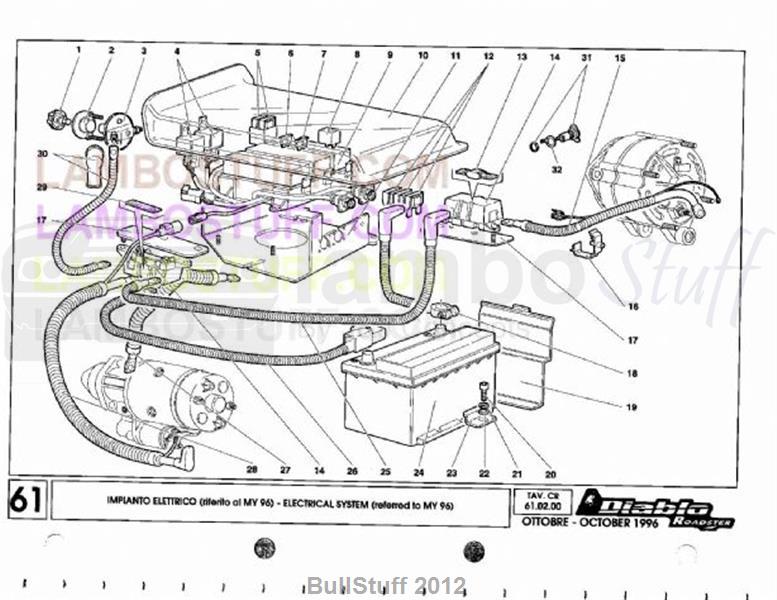

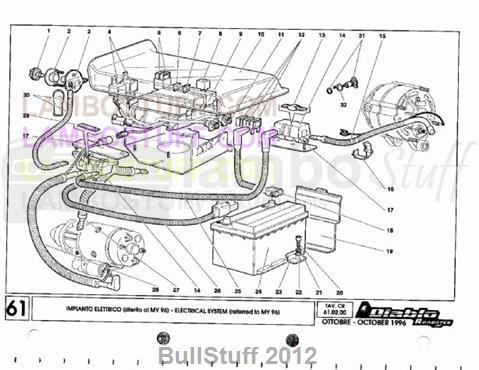

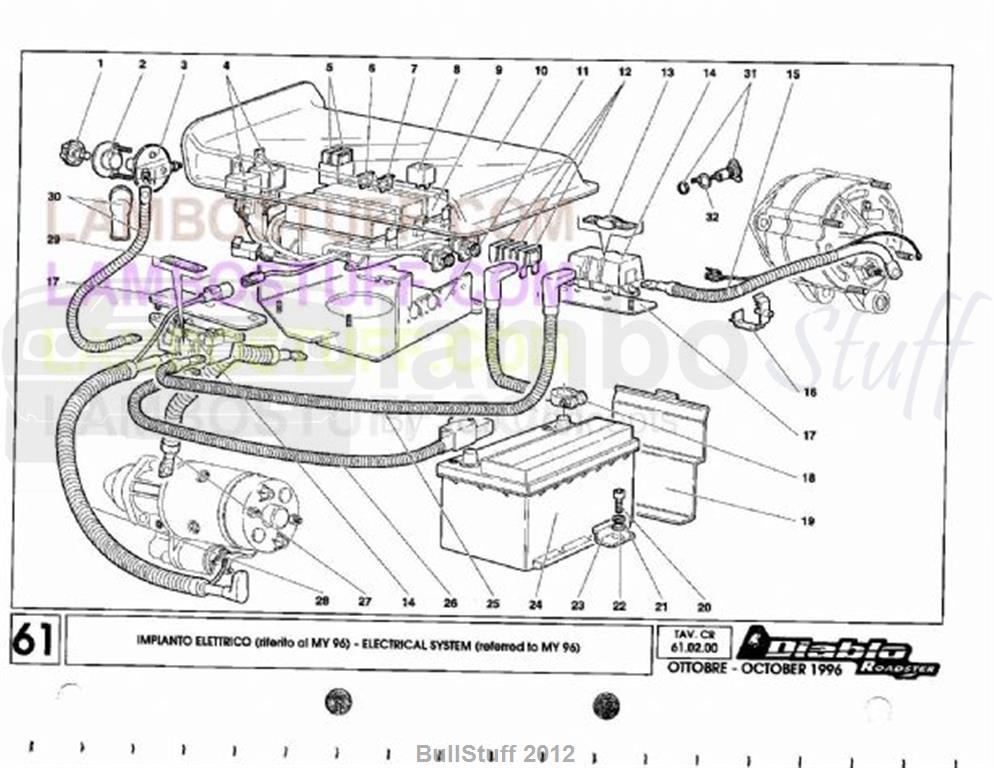

1996 Lamborghini Diablo Roadster USA Electrical System (61.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Diablo Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	005931167	BATTERY DISCONNECTOR KNOB	1 req	Avail to order Our Price: $94.36
2	005931299	BATTERY DISCONNECT FLANGE	1 req	Current Stock: 1 Our Price: $245.29
3	005931163	BATTERY DISCONNECT	1 req	Avail to order Our Price: $246.59
4	005937770	RELAY	2 req	Current Stock: 10 Our Price: $37.51
5	006026634	NLA (NO LONGER AVAILABLE)	2 req	*See Description
6	006327459	BULB	2 req	Avail to order Our Price: $5.85
6	001626697	BLADE FUSE	4 req	Current Stock: 20 Our Price: $0.80
6	001626192	BLADE FUSE	2 req	Current Stock: 20 Our Price: $0.80
6	001629258	BLADE FUSE	1 req	Current Stock: 18 Our Price: $0.80
7	006137306	DRL DIODE (DAYTIME RUNNING LIGHT)	1 req	Avail to order Our Price: $19.36
8	006036296	NLA (NO LONGER AVAILABLE)	4 req	*See Description
8	006311154	RELAY	1 req	Avail to order Our Price: $50.59
8	006034540	DIODE CONTAINER	1 req	Current Stock: 9 Our Price: $20.49
8	006036297	NLA (NO LONGER AVAILABLE)	1 req	*See Description
9	006137323	REAR RELAY & FUSEBOXWIRING	1 req	Avail to order Our Price: $948.78
10	005937289	RELAY BOX COVER	1 req	Avail to order 4 Used Available Our Price: $177.44
11	005937309	REAR RELAY BRACKET	1 req	Avail to order Our Price: $178.09
12	006138009	50 A FUSE	1 req	Avail to order Our Price: $52.71
12	006138010	80 A FUSE	2 req	Current Stock: 6 Our Price: $52.71
13	006137479	250A MAXI FUSE	1 req	Current Stock: 3 Our Price: $13.68
14	400937495	FUSE HOLDER ASS.	2 req	Avail to order Our Price: $82.54
15	006137477	ALTERNATOR-JOINT 1 WIRE	1 req	Avail to order Our Price: $84.69
16	008832006	PEG	3 req	Avail to order Our Price: $3.09
17	410802940	BRACKET POWER JOINT / COUPLING	2 req	Current Stock: 2 Our Price: $37.02
18	006136784	CHASSIS BATTERY WIRE	1 req	Avail to order Our Price: $90.47
19	006029669	FUEL FILLER FLAP SWITCH	1 req	Avail to order Our Price: $69.23
20	008700815	SCREW	1 req	Current Stock: 18 Our Price: $0.20
21	008410819	SNAP RING D.8 DIN 7980	1 req	Current Stock: 8 Our Price: $2.44
22	WHT002962	WASHER	1 req	Current Stock: 11 Our Price: $0.40
23	004130608	BATTERY MOUNTING PLATE	1 req	Avail to order Our Price: $34.92
24	001624948	NLA (NO LONGER DISCONTINUED)	1 req	*See Description
25	006137474	JOINT 1-JOINT 2 WIRE	1 req	Current Stock: 1 Our Price: $100.23
26	006137475	BATTERY-JOINT 2 WIRE	1 req	Avail to order Our Price: $275.55
27	006135923	ENGINE-CHASSIS WIRE	1 req	Avail to order Our Price: $85.99
28	006137473	STARTER MOTOR-JOINT 2 WIRE	1 req	Avail to order Our Price: $197.86
29	400915447	CARRIER PLATE	1 req	Avail to order Our Price: $28.60
30	006137476	BATTERY DISCONNECT-JOINT 2 WIR	1 req	Current Stock: 1 Our Price: $75.82
31	005936741	TWO-POLE SOCKET 8JB 001946-011	1 req	Current Stock: 5 Our Price: $18.87
32	005937868	BATTERY CHARGER PLUGTAB	1 req	Current Stock: 2 Our Price: $18.22
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
