1987 Countach 5000 Quatro - USA

Group :

Tav :

Maintenance Parts:

Belts

PN	Item	Diagram
001613915	ALTERNATOR DRIVE BELT ALTERNATOR DRIVE BELT - NLA FROM LAMBORGHINI WAREHOUSE - SECONDARY SOURCE		Avail to order Our Price: $661.42

Brakes

PN	Item	Diagram
003113912	BRAKE PAD BRAKE PAD SET NLA FROM LAMBORGHINI WAREHOUSE - SECONDARY SOURCE		Avail to order Our Price: $48.23

Common repairs and upgrades

PN	Item
007021195	SHOCK ABSORBER COUNTACH DOOR SHOCK ABSORBER WITHOUT INTERNAL PARTS YOU MAY ALSO NEED N02214812 X1 HEX.HEAD 007021193 X1 SHOCK ABSOR.FIX.PIN TO DO 007021208 X1 SHOCK ABSORBER SECURPIN A 008580801 X1 O-RING E 8 UNI 7535-75 N01118410 X1 HEX.HEAD CLAMPING NUT WHT002962 X3 WASHER	Current Stock: 7 Our Price: $126.61
007029005	BONNET LIFTER BONNET LIFTER	Current Stock: 4 Our Price: $114.94
007029006	TRUNK LIFTER STRUT TRUNK LIFTER WITH STAB.	Current Stock: 4 Our Price: $89.17
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.48

Drivetrain

PN	Item
001505914	OIL FILTER - DIABLO - LM002 - COUNTACH - URRACO - JALPA OIL CARTRIDGE. NOTE: THESE ARE ORDERED DIRECTLY FROM THE FACTORY. BRAND/MODEL/COLOR MAY DIFFER FROM THE PICTURE. WE HAVE NO CONTROL AS TO WHAT IS SENT WHEN THEY ARE ORDERED.	Current Stock: 20 Our Price: $86.47
002136948	SLAVE CLUTCH CYLINDER DIABLO / COUNTACH SLAVE CLUTCH CYLINDER	Current Stock: 3 Our Price: $134.36
002121294	CLUTCH MECHANISM CLUTCH MECHANISM NLA FROM FACTORY CONTACT US FOR CURRENT PRICING AND AVAILABILITY	Avail to order Our Price: $7,000.52
002121675	COUNTACH THOWOUT BEARING THRUST SLEEVE	Current Stock: 1 Our Price: $8,632.38

Fuel-Air

PN	Item
07M133843	AIR FILTER - LM002, COUNTACH, DIABLO, MURCIELAGO PLEASE CHECK YOUR PART MANUAL FOR A DESCRIPTION FOR PERFORMANCE FILTERS SEE PN: 07M133843A	Current Stock: 6 Our Price: $31.73
001628130	NLA (NO LONGER AVAILABLE) RELAY/PRINTED BOARD BOX UNIT. THIS UNIT IS NOT LONGER AVAILABLE FROM THE FACTORY.	Avail to order Our Price: $1,232.20
002021140	WARM UP REGULATOR / HEAT REGULATOR WARM UP REGULATOR / HEAT REGULATOR	Avail to order Our Price: $1,729.41
002021141	COUNTACH EFI FUEL INJECTION PUMP FUEL PUMP	Avail to order Our Price: $799.00
002021142B	FUEL FILTER - COUNTACH - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL FILTER USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE. AS OF 1-3-2024 DOESN'T SHOW AVAILABILITY	Avail to order Our Price: $38.79
002021145	ACCUMULATOR ACCUMULATORS	Current Stock: 1 Our Price: $642.13
002021146	COLD START INJECTOR STARTER INJECTOR	Current Stock: 4 Our Price: $350.83
002021147	FUEL INJECTOR FOR COUNTACH FUEL INJECTOR FOR COUNTACH	Current Stock: 11 Our Price: $318.36
002021170	COUNTACH FUEL DISTRIBUTOR FUEL DISTRIBUTOR 0438100106 (043 8100 106)	Avail to order Our Price: $5,811.46
002021172	FREQUENCY VALVE FREQUENCY VALVE BOSCH 0280150300 (028 0150 300)	Avail to order Our Price: $872.46
002021173	FUEL DAMPERS FUEL DAMPERS	Avail to order Our Price: $518.87
002021173b	FUEL DAMPERS - FOR FUEL INJECTED EFI THIS IS THE ORIGINAL AND SAME FUEL REGULATOR USED ON ALL COUNTACH EFI SYSTEMS. IT HAS A DIFFERENT PART NUMBER, IN ORDER TO QUE THE ORDER FROM ANOTHER VENDOR RATHER THAN THE FACTORY. WE WOULD BE MORE THAN HAPPY TO GET IT FROM ITALY, BUT IT WILL BE THE SAME PUMP AND MUCH MORE EXPENSIVE.	Avail to order Our Price: $339.85
002021174	COUNTACH INJECTION EFI ECU ECU	Avail to order Our Price: $4,741.13
002021176	LAMBDA O2 SENSOR LAMBDA SENSOR *MAY NEED TO USE YOUR EXISTING CONNECTOR	Current Stock: 4 Our Price: $863.20
002021176OE	LAMBDA SENSORS LAMDA SENSORS	Current Stock: 2 Our Price: $126.18
07M133843A	AIR FILTER - SPORT PERFORMANCE FILTER PERFORMANCE FILTER REPLACEMENT FOR 07M133843 AIR FILTER - MURCIELAGO SV LP 670-4	Avail to order Our Price: $782.63
980200016	ADDITIVO X CARB.G 001 700 03 ADDITIVO X CARB.G 001 700 03	Current Stock: 1 Our Price: $16.01

Fuses-Bulbs-Relays

PN	Item
006311154	RELAY RELAY	Avail to order Our Price: $56.11
006617091	BULB 21W TAIL LIGHT 21W BULB	Current Stock: 4 Our Price: $13.59
006617094	LAMP BA 15S 21W BULB LAMP BA 15S 21W USED IN VARIOUS LAMPS (DEPENDING ON YOUR YEAR AND MODEL)	Current Stock: 76 Our Price: $9.90
N0177522	BULB HEADLIGHT LAMP 12V/3W	Current Stock: 10 Our Price: $2.14
006309758	CYLINDER BULB 6411/12V 10W CYLINDER BULB 6411/12V 10W	Avail to order Our Price: $11.86
006617093	12V 5W BULB 12V 5W BULB	Avail to order Our Price: $20.28

Gaskets

PN	Item
001526469	GROMMET AND OIL SEALS SET - COUNTACH QUATRO 5000 CARBURETED GROMMET AND OIL SEALS SET COUNTACH QUATRO 5000 CARBURETED	Avail to order Our Price: $156.07
001526489	ENGINE GASKET SET - COUNTACH QUATRO 5000 CARBURETED ENGINE GASKET KIT - COUNTACH QUATRO 5000 CARBURETED SEE PN 001526469 FOR SEALS	Avail to order Our Price: $2,229.43
001526471	COUNTACH QUATRO VALVE USA - GROMMET & OIL SEALS SET GROMMET & OIL SEALS SET	Avail to order Our Price: $1,333.22
001526491	NLA (NO LONGER AVAILABLE) ENGINE GASKET KIT SEE PN 001526471 FOR SEALS KIT	Avail to order Our Price: $1,431.32

Ignition

PN	Item	Diagram
001630009	SPARK PLUG - 12MM SPARK PLUG		Avail to order Our Price: $39.29
001611403	COUNTACH WIRING HARNESS COUNTACH WIRING HARNESS		Avail to order Our Price: $2,876.02

Misc

PN	Item
006111300	LONG WIPER BLADE LONG WIPER BLADE	Current Stock: 1 Our Price: $54.16
006128790	WIPER SHORT BLADE 13 INCH WIPER SHORT BLADE (PREVIOUS PN 006111019)	Current Stock: 2 Our Price: $20.13
008200605R	OE SPEC ALTERNATIVE FOR 008200605 M6 NCM 70 URAMA SIMMON NUT	Avail to order Our Price: $1.94
0R0000149	CLEANER FLUID 250ML CLEANER FLUID	Current Stock: 1 Our Price: $70.78
400093050D	CTEK US-CD BATTERY CHARGER INPUT 110-120VAC OUTPUT MAX 4.3A, 12V BACK DRAIN LESS THAN 1.5AM/MONTH	Avail to order Our Price: $373.98

Sensors

PN	Item
002021143	THERMOSTAT SWITCH - EFI COUNTACH ONLY ORIGINAL OEM THERMOSTAT SWITCH - INTERR.TERM.0.280.130.214	Current Stock: 3 Our Price: $872.46
001801333	OIL & COOLANT TEMPERATURE THERMOMETER OIL & COOLANT TEMPERATURE THERMOMETER NLA FROM FACTORY. CONTACT US FOR CURRENT AVAILABILITY	Avail to order Our Price: $150.16
001724565	FAN MOTOR THERMAL CONTACT FAN MOTOR THERMAL CONTACT	Avail to order Our Price: $244.48
006019052	OIL TEMPERATURE GAUGE OIL TEMPERATURE GAUGE	Avail to order Our Price: $647.04
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $177.89

Tools and Tookits

PN	Item	Diagram
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.		Current Stock: 95 Our Price: $19.42

Open All

Select Group and TAV

< Previous Next >

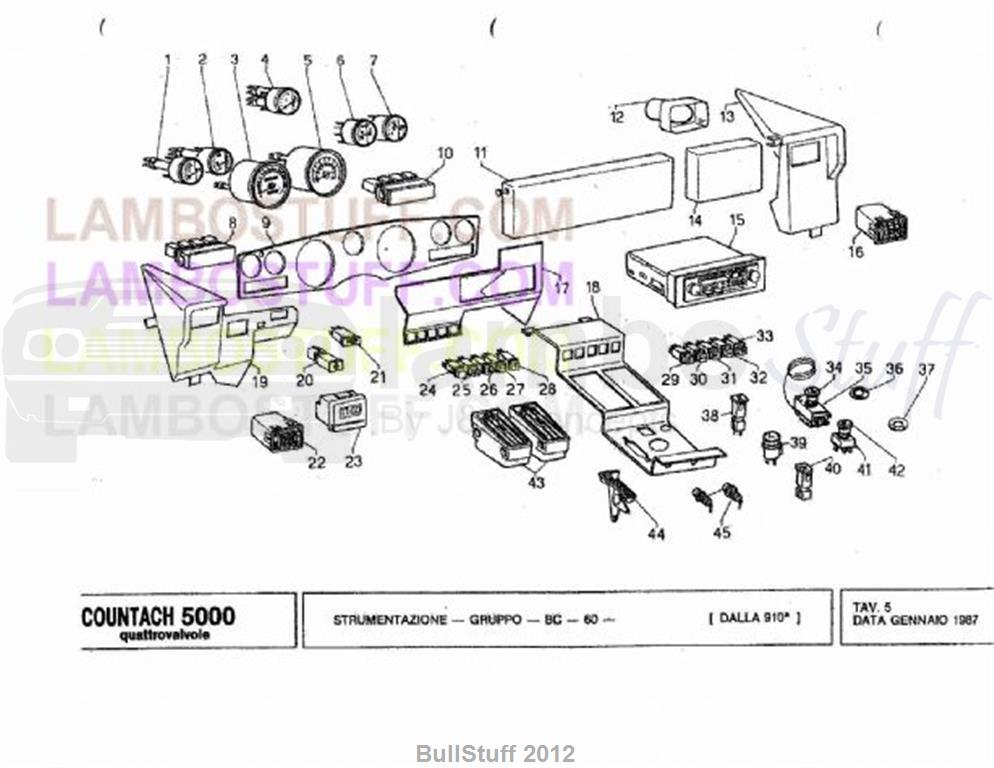

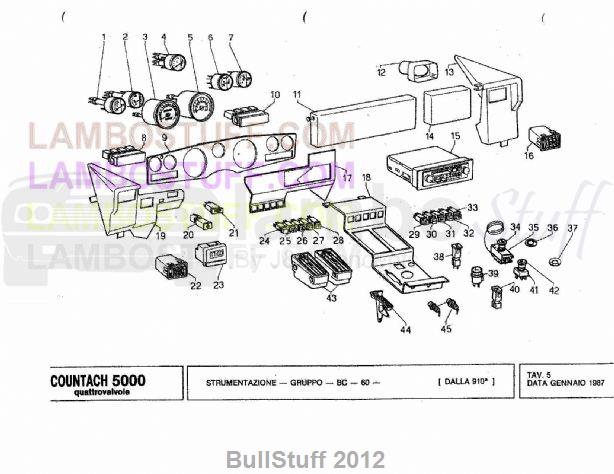

TAV: 5 (After vin 910) - Dashboard

1987 Lamborghini Countach 5000 Quatro USA Dashboard (5 (After vin 910))

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Countach Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	006022077	VOLTMETER	1 req	Avail to order Our Price: $814.49
2	006019052	OIL TEMPERATURE GAUGE	1 req	Avail to order Our Price: $647.04
3	006019638	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
4	006019051	OIL PRESSURE GAUGE	1 req	Avail to order Our Price: $1,373.13
5	006019978	NLA (NO LONGER AVAILABLE)	1 req	*See Description
6	006019053	COOLANT TEMPERATURE GAUGE	1 req	Current Stock: 1 Our Price: $1,373.13
7	006019054	FUEL LEVEL GAUGE	1 req	Avail to order Our Price: $1,373.13
8	006021958	HIGH BEAM/TAILLIGHT/HANDBRAKE	1 req	Avail to order Our Price: $398.10
9	007014071	INSTR.PANEL	1 req	Avail to order Our Price: $903.46
10	006021957	REAR FOGLIGHT/DIRECTION INDICA	1 req	Avail to order Our Price: $398.10
11	007014005	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
12	007014118	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
13	007014116	This item is no longer available	1 req
14	007014108	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
15	006119878	This item is no longer available	1 req
16	007014118	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
17	007014120	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
18	007014112	NLA (NO LONGER AVAILABLE)	1 req	*See Description
19	007014117	This item is no longer available	1 req
20	006024535	SAFETY BELT WARNING LIGHT	1 req	Avail to order Our Price: $69.53
21	009250018	NLA (NO LONGER AVAILABLE)	1 req	*See Description
22	007014180	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
23	006019112	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
24	006020923	NLA (NO LONGER AVAILABLE)	1 req	*See Description
25	006019624	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
26	006019617	HAZARD LIGHT SWITCH LIGHT	1 req	Avail to order Our Price: $94.71
27	006019616	NLA (NO LONGER AVAILABLE)	1 req	*See Description
28	006019619	NLA (NO LONGER AVAILABLE)	1 req	*See Description
29	006024759	DOOR LOCK SWITCH	1 req	Avail to order Our Price: $69.53
30	006024385	FLOOR SWITCH ON TUNNEL CONSOLE	1 req	Current Stock: 1 Our Price: $32.96
31	006024383	REC SWITCH ON TUNNELCONSOLE	1 req	Current Stock: 2 Our Price: $32.96
32	006024384	SIDE SWITCH ON TUNNEL CONSOLE	1 req	Current Stock: 3 Our Price: $32.96
33	006024386	AIR FLOW TO WINDSCREEN SWITCH	1 req	Avail to order Our Price: $32.96
34	004520795	SNOW SYMBOL KNOB	1 req	Avail to order Our Price: $104.05
35	004510450	BLOWER SWITCH CONTROL	1 req	Current Stock: 9 Our Price: $196.04
36	006125020	This item is no longer available	1 req
37	006125021	This item is no longer available	1 req
38	006025017	FAN WARNING LIGHT	1 req	Avail to order Our Price: $69.53
39	005930679	NLA (NO LONGER AVAILABLE)	1 req	*See Description
40	006025018	CONDITIONER WARNING LIGHT	1 req	Avail to order Our Price: $32.96
41	004505249	THERMOSTAT	1 req	Avail to order Our Price: $276.55
42	004520796	FAN SYMBOL KNOB	1 req	Avail to order Our Price: $104.05
43	007014113	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	2 req	*See Description
44	004713283	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
45	006320598	BULB HOLDER	2 req	Avail to order Our Price: $72.83
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
