2021 AVENTADOR SVJ ROADSTER - AUSTRALIA

Group :

Tav :

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	TUTELA CS SPEED FLUID -OIL LIFTING SYSTEM 1 LITER TUTELA CS SPEED FLUID -OIL LIFTING SYSTEM 1 LITER	Current Stock: 6 Our Price: $61.26
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 7 Our Price: $27.66
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 5 Our Price: $58.32
G052529A2	TRANSMISSION FLUID TRANSMISSION FLUID	Current Stock: 14 Our Price: $71.47

Ignition

PN	Item	Diagram
470905619C	SPARK PLUG SPARK PLUG		Avail to order Our Price: $100.13

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ML CLEANER FLUID		Current Stock: 1 Our Price: $82.84

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $185.62
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $79.44
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $153.21
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $143.73
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $143.73

Tools and Tookits

PN	Item
400093050D	CTEK US-CD BATTERY CHARGER INPUT 110-120VAC OUTPUT MAX 4.3A, 12V BACK DRAIN LESS THAN 1.5AM/MONTH	Avail to order Our Price: $417.39
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL	Avail to order Our Price: $434.20
wheeltool	WHEEL INSTALL TOOL SCREWS INTO HUB FOR EASY INSTALLATION.	Current Stock: 92 Our Price: $15.26

Open All

Select Group and TAV

< Previous Next >

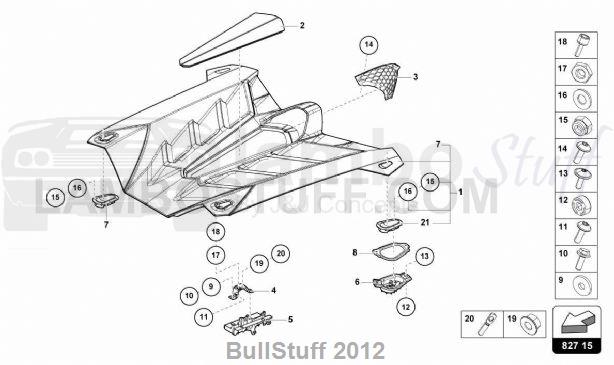

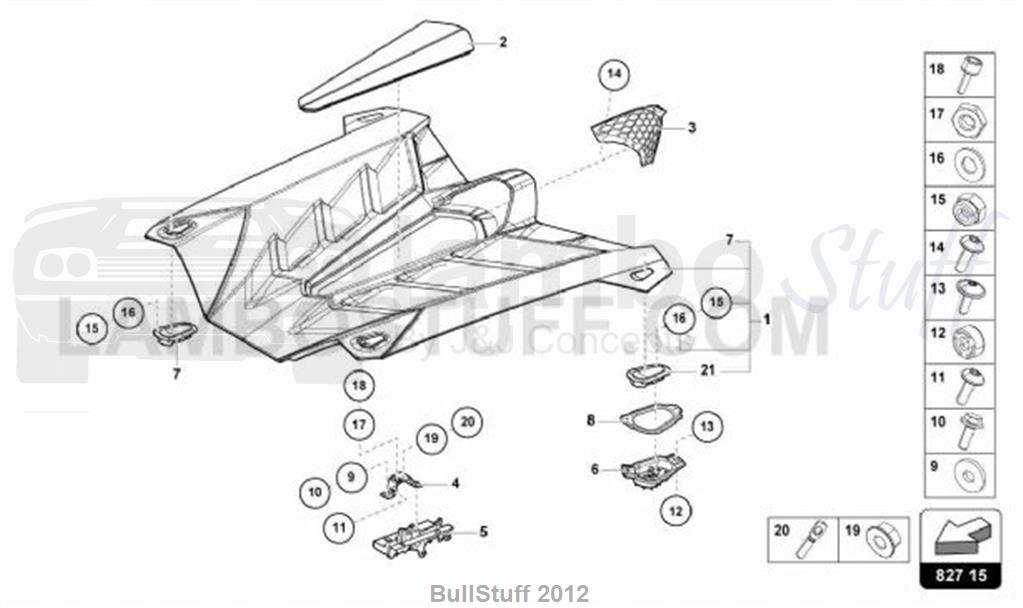

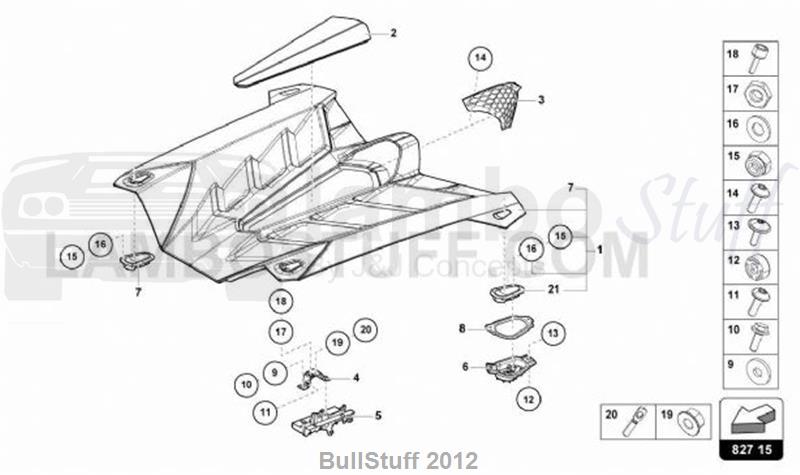

TAV: 827.15.00 - ENGINE COVER WITH INSP. COVER

2021 Lamborghini AVENTADOR SVJ ROADSTER AUSTRALIA ENGINE COVER WITH INSP. COVER (827.15.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	475827014	ENGINE COVER WITH INSP. COVER ENGINE COVER WITH INSP. COVER (PRIMER)	1 req	Avail to order Our Price: $41,762.60
1	475827014A	ENGINE COVER WITH INSP. COVER ENGINE COVER WITH INSP. COVER (CARBON LOOK + PRIMER)	1 req	Avail to order Our Price: $39,428.92
1	475827014B	ENGINE COVER WITH INSP. COVER ENGINE COVER WITH INSP. COVER (ONLY FOR LIVRERY 63 - FULL CARBON MATT)	1 req	Avail to order Our Price: $47,378.73
1	475827014C	ENGINE COVER WITH INSP. COVER ENGINE COVER WITH INSP. COVER (ONLY FOR LIVRERY 63 - FULL CARBON SHINY)	1 req	Avail to order Our Price: $47,378.73
1	475827014	ENGINE COVER WITH INSP. COVER ENGINE COVER WITH INSP. COVER (PRIMER)	1 req	Avail to order Our Price: $41,762.60
1	475827014A	ENGINE COVER WITH INSP. COVER ENGINE COVER WITH INSP. COVER (CARBON LOOK + PRIMER)	1 req	Avail to order Our Price: $39,428.92
1	475827014B	ENGINE COVER WITH INSP. COVER ENGINE COVER WITH INSP. COVER (ONLY FOR LIVRERY 63 - FULL CARBON MATT)	1 req	Avail to order Our Price: $47,378.73
1	475827014C	ENGINE COVER WITH INSP. COVER ENGINE COVER WITH INSP. COVER (ONLY FOR LIVRERY 63 - FULL CARBON SHINY)	1 req	Avail to order Our Price: $47,378.73
2	476827446G	INSERT PART GLASS ELEM. SV FL VIEW DISC FOR BONNET	1 req	Avail to order Our Price: $1,855.96
2	476827446G	INSERT PART GLASS ELEM. SV FL VIEW DISC FOR BONNET	1 req	Avail to order Our Price: $1,855.96
3	476827974	GRILLE RR.BON.GRIL. SV FL ORNAMENTAL GRILLE	1 req	Avail to order Our Price: $771.89
3	476827974	GRILLE RR.BON.GRIL. SV FL ORNAMENTAL GRILLE	1 req	Avail to order Our Price: $771.89
4	475827065A	STIFFENING PART BRACKET FOR TENSION SPRING (LEFT)	1 req	Avail to order Our Price: $109.90
4	475827066A	STIFFENING PART BRACKET FOR TENSION SPRING (RIGHT)	1 req	Avail to order Our Price: $113.27
4	475827065A	STIFFENING PART BRACKET FOR TENSION SPRING (LEFT)	1 req	Avail to order Our Price: $109.90
4	475827066A	STIFFENING PART BRACKET FOR TENSION SPRING (RIGHT)	1 req	Avail to order Our Price: $113.27
5	475827393D	BRACKET REAR HINGE BRACKET (LEFT)	1 req	Avail to order Our Price: $229.02
5	475827394D	BRACKET REAR HINGE BRACKET (RIGHT)	1 req	Avail to order Our Price: $238.67
5	475827393D	BRACKET REAR HINGE BRACKET (LEFT)	1 req	Avail to order Our Price: $229.02
5	475827394D	BRACKET REAR HINGE BRACKET (RIGHT)	1 req	Avail to order Our Price: $238.67
6	470827507A	STRIKER RECEIVER SV FL SUPPORT (LEFT)	1 req	Avail to order Our Price: $531.72
6	470827508A	DAMPING ELEMENT RECEIVER SV FL SUPPORT (RIGHT)	1 req	Avail to order Our Price: $743.91
6	470827507A	STRIKER RECEIVER SV FL SUPPORT (LEFT)	1 req	Avail to order Our Price: $531.72
6	470827508A	DAMPING ELEMENT RECEIVER SV FL SUPPORT (RIGHT)	1 req	Avail to order Our Price: $743.91
7	470827447	LOCK WITH KEYS LOCK WITH KEYS	2 req	Avail to order Our Price: $1,140.12
7	470827447	LOCK WITH KEYS LOCK WITH KEYS	2 req	Avail to order Our Price: $1,140.12
8	470827601	BRACKET BRKT LH LOCK SV FL ARM (LEFT)	1 req	Avail to order Our Price: $44.46
8	470827602	BRACKET BRKT LH LOCK SV FL ARM (RIGHT)	1 req	Avail to order Our Price: $44.46
8	470827601	BRACKET BRKT LH LOCK SV FL ARM (LEFT)	1 req	Avail to order Our Price: $44.46
8	470827602	BRACKET BRKT LH LOCK SV FL ARM (RIGHT)	1 req	Avail to order Our Price: $44.46
9	N90477302	WASHER WASHER (8,4X24X3)	4 req	Avail to order Our Price: $0.90
9	N90477302	WASHER WASHER (8,4X24X3)	4 req	Avail to order Our Price: $0.90
10	N90643905	HEXAGON HEAD BOLT HEXAGON HEAD BOLT (COMBI) (M8X25)	8 req	Avail to order Our Price: $2.30
10	N90643905	HEXAGON HEAD BOLT HEXAGON HEAD BOLT (COMBI) (M8X25)	8 req	Avail to order Our Price: $2.30
11	N90958903	HEXALOBULAR SOCKETM6X16-S11 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) (M6X16)	6 req	Avail to order Our Price: $1.90
11	N90958903	HEXALOBULAR SOCKETM6X16-S11 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) (M6X16)	6 req	Avail to order Our Price: $1.90
12	N90469405	WELD NUT WELDED NUT (M6)	4 req	Avail to order Our Price: $0.70
12	N90469405	WELD NUT WELDED NUT (M6)	4 req	Avail to order Our Price: $0.70
13	N91188301	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT (M6X20)	4 req	Current Stock: 1 Our Price: $1.60
13	N91188301	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT (M6X20)	4 req	Current Stock: 1 Our Price: $1.60
14	N10621601	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M4X12)	3 req	Current Stock: 4 Our Price: $2.48
14	N10621601	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M4X12)	3 req	Current Stock: 4 Our Price: $2.48
15	24	CLAMPING NUT (M4)	0 req
15	24	CLAMPING NUT (M4)	0 req
16	24	WASHER (4,3X9X0,8)	0 req
16	24	WASHER (4,3X9X0,8)	0 req
17	N01111611	HEX.NUT HEXAGON NUT (M6)	2 req	Current Stock: 4 Our Price: $1.95
17	N01111611	HEX.NUT HEXAGON NUT (M6)	2 req	Current Stock: 4 Our Price: $1.95
18	470807498	SUPPORT PUFFER SUPPORT ELEMENT	2 req	Avail to order Our Price: $51.10
18	470807498	SUPPORT PUFFER SUPPORT ELEMENT	2 req	Avail to order Our Price: $51.10
19	N10261311	HEXAGON FLANGE NUT HEXAGON NUT (M10)	2 req	Current Stock: 11 Our Price: $2.39
19	N10261311	HEXAGON FLANGE NUT HEXAGON NUT (M10)	2 req	Current Stock: 11 Our Price: $2.39
20	470827518	STRIKER CENTER. PIN SV FL COTTER PIN	2 req	Avail to order Our Price: $1,789.71
20	470827518	STRIKER CENTER. PIN SV FL COTTER PIN	2 req	Avail to order Our Price: $1,789.71
21		LOCK WITH KEYS (ORDER REF 7)	0 req
21		LOCK WITH KEYS (ORDER REF 7)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
