2021 AVENTADOR SVJ ROADSTER - AUSTRALIA

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Ignition

PN	Item	Diagram
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

TAV: 505.04.00 - AXLE SHAFT

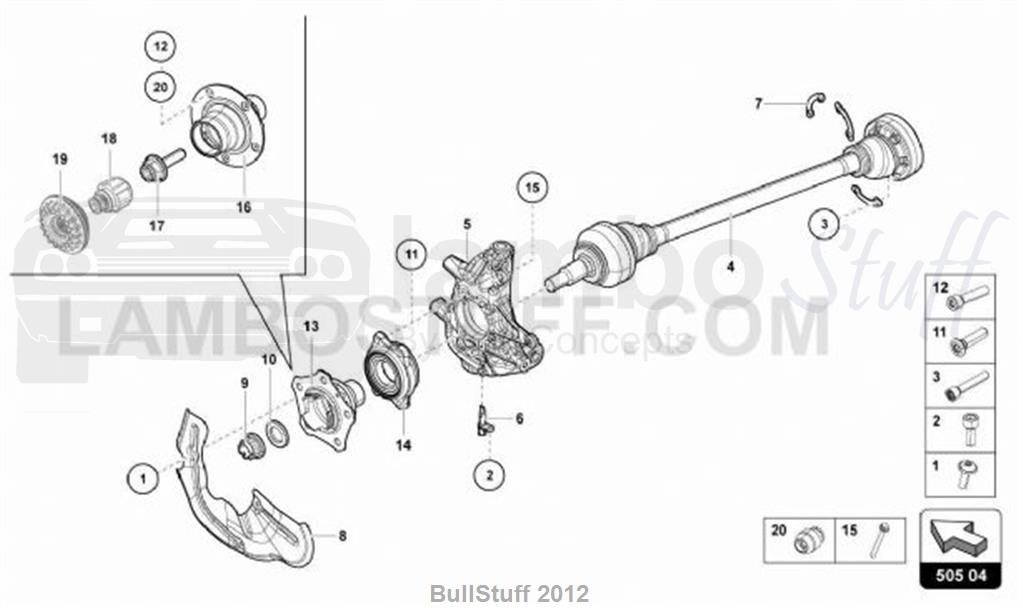

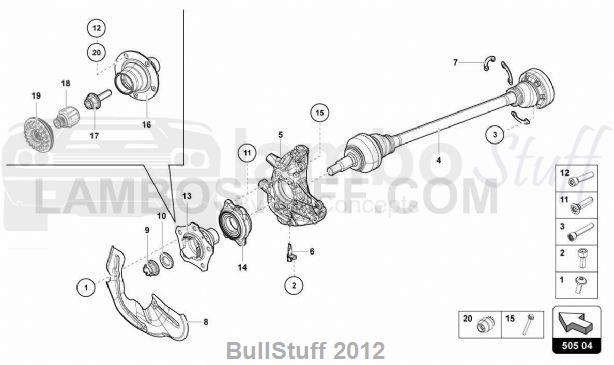

2021 Lamborghini AVENTADOR SVJ ROADSTER AUSTRALIA AXLE SHAFT (505.04.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	N10714801	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X18)	6 req	Avail to order Our Price: $2.00
1	N10714801	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X18)	6 req	Avail to order Our Price: $2.00
2	N01474011	PAN HEAD BOLT SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (M6X16)	2 req	Avail to order Our Price: $2.46
2	N01474011	PAN HEAD BOLT SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (M6X16)	2 req	Avail to order Our Price: $2.46
3	12	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M10X55)	0 req
3	12	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M10X55)	0 req
4	470501203N	HALF SHAFT DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS (STANDARD BOLTS-LEFT REAR)	1 req	Avail to order Our Price: $2,702.11
4	470501203P	HALF SHAFT DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS (CENTERLOCK-LEFT REAR)	1 req	Avail to order Our Price: $1,162.72
4	470501204N	HALF SHAFT DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS (STANDARD BOLTS-RIGHT REAR)	1 req	Avail to order Our Price: $3,133.84
4	470501204P	HALF SHAFT DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS (CENTERLOCK-RIGHT REAR)	1 req	Avail to order Our Price: $1,183.57
4	470501203N	HALF SHAFT DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS (STANDARD BOLTS-LEFT REAR)	1 req	Avail to order Our Price: $2,702.11
4	470501203P	HALF SHAFT DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS (CENTERLOCK-LEFT REAR)	1 req	Avail to order Our Price: $1,162.72
4	470501204N	HALF SHAFT DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS (STANDARD BOLTS-RIGHT REAR)	1 req	Avail to order Our Price: $3,133.84
4	470501204P	HALF SHAFT DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS (CENTERLOCK-RIGHT REAR)	1 req	Avail to order Our Price: $1,183.57
5	470505433H	WHEEL BRACKET WHEEL BEARING HOUSING (LEFT REAR)	1 req	Avail to order Our Price: $2,925.42
5	470505434H	WHEEL BRACKET WHEEL BEARING HOUSING (RIGHT REAR)	1 req	Avail to order Our Price: $2,925.42
5	470505433H	WHEEL BRACKET WHEEL BEARING HOUSING (LEFT REAR)	1 req	Avail to order Our Price: $2,925.42
5	470505434H	WHEEL BRACKET WHEEL BEARING HOUSING (RIGHT REAR)	1 req	Avail to order Our Price: $2,925.42
6	4E0927803F	RH ABS SENSOR SPEED SENSOR (LEFT)	1 req	Avail to order Our Price: $145.31
6	4E0927804F	LH ABS SENSOR SPEED SENSOR (RIGHT)	1 req	Current Stock: 1 Our Price: $145.31
6	4E0927803F	RH ABS SENSOR SPEED SENSOR (LEFT)	1 req	Avail to order Our Price: $145.31
6	4E0927804F	LH ABS SENSOR SPEED SENSOR (RIGHT)	1 req	Current Stock: 1 Our Price: $145.31
7	7L0407357B	BACKING PLATE SPACER	6 req	Current Stock: 14 Our Price: $2.01
7	7L0407357B	BACKING PLATE SPACER	6 req	Current Stock: 14 Our Price: $2.01
8	470615611D	COVER TERMICA COVER PLATE FOR BRAKE DISC (LEFT)	1 req	Avail to order Our Price: $494.28
8	470615612D	COVER COVER PLATE FOR BRAKE DISC (RIGHT)	1 req	Avail to order Our Price: $115.68
8	470615611D	COVER TERMICA COVER PLATE FOR BRAKE DISC (LEFT)	1 req	Avail to order Our Price: $494.28
8	470615612D	COVER COVER PLATE FOR BRAKE DISC (RIGHT)	1 req	Avail to order Our Price: $115.68
9	WHT006779	PREV.TORQUE TYPE 12 POINT SOCKET SHOULDERED NUT SELF-LOCKING (M24X1,5)	2 req	Avail to order Our Price: $16.60
9	WHT006779	PREV.TORQUE TYPE 12 POINT SOCKET SHOULDERED NUT SELF-LOCKING (M24X1,5)	2 req	Avail to order Our Price: $16.60
10	400501226	SPACER RING SPACER RING	2 req	Avail to order Our Price: $51.73
10	400501226	SPACER RING SPACER RING	2 req	Avail to order Our Price: $51.73
11	WHT000237A	12-POINT SOCKET BALL SCREW (M12X1,5X45)	8 req	Current Stock: 23 Our Price: $6.78
11	WHT000237A	12-POINT SOCKET BALL SCREW (M12X1,5X45)	8 req	Current Stock: 23 Our Price: $6.78
12	10	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (M6X30)	0 req
12	10	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (M6X30)	0 req
13	470501652B	WHEEL HUB WHEEL HUB (STANDARD BOLTS)	2 req	Avail to order Our Price: $745.87
13	470501652B	WHEEL HUB WHEEL HUB (STANDARD BOLTS)	2 req	Avail to order Our Price: $745.87
14	4E0407625F	ANGULAR CONTACT DOUBLE (ANGLED) BALL BEARING WITH FLANGE (LEFT)	2 req	Avail to order Our Price: $213.64
14	4E0407625F	ANGULAR CONTACT DOUBLE (ANGLED) BALL BEARING WITH FLANGE (LEFT)	2 req	Avail to order Our Price: $213.64
15	N91105601	HEXAGON FLANGE BOLT HEX COLLARED BOLT (M10X85)	2 req	Current Stock: 10 Our Price: $4.77
15	N91105601	HEXAGON FLANGE BOLT HEX COLLARED BOLT (M10X85)	2 req	Current Stock: 10 Our Price: $4.77
16	470501652E	WHEEL HUB WHEEL HUB (LOCKABLE WHEEL - RED/ BLACK)	2 req	Avail to order Our Price: $1,205.90
16	470501652E	WHEEL HUB WHEEL HUB (LOCKABLE WHEEL - RED/ BLACK)	2 req	Avail to order Our Price: $1,205.90
17	WHT007467	WHEEL BOLT M16X1.5X72.0 SHOULDERED BOLT (M16X1,5X72)	4 req	Avail to order Our Price: $151.85
17	WHT007467	WHEEL BOLT M16X1.5X72.0 SHOULDERED BOLT (M16X1,5X72)	4 req	Avail to order Our Price: $151.85
18		SUSPENSION BLOCKS (SEE ILLUSTRATION :- 601-040)	2 req
18		SUSPENSION BLOCKS (SEE ILLUSTRATION :- 601-040)	2 req
19		TENSIONING NUT - (SEE ILLUSTRATION :- 601-040)	2 req
19		TENSIONING NUT - (SEE ILLUSTRATION :- 601-040)	2 req
20	470615315	TANG FOLLOWER	4 req	Avail to order Our Price: $42.14
20	470615315	TANG FOLLOWER	4 req	Avail to order Our Price: $42.14
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
