2019 AVENTADOR SVJ COUPE - USA

Maintenance Parts:

Tools and Tookits

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $317.22

Open All

Select Group and TAV

< Previous Next >

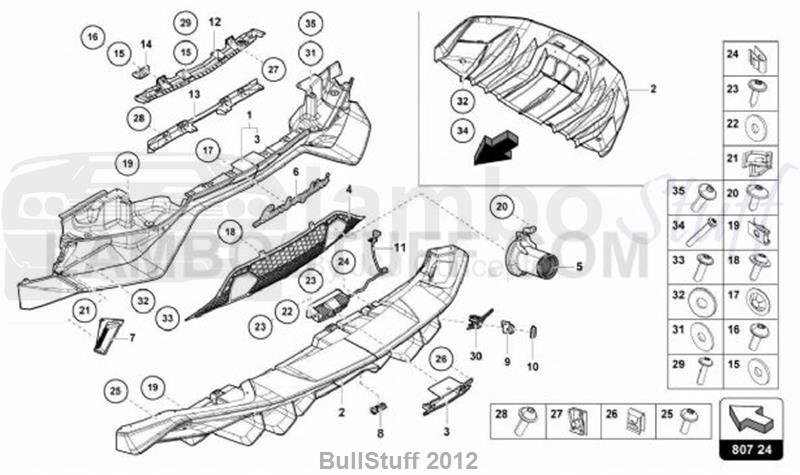

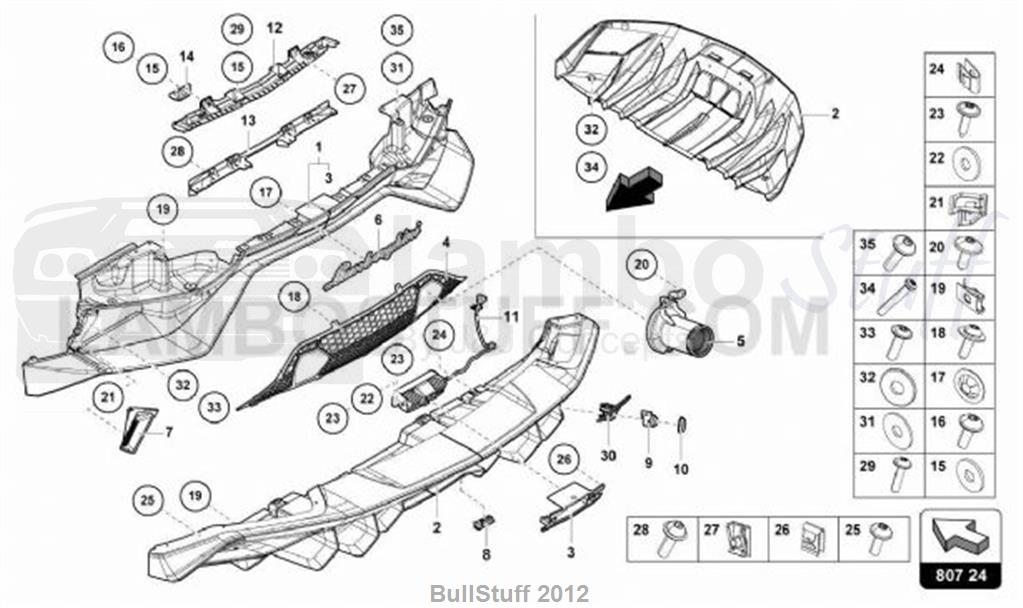

TAV: 807.24.00 - BUMPER, COMPLETE

2019 Lamborghini AVENTADOR SVJ COUPE USA BUMPER, COMPLETE (807.24.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470807105	BUMPER BUMPER (WITH RVC - PRIMER-REAR)	1 req	Avail to order Our Price: $33,473.57
1	470807105B	BUMPER BUMPER (WITHOUT RVC - PRIMER-REAR)	1 req	Avail to order Our Price: $30,542.93
1	470807105	BUMPER BUMPER (WITH RVC - PRIMER-REAR)	1 req	Avail to order Our Price: $33,473.57
1	470807105B	BUMPER BUMPER (WITHOUT RVC - PRIMER-REAR)	1 req	Avail to order Our Price: $30,542.93
2	470807107	VENTURI AIR FUNNEL (W/O PARKING SENSORS - CARBON MATT-REAR)	1 req	Avail to order Our Price: $34,531.45
2	470807107A	VENTURI AIR FUNNEL (W/O PARKING SENSORS - CARBON SHINY-REAR)	1 req	Avail to order Our Price: $35,289.13
2	470807107B	VENTURI AIR FUNNEL (WITH PARKING SENSOSRS - CARBON MATT-REAR)	1 req	Avail to order Our Price: $30,750.23
2	470807107C	VENTURI AIR FUNNEL (WITH PARKING SENSOSRS - CARBON SHINY-REAR)	1 req	Avail to order Our Price: $31,593.67
2	470807107	VENTURI AIR FUNNEL (W/O PARKING SENSORS - CARBON MATT-REAR)	1 req	Avail to order Our Price: $34,531.45
2	470807107A	VENTURI AIR FUNNEL (W/O PARKING SENSORS - CARBON SHINY-REAR)	1 req	Avail to order Our Price: $35,289.13
2	470807107B	VENTURI AIR FUNNEL (WITH PARKING SENSOSRS - CARBON MATT-REAR)	1 req	Avail to order Our Price: $30,750.23
2	470807107C	VENTURI AIR FUNNEL (WITH PARKING SENSOSRS - CARBON SHINY-REAR)	1 req	Avail to order Our Price: $31,593.67
3		BRACKET FOR CAMERA (NOT AVAILABLE - ORDER REF 1)	0 req
3		BRACKET FOR CAMERA (NOT AVAILABLE - ORDER REF 1)	0 req
4	470807684G	GRILLE PARAURTI POST.CENT GRILLE	1 req	Avail to order Our Price: $6,090.01
4	470807684G	GRILLE PARAURTI POST.CENT GRILLE	1 req	Avail to order Our Price: $6,090.01
5	470251237F	TAILPIPE EXHAUST TAIL PIPE (STD)	1 req	Avail to order Our Price: $769.21
5	470251237G	TAILPIPE EXHAUST TAIL PIPE (OPT - MATT BLACK)	1 req	Avail to order Our Price: $866.80
5	470251237F	TAILPIPE EXHAUST TAIL PIPE (STD)	1 req	Avail to order Our Price: $769.21
5	470251237G	TAILPIPE EXHAUST TAIL PIPE (OPT - MATT BLACK)	1 req	Avail to order Our Price: $866.80
6	470853742	Aventador Rear Emblem LETTERING (LAMBORGHINI)	1 req	Avail to order Our Price: $273.05
6	470853742	Aventador Rear Emblem LETTERING (LAMBORGHINI)	1 req	Avail to order Our Price: $273.05
7	470807245A	COVER COVER R.BUMP.SV FL COVER (LEFT)	1 req	Avail to order Our Price: $43.64
7	470807246A	COVER COVER R.BUMP.SV FL COVER (RIGHT)	1 req	Avail to order Our Price: $43.64
7	470807245A	COVER COVER R.BUMP.SV FL COVER (LEFT)	1 req	Avail to order Our Price: $43.64
7	470807246A	COVER COVER R.BUMP.SV FL COVER (RIGHT)	1 req	Avail to order Our Price: $43.64
8	420943021	LICENSE PLATE LED LINKS LICENCE PLATE LIGHT	2 req	Avail to order Our Price: $54.47
8	420943021	LICENSE PLATE LED LINKS LICENCE PLATE LIGHT	2 req	Avail to order Our Price: $54.47
9	5Q0919275C	SENSOR,PARK SENSOR (WITHOUT PARKING PILOT - FRONT AND REAR PARKING SENSORS-FRONT)	4 req	Avail to order Our Price: $40.90
9	5Q0919275C	SENSOR,PARK SENSOR (WITHOUT PARKING PILOT - FRONT AND REAR PARKING SENSORS-FRONT)	4 req	Avail to order Our Price: $40.90
10	5Q09191339B9	GASKET SEAL RING (SATIN BLACK)	4 req	Current Stock: 2 Our Price: $2.00
10	5Q09191339B9	GASKET SEAL RING (SATIN BLACK)	4 req	Current Stock: 2 Our Price: $2.00
11	470980556A	CONTROL UNIT, CAMERA (REAR)	1 req	Avail to order Our Price: $4,298.12
11	470980556A	CONTROL UNIT, CAMERA (REAR)	1 req	Avail to order Our Price: $4,298.12
12	470853038A	COVER CARRIER	1 req	Avail to order Our Price: $86.83
12	470853038A	COVER CARRIER	1 req	Avail to order Our Price: $86.83
13	470807201G	STRUT ARM	1 req	Avail to order Our Price: $400.39
13	470807201G	STRUT ARM	1 req	Avail to order Our Price: $400.39
14	470807596C	BRACKET SUPP.PAR. SV FL ARM	2 req	Avail to order Our Price: $18.66
14	470807596C	BRACKET SUPP.PAR. SV FL ARM	2 req	Avail to order Our Price: $18.66
15	10	WASHER (6,4X18X1,6)	0 req
15	10	WASHER (6,4X18X1,6)	0 req
16	N10632003	HEXALOBULAR SOCKETM6X16 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	4 req	Avail to order Our Price: $2.00
16	N10632003	HEXALOBULAR SOCKETM6X16 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	4 req	Avail to order Our Price: $2.00
17	4T0853139	CLIP CLIP	2 req	Current Stock: 15 Our Price: $2.00
17	4T0853139	CLIP CLIP	2 req	Current Stock: 15 Our Price: $2.00
18	N10738101	HEXALOBULAR SOCKET HEX SOCKET HEAD BOLT (COMBI) (M5X16)	7 req	Current Stock: 4 Our Price: $2.00
18	N10738101	HEXALOBULAR SOCKET HEX SOCKET HEAD BOLT (COMBI) (M5X16)	7 req	Current Stock: 4 Our Price: $2.00
19	N90688703	SNAP NUT CLAMP SPEED NUT (M6X24X16)	8 req	Current Stock: 2 Our Price: $2.00
19	N90688703	SNAP NUT CLAMP SPEED NUT (M6X24X16)	8 req	Current Stock: 2 Our Price: $2.00
20	N91042302	HEXALOBULAR SOCKETM6X16 OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	6 req	Avail to order Our Price: $2.00
20	N91042302	HEXALOBULAR SOCKETM6X16 OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	6 req	Avail to order Our Price: $2.00
21	1J0858137B	CLAMP CLIP	4 req	Avail to order Our Price: $2.00
21	1J0858137B	CLAMP CLIP	4 req	Avail to order Our Price: $2.00
22	WHT000778	SPRING LOCK WASHER WASHER (30X36X1)	2 req	Current Stock: 15 Our Price: $2.00
22	WHT000778	SPRING LOCK WASHER WASHER (30X36X1)	2 req	Current Stock: 15 Our Price: $2.00
23	N90698605	SCREW HEXAGON SOCKET HEAD PANEL BOLT (ST4,2X16)	4 req	Current Stock: 3 Our Price: $2.00
23	N90698605	SCREW HEXAGON SOCKET HEAD PANEL BOLT (ST4,2X16)	4 req	Current Stock: 3 Our Price: $2.00
24	N90170803	SPEED NUT SPEED NUT (4,2X13X11)	4 req	Current Stock: 3 Our Price: $2.00
24	N90170803	SPEED NUT SPEED NUT (4,2X13X11)	4 req	Current Stock: 3 Our Price: $2.00
25	N10632004	Hexalobular Socket HEX SOCKET OVAL HEAD COLLARED	8 req	Avail to order Our Price: $2.00
25	N10632004	Hexalobular Socket HEX SOCKET OVAL HEAD COLLARED	8 req	Avail to order Our Price: $2.00
26	N0154487	SPEED NUT SPEED NUT (4,2X16,3X11)	4 req	Current Stock: 6 Our Price: $2.00
26	N0154487	SPEED NUT SPEED NUT (4,2X16,3X11)	4 req	Current Stock: 6 Our Price: $2.00
27	N91195701	SPEED NUT SPEED NUT (M6X22X15)	2 req	Avail to order Our Price: $3.30
27	N91195701	SPEED NUT SPEED NUT (M6X22X15)	2 req	Avail to order Our Price: $3.30
28	N10558102	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)	4 req	Current Stock: 11 Our Price: $4.24
28	N10558102	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)	4 req	Current Stock: 11 Our Price: $4.24
29	N10632102	HEXALOBULAR SOCKETM6X25 OVAL HEXAGON SOCKET HEAD BOLT (M6X25)	6 req	Avail to order Our Price: $2.00
29	N10632102	HEXALOBULAR SOCKETM6X25 OVAL HEXAGON SOCKET HEAD BOLT (M6X25)	6 req	Avail to order Our Price: $2.00
30	470919289C	SENSOR BRACKET SENSOR BRACKET (CENTER, LEFT)	1 req	Avail to order Our Price: $161.45
30	470919290C	SENSOR BRACKET SENSOR BRACKET (CENTER, RIGHT)	1 req	Avail to order Our Price: $161.45
30	470919329C	SENSOR BRACKET SENSOR BRACKET (LEFT)	1 req	Avail to order Our Price: $128.74
30	470919330C	SENSOR BRACKET SENSOR BRACKET (RIGHT)	1 req	Avail to order Our Price: $128.74
30	470919289C	SENSOR BRACKET SENSOR BRACKET (CENTER, LEFT)	1 req	Avail to order Our Price: $161.45
30	470919290C	SENSOR BRACKET SENSOR BRACKET (CENTER, RIGHT)	1 req	Avail to order Our Price: $161.45
30	470919329C	SENSOR BRACKET SENSOR BRACKET (LEFT)	1 req	Avail to order Our Price: $128.74
30	470919330C	SENSOR BRACKET SENSOR BRACKET (RIGHT)	1 req	Avail to order Our Price: $128.74
31	N0116945	washer WASHER (7X22)	4 req	Current Stock: 50 Our Price: $2.00
31	N0116945	washer WASHER (7X22)	4 req	Current Stock: 50 Our Price: $2.00
32	WHT000909	washer WASHER (NERINOX-6,4X18X1,6)	6 req	Current Stock: 10 Our Price: $1.94
32	WHT000909	washer WASHER (NERINOX-6,4X18X1,6)	6 req	Current Stock: 10 Our Price: $1.94
33	WHT009092	HEXAGON SOCKET M6X20 HEXAGON SOCKET HEAD BOLT, COUNTERSUNK (NERINOX)	4 req	Avail to order Our Price: $2.15
33	WHT009092	HEXAGON SOCKET M6X20 HEXAGON SOCKET HEAD BOLT, COUNTERSUNK (NERINOX)	4 req	Avail to order Our Price: $2.15
34	WHT000090	HEXAGON BOLT (NERINOX)	2 req
34	WHT000090	HEXAGON BOLT (NERINOX)	2 req
35	N10661002	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M6X20)	4 req	Current Stock: 18 Our Price: $2.00
35	N10661002	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M6X20)	4 req	Current Stock: 18 Our Price: $2.00
36	N90327506	SPEED NUT SPEED NUT (M6X23,5X14,2)	2 req	Current Stock: 43 Our Price: $2.00
36	N90327506	SPEED NUT SPEED NUT (M6X23,5X14,2)	2 req	Current Stock: 43 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
