2019 AVENTADOR SVJ COUPE - USA

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Ignition

PN	Item	Diagram
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

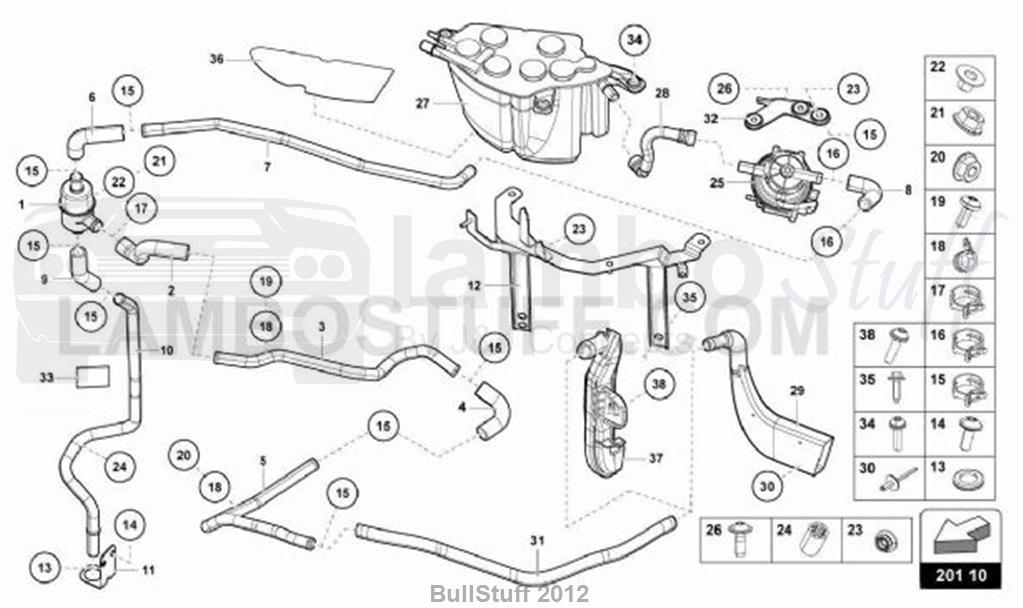

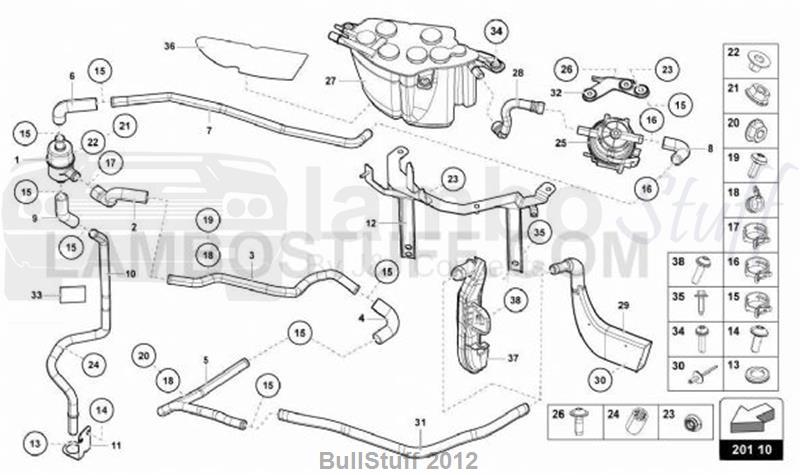

TAV: 201.10.00 - ACTIVATED CARBON FILTER SYSTEM

2019 Lamborghini AVENTADOR SVJ COUPE USA ACTIVATED CARBON FILTER SYSTEM (201.10.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4S0201752	COMBINATION VALVE KOMBI VALVE	1 req	Avail to order Our Price: $165.25
1	4S0201752	COMBINATION VALVE KOMBI VALVE	1 req	Avail to order Our Price: $165.25
2	470201352A	HOSE TUBO IN. LATO 3VIE PIPE	1 req	Avail to order Our Price: $27.99
2	470201352A	HOSE TUBO IN. LATO 3VIE PIPE	1 req	Avail to order Our Price: $27.99
3	470201728B	VENTILATION LINE RIGIDO INLET 1 PIPE	1 req	Avail to order Our Price: $337.21
3	470201728B	VENTILATION LINE RIGIDO INLET 1 PIPE	1 req	Avail to order Our Price: $337.21
4	470201384A	HOSE TUBO INLET GOMMA PIPE	1 req	Avail to order Our Price: $15.63
4	470201384A	HOSE TUBO INLET GOMMA PIPE	1 req	Avail to order Our Price: $15.63
5	470201730B	VENTILATION LINE RIGIDO INLET 2 PIPE	1 req	Avail to order Our Price: $307.44
5	470201730B	VENTILATION LINE RIGIDO INLET 2 PIPE	1 req	Avail to order Our Price: $307.44
6	470201908A	HOSE TUBO POMPA 3VIE PIPE	1 req	Avail to order Our Price: $27.99
6	470201908A	HOSE TUBO POMPA 3VIE PIPE	1 req	Avail to order Our Price: $27.99
7	470131491C	BREATHER HOSE BREATHER LINE	1 req	Avail to order Our Price: $833.71
7	470131491C	BREATHER HOSE BREATHER LINE	1 req	Avail to order Our Price: $833.71
8	470201153C	HOSE PIPE	1 req	Avail to order Our Price: $27.99
8	470201153C	HOSE PIPE	1 req	Avail to order Our Price: $27.99
9	470201817	HOSE OUTLET LATO 3VIE PIPE	1 req	Avail to order Our Price: $27.99
9	470201817	HOSE OUTLET LATO 3VIE PIPE	1 req	Avail to order Our Price: $27.99
10	470201411B	VENTILATION LINE PIPE	1 req	Avail to order Our Price: $340.93
10	470201411B	VENTILATION LINE PIPE	1 req	Avail to order Our Price: $340.93
11	470201938	BRACKET TUBO OUTLET VENTIL MOUNTING BAR	1 req	Avail to order Our Price: $31.42
11	470201938	BRACKET TUBO OUTLET VENTIL MOUNTING BAR	1 req	Avail to order Our Price: $31.42
12		BRACKET (SEE ILLUSTRATION 201.07)	0 req
12		BRACKET (SEE ILLUSTRATION 201.07)	0 req
13	400821190	GROMMET GROMMET	1 req	Current Stock: 6 Our Price: $2.68
13	400821190	GROMMET GROMMET	1 req	Current Stock: 6 Our Price: $2.68
14	N90780903	SOCKET SCREW OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	2 req	Current Stock: 1 Our Price: $2.00
14	N90780903	SOCKET SCREW OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	2 req	Current Stock: 1 Our Price: $2.00
15	15	SPRING BAND CLAMP (25X12)	0 req
15	15	SPRING BAND CLAMP (25X12)	0 req
16	N90686901	CLAMP SPRING BAND CLAMP (23X12)	2 req	Avail to order Our Price: $2.00
16	N90686901	CLAMP SPRING BAND CLAMP (23X12)	2 req	Avail to order Our Price: $2.00
17	N90687001	SPRING CLAMP SPRING BAND CLAMP (27X12)	1 req	Avail to order Our Price: $8.12
17	N90687001	SPRING CLAMP SPRING BAND CLAMP (27X12)	1 req	Avail to order Our Price: $8.12
18	N0206405	HOLDING CLIP CLAMP (18X15)	2 req	Avail to order Our Price: $2.17
18	N0206405	HOLDING CLIP CLAMP (18X15)	2 req	Avail to order Our Price: $2.17
19	N91096701	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	2 req	Current Stock: 8 Our Price: $2.00
19	N91096701	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	2 req	Current Stock: 8 Our Price: $2.00
20	N01508213	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	5 req	Current Stock: 4 Our Price: $2.00
20	N01508213	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	5 req	Current Stock: 4 Our Price: $2.00
21	N01508210	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	1 req	Current Stock: 17 Our Price: $2.09
21	N01508210	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	1 req	Current Stock: 17 Our Price: $2.09
22	8Z0129734	SPACER BUSH	4 req	Avail to order Our Price: $8.42
22	8Z0129734	SPACER BUSH	4 req	Avail to order Our Price: $8.42
23	8Z0129669A	GROMMET GROMMET	5 req	Current Stock: 3 Our Price: $6.48
23	8Z0129669A	GROMMET GROMMET	5 req	Current Stock: 3 Our Price: $6.48
24	470201411B	VENTILATION LINE PIPE	1 req	Avail to order Our Price: $340.93
24	470201411B	VENTILATION LINE PIPE	1 req	Avail to order Our Price: $340.93
25	3C0906271A	PUMP DIAGNOSIS PUMP FOR FUEL SYSTEM	1 req	Avail to order Our Price: $2,143.82
25	3C0906271A	PUMP DIAGNOSIS PUMP FOR FUEL SYSTEM	1 req	Avail to order Our Price: $2,143.82
26	N90829802	SCREW HEXAGON SOCKET HEAD PANEL BOLT (5X14,5)	3 req	Avail to order Our Price: $2.00
26	N90829802	SCREW HEXAGON SOCKET HEAD PANEL BOLT (5X14,5)	3 req	Avail to order Our Price: $2.00
27	470201801	ACTIVATED CARBON ACTIVATED CHARCOAL CONTAINER (NOT FOR CHINA - ORDER ALSO REF 36)	1 req	Avail to order Our Price: $1,704.64
27	470201801	ACTIVATED CARBON ACTIVATED CHARCOAL CONTAINER (NOT FOR CHINA - ORDER ALSO REF 36)	1 req	Avail to order Our Price: $1,704.64
28	470906272	HOSE VENT HOSE	1 req	Avail to order Our Price: $62.45
28	470906272	HOSE VENT HOSE	1 req	Avail to order Our Price: $62.45
29		BREATHER LINE (NOT FOR SVJ- 37)	0 req
29		BREATHER LINE (NOT FOR SVJ- 37)	0 req
30	N90248401	BLIND RIVET POP RIVET	1 req	Avail to order Our Price: $2.00
30	N90248401	BLIND RIVET POP RIVET	1 req	Avail to order Our Price: $2.00
31	470133739B	BREATHER PIPE DA FILTRO A ATMOSF BREATHER LINE	1 req	Avail to order Our Price: $116.42
31	470133739B	BREATHER PIPE DA FILTRO A ATMOSF BREATHER LINE	1 req	Avail to order Our Price: $116.42
32	470201369	BRACKET BRACKET	1 req	Avail to order Our Price: $34.39
32	470201369	BRACKET BRACKET	1 req	Avail to order Our Price: $34.39
33	410863939	FOOT SUPPORT,ABSORBER DAMPING ELEMENT	1 req	Avail to order Our Price: $2.61
33	410863939	FOOT SUPPORT,ABSORBER DAMPING ELEMENT	1 req	Avail to order Our Price: $2.61
34		HEXAGON SOCKET HEAD BOLT, SELF-LOCKING (SEE ILLUSTRATION 201.07)	0 req
34		HEXAGON SOCKET HEAD BOLT, SELF-LOCKING (SEE ILLUSTRATION 201.07)	0 req
35		FIXING SET (SEE ILLUSTRATION 201.07)	0 req
35		FIXING SET (SEE ILLUSTRATION 201.07)	0 req
36		WARM AIR DEFLECTOR PLATE (SEE ILLUSTRATION 201.07)	0 req
36		WARM AIR DEFLECTOR PLATE (SEE ILLUSTRATION 201.07)	0 req
37	470117157F	ELBOW SFIATO SV FL DRAIN NOZZLE	1 req	Avail to order Our Price: $656.55
37	470117157F	ELBOW SFIATO SV FL DRAIN NOZZLE	1 req	Avail to order Our Price: $656.55
38	N91054101	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT	1 req	Current Stock: 19 Our Price: $2.00
38	N91054101	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT	1 req	Current Stock: 19 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
