2021 AVENTADOR SVJ COUPE - EUROPE

Maintenance Parts:

Tools and Tookits

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $317.22

Open All

Select Group and TAV

< Previous Next >

TAV: 971.01.00 - ELECTRICS

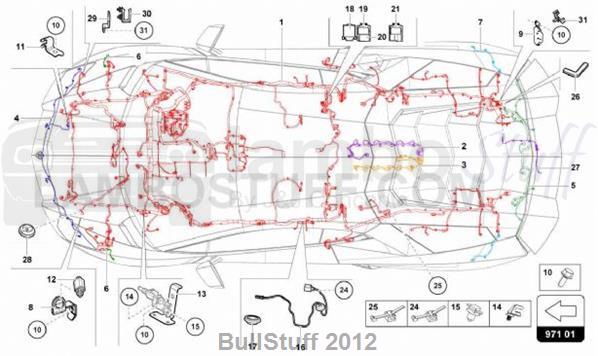

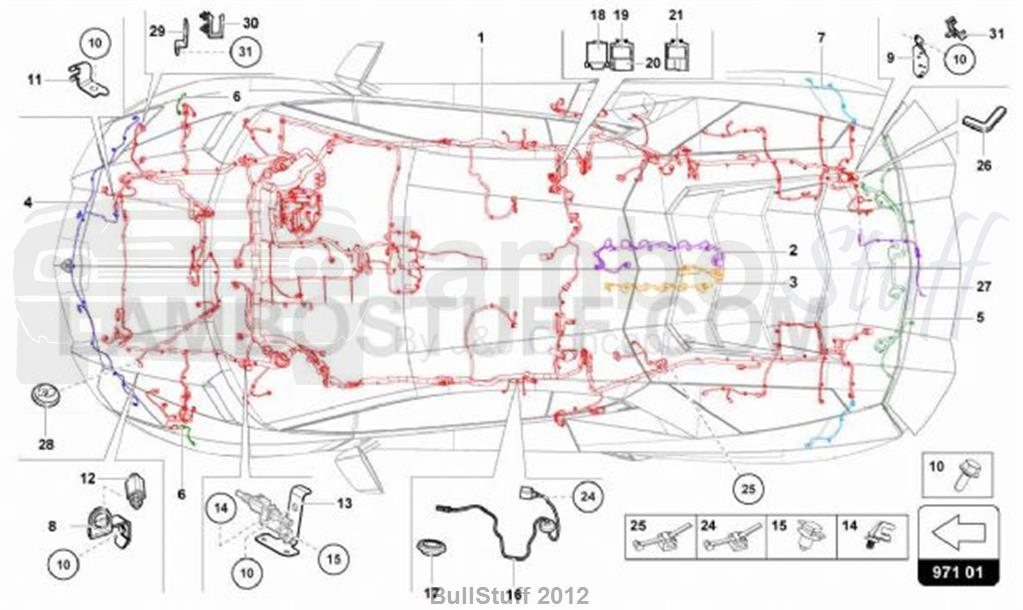

2021 Lamborghini AVENTADOR SVJ COUPE EUROPE ELECTRICS (971.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0		LHD)	0 req
0		LHD)	0 req
0		LHD)	0 req
1	476971138CE	HARNESS,VEHICLE CENTRALE G.SX CENTRAL WIRING SET (WITHOUT TIRE PRESSURE MONITORING - WIRTH RVC AND PARKING SENSORS - WITHOUT/ BASIC SPEAKERS-	1 req	Avail to order Our Price: $12,148.10
1	476971138BE	HARNESS,VEHICLE CENTRALE G.SX CENTRAL WIRING SET (WITHOUT TIRE PRESSURE MONITORING - WITHOUT PARKING SENSORS - PREMIUM LOUDSPEAKERS- LHD)	1 req	Avail to order Our Price: $11,229.64
1	476971138BF	HARNESS,VEHICLE CENTRALE G.SX CENTRAL WIRING SET (WITHOUT TIRE PRESSURE MONITORING - WIRTH RVC AND PARKING SENSORS - PREMIUM SPEAKERS-	1 req	Avail to order Our Price: $12,442.29
1	476971138BG	HARNESS,VEHICLE CENTRALE G.SX CENTRAL WIRING SET (WITH TIRE PRESSURE MONITOR - WITHOUT PARKING SENSORS - PREMIUM SPEAKERS- LHD)	1 req	Avail to order Our Price: $12,363.37
1	476971138BH	HARNESS,VEHICLE CENTRAL WIRING SET (WITH TIRE PRESSURE MONITOR - WITH RVC AND PARKING SENSORS - PREMIUM SPEAKERS- LHD)	1 req	Avail to order Our Price: $13,748.24
1	476971138CD	HARNESS,VEHICLE CENTRALE G.SX CENTRAL WIRING SET (WITHOUT TIRE PRESSURE MONITORING - WITHOUT PARKING SENSORS - WITHOUT OR BASIC LOUDSPEAKERS-	1 req	Avail to order Our Price: $10,892.39
1	476971138CF	HARNESS,VEHICLE CENTRALE G.SX CENTRAL WIRING SET (WITH TIRE PRESSURE MONITOR - WITHOUT PARKING SENSORS - WITHOUT/ BASIC SPEAKERS- LHD)	1 req	Avail to order Our Price: $12,026.12
1	476971138CG	HARNESS,VEHICLE CENTRALE G.SX CENTRAL WIRING SET (WITH TIRE PRESSURE MONITOR - WITH RVC AND PARKING SENSORS - WITHOUT/ BASIC SPEAKERS- LHD)	1 req	Avail to order Our Price: $13,396.64
2	07M971627C	HARNESS,ENGINE PREPRECABL BANC.1-6 WIRING HARNESS FOR INJECTORS	1 req	Avail to order Our Price: $512.34
3	07M971627D	HARNESS,ENGINE PREPRECABL BANC.1-6 WIRING HARNESS FOR INJECTORS	1 req	Avail to order Our Price: $297.07
4	470971095B	HARNESS,BUMPER WIRING SET FOR BUMPER (WITH HOMELINK-FRONT)	1 req	Avail to order Our Price: $86.25
4	470971095D	HARNESS,BUMPER AIUTO PARCHEGGIO WIRING SET FOR BUMPER (WITHOUT HOMELINK-FRONT)	1 req	Avail to order Our Price: $69.03
5	470971104H	HARNESS,BUMPER WIRING SET FOR BUMPER (WITHOUT PARKING SENSORS-REAR)	1 req	Avail to order Our Price: $113.09
5	470971104J	HARNESS,BUMPER WIRING SET FOR BUMPER (WITH RVC AND PARKING SENSORS-REAR)	1 req	Avail to order Our Price: $454.93
6	470971123A	HARNESS,TURN INDICAT.DIREZIONE WIRING HARNESS: FRONT	1 req	Avail to order Our Price: $11.92
7		WIRE SET (VALID FOR USA/CANADA MARKETS-REAR)	0 req
8	470820536	BRACKET BRACKET	1 req	Avail to order Our Price: $47.50
9	470814593A	Bracket CARRIER	1 req	Avail to order Our Price: $833.80
10	N10653201	HEXAGON FLANGE HEX COLLARED BOLT (M6X16)	4 req	Current Stock: 12 Our Price: $2.01
11	470971303	BRACKET CONNETT.CABL.CENTR BRACKET	1 req	Avail to order Our Price: $18.51
12	8Z0820535	THERMOPROBE EXTERNAL TEMPERATURE SENSOR	1 req	Current Stock: 3 Our Price: $37.89
13	470412125A	BRACKET ATTACHMENT BARS	2 req	Avail to order Our Price: $21.17
14	1C0971845	BRACKET BRACKET	1 req	Avail to order Our Price: $8.55
15	3D0971838K	CABLE TIE CABLE TIES	1 req	Avail to order Our Price: $2.00
16	470971817A	EXTENSION WIRING	1 req	Avail to order Our Price: $44.06
17	N10560801	COVER BUNGS (ORDER IN PLACE OF REF. 16)	1 req	Avail to order Our Price: $2.00
18		RELAY (RELAY DC MOTOR - SEE REPAIR MANUAL)	1 req
19		RELAY (RELAY EV1 - SEE REPAIR MANUAL)	1 req
20		RELAY (RELAY EV2 - SEE REPAIR MANUAL)	1 req
21		RELAY (RELAY EV3 - SEE REPAIR MANUAL)	1 req
22	5M0971838	CABLE TIE BASE CABLE TIE WITH TERMINAL SOCKET (4,6X200MM)	2 req	Avail to order Our Price: $2.73
23	281957787C	CABLE HOLDER RETAINER, SWIVEL	1 req	Avail to order Our Price: $2.15
24	5M0971838	CABLE TIE BASE CABLE TIE WITH TERMINAL SOCKET (4,6X200MM)	2 req	Avail to order Our Price: $2.73
25	5M0971838A	CABLE TIE BASE CABLE TIE WITH TERMINAL SOCKET (4,6X200MM HORIZONTAL 1-3MM 90 DEGREE ANGLE)	2 req	Avail to order Our Price: $2.73
26	823881763	PROTECTIVE EDGING EDGE PROTECTION	1 req	Avail to order Our Price: $3.59
27	470971171	HARNESS,STOP LAMP 3.STOP-MAIN HARN. ADAPTER WIRING SET FOR HIGH MOUNTED BRAKE LIGHT	1 req	Avail to order Our Price: $39.18
28	420955997	GROMMET GROMMET	1 req	Current Stock: 3 Our Price: $2.95
29	420121261A	BRACKET BRACKET	2 req	Current Stock: 3 Our Price: $3.66
30	1J0971830R	BRACKET,PLUG BRACKET FOR CONNECTOR HOUSING	2 req	Avail to order Our Price: $5.03
31	N10661002	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M6X20)	2 req	Current Stock: 18 Our Price: $2.00
32	N90685101	CONNECTOR SUPP. BRACKET FOR CONNECTOR HOUSING (6,5)	1 req	Avail to order Our Price: $4.52
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
