2021 AVENTADOR SVJ COUPE - EUROPE

Maintenance Parts:

Tools and Tookits

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $317.22

Open All

Select Group and TAV

< Previous Next >

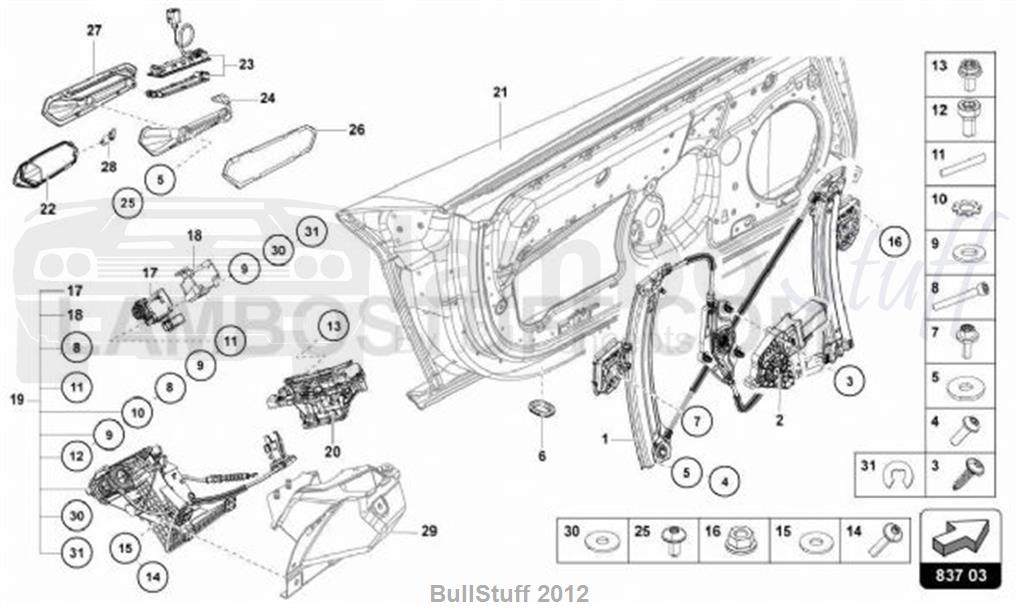

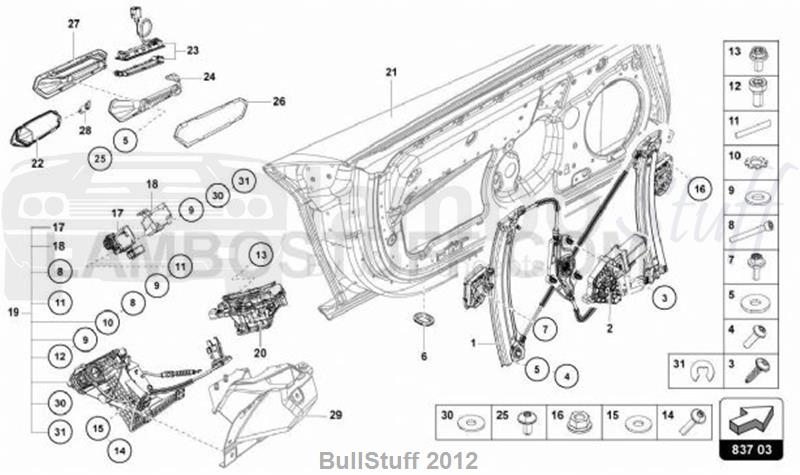

TAV: 837.03.00 - DRIVER AND PASSENGER DOOR

2021 Lamborghini AVENTADOR SVJ COUPE EUROPE DRIVER AND PASSENGER DOOR (837.03.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470837397D	Window Lift WINDOW REGULATOR WITHOUT MOTOR (LEFT)	1 req	Avail to order Our Price: $902.68
1	470837397E	Window Lift WINDOW REGULATOR WITHOUT MOTOR (LEFT)	1 req	Avail to order Our Price: $940.00
1	470837398D	Window Lift WINDOW REGULATOR WITHOUT MOTOR (RIGHT)	1 req	Avail to order Our Price: $902.68
1	470837398E	WINDOW LIFT WINDOW REGULATOR WITHOUT MOTOR (RIGHT)	1 req	Avail to order Our Price: $940.00
2	8K0959801B	MOTOR,WINDOW WINDOW REGULATOR MOTOR (RIGHT)	1 req	Avail to order Our Price: $180.11
2	8K0959802B	MOTOR,WINDOW WINDOW REGULATOR MOTOR (LEFT)	1 req	Avail to order Our Price: $200.92
3	8Z0837691C	SCREW HEXAGON SOCKET HEAD PANEL BOLT (5X22)	6 req	Current Stock: 4 Our Price: $2.00
4	N10124308	screw OVAL HEXAGON SOCKET HEAD BOLT (M6X20)	4 req	Current Stock: 33 Our Price: $1.87
5	N01166623	WASHER WASHER (6,4X18X1,6)	8 req	Avail to order Our Price: $2.00
6	470813591	COVER COVER	4 req	Current Stock: 2 Our Price: $12.49
7	N91104901	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) (M8X25)	4 req	Avail to order Our Price: $2.00
8		SOCKET HEAD BOLT (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19)	4 req
9		WASHER (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19)	4 req
10		WASHER (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19)	4 req
11		DAMPING SLEEVE (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19)	4 req
12		SOCKET HEAD BOLT (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19)	4 req
13	WHT002225A	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT (M8X16)	6 req	Avail to order Our Price: $2.00
14	N10632202	HEXALOBULAR SOCKET ROUND HD. SCREW (M6X30)	6 req	Current Stock: 2 Our Price: $2.00
15	WHT002961	WASHER WASHER (6,5X18X1,5)	6 req	Current Stock: 39 Our Price: $2.00
16	WHT000127	FLANGE NUT HEXAGON NUT (M8)	4 req	Avail to order Our Price: $17.59
17		ACTUATOR FOR IMPACT SOUND (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19)	2 req
18		SERVOMOTOR HOLDER (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.:- 19)	2 req
19	471837011	DOOR LOCK EMERGENC DOOR LOCK DOOR LOCK WITH DOOR CONTACT SWITCH (LEFT LHD)	1 req	Avail to order Our Price: $1,901.51
19	471837012	DOOR LOCK EMERGENC DOOR LOCK DOOR LOCK WITH DOOR CONTACT SWITCH (RIGHT LHD)	1 req	Avail to order Our Price: $1,346.13
20	471837015B	DOOR LOCK DOOR LOCK WITH DOOR CONTACT SWITCH (LEFT LHD)	1 req	Avail to order Our Price: $223.88
20	471837016B	DOOR LOCK DOOR LOCK WITH DOOR CONTACT SWITCH (RIGHT LHD)	1 req	Avail to order Our Price: $207.38
21		DOOR (SEE ILLUSTRATION 837.11)	0 req
21		DOOR (SEE ILLUSTRATION :- 837-020)	0 req
22	471837599G	CAP GREZZO REMOVABLE LID (LEFT)	1 req	Avail to order Our Price: $51.10
22	472837599G	CAP GREZZO REMOVABLE LID (RIGHT)	1 req	Avail to order Our Price: $51.10
23	470827566A	MOMENTARY SWITCH OPER.MECHAN.WITH MICRO SWITCH	2 req	Avail to order Our Price: $125.00
24	470831635A	BRACKET MANIGLIA EST. BRACKET FOR GRAB HANDLE (LEFT)	1 req	Avail to order Our Price: $17.94
24	470831636A	BRACKET MANIGLIA EST. BRACKET FOR GRAB HANDLE (RIGHT)	1 req	Avail to order Our Price: $17.94
25	N10586401	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M5X10)	4 req	Current Stock: 13 Our Price: $2.00
26	470837521A	GASKET NASTRO TEFLONATO SEAL (LEFT)	1 req	Avail to order Our Price: $40.55
26	470837522A	GASKET GASKET SEAL (RIGHT)	1 req	Avail to order Our Price: $40.55
27	470837159B	DOOR HANDLE,OUTER DOOR HANDLE, EXTERIOR (LEFT)	1 req	Avail to order Our Price: $51.53
27	470837160B	DOOR HANDLE,OUTER DOOR HANDLE OUTER DOOR HANDLE, EXTERIOR (RIGHT)	1 req	Avail to order Our Price: $51.53
28	470853582	CLAMP SECURING ELEMENT	2 req	Avail to order Our Price: $9.33
29		MUD WING COMPENSATION PLATE (SEE ILLUSTRATION :- 821-020)	0 req
30		WASHER (NOT SOLD SEPARATELY - ORDER REF 19)	0 req
31		SECURING RING (NOT SOLD SEPARATELY - ORDER REF 19)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
