2020 AVENTADOR SVJ COUPE - USA

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Ignition

PN	Item	Diagram
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

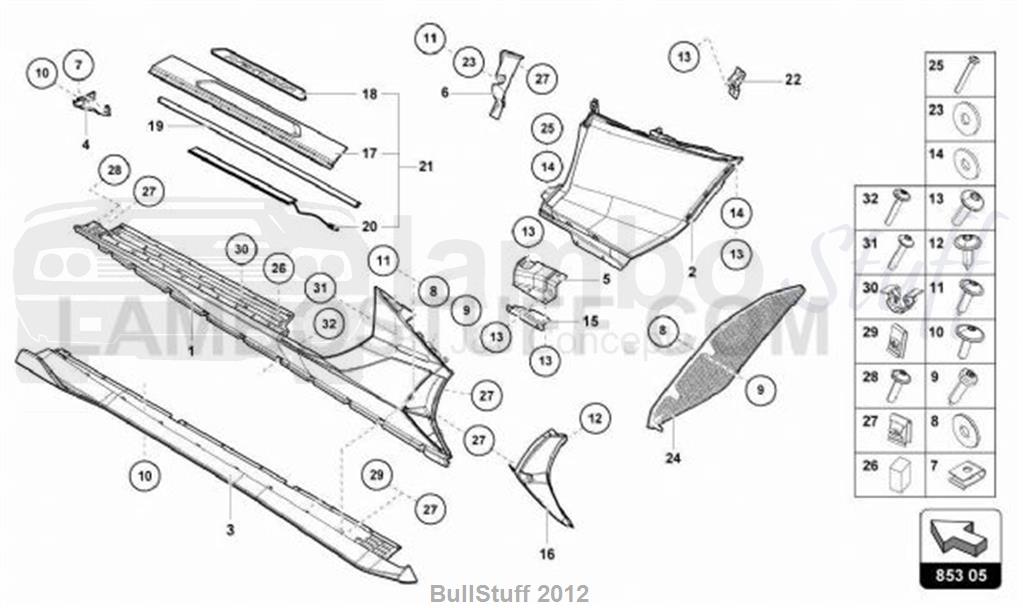

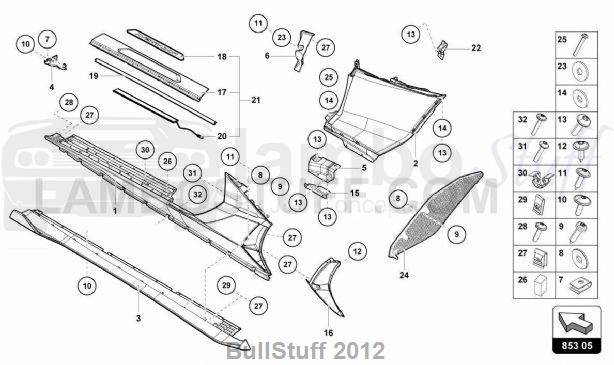

TAV: 853.05.00 - LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING

2020 Lamborghini AVENTADOR SVJ COUPE USA LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING (853.05.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470853553K	SILL LINING ROCKER PAINT SV FL SIDE MEMBER TRIM (MATT BLACK-LEFT)	1 req	Avail to order Our Price: $10,086.36
1	470853553L	SILL LINING ROCKER PAINT SV FL SIDE MEMBER TRIM (SHINY BLACK-LEFT)	1 req	Avail to order Our Price: $10,086.36
1	470853554K	SILL LINING ROCKER PAINT SV FL SIDE MEMBER TRIM (MATT BLACK-RIGHT)	1 req	Avail to order Our Price: $10,086.36
1	470853554L	SILL LINING ROCKER PAINT SV FL SIDE MEMBER TRIM (SHINY BLACK-RIGHT)	1 req	Avail to order Our Price: $10,086.36
2	470853989D	COVER SIDE PANEL SX SIDE MEMBER TRIM (LEFT)	1 req	Avail to order Our Price: $647.62
2	470853990D	COVER SIDE PANEL DX SIDE MEMBER TRIM (RIGHT)	1 req	Avail to order Our Price: $647.62
3	470853751B	SILL EXTENSION WIDENED SILL PANELS (MATT BLACK-LEFT)	1 req	Avail to order Our Price: $2,352.25
3	470853751D	SILL EXTENSION SHINY BLACK SV FL WIDENED SILL PANELS (SHINY BLACK-LEFT)	1 req	Avail to order Our Price: $14,545.19
3	470853752B	SILL EXTENSION WIDENED SILL PANELS (MATT BLACK-RIGHT)	1 req	Avail to order Our Price: $2,352.25
3	470853752D	SILL EXTENSION SHINY BLACK SV FL WIDENED SILL PANELS (SHINY BLACK-RIGHT)	1 req	Avail to order Our Price: $14,545.19
3	470853759C	SILL EXTENSION BAFFO MINIGONNA WIDENED SILL PANELS (SHINY CARBON-LEFT)	1 req	Avail to order Our Price: $9,005.09
3	470853759D	SILL EXTENSION BAFFO MINIGONNA WIDENED SILL PANELS (CARBON MATT-LEFT)	1 req	Avail to order Our Price: $9,005.09
3	470853760C	SILL EXTENSION BAFFO MINIGONNA WIDENED SILL PANELS (SHINY CARBON-RIGHT)	1 req	Avail to order Our Price: $9,005.09
3	470853760D	SILL EXTENSION BAFFO MINIGONNA WIDENED SILL PANELS (CARBON MATT-RIGHT)	1 req	Avail to order Our Price: $9,005.09
4	470853293E	COVER BRANC.EST SV FL COVER (LEFT)	1 req	Avail to order Our Price: $451.10
4	470853294E	Cover Branc.Est. Sv Fl COVER (RIGHT)	1 req	Avail to order Our Price: $451.10
5	470814707	BRACKET ARM (LEFT REAR)	1 req	Avail to order Our Price: $25.84
5	470814708	BRACKET ARM (RIGHT REAR)	1 req	Avail to order Our Price: $25.84
6	470809921B	COVER REAR SIDE PAN.OUT LINING FOR FENDER (LEFT)	1 req	Avail to order Our Price: $107.79
6	470809922B	COVER REAR SIDE PAN.OUT LINING FOR FENDER (RIGHT)	1 req	Avail to order Our Price: $107.65
7	12	SPEED NUT (STD-4,2X13X11)	0 req
7	N90526602	SNAP NUT CLAMP SPEED NUT (CFK-M4X13,6X15)	4 req	Avail to order Our Price: $2.00
8	N01166422	WASHER 4.3X12X1 WASHER	2 req	Current Stock: 9 Our Price: $2.00
9	WHT009097	FILLISTER HEAD ST4.2X16 SCREW	2 req	Avail to order Our Price: $2.68
10	16	HEXAGON SOCKET HEAD BOLT (M6X20)	0 req
11	N90698606	FLANGE TAPPING HEXAGON SOCKET HEAD PANEL BOLT (4,2X16)	2 req	Avail to order Our Price: $2.00
12	N90986803	FLANGE TAPPING HEXAGON SOCKET HEAD PANEL BOLT (4,2X13)	8 req	Avail to order Our Price: $2.00
13	26	HEX SOCKET OVAL HEAD COLLARED (M6X20)	0 req
14	16	WASHER (6,4X18X1,6)	0 req
15	470853883A	ANGLE BRACKET REGOLAB.SIDE PAN. SECURING BRACKET (LEFT)	1 req	Avail to order Our Price: $67.67
15	470853884A	ANGLE BRACKET REGOLAB.SIDE PAN. SECURING BRACKET (RIGHT)	1 req	Avail to order Our Price: $67.67
16	470853653D	RADIATOR GRILLE GRIGLIA BRAN.SV FL RADIATOR GRILLE (LEFT)	1 req	Avail to order Our Price: $912.44
16	470853654D	RADIATOR GRILLE GRIGLIA BRAN.SV FL RADIATOR GRILLE (RIGHT)	1 req	Avail to order Our Price: $912.44
17	470853369	SCUFF PLATE SILL TRIM STRIP (OPT LIGHT - STD-LEFT)	1 req	Avail to order Our Price: $3,183.09
17	470853369A	SCUFF PLATE SILL TRIM STRIP (OPT LIGHT - CFK-LEFT)	1 req	Avail to order Our Price: $4,241.64
17	470853370	SCUFF PLATE SILL TRIM STRIP (OPT LIGHT - STD-RIGHT)	1 req	Avail to order Our Price: $3,183.09
17	470853370A	SCUFF PLATE SILL TRIM STRIP (OPT LIGHT - CFK-RIGHT)	1 req	Avail to order Our Price: $4,241.64
17	470853491B	SCUFF PLATE SILL TRIM STRIP (STD-LEFT)	1 req	Avail to order Our Price: $498.73
17	470853491C	SCUFF PLATE SILL TRIM STRIP (LEFT)	1 req	Avail to order Our Price: $602.95
17	470853492B	SCUFF PLATE SILL TRIM STRIP (STD-RIGHT)	1 req	Avail to order Our Price: $498.73
17	470853492C	SCUFF PLATE SILL TRIM STRIP (RIGHT)	1 req	Avail to order Our Price: $602.95
18	470853655A	TRIM MOLDING FOR SIDE MEMBER (CARBON PACK)	2 req	Avail to order Our Price: $497.97
18	470853655B	TRIM ESTETICA BRANC.EST MOLDING FOR SIDE MEMBER (CARBON FABRIC)	2 req	Avail to order Our Price: $2,355.64
18		MOLDING FOR SIDE MEMBER (NOT SOLD SEPARATELY - ORDER REF 21)	0 req
19	470853383	GASKET GUARN.XBATTITACCO (LEFT) SEAL FOR SILL PANEL (LEFT)	1 req	Avail to order Our Price: $483.85
19	470853384	GASKET GUARN.XBATTITACCO (RIGHT) SEAL FOR SILL PANEL (RIGHT)	1 req	Avail to order Our Price: $483.85
20		ENTRY LIGHTING (NOT SOLD SEPARATELY - ORDER REF 21)	0 req
21	470853369	SCUFF PLATE SILL TRIM STRIP (STD-LEFT)	1 req	Avail to order Our Price: $3,183.09
21	470853369A	SCUFF PLATE SILL TRIM STRIP (CFK-LEFT)	1 req	Avail to order Our Price: $4,241.64
21	470853370	SCUFF PLATE SILL TRIM STRIP (STD-RIGHT)	1 req	Avail to order Our Price: $3,183.09
21	470853370A	SCUFF PLATE SILL TRIM STRIP (CFK-RIGHT)	1 req	Avail to order Our Price: $4,241.64
22	470814589	BRACKET BRACKET (LEFT)	1 req	Avail to order Our Price: $21.96
22	470814590	BRACKET BRACKET (RIGHT)	1 req	Avail to order Our Price: $37.07
23	WHT000778	SPRING LOCK WASHER WASHER (30X36X1)	2 req	Current Stock: 15 Our Price: $2.00
24	470825327E	VENTILATION GRILLE AIR GUIDE GRILLE (LEFT)	1 req	Avail to order Our Price: $1,237.46
24	470825328E	VENTILATION GRILLE AIR GUIDE GRILLE (RIGHT)	1 req	Avail to order Our Price: $1,237.46
25	N10405702	screw HEXAGON SOCKET HEAD BOLT (M6X45)	4 req	Current Stock: 7 Our Price: $2.00
26	400845235A	spacer DISTANCE PIECE	4 req	Current Stock: 4 Our Price: $5.29
27	26	SPEED NUT (4,2X16,3X11)	0 req
28	N91121101	12-POINT SOCKET FLANGE BOLT HEXALOBULAR FLANGE SCREW	2 req	Avail to order Our Price: $2.61
29	WHT007409	SPEED NUT ST4.2X19.3X16.2 SPEED NUT	2 req	Avail to order Our Price: $11.10
30	12	CLIP	0 req
31	N10632202	HEXALOBULAR SOCKET ROUND HD. SCREW (M6X30)	4 req	Current Stock: 1 Our Price: $1.94
32	16	HEXAGON SOCKET FLAT HEAD BOLT (M4X25)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
