Maintenance Parts:

Tools and Tookits

PN Item Diagram
400093050D CTEK US-CD BATTERY CHARGER
Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month 		Avail to order
Our Price: $317.22
CTEK US-CD BATTERY CHARGER
Open All

Select Group and TAV

< Previous Next >

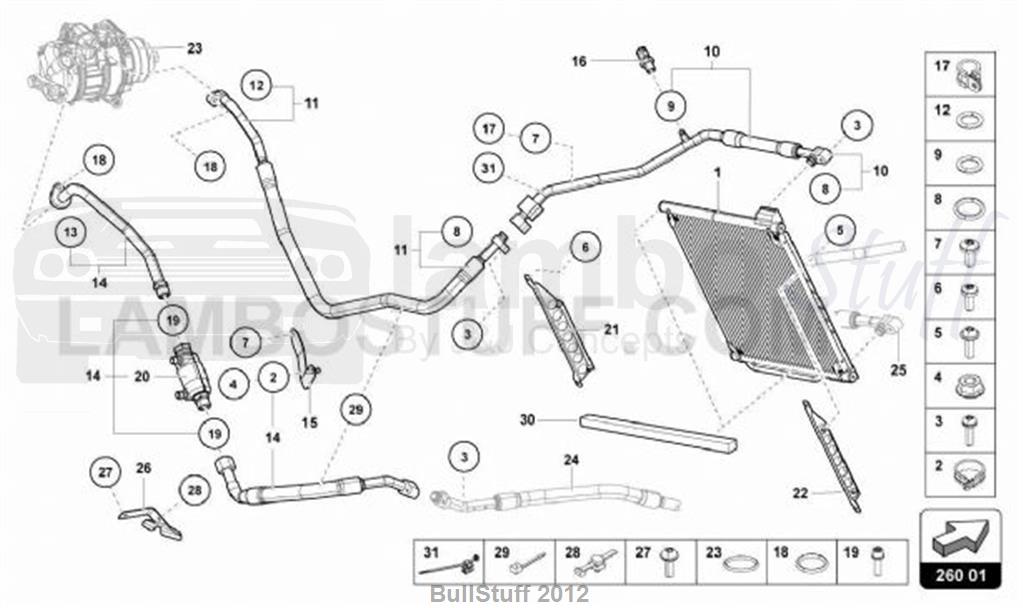

TAV: 260.01.00 - A/C CONDENSER

2020 Lamborghini AVENTADOR SVJ COUPE USA A/C CONDENSER (260.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 470260401A CONDENSER
A/C CONDENSER 		1 req Avail to order
Our Price: $987.35
2 N90942301 HOLDING CLIP
CLAMP (48X15) 		1 req Avail to order
Our Price: $10.19
3 N10347204 HEXALOBULAR SOCKET
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING (M6X25) 		3 req Avail to order
Our Price: $2.37
4 N01508213 HEXAGON FLANGE NUT
HEXAGON COLLAR NUT (M6) 		1 req Current Stock: 4
Our Price: $2.00
HEXAGON FLANGE NUT
5 N10569501 HEXALOBULAR SOCKET
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD (M5X16) 		4 req Avail to order
Our Price: $2.23
HEXALOBULAR SOCKET
6 N10451408 HEXALOBULAR SOCKET
OVAL HEXAGON SOCKET HEAD BOLT (M6X16) 		4 req Avail to order
Our Price: $2.00
7 N91096701 HEXALOBULAR SOCKET
OVAL HEXAGON SOCKET HEAD BOLT (M6X16) 		2 req Current Stock: 8
Our Price: $2.00
8 4E0260749B seal ring
SEAL RING (13,7X2,5) 		2 req Current Stock: 2
Our Price: $5.32
9 7H0820896 O-RING
O-RING (7,6X1,8) 		1 req Avail to order
Our Price: $5.24
10 470260702D REFRIGERANT LINE
FLANGED PIPE 		1 req Avail to order
Our Price: $323.62
11 470260701B REFRIGERANT LINE
FLANGED PIPE 		1 req Avail to order
Our Price: $396.09
12 4E0260749A seal ring
SEAL RING (11X2,5) 		2 req Current Stock: 7
Our Price: $5.81
seal ring
13 8E0260749C seal ring
SEAL RING (23,8X2,4) 		1 req Current Stock: 5
Our Price: $4.95
seal ring
14 470260709C REFRIGERANT LINE
FLANGED PIPE 		1 req Avail to order
Our Price: $1,822.58
15 470201809 BRACKET
BRACKET 		1 req Avail to order
Our Price: $33.80
16 4H0959126B SEE PN 4H0959126C
PRESSURE SENDER 		1 req Avail to order
Our Price: $109.93
17 N0206405 HOLDING CLIP
CLAMP (18X15) 		1 req Avail to order
Our Price: $2.01
18 N10414402 HEXALOBULAR SOCKET
SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (M8X28) 		2 req Avail to order
Our Price: $3.01
19 SEAL RING (NO PART - INCLUED IN REF 14-14X2) 0 req
20 FUEL COOLER (NO PART - INCLUED IN REF 14) 0 req
21 470260427A BRACKET
BRACKET (LEFT) 		1 req Avail to order
Our Price: $40.12
22 470260428A BRACKET
BRACKET (RIGHT) 		1 req Avail to order
Our Price: $40.04
23 A/C COMPRESSOR (SEE ILLUSTRATION :- 145-020) 0 req
24 FLANGED PIPE (SEE ILLUSTRATION :- 260-020) 0 req
25 FLANGED PIPE (SEE ILLUSTRATION :- 260-020) 0 req
26 470260761 BRACKET
BRACKET 		1 req Avail to order
Our Price: $38.47
27 N91032702 HEXALOBULAR SOCKET FLANGE BOLT
ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD (M6X20) 		4 req Current Stock: 6
Our Price: $2.00
HEXALOBULAR SOCKET FLANGE BOLT
28 3W0971838 CABLE TIE
CABLE TIES (4,6X193MM 6,5/0,3-3,0MM) 		1 req Avail to order
Our Price: $2.00
29 N10562301 CLAMP
CABLE TIES (4,7X194) 		2 req Avail to order
Our Price: $2.00
30 470260423 SEAL
SPONGE 		2 req Avail to order
Our Price: $51.24
31 3D0971838M CABLE TIE BASE
CABLE TIE WITH TERMINAL SOCKET (4,6X200MM 1-3MM) 		1 req Avail to order
Our Price: $2.87

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
