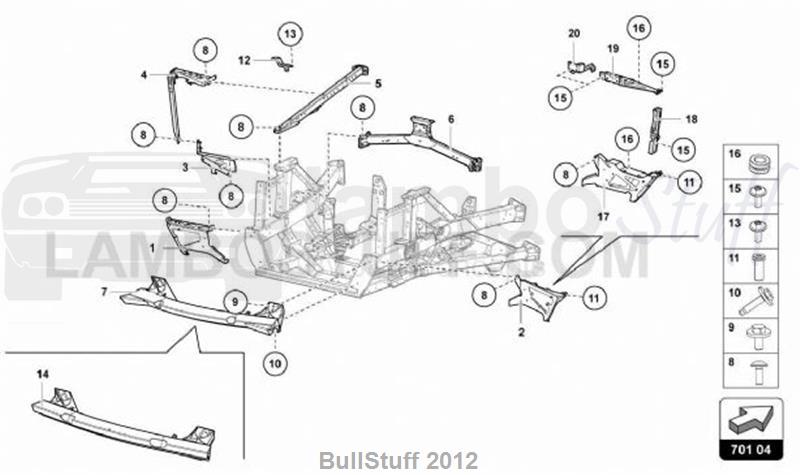

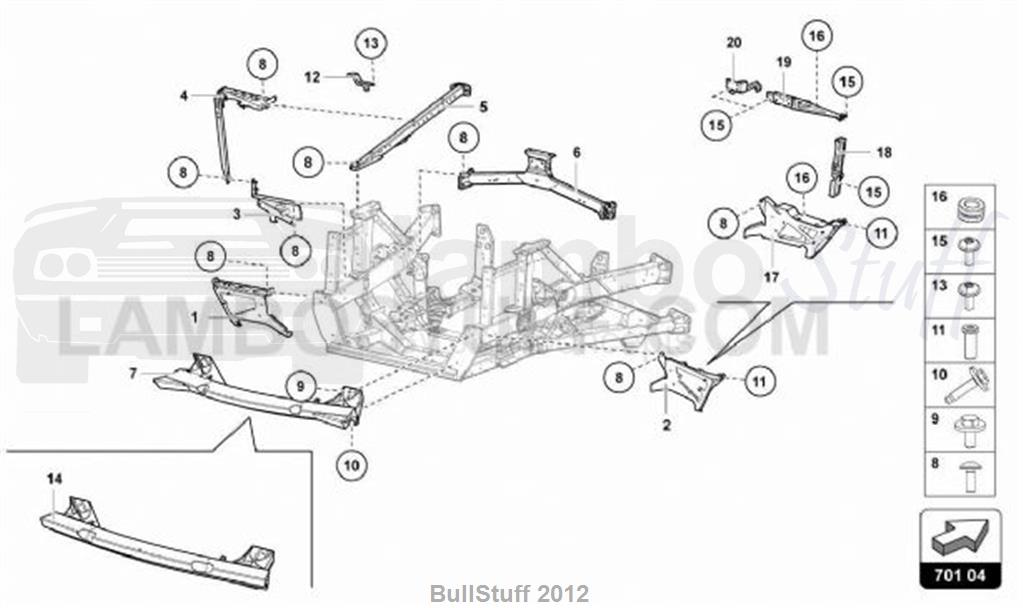

TAV: 701.04.00 - TRIM FRAME REAR PART

2018 Lamborghini AVENTADOR S ARABIA TRIM FRAME REAR PART (701.04.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470814907C	EXTENSION KUEHLER ARM (LEFT REAR)	1 req	Avail to order Our Price: $849.58
2	470814908E	EXTENSION KUEHLER ARM (RIGHT REAR)	1 req	Avail to order Our Price: $594.14
3	470814149F	CROSSMEMBER ARM (LEFT REAR)	1 req	Avail to order Our Price: $215.27
3	470814150C	CROSSMEMBER CRASH PART ARM (CONTACT YOUR AREA MANAGER-RIGHT REAR)	1 req	Avail to order Our Price: $211.69
4	470813541B	BRACKET BRACKET (CONTACT YOUR AREA MANAGER-LEFT)	1 req	Avail to order Our Price: $1,571.43
4	470813542B	BRACKET BRACKET (CONTACT YOUR AREA MANAGER-RIGHT)	1 req	Avail to order Our Price: $2,619.06
5	470813649K	REINFORCEMENT DACHRAHMEN SIDE MEMBER (CONTACT YOUR AREA MANAGER-LEFT REAR)	1 req	Avail to order Our Price: $642.93
5	470813650E	REINFORCEMENT DACHRAHMEN SIDE MEMBER (CONTACT YOUR AREA MANAGER-RIGHT REAR)	1 req	Avail to order Our Price: $611.36
6		CROSS MEMBER (CONTACT YOUR AREA MANAGER-REAR)	1 req
7	470807307D	REAR BUMPER BAR BUMPER CARRIER (REAR-REAR)	1 req	Avail to order Our Price: $1,679.07
8	N91000203	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M8X25-H)	32 req	Avail to order Our Price: $5.46
9	N90786503	HEX. BOLT WITH HEXAGON HEAD BOLT (COMBI) (M8X20)	2 req	Avail to order Our Price: $2.00
10	N90862302	HEX. BOLT WITH HEXAGON HEAD BOLT (COMBI) (M8X40)	2 req	Avail to order Our Price: $6.18
11	8H0806221	ADJUSTMENT PART COMPENSATING PIECE	2 req	Avail to order Our Price: $8.55
12	470854729A	SUPPORT ARRESTO SIDE FLAP ARM (REAR)	2 req	Avail to order Our Price: $56.33
13	N90944603	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M5X12)	4 req	Avail to order Our Price: $2.00
14		BUMPER CARRIER (ONLY FOR SV VERSION-REAR)	1 req
15	N90900402	HEXALOBULAR SOCKETM6X20 HEX SOCKET OVAL HEAD COLLARED (M6X20)	4 req	Avail to order Our Price: $2.00
16	4D0317867A	RUBBER MOUNTING RUBBER BUSH	2 req	Avail to order Our Price: $8.40
17	470814908E	EXTENSION KUEHLER ARM (RIGHT REAR-RIGHT REAR)	1 req	Avail to order Our Price: $594.14
18	470813983A	BRACKET LATERALE RADIAT.3 ARM (RIGHT REAR-RIGHT REAR)	1 req	Avail to order Our Price: $1,166.74
19	470813381	BRACKET SUPERIORE MOBILE ARM (CONTACT YOUR AREA MANAGER-RIGHT REAR)	1 req	Avail to order Our Price: $1,070.59
20	470814942C	EXTENSION HECKQUERT SCHLOSS BRACKET (CONTACT YOUR AREA MANAGER-REAR)	1 req	Avail to order Our Price: $85.39
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
