2020 Lamborghini URUS URUS USA ENGINE BRACKET (199.01.00)

Maintenance Parts:

Belts

PN	Item	Diagram
0P2903137B	V-RIBBED BELT GENERATOR V-RIBBED BELT GENERATOR		Avail to order Our Price: $79.62
0P2260849	POLY-V-BELT KLIMAKOMPRESSOR POLY-V-BELT KLIMAKOMPRESSOR		Current Stock: 2 Our Price: $40.98
06M260938J	IDLER PULLEY V6T EA839 D=65 IDLER PULLEY V6T EA839 D=65		Avail to order Our Price: $73.99

Brakes

PN	Item	Diagram
4M0611775B	BRAKE HOSE 17/18- BRAKE HOSE 17/18-		Avail to order Our Price: $55.64
4M0698451BH	SET BRAKE BREMBO SET BRAKE BREMBO		Current Stock: 1 Our Price: $809.41

Common repairs and upgrades

PN	Item	Diagram
400098100	DELIVERY CAR COVER DELIVERY CAR COVER		Avail to order Our Price: $1,651.21
4ML061501	RUBBER FLOOR MAT RUBBER FLOOR MAT		Avail to order Our Price: $519.62
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.48
4M8955407B1P9	AERO-WIPER ARM DRIVER SIDE LHD AERO-WIPER ARM		Avail to order Our Price: $406.46
4ML998002	WIPER BLADE SET WIPER BLADE		Avail to order Our Price: $98.50
4ML998002B	WIPER BLADE SET WIPER BLADE		Avail to order Our Price: $128.09
7PP906283P	WATER PUMP VALVE CHANGE-OVER VALVE Valve, water pump		Avail to order Our Price: $118.07
4H0121671D	COOLANT CONTROL VALVE COOLANT CONTROL VALVE		Avail to order Our Price: $185.36
06H121601P	ADDITIONAL WATER PUMP ADDITIONAL WATER PUMP		Current Stock: 1 Our Price: $252.36
4H0805615A	TOWING EYE TOWING EYE		Avail to order Our Price: $56.61

Drivetrain

PN	Item	Diagram
06M198405F	FILTER ELEMENT WITH GASKET - URUS OIL FILTER FILTER ELEMENT WITH GASKET		Current Stock: 2 Our Price: $48.84
N91167901	THREADED PLUG DRAIN PLUG THREADED PLUG		Avail to order Our Price: $7.57
N0138495	O-RING DRAIN PLUG WASHER O-RING		Current Stock: 52 Our Price: $3.50
059105323BN	CLUTCH PLATE DRIVING DISK / CLUTCH PLATE		Avail to order Our Price: $550.85
0D6398359	HYDRAULIC FILTER AUTOMATIC TRANSMISSION HYDRAULIC FILTER AUTOMATIC TRANSMISSION TRANSMISSION OIL SUMP		Avail to order Our Price: $616.39

Fuel-Air

PN	Item	Diagram
4M0819439B	INTERIOR CABIN AIR FILTER ELEMENT INTERIOR CABIN AIR FILTER ELEMENT		Current Stock: 2 Our Price: $124.50

Fuses-Bulbs-Relays

PN	Item	Diagram
4N0915459A	CONTROL. Module. Battery. Current Sensor. FUSE UNIT. PROTECTOR CONTROL. Module. Battery. Current Sensor. FUSE UNIT. PROTECTOR		Avail to order Our Price: $233.72

Gaskets

PN	Item	Diagram
06M121688	SEAL RING FOR THERMOSTAT SEAL RING		Current Stock: 1 Our Price: $17.58
8W0253115	GASKET EA839 BITURBO GASKET EA839 BITURBO		Avail to order Our Price: $24.57

Ignition

PN	Item	Diagram
06E903024T	ALTERNATOR 140-210A DENSO ALTERNATOR 140-210A DENSO		Avail to order Our Price: $1,838.59
0P2905601A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $41.56
4ML998105	BATTERY-SET BATTERY-SET		Avail to order Our Price: $851.04
06H905110L	IGNITION COIL IGNITION COIL		Avail to order Our Price: $87.10

Misc

PN	Item	Diagram
4ML091387	URUS SNOW CHAINS SET URUS SNOW CHAINS		Avail to order Our Price: $484.12
0P2253725A	EXHAUST CLAMP EXHAUST CLAMP		Avail to order Our Price: $10.68
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
079907660A	OIL AND TEMP SENSOR OIL AND TEMP SENSOR		Avail to order Our Price: $179.44
4ML907561B	RADAR SENSOR DIAG-ADR: 013 RADAR SENSOR DIAG-ADR: 013		Avail to order Our Price: $3,424.13
0P2906265AD	OXYGEN SENSOR OXYGEN SENSOR		Avail to order Our Price: $385.58
0P2906265AE	OXYGEN SENSOR OXYGEN SENSOR		Avail to order Our Price: $385.58
4N0919529B	EXH.TEMP.SENSOR TEMP.FUEHLER DTC EXH.TEMP.SENSOR TEMP.FUEHLER DTC		Avail to order Our Price: $323.83
4M8906265E	LAMBDA PROBE NK-LS OZAS-S4.1 LAMBDA PROBE NK-LS OZAS-S4.1		Avail to order Our Price: $350.63
030905377C	KNOCK SENSOR KNOCK SENSOR		Current Stock: 1 Our Price: $125.06
059906054G	PRESSURE SENSOR PRESSURE SENSOR		Avail to order Our Price: $106.03
06E906051AB	SENSOR, INTAKE MANIFOLD PRESSURE SENSOR, INTAKE MANIFOLD PRESSURE		Avail to order Our Price: $122.05
04C907601K	SENSOR, CAMSHAFT POSITION Sensor, camshaft position		Avail to order Our Price: $80.30

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98
0R1400561	FIRST AID AND EMERGENCY KIT FIRST AID AND EMERGENCY KIT CARRYING CASE SAFETY JACKET EMERGENCY AND FIRST AID KIT TORCH YELLOW SNAP LIGHT (x 2) GREEN SNAP LIGHT EMERCENCY TRIANGLE FIRST AID KIT		Current Stock: 1 Our Price: $262.78

Open All

Select Group and TAV

< Previous Next >

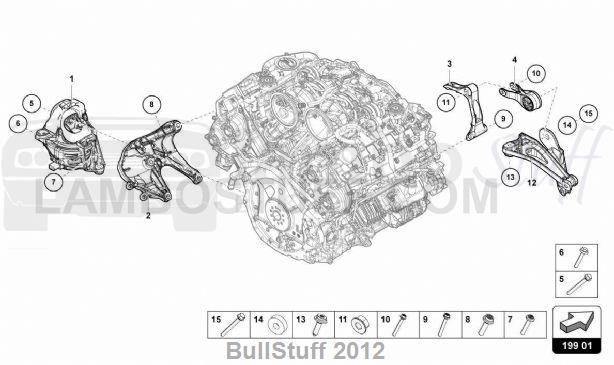

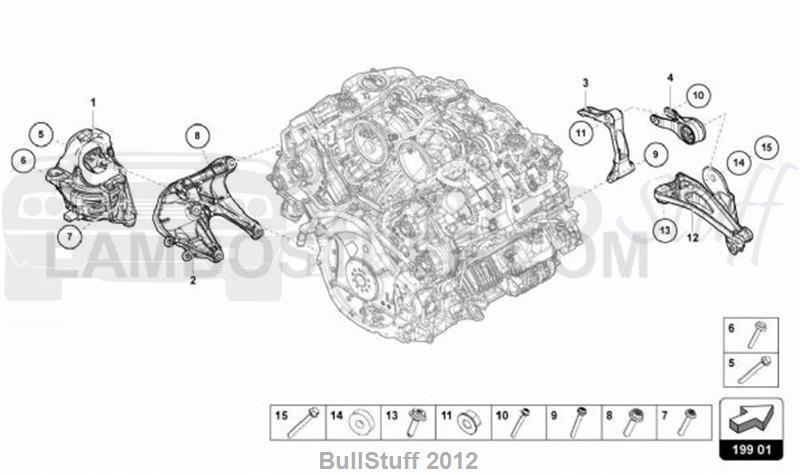

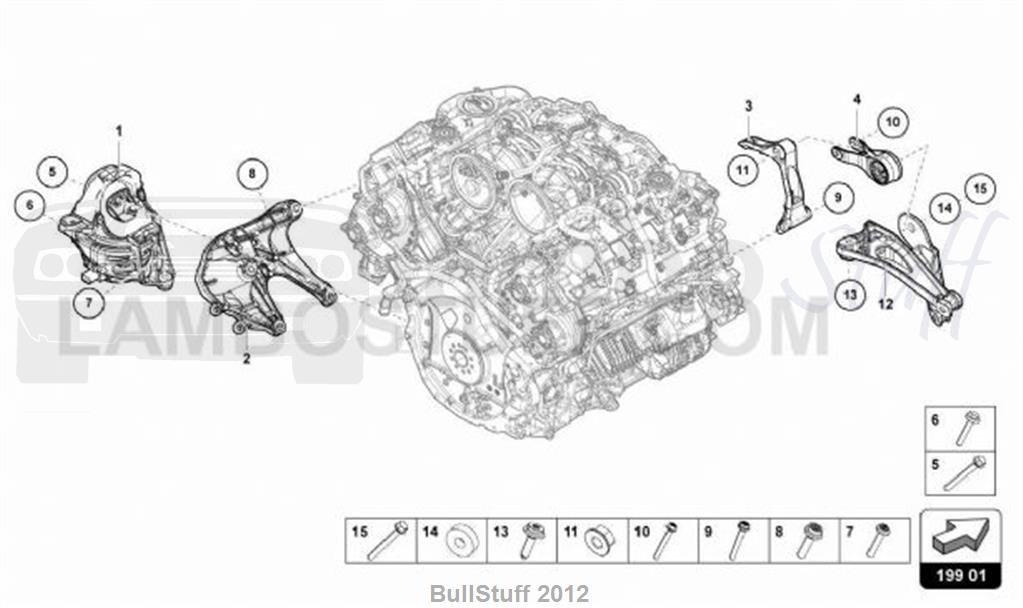

TAV: 199.01.00 - ENGINE BRACKET

2020 Lamborghini URUS URUS USA ENGINE BRACKET (199.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Urus Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4M0199371FK	ENGINE MOUNT V8/G/400/9HZ ENGINE MOUNTING (LEFT)	1 req	Avail to order Our Price: $294.02
1	4M0199372FK	ENGINE MOUNT V8/G/400/11HZ ENGINE MOUNTING (RIGHT)	1 req	Avail to order Our Price: $294.02
2	4M0199307BF	ENGINE BRACKET V8 TFSI SWZ DG SUPPORT (SIDE, LEFT)	1 req	Avail to order Our Price: $113.32
2	4M0199308BF	ENGINE BRACKET V8 TFSI SWZ DG SUPPORT (SIDE, RIGHT)	1 req	Avail to order Our Price: $129.53
3	9Y0199352A	BRACKET V8T MLB CONSOLE	1 req	Avail to order Our Price: $188.37
4	9Y0199331A	TORQUE SUPPORT ENGINE SUPPORT (UPPER)	1 req	Avail to order Our Price: $94.58
5	N91210501	12-POINT SOCKET M12X1.5X70-S28 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) (M12X1,5X70)	2 req	Avail to order Our Price: $5.05
6	N90696702	HEXAGON HEAD BOLT HEXAGON HEAD BOLT (COMBI) (M8X50)	4 req	Avail to order Our Price: $6.02
7	N91246701	12-POINT SOCKET M10X50 SCREW WITH INT. SERRATIONS (M10X50)	2 req	Avail to order Our Price: $4.47
8	N10702603	12-POINT SOCKET SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD (M10X35)	8 req	Current Stock: 4 Our Price: $4.37
9	N10741801	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	9 req	Avail to order Our Price: $6.99
10	N10680201	DUO HEXAGON FLANGE BOLT HEXAGON COLLARED BOLT WITH MULTI-POINT SOCKET HEAD (DUO) (M10X75)	3 req	Avail to order Our Price: $3.98
11	N10261311	HEXAGON FLANGE NUT HEXAGON NUT (M10)	2 req	Current Stock: 11 Our Price: $2.43
12	9Y0199373	MOUNTING BRACKET SUPPORT BRACKET	1 req	Avail to order Our Price: $87.39
13	N0195038	HEXAGON FLANGE HEXAGON BOLT (M8X35)	3 req	Avail to order Our Price: $3.30
14	N90992802	WASHER 11.5X32X10 WASHER	1 req	Avail to order Our Price: $6.60
15	N10655802	HEXAGON FLANGE M10X85 HEX COLLARED BOLT (M10X85)	1 req	Avail to order Our Price: $4.76
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
