2002 MURCIELAGO COUPE - ENGLAND

Maintenance Parts:

Belts

PN	Item	Diagram
07M903137	CONTROL BELT (ACCESSORIES) Please Check your Part Manual for a Description		Avail to order Our Price: $168.88

Brakes

PN	Item
0031016774	Brake Pad Kit Front - Murcielago Brake pad kit	Avail to order Our Price: $1,422.38
0032000561	Brake Pad Kit -Front - Late Diablo - Murcielago -4 Pads - 2 Per Rotor Brake Pad Kit 4 Pads per kit. Front same part number. For Full set of Front , need qty 2.	Current Stock: 1 Our Price: $1,154.57
410615115D	E-Brake Pad - Late Diablo - Murcielago Sold Each E-Brake Pad Murcielago and late Diablo Sold Each	Current Stock: 3 Our Price: $57.73
410615301	brake disk Please Check your Part Manual for a Description	Avail to order Our Price: $2,389.47
410615301A	BRAKE CARBON ROTOR Please Check your Part Manual for a Description	Avail to order Our Price: $9,103.78
410615601	BRAKE DISC BRAKE DISC	Current Stock: 7 Our Price: $2,270.36
410798041A	Brake Pad Set Rear Carboceramic - Murcielago Brake Pad Set Rear Carboceramic - Murcielago Sold as 2 pair for both rear rotors.	Avail to order Our Price: $1,337.57
400698451	Brake Pad Kit Rear - Murcielago - Gallardo - Sold as 2 pair Rear Brake Pad Kit Set of 2 Pair for both Rear Rotors	Avail to order Our Price: $733.51
003135643	Galfer Sensor Galfer Sensor	Avail to order Our Price: $13.20
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G	Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item
410837987	SHOCK ABSORBER SHOCK ABSORBER	Current Stock: 1 Our Price: $145.46
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89

Drivetrain

PN	Item
07M105269A	Murcielago Balanced Clutch Kit (Flywheel, Disk, Pressure plate) FLYWHEEL,COMPL.	Avail to order Our Price: $7,548.02
086141671C	SEE PN 410141671 Murci ThrowOut Bearing E-Gear	Avail to order Our Price: $4,912.91
086141671B	MURCIELAGO CLUTCH ASSEMBLY MANUAL MURCIELAGO CLUTCH ASSEMBLY MANUAL NLA FROM FACTORY PLEASE CONTACT US FOR CURRENT PRICING AND AVAILABIILITY	Avail to order Our Price: $4,674.44
410721401	SEE PN 410721401A Please Check your Part Manual for a Description	Avail to order Our Price: $248.62
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO	Avail to order Our Price: $104.15

Fuel-Air

PN	Item
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Avail to order Our Price: $31.69
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Current Stock: 10 Our Price: $293.29
AMAIRD	Hi-Performance aFe Air Filter - Diablo/Murcielago - SPORT Air Filter Murcielago - Diablo After Market aFe Air Filter 30-10133	Current Stock: 1 Our Price: $145.65
07M906031	Fuel Injector (sold ea) Please Check your Part Manual for a Description	Avail to order Our Price: $1,365.20
002024398	Fuel Pump Fuel Pump	Current Stock: 6 Our Price: $762.25
0062003086	Filter Filter	Current Stock: 7 Our Price: $2,350.79
07M133843A	Air Filter - SPORT PERFORMANCE FILTER Performance filter replacement for 07M133843 Air Filter - Murcielago SV LP 670-4	Avail to order Our Price: $782.61
07M133843KN	K&N Air Filter - LM002, Countach, Diablo, Murcielago K&N's replacement air filters are designed to increase horsepower and acceleration while providing excellent filtration. These filters are washable and reusable and are custom designed to fit into your existing factory air box. Their drop-in design means adding performance is simple.	Avail to order Our Price: $70.48
410805396	FILTER BOX Please Check your Part Manual for a Description	Current Stock: 1 Our Price: $151.85
410820367A	PARTICULATE FILTER PARTICULATE FILTER	Current Stock: 2 Our Price: $71.57
N10445602	BULB BULB	Avail to order Our Price: $17.64

Fuses-Bulbs-Relays

PN	Item
006617091	Bulb 21w tail light 21w Bulb	Current Stock: 4 Our Price: $13.56
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.09
006617094	LAMP BA 15S 21W Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 76 Our Price: $9.90
N01713118	FUSE FUSE	Current Stock: 18 Our Price: $2.00
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.17
N0177532	LAMP BULB LAMP BULB	Avail to order Our Price: $2.00
N10445703	HEADLIGHT BULB HEADLIGHT BULB	Current Stock: 8 Our Price: $200.99
N10525502	FUSE STRIP FUSE STRIP	Avail to order Our Price: $6.33

Gaskets

PN	Item	Diagram
0011014183	Engine Gasket Set Murcielago Engine Gasket Set Murcielago		Avail to order Our Price: $2,888.20
600940141L	latch Gasket Left latch Gasket Set Left This is the rubber/plastic gasket that is located on the Left side between the outer door latch and the door frame		Current Stock: 5 Our Price: $24.28

Ignition

PN	Item
0016003036	Spark Plug sold ea - Diablo and Murcielago Spark Plug	Avail to order Our Price: $64.84
0R1470187	Ignition Coil Kit (Set of 12) KIT 12 IGNITION COILS	Avail to order Our Price: $661.02
410915105A	BATTERY Please Check your Part Manual for a Description	Avail to order Our Price: $947.76
410905619	Spark Plug All Murcielgos Spark Plug - Murcielago, Murcielago LP640 - LP 670-4 - Reventon Sold Each	Current Stock: 2 Our Price: $54.57

Misc

PN	Item
0061005005	MED 2000 Alarm Remote Control Programmed MED 2000 Alarm Remote Control. You must supply the Cars VIN along with proof of ownership (Registration and photo Identification) scanned and emailed or a copy sent to us.	Avail to order Our Price: $212.40
8Z1955425C	WIPER WIPER	Current Stock: 3 Our Price: $39.08
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78
0R1400135	NOT AVAILABLE IN USA TIRE INFLATOR KIT € € €	Avail to order Our Price: $273.30
0R1470029	TRANSPARENT ENGINE BONNET KIT 2002-2010 Murcielago Coupe TRANSPARENT ENGINE BONNET KIT FOR 2002-2010 Murcielago Coupe INCLUDES 418827023A TRUNK LID x 1 418827401 gas spring x 2 418827631A Glass bonnet x 1 418827632A Glass bonnet x 1 418827651 PROFILE SEAL x 2 418827652 PROFILE SEAL x 2 895827439B BALL PINN x 2 410827602 SHOCK ABSORBER FASTENING BRACKET x 1 410827601 SHOCK ABSORBER FASTENING BRACKET x 1 418827322A HOOK x 1 N90319404 HEXAGON FLANGE x 7 WHT003407 WASHER x 7	Avail to order Our Price: $10,398.36
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
410601147CV	MOLDING AND HUP-CAP - COLORED (HERMERA SILVER) WHEEL TRIM set of 4 Fits All Rims Except Hercules & Cassiopea	Current Stock: 4 Our Price: $339.85

Sensors

PN	Item
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
410919529	TEMPERATURE SENSOR TEMPERATURE SENSOR	Current Stock: 2 Our Price: $409.41
410919529A	TEMPERATURE SENSOR - MURCIELAGO TEMPERATURE SENSOR	Avail to order Our Price: $394.53
07L919501A	Water Temperature Sensor Water Temperature Sensor	Current Stock: 3 Our Price: $375.18
07L919561B	OIL PRESSURE GAUGE SENDER OIL PRESSURE GAUGE SENDER	Avail to order Our Price: $917.08
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $697.09
07M919529	Engine Air Temperature Sensor Engine Air Temperature Sensor	Avail to order Our Price: $308.18
086141297	CLUTCH SENSOR CLUTCH SENSOR	Avail to order Our Price: $497.25
086927321	Crank/Flywheel/Timing Sensor ELECTROMAGNETIC PROBE	Avail to order Our Price: $130.42
400698137	Worn Pads Sensor Worn Pads Sensor	Current Stock: 2 Our Price: $127.14
0051001139	NLA (No Longer Available) ABS Sensor Wheel Speed Sensor - Diablo/Murcielago	Avail to order Our Price: $294.46
0R1400012	SPARE PARTS KIT N.6 SPARE PARTS KIT N.6	Current Stock: 17 Our Price: $890.65
0R1470156	MURCIELAGO AND DIABLO 6.0 MIN-MAX LIFT SYSTEM SENSORS KIT MURCIELAGO AND DIABLO 6.0 MIN-MAX LIFT SYSTEM SENSORS KIT	Avail to order Our Price: $1,061.49
0R1470226	Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO Lambda (O2 Oxygen) Sensor - DIABLO - EARLY MURCIELAGO	Current Stock: 4 Our Price: $393.04
400907475A	PEDAL VALUE (Potentiometer) PEDAL VALUE	Avail to order Our Price: $1,987.50
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72

Tools and Tookits

PN	Item	Diagram
61195072	CAMSHAFT MECHANICAL PHASE TOOL CAMSHAFT MECHANICAL PHASE TOOL		Avail to order Our Price: $1,972.62
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

- 23.01.00 FRONT DIFFERENTIAL CASE
11-CYLINDER HEAD
- 11.01.00 RIGHT CYLINDER HEAD
- 11.02.00 LEFT CYLINDER HEAD
- 11.03.00 GASKET KIT
12-TIMING SYSTEM
- 12.01.00 LEFT HEAD TIMING SYSTEM
- 12.02.00 RIGHT HEAD TIMING SYSTEM
- 12.03.00 TIMING SYSTEM
13-INTAKE MANIFOLD
- 13.01.00 INTAKE MANIFOLD
- 13.02.00 INTAKE MANIFOLD
- 13.03.00 AIR FILTERS
14-CRANK GEARS
- 14.01.00 CRANK GEARS
15-ENGINE OIL PUMP
- 15.01.00 ENGINE OIL PUMP
- 15.02.00 ENGINE OIL SYSTEM
16-ELECTRICAL SYSTEM
- 16.01.00 PHASE SENSORS AND ELECTRICAL COMPONENTS
- 16.02.00 ALTERNATOR
- 16.03.00 ELECTRONIC INJECTION UNITS
17-WATER PUMP
- 17.01.00 WATER PUMP
- 17.02.00 WATER COOLING SYSTEM
- 17.03.00 RADIATORS AND ELECTRIC FANS
18-CRANKCASE AND OIL SUMP
- 18.01.00 CRANKCASE
- 18.02.00 CRANKCASE AND LOWER MOUNTING
- 18.03.00 OIL SUMP
- 18.04.00 ENGINE
21-CLUTCH
- 21.01.74 MANUAL CLUTCH
22-PROPELLER SHAFT
- 22.01.00 FRONT PROPELLER SHAFT
23-FRONT DIFFERENTIAL
- 23.01.00 FRONT DIFFERENTIAL CASE
- 23.02.00 FRONT DIFFERENTIAL
- 23.03.00 FRONT DIFFERENTIAL
24-GEARBOX
- 24.01.00 MANUAL SHIFT LEVER SUPPORT
- 24.02.00 GEARBOX SHIFTING RODS AND FORKS
- 24.03.00 GEARBOX
- 24.04.00 GEARBOX OIL PUMP
- 24.05.00 MAIN SHAFT
- 24.06.00 DRIVEN SHAFT
- 24.09.00 GEARBOX ASSEMBLY
25-AXLE SHAFTS
- 25.01.00 AXLE SHAFTS AND PROPELLER SHAFT
26-REAR DIFFERENTIA
- 26.01.00 REAR DIFFERENTIAL CASE
- 26.02.00 REAR DIFFERENTIAL
- 26.03.00 REAR DIFFERENTIAL
31-BRAKES
- 31.01.00 FRONT BRAKES
- 31.02.00 BRAKE SYSTEM
- 31.03.00 ELECTROHYDRAULIC ABS CU
32-BRAKES
- 32.01.00 REAR BRAKES
33-HAND BRAKE
- 33.01.00 HAND BRAKE
40-POWER STEERING
- 40.01.00 POWER STEERING
41-FRAME ELEMENTS
- 41.01.00 FRAME ELEMENTS
42-PEDALS
- 42.01.00 MANUAL PEDAL CLUSTER
- 42.02.74 PEDAL SUPPORT
43-STEERING
- 43.01.00 STEERING
- 43.02.00 STEERING
- 43.03.00 STEERING
- 43.04.00 STEERING
44-EXHAUST SYSTEM
- 44.01.00 EXHAUST SYSTEM
- 44.02.00 EXHAUST SYSTEM
- 44.03.00 EXHAUST SYSTEM
- 44.04.00 EXHAUST SYSTEM
45-CLIMATE CONTROL
- 45.01.00 AIR CONDITIONING SYSTEM
- 45.02.00 AIR CONDITIONING SYSTEM
- 45.03.00 AIR CONDITIONING SYSTEM
- 45.04.74 AIR CONDITIONING SYSTEM
51-FRONT SUSPENSION
- 51.01.00 FRONT WHEEL AND HUB CARRIER
- 51.02.00 FRONT SUSPENSION
- 51.03.00 LIFTING SYSTEM
52-REAR SUSPENSION
- 52.01.00 REAR WHEEL AND HUB CARRIER
- 52.02.00 REAR SUSPENSION
59-ACCESSORIES
- 59.01.00 ACCESSORIES
- 59.02.00 HI-FI SYSTEM
- 59.03.00 NAMEPLATES
60-INSTRUMENTS
- 60.01.00 DASHBOARD INSTRUMENTS
61-ELECTRICAL SYSTEM
- 61.01.00 ELECTRICAL SYSTEM
- 61.02.00 ELECTRICAL SYSTEM
- 61.03.74 ELECTRICAL SYSTEM
- 61.04.00 ELECTRICAL SYSTEM
- 61.05.74 ELECTRICAL SYSTEM
62-FUEL SYSTEM
- 62.01.00 FUEL SYSTEM
- 62.02.00 FUEL SYSTEM
- 62.03.00 FUEL SYSTEM
- 62.04.00 FUEL SYSTEM
- 62.05.00 FUEL SYSTEM
63-LIGHTS
- 63.01.00 LIGHTS
66-OUTER PANELS AND PLATES
- 66.01.00 REAR BODY ELEMENTS
- 66.02.00 FUEL CAP
- 66.03.00 FRONT BODY ELEMENTS
- 66.04.00 BODY ELEMENTS LEFT SIDE
- 66.05.00 BODY ELEMENTS RIGHT SIDE
68-FRAME FLOOR PANELS
- 68.01.00 FRAME FLOOR PANELS
- 68.02.00 ENGINE COMPARTMENT PANELS
- 68.03.00 ENGINE COMPARTMENT INSULATING PANELS
70-WINDOWS
- 70.01.00 WINDOWS
71-WINDSHIELD WIPER
- 71.01.00 WINDSHIELD WIPER
72-DOORS
- 72.01.00 DOORS
- 72.02.00 DOORS
- 72.03.00 DOORS
73-REAR HOOD
- 73.01.00 REAR HOOD AND SPOILER
74-AIR INTAKE
- 74.01.00 AIR INTAKE
75-SEATS
- 75.01.00 SEATS AND SAFETY BELTS
77-INSULATIONS AND SOUNDPROOFING
- 77.01.74 INSULATIONS AND SOUNDPROOFING
78-PASSENGER COMPARTMENT FINISHING
- 78.01.00 PASSENGER COMPARTMENT TRIMS
- 78.02.00 PASSENGER COMPARTMENT TRIMS
- 78.03.00 PASSENGER COMPARTMENT TRIMS
- 78.04.00 COCKPIT CARPETS
79-FRONT HOOD
- 79.01.00 FRONT HOOD
- 79.02.00 COVERING
92-ENGINE HOOD
- 92.01.00 ENGINE HOOD
93-BUMPERS
- 93.01.00 BUMPERS
97-EXTERNAL REAR VIEW MIRRORS
- 97.01.00 EXTERNAL REAR VIEW MIRRORS

< Previous Next >

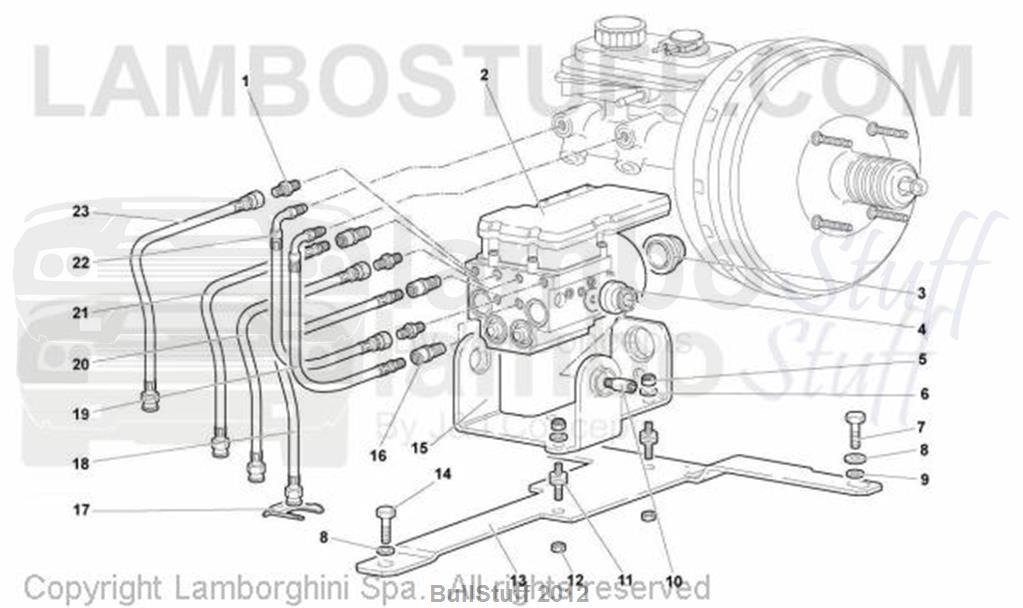

TAV: 31.03.00 - ELECTROHYDRAULIC ABS CU

2002 Lamborghini MURCIELAGO COUPE ENGLAND ELECTROHYDRAULIC ABS CU (31.03.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Murcielago Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	410614183	M10 Fitting CONNECTOR	3 req	Avail to order Our Price: $46.53
2	0031010786	ABS Hydraulic ECU ABS CONTROL UNIT	1 req	Avail to order Our Price: $4,071.76
3	410614128	Rubber Mount FLEXIBLE SUPPORT	1 req	Avail to order Our Price: $60.15
4	410614125	Rubber Mount FLEXIBLE SUPPORT	2 req	Avail to order Our Price: $15.04
5	N01100637	HEX.NUT NUT	3 req	Current Stock: 18 Our Price: $2.00
6	008410612	Snap Ring D.6 Din 7980 WASHER	3 req	Avail to order Our Price: $2.00
7	N10517304	12-POINT SOCKET SCREW	2 req	Current Stock: 10 Our Price: $2.00
8	N90179103	WASHER WASHER 18X8,4X2,5	3 req	Current Stock: 5 Our Price: $2.00
9	N0152785	WASHER WASHER	2 req	Current Stock: 71 Our Price: $2.00
10	410614187	Pin JOURNAL	2 req	Avail to order Our Price: $15.04
11	400972081A	FASTENING PART FLEXIBLE SUPPORT	3 req	Avail to order Our Price: $13.85
12	N01508213	HEXAGON FLANGE NUT NUT	3 req	Current Stock: 4 Our Price: $2.00
13	0031001552	ABS ECU Bracket SUPPORT	1 req	Avail to order Our Price: $116.75
14	N10536103	HEXAGON FLANGE BOLT SCREW	1 req	Current Stock: 36 Our Price: $2.00
15	410614143	ABS ECU Bracket BRACKET	1 req	Avail to order Our Price: $123.28
16	410614185	M12 Fitting CONNECTOR	3 req	Avail to order Our Price: $46.98
17	400611949	PLATE PLATE	1 req	Avail to order Our Price: $31.57
18	0031008511	FLEXIBLE PIPE LEFT FRONT FLEXIBLE HOSE	1 req	Avail to order Our Price: $141.05
19	0031001503	Hose HOSE	1 req	Avail to order Our Price: $101.52
20	0031001506	Hose RIGHT FRONT FLEXIBLE HOSE	1 req	Avail to order Our Price: $101.52
21	0032008512	FLEXIBLE PIPE LEFT REAR FLEXIBLE HOSE	1 req	Avail to order Our Price: $146.56
22	0032001504	Hose HOSE	1 req	Avail to order Our Price: $93.78
23	0032001508	Hose RIGHT REAR FLEXIBLE HOSE	1 req	Avail to order Our Price: $101.52
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
