2021 HURACAN EVO COUPE 2WD - AUSTRALIA

Maintenance Parts:

Brakes

PN	Item	Diagram
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G		Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0823359	GAS SPRING GAS SPRING	Current Stock: 2 Our Price: $82.49
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32
079115561J	SPIN-ON FILTER SPIN-ON FILTER	Avail to order Our Price: $83.92
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series	Current Stock: 7 Our Price: $89.92
1K0906283A	EGR VALVE ELECTR.CHANGEOVER EGR VALVE	Current Stock: 3 Our Price: $72.36

Fuel-Air

PN	Item
4T0133843	FILTER ELEMENT FILTER ELEMENT FILTER ELEMENT	Avail to order Our Price: $477.90
06E906051K	FUEL PRESSURE SENSOR FUEL PRESSURE SENSOR	Current Stock: 1 Our Price: $123.28
4s0819439	Filter Element Filter Element	Current Stock: 6 Our Price: $104.52
07L127025S	FUEL PUMP FUEL PUMP	Avail to order Our Price: $695.26

Gaskets

PN	Item	Diagram
N0138493	WASHER WASHER		Current Stock: 47 Our Price: $4.18

Ignition

PN	Item	Diagram
0BZ911024D	STARTER STARTER		Current Stock: 1 Our Price: $1,307.14

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
4S0906262F	LAMBDA PROBE BACK RIGHT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $571.69
4S0906262G	LAMBDA PROBE BACK LEFT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $343.91
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98

Open All

Select Group and TAV

< Previous Next >

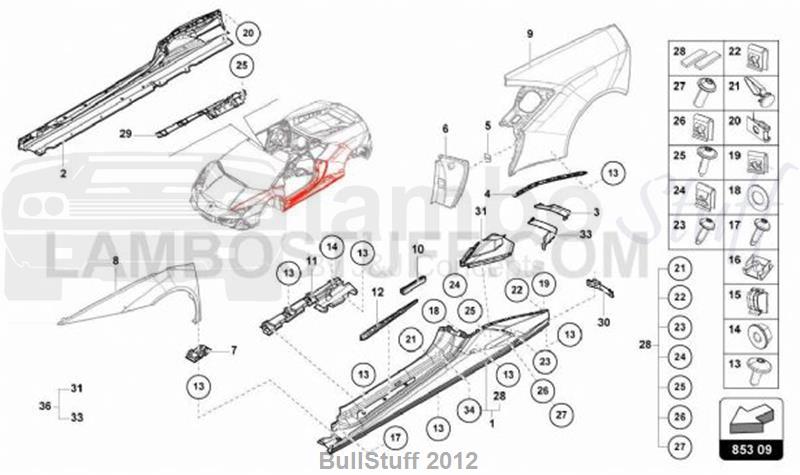

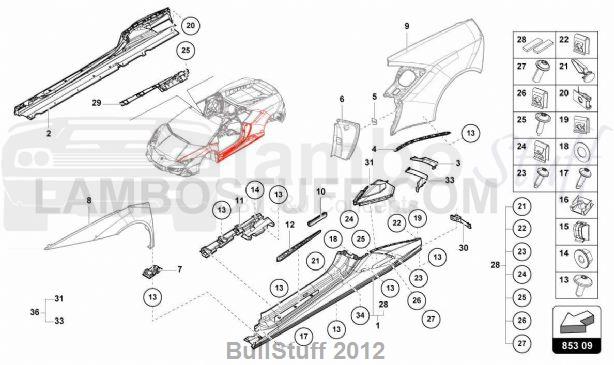

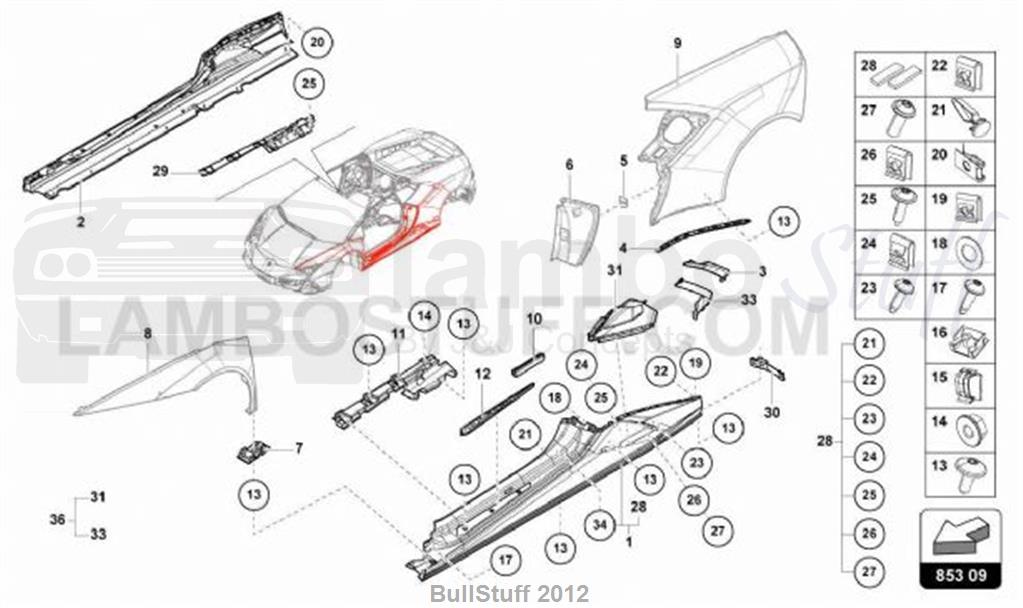

TAV: 853.09.00 - LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING

2021 Lamborghini HURACAN EVO COUPE 2WD AUSTRALIA LOWER EXTERNAL SIDE MEMBER FOR WHEEL HOUSING (853.09.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4T0853533	SILL SIDE MEMBER (PRIMER - SUPPLY VIN-LEFT)	1 req	Avail to order Our Price: $2,315.03
2	4T0853534	SILL SIDE MEMBER (PRIMER - SUPPLY VIN-RIGHT)	1 req	Avail to order Our Price: $2,315.03
3	4T0807715B3FZ	GRILLE GRILLE (MATT BLACK - INCLUDED LEFT AND RIGHT-MATT BLACK)	1 req	Avail to order Our Price: $1,370.15
3	4T0807715BY9B	GRILLE GRILLE (SHINY BLACK - INCLUDED LEFT AND RIGHT-BRILLIANT BLACK)	1 req	Avail to order Our Price: $1,617.64
4	4T0853231A	BRACKET ARM (LEFT)	1 req	Avail to order Our Price: $178.65
4	4T0853232A	BRACKET ARM (RIGHT)	1 req	Avail to order Our Price: $178.65
5		SEAL (SEE ILLUSTRATION : 853.05)	1 req
6		COVER (SEE ILLUSTRATION : 853.05)	1 req
7	4T0853921A	BRACKET,SILL PANEL ARM (LEFT)	1 req	Avail to order Our Price: $16.97
7	4T0853922A	BRACKET,SILL PANEL ARM (RIGHT)	1 req	Avail to order Our Price: $16.97
8		WING (SEE ILLUSTRATION : 821.01)	1 req
9		SIDE PART (SEE ILLUSTRATION : 853.03)	1 req
10	4T0819161	ONE-WAY FLAP-TYPE HURACAN VENT TRIM	2 req	Avail to order Our Price: $34.32
11	4T0853997B	BRACKET CENTRAL SUPPORT ARM (LEFT)	1 req	Avail to order Our Price: $96.03
12	4T0853373C	SCUFF PLATE SILL TRIM STRIP (LEFT)	1 req	Avail to order Our Price: $216.18
12	4T0853373E	SCUFF PLATE SILL TRIM STRIP (MATT CARBON LOOK-LEFT)	1 req	Avail to order Our Price: $961.64
12	4T0853374C	Scuff Plate RH (STD) SILL TRIM STRIP (RIGHT)	1 req	Avail to order Our Price: $216.18
12	4T0853374E	SCUFF PLATE SILL TRIM STRIP (MATT CARBON LOOK-RIGHT)	1 req	Avail to order Our Price: $961.64
13	40	OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	0 req
14	N01508210	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	2 req	Current Stock: 17 Our Price: $2.09
15	420853139	CLIP CLIP	1 req	Avail to order Our Price: $1.94
16	N91137102	SNAP NUT CLAMP SPEED NUT (M5X16.6X17.3 1-4MM)	6 req	Avail to order Our Price: $2.00
17	N10752901	HEXALOBULAR SOCKETM5X18 FILLISTER HD. BOLT (M5X18)	6 req	Avail to order Our Price: $2.00
18	WHT001197A	WASHER WASHER (12X6,4X0,5)	2 req	Current Stock: 2 Our Price: $2.00
19	N90276701	SPEED NUT SPEED NUT (4,8X14,25)	2 req	Avail to order Our Price: $2.00
20	N90688703	SNAP NUT CLAMP SPEED NUT (M6X24X16)	1 req	Current Stock: 8 Our Price: $2.00
21	7M0867299K	CLIP CLIP	2 req	Avail to order Our Price: $2.00
22	N90276701	SPEED NUT SPEED NUT (4,8X14,25)	4 req	Avail to order Our Price: $2.00
23	N10017304	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M5)	2 req	Current Stock: 16 Our Price: $2.01
24	14	SPEED NUT (4,2X16,3X11)	0 req
25	14	HEXAGON SOCKET HEAD PANEL BOLT (ST4,2X16)	0 req
26		CLIP (N 90495903)	8 req
27	N90953004	HEXALOBULAR SOCKETM5X14 OVAL HEXAGON SOCKET HEAD BOLT	8 req	Avail to order Our Price: $2.00
28		1 SET ATTACHMENT PARTS (4T0898054A)	2 req
29	4T0853998B	BRACKET CENTRAL SUPP RH ARM (RIGHT)	1 req	Avail to order Our Price: $96.18
30	4T0853023	CONNECTING PART BRACKET (LEFT)	1 req	Avail to order Our Price: $33.95
30	4T0853024	CONNECTING PART BRACKET (RIGHT)	1 req	Avail to order Our Price: $35.96
31		RADIATOR GRILLE (MATT BLACK - INCLUDED IN REF.36-LEFT)	1 req
31		RADIATOR GRILLE (MATT BLACK - INCLUDED IN REF.36-RIGHT)	1 req
31		RADIATOR GRILLE (PRIMER - INCLUDED IN REF.36-LEFT)	1 req
31		RADIATOR GRILLE (PRIMER - INCLUDED IN REF.36-RIGHT)	1 req
32		SEAL (SEE ILLUSTRATION : 804.01)	0 req
33		GRILLE ( INCLUDED IN REF.36-LOWER)	1 req
34		1 SET OF FOAM STRIPS (TEMPORARY NOT AVAILABLE)	1 req
35	4T0898054E	1 Set Of Securing Parts 1 SET ATTACHMENT PARTS	1 req	Avail to order Our Price: $394.53
36	4T0807715AGRU	GRILLE GRILLE (PRIMER-PRIMER)	1 req	Avail to order Our Price: $2,922.18
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
