Lamborghini LP560 Parts

0 items in your cart
Your Shopping Cart
  • Your cart is empty
Subtotal: $0.00
Shipping: $0.00
Total: $0.00

Maintenance Parts:

Brakes

PN Item Diagram
4S0698451 Rear Brake Pad Set
Rear Brake Pad Set 1 SET OF BRAKE PADS FOR DISK BRAKE
Avail to order
Our Price: $633.05
Rear Brake Pad Set
4T0698010 Ceramic Brake Pad Kit
BIADHESIVEE PADS KIT
Avail to order
Our Price: $86.57

Drivetrain

PN Item Diagram
079198405E Oil Filter Gallardo/Huracan LP Series
Oil Filter Gallardo LP Series
Current Stock: 9
Our Price: $67.74
Oil Filter Gallardo/Huracan LP Series

Fuel-Air

PN Item Diagram
420133844E ENGINE AIR FILTER HURACAN
AIR FILTER SEE PN 420133844EZ for K&N performance filter
Avail to order
Our Price: $93.96
ENGINE AIR FILTER HURACAN

Ignition

PN Item Diagram
06H905601C SPARK PLUG
SPARK PLUG
Avail to order
Our Price: $28.05
101905631G Spark Plug - Gallardo/Huracan LP Series
Spark Plug Champion
Current Stock: 58
Our Price: $27.24
Spark Plug - Gallardo/Huracan LP Series

Misc

PN Item Diagram
4H0805615 TOWING EYE FOR HURACAN
TOWING EYE
Avail to order
Our Price: $31.91
4T1864435E FLOOR MAT - HURACAN
customizable sticthing or border
Avail to order
Our Price: $704.35
FLOOR MAT - HURACAN
N0300574 KEY - Spanner Murcielago-Aventador-Huracan
Wrench Spanner Murcielago-Aventador-Huracan
Avail to order
Our Price: $7.14
KEY - Spanner Murcielago-Aventador-Huracan
Open All

Select Group and TAV

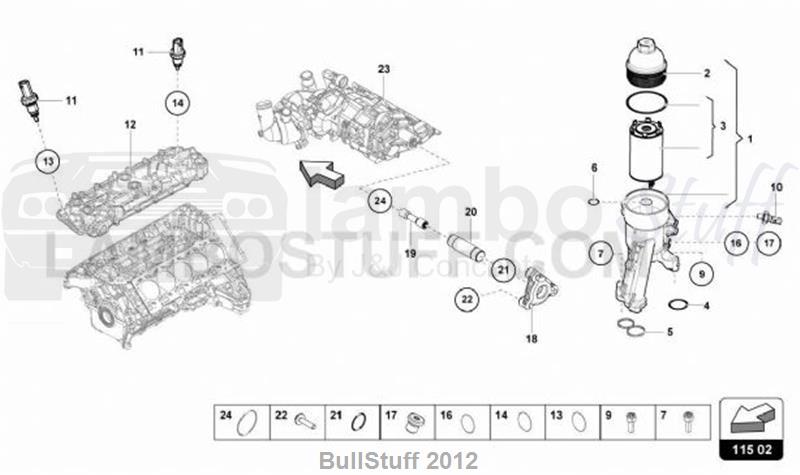

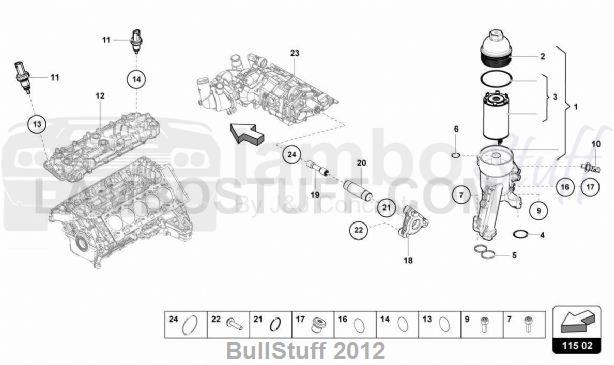

TAV: 115.02.00 - OIL FILTER ELEMENT

2018 Lamborghini HURACAN LP610-4 SPYDER JAPAN OIL FILTER ELEMENT (115.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
0 M10X1) 0 req
0 115-010) 0 req
1 07L115401F POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT
OIL FILTER BRACKET
1 req *See Description
2 079115433D OIL FILTER COVER
END CAP
1 req Avail to order
Our Price: $68.25
3 079198405E Oil Filter Gallardo/Huracan LP Series
FILTER ELEMENT WITH GASKET
1 req Current Stock: 9
Our Price: $67.74
Oil Filter Gallardo/Huracan LP Series
4 N10538201 O-RING
O-RING (19X3,55)
1 req Avail to order
Our Price: $2.27
5 079103121BE GASKET
SEAL
1 req Avail to order
Our Price: $8.02
GASKET
6 N0138063 O-RING
SEAL RING (10X14)
1 req Current Stock: 16
Our Price: $2.00
7 N10622101 HEXALOBULAR SOCKET
OVAL HEXAGON SOCKET HEAD BOLT (M6X65)
2 req Avail to order
Our Price: $2.00
8 HYDRAULIC SYSTEM AND FLUID CONTAINER WITH CONNECT. PIECES (SEE ILLUSTRATION :- 0 req
9 N91124501 12-POINT SOCKET
HEXAGON SOCKET HEAD BOLT (M8X40)
2 req Avail to order
Our Price: $5.17
10 079919081 OIL PRESSURE
OIL PRESSURE SWITCH (1 PIN BLACK
1 req Avail to order
Our Price: $19.01
11 059919523A TEMPERATURE SENDER
TEMPERATURE SENSOR
2 req Current Stock: 17
Our Price: $49.24
TEMPERATURE SENDER
12 REMOVABLE LID (SEE ILLUSTRATION :- 100-010) 0 req
13 WHT002287B O-RING
O-RING (FOR WATER TEMPERATURE SENSOR-BLACK)
1 req Avail to order
Our Price: $3.79
14 WHT002287C O-RING
O-RING (FOR OIL TEMPERATURE SENSOR-5,6X2)
1 req Current Stock: 4
Our Price: $4.23
O-RING
16 N0138063 O-RING
SEAL RING (10X14)
1 req Current Stock: 16
Our Price: $2.00
17 N91119401 SCREW PLUG
SEALING PLUG (M10X1X10)
2 req Avail to order
Our Price: $2.27
18 07L103707B COVER
COVER
1 req Avail to order
Our Price: $61.99
19 07L115138H CLUTCH PART
COUPLING
1 req Avail to order
Our Price: $139.26
20 07L115467B TUBE
PIPE
1 req Avail to order
Our Price: $18.57
21 N90460801 O-RING
O-RING (27X2,5)
1 req Current Stock: 16
Our Price: $2.00
O-RING
22 N10704501 HEXALOBULAR SOCKET
OVAL HEXAGON SOCKET HEAD BOLT (M6X35)
1 req Current Stock: 14
Our Price: $2.00
HEXALOBULAR SOCKET
23 OIL PUMP (SEE ILLUSTRATION :- 121-070) 0 req
24 O-RING (SEE ILLUSTRATION :-27X3,5 121-070) 0 req

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
