2018 HURACAN LP610-4 COUPE - JAPAN

Maintenance Parts:

Brakes

PN	Item	Diagram
4S0698451	Rear Brake Pad Set Rear Brake Pad Set 1 SET OF BRAKE PADS FOR DISK BRAKE		Avail to order Our Price: $676.23
4T0698010	Ceramic Brake Pad Kit BIADHESIVEE PADS KIT		Avail to order Our Price: $116.39

Common repairs and upgrades

PN	Item
900000384A	NLA (No Longer Available) Huracan Indoor Cover - Green Stitching	Avail to order Our Price: $398.89
900000384B	HURACAN CAR COVER ORANGE STITCHING INDOOR INT. 62X CAR COVER ORANGE STIT. NOTE: The orange color Lamborghini uses for this cover is very light and is almost yellow. This is normal and their intended color for this cover	Avail to order Our Price: $398.89
900000384C	NLA (No Longer Available) INT. 62X CAR COVER YELLOW STIT.	Avail to order Our Price: $398.89
900000384D	NLA (No Longer Available) INT. 62X CAR COVER WHITE STITCHING INDOOR	Avail to order Our Price: $398.89
900000384E	NLA (No Longer Available) INT. 62X CAR COVER GREY STIT.	Avail to order Our Price: $398.89
900000384F	NLA (No Longer Available) INT. 62X CAR COVER RED STITCHING INDOOR	Avail to order Our Price: $398.89

Drivetrain

PN	Item	Diagram
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series		Avail to order Our Price: $86.68

Fuel-Air

PN	Item	Diagram
420133844E	ENGINE AIR FILTER HURACAN AIR FILTER SEE PN 420133844EZ for K&N performance filter		Avail to order Our Price: $142.80

Ignition

PN	Item	Diagram
06H905601C	SPARK PLUG SPARK PLUG		Avail to order Our Price: $35.09
101905631G	Spark Plug - Gallardo/Huracan LP Series Spark Plug Champion		Current Stock: 48 Our Price: $33.87

Misc

PN	Item
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22
4H0805615	TOWING EYE FOR HURACAN TOWING EYE	Avail to order Our Price: $40.41
4T0054690	CRUISE CONTROL KIT, LEATHER 610-4 CRUISE CONTROL KIT, LEATHER	Avail to order Our Price: $1,491.40
4T0054690A	CRUISE CONTROL KIT, ALCANTARA 610-4 CRUISE CONTROL KIT, ALCANTARA	Avail to order Our Price: $1,491.40
4T0853251A	NLA (No Longer Available) Not available in USA market	Avail to order Our Price: $133.67
4T0853252A	NLA (No Longer Available) Not available in USA market	Avail to order Our Price: $133.67
4T0898200	SEE PN 4T0998200 DOOR LIGHT WITH LAMBORGHINI LOGO KIT Replaces - 4E0947415A	Avail to order Our Price: $221.94
4T0898201	SEE PN 4T0998200A PAIR OF DOOR LIGHTS WITH LAMBORGHINI SCRIPT WRITING KIT LIGHTS THE GROUND WITH THE LAMBORGHINI SCRIPT ILLUMINATED FROM THE DOOR Replaces - 4E0947415A	Avail to order Our Price: $221.94
4T0945119B	NLA (No Longer Available) Not available in the USA market.	Avail to order Our Price: $228.02
4T0945120B	NLA (No Longer Available) Not available in USA market.	Avail to order Our Price: $228.02
4T1864435E	HURACAN SET OF 2 FLOOR MATS PICK BORDER COLOR HURACAN SET OF 2 FLOOR MATS PICK BORDER COLOR customizable sticthing or border	Avail to order Our Price: $865.25
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

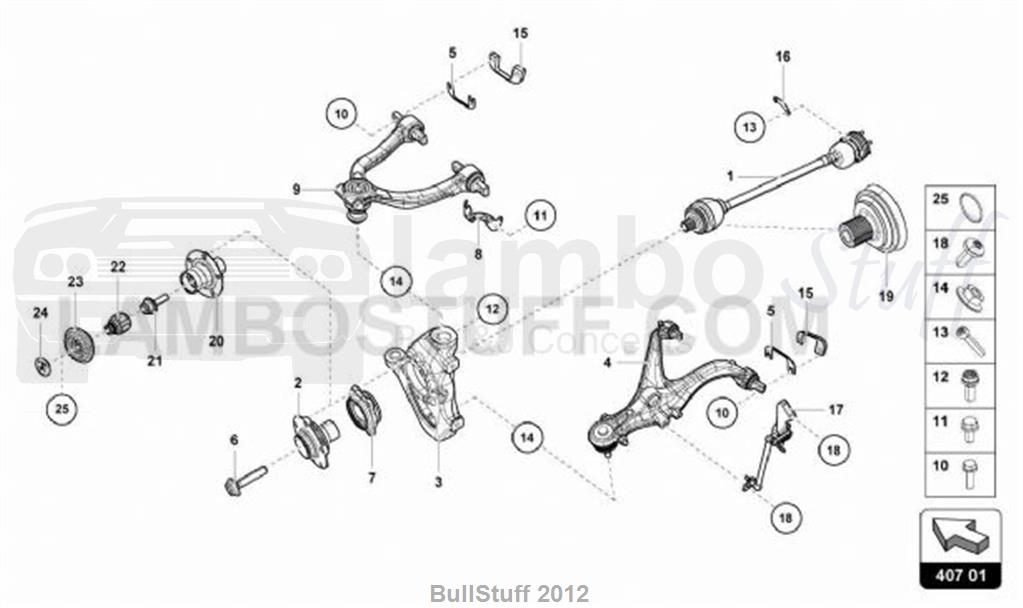

TAV: 407.01.00 - AXLE SHAFT

2018 Lamborghini HURACAN LP610-4 COUPE JAPAN AXLE SHAFT (407.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4T0407271B	DRIVE SHAFT DRIVE SHAFT WITH CONSTANT VELOCITY JOINTS (CONTACT YOUR AREA MANAGER-FRONT)	2 req	Avail to order Our Price: $772.09
2	4D0407613E	WHEEL HUB WHEEL HUB	2 req	Current Stock: 1 Our Price: $331.51
3	4T0407245D	STEERING KNUCKLE FRONT LH WHEEL BEARING HOUSING (CONTACT YOUR AREA MANAGER-LEFT)	1 req	Avail to order Our Price: $630.01
3	4T0407246D	STEERING KNUCKLE FRONT RH WHEEL BEARING HOUSING (CONTACT YOUR AREA MANAGER-RIGHT)	1 req	Avail to order Our Price: $624.27
4	4T0407151B	TRACK CONTROL ARM LB724 WISHBONE (CONTACT YOUR AREA MANAGER-LEFT LOWER)	1 req	Avail to order Our Price: $1,017.49
4	4T0407152B	TRACK CONTROL ARM LB724 WISHBONE (CONTACT YOUR AREA MANAGER-RIGHT LOWER)	1 req	Avail to order Our Price: $1,017.49
5	4S0407203C	BACKING PLATE 1MM BALANCING PLATE (1MM)	4 req	Avail to order Our Price: $8.12
5	4S0407203D	BACKING PLATE 2MM BALANCING PLATE (2MM)	4 req	Avail to order Our Price: $8.12
5	4S0407203E	BACKING PLATE 3MM BALANCING PLATE (3MM)	4 req	Avail to order Our Price: $8.12
5	4S0407203G	BACKING PLATE 0,5MM BALANCING PLATE (0,5MM)	4 req	Avail to order Our Price: $8.12
6	4B0407643A	SCREW M16 SHOULDERED BOLT (M16X1,5X72)	2 req	Avail to order Our Price: $17.94
7	4E0407625E	ANGUL.BALL BEARING DOUBLE (ANGLED) BALL BEARING WITH FLANGE (85MM)	2 req	Avail to order Our Price: $238.95
8	4S0611841G	BRACKET BRACKET (LEFT FRONT)	1 req	Avail to order Our Price: $12.21
8	4S0611842G	BRACKET BRACKET (RIGHT FRONT)	1 req	Avail to order Our Price: $12.21
9	4T0407505A	CONTROL ARM,FRONT WISHBONE (CONTACT YOUR AREA MANAGER-LEFT UPPER)	1 req	Avail to order Our Price: $835.23
9	4T0407506A	CONTROL ARM,FRONT - RESTRICTED CRASH PART WISHBONE (CONTACT YOUR AREA MANAGER-RIGHT UPPER)	1 req	Avail to order Our Price: $835.23
10	N10706902	HEXAGON FLANGE M10X55 HEXAGON FLANGE SCREW (M10X55)	8 req	Current Stock: 3 Our Price: $6.67
11	WHT007142	12 POINT BOLT M10X42 HEXAGON BOLT (M10X42)	8 req	Avail to order Our Price: $8.47
12	WHT000237A	12-POINT SOCKET BALL SCREW (M12X1,5X45)	8 req	Current Stock: 1 Our Price: $6.53
13	N91108201	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M8X48)	12 req	Avail to order Our Price: $3.44
14	WHT004898	HEXAGON FLANGE NUT W.WASHER HEXAGON COLLAR NUT SELF-LOCKING (M14X1,5)	4 req	Current Stock: 14 Our Price: $6.24
15	4T0806569	SPACER DISTANZIALE ALLUM BALANCING PLATE (15,0MM)	4 req	Avail to order Our Price: $61.00
16	420407357	BACKING PLATE SPACER (15,0MM)	6 req	Avail to order Our Price: $2.15
17	4T0941273A	SENSOR-HEADLIGHT- POSITION SENSOR (LEFT)	1 req	Avail to order Our Price: $139.78
17	4T0941274A	SENSOR-HEADLIGHT- POSITION SENSOR (RIGHT)	1 req	Avail to order Our Price: $139.78
18	N10405604	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X14)	6 req	Avail to order Our Price: $2.00
19		STUB AXLE (FOR 2WD MODEL)	2 req
20		WHEEL HUB (NO PART - NOT FOR THIS VERSION)	0 req
21		SHOULDERED BOLT (NO PART - NOT FOR THIS VERSION)	0 req
22		SUSPENSION BLOCKS (NO PART - NOT FOR THIS VERSION)	0 req
23		NUT (NO PART - NOT FOR THIS VERSION)	0 req
24		HUP CAP (NO PART - NOT FOR THIS VERSION)	0 req
25	470698009	GASKET SET O-RING	2 req	Avail to order Our Price: $9.84
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
