2017 HURACAN LP580-2 SPYDER - ENGLAND

Maintenance Parts:

Brakes

PN	Item
4T0698010	Ceramic Brake Pad Kit BIADHESIVEE PADS KIT	Avail to order Our Price: $124.46
4S0698451	Rear Brake Pad Set Rear Brake Pad Set 1 SET OF BRAKE PADS FOR DISK BRAKE	Avail to order Our Price: $721.61
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G	Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item
900000384B	HURACAN CAR COVER ORANGE STITCHING INDOOR INT. 62X CAR COVER ORANGE STIT. NOTE: The orange color Lamborghini uses for this cover is very light and is almost yellow. This is normal and their intended color for this cover	Avail to order Our Price: $403.63
079115561J	SPIN-ON FILTER SPIN-ON FILTER	Avail to order Our Price: $83.92
1K0906283A	EGR VALVE ELECTR.CHANGEOVER EGR VALVE	Current Stock: 3 Our Price: $72.36
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32
4T0823359	GAS SPRING GAS SPRING	Current Stock: 2 Our Price: $82.49

Drivetrain

PN	Item	Diagram
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series		Current Stock: 7 Our Price: $89.92

Fuel-Air

PN	Item
420133844E	ENGINE AIR FILTER HURACAN AIR FILTER SEE PN 420133844EZ for K&N performance filter	Avail to order Our Price: $148.14
06E906051K	FUEL PRESSURE SENSOR FUEL PRESSURE SENSOR	Current Stock: 1 Our Price: $123.28
07L127025S	FUEL PUMP FUEL PUMP	Avail to order Our Price: $695.26
4s0819439	Filter Element Filter Element	Current Stock: 6 Our Price: $104.52
4T0133843	FILTER ELEMENT FILTER ELEMENT FILTER ELEMENT	Avail to order Our Price: $477.90

Gaskets

PN	Item	Diagram
N0138493	WASHER WASHER		Current Stock: 47 Our Price: $4.18

Ignition

PN	Item	Diagram
06H905601C	SPARK PLUG SPARK PLUG		Avail to order Our Price: $36.40
0BZ911024D	STARTER STARTER		Current Stock: 1 Our Price: $1,307.14

Misc

PN	Item
4T1864435E	HURACAN SET OF 2 FLOOR MATS PICK BORDER COLOR HURACAN SET OF 2 FLOOR MATS PICK BORDER COLOR customizable sticthing or border	Avail to order Our Price: $865.25
4H0805615	TOWING EYE FOR HURACAN TOWING EYE	Avail to order Our Price: $41.92
4T0072192B	Aero Kit RWD Huracan LP580-2 Coupes and Spyders includes: front splitter, side skirts, rear diffuser, rear wing, and fixing parts. Fender louvers not included	Avail to order Our Price: $13,392.99
4T0898201	SEE PN 4T0998200A PAIR OF DOOR LIGHTS WITH LAMBORGHINI SCRIPT WRITING KIT LIGHTS THE GROUND WITH THE LAMBORGHINI SCRIPT ILLUMINATED FROM THE DOOR Replaces - 4E0947415A	Avail to order Our Price: $224.30
4T0898200	SEE PN 4T0998200 DOOR LIGHT WITH LAMBORGHINI LOGO KIT Replaces - 4E0947415A	Avail to order Our Price: $224.30
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
4T0864537	TRIM COVER PLATE TRIM COVER PLATE	Avail to order Our Price: $78.13
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

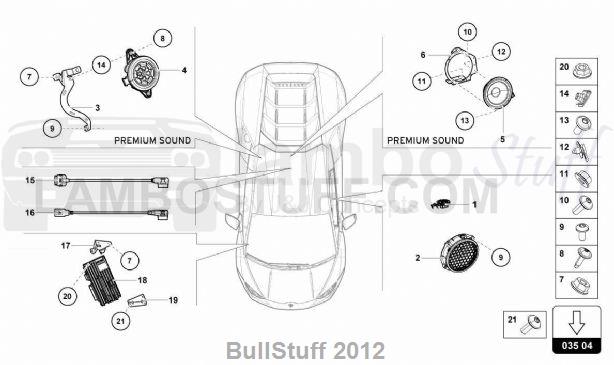

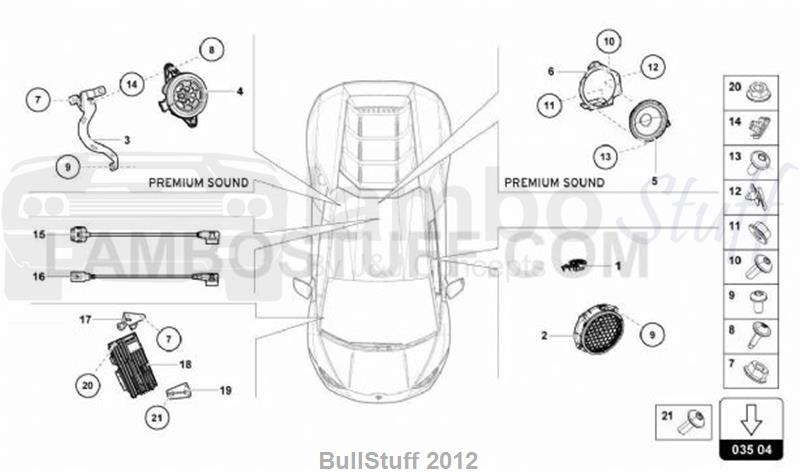

TAV: 035.04.00 - RADIO UNIT

2017 Lamborghini HURACAN LP580-2 SPYDER ENGLAND RADIO UNIT (035.04.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0		INTERFACE')	0 req
0		INTERFACE')	0 req
1	8V0035398A	LOUDSPEAKER HOCHTON 32 MM TREBLE SPEAKER (STANDARD)	2 req	Avail to order Our Price: $66.55
1	8V0035399C	LOUDSPEAKER HOCHTON 25 MM TREBLE SPEAKER (PREMIUM SOUND SYS)	2 req	Avail to order Our Price: $73.92
2	8V0035415	LOUDSPEAKER TIEFTON BASS LOUDSPEAKER (STANDARD)	2 req	Avail to order Our Price: $59.71
2	8V0035415B	LOUDSPEAKER TIEFTON BASS LOUDSPEAKER (PREMIUM SOUND SYS)	2 req	Avail to order Our Price: $88.89
3	4T7035643A	LEFT SIDE BRACKET FOR SPEAKERS BRACKET (LEFT)	1 req	Avail to order Our Price: $56.28
3	4T7035644A	RIGHT SIDE SPEAKER BRACKET BRACKET (RIGHT)	1 req	Avail to order Our Price: $56.28
4	8U0035416B	LOUDSPEAKER 80 MM TUR PREMIUM MID TONE SPEAKER (PREMIUM SOUND SYS)	2 req	Avail to order Our Price: $190.57
5	4T0035382	LOUDSPEAKER BOX PREMIUM SOUND BASS LOUDSPEAKER (PREMIUM SOUND SYS)	1 req	Avail to order Our Price: $209.92
6	4T7035640	BRACKET PREMIUM SOUND ARM (PREMIUM SOUND SYS)	1 req	Avail to order Our Price: $111.36
6	4T7035640A	BRACKET PREMIUM SOUND ARM (PREMIUM SOUND SYS)	1 req	Avail to order Our Price: $93.50
7	N01508210	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	6 req	Current Stock: 17 Our Price: $2.09
8	N91180901	HEXALOBULAR SOCKET FLAT HEAD MULTI-POINT SOCKET BOLT (M5X20-M5X20)	4 req	Avail to order Our Price: $2.00
9	N91180901	HEXALOBULAR SOCKET FLAT HEAD MULTI-POINT SOCKET BOLT (M5X20-M5X20)	6 req	Avail to order Our Price: $2.00
10	N90944604	HEXALOBULAR SOCKETM5X12 OVAL HEXAGON SOCKET HEAD BOLT (M5X12)	1 req	Avail to order Our Price: $2.00
11	N10017307	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M5 - PREMIUM SOUND SYS - VALIDO DAL MODEL YEAR 16-M5)	4 req	Avail to order Our Price: $2.01
12	N90777702	SNAP NUT CLAMP SPEED NUT (M5X13.6X11.5)	4 req	Current Stock: 3 Our Price: $2.00
13	N10459202	No Description - Please Check your book SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (M4X8 - PREMIUM SOUND SYS - VALIDO DAL MODEL YEAR 16-M5X12)	4 req	Avail to order Our Price: $2.46
14	N90475903	SNAP NUT CLAMP M5X13.6X11.5 SPEED NUT (M5X13,6X11,5)	4 req	Avail to order Our Price: $2.00
15	4F0051510K	ADAPTER HARNESS ADAPTER (IPOD-'IPHONE,IPOD' 'AUDI MUSIC	1 req	Avail to order Our Price: $99.61
15	4T0051510	ADAPTER CABLE COLL. IPHONE ADAPTER (IPHONE-'IPHONE 5/6' 'AUDI MUSIC	1 req	Avail to order Our Price: $110.92
16	4F0051510G	ADAPTER HARNESS ADAPTER (USB-'USB')	1 req	Avail to order Our Price: $69.46
17	4T0035535	BRACKET,AMPLIFIER AMPLIF.PREMIUM ARM	1 req	Avail to order Our Price: $36.03
18	4T7035466	BOOSTER AMPLI.PREMIUM AMPLIFIER FOR SOUND SYSTEM	1 req	Avail to order Our Price: $1,518.54
19	4T0035535B	BRACKET,AMPLIFIER ARM (PREMIUM SOUND SYS- LHD)	1 req	Avail to order Our Price: $155.58
20	N10017304	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M5-M5)	4 req	Current Stock: 16 Our Price: $2.01
21	N10752901	HEXALOBULAR SOCKETM5X18 FILLISTER HD. BOLT (M5X16-M5X18)	8 req	Avail to order Our Price: $2.00
22	420907394A	EL.CONTROL UNIT SEATBELT MICROPHONE CTRL UNIT ('CONTROL UNIT BELT MICRO')	1 req	Avail to order Our Price: $512.13
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
