Maintenance Parts:

Drivetrain

PN Item Diagram
07M115561B SPIN-ON FILTER CARTUCCIS FIL.OLIO
SPIN-ON FILTER CARTUCCIS FIL.OLIO
Avail to order
Our Price: $40.26
SPIN-ON FILTER    CARTUCCIS FIL.OLIO

Fuel-Air

PN Item Diagram
4D0906321C FUEL FILTER
FILTER
Current Stock: 2
Our Price: $31.70
FUEL FILTER
470133843A FILTER ELEMENT
FILTER ELEMENT
Current Stock: 1
Our Price: $135.60
FILTER ELEMENT

Ignition

PN Item Diagram
470905619 SPARK PLUG
SPARK PLUG
Avail to order
Our Price: $84.27
SPARK PLUG
470905619A SPARK PLUG
SPARK PLUG
Avail to order
Our Price: $86.33

Misc

PN Item Diagram
N0300574 KEY - Spanner Murcielago-Aventador-Huracan
Wrench Spanner Murcielago-Aventador-Huracan
Avail to order
Our Price: $7.51
KEY - Spanner Murcielago-Aventador-Huracan
6Q0819653B ODOR FILTER
ODOR FILTER
Avail to order
Our Price: $42.10
ODOR FILTER
400093050D CTEK US-CD BATTERY CHARGER
Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month
Avail to order
Our Price: $248.97

Tools and Tookits

PN Item Diagram
470012257 DEMOUNTING HOOK
DEMOUNTING HOOK
Current Stock: 3
Our Price: $100.53
DEMOUNTING HOOK
Open All

Select Group and TAV

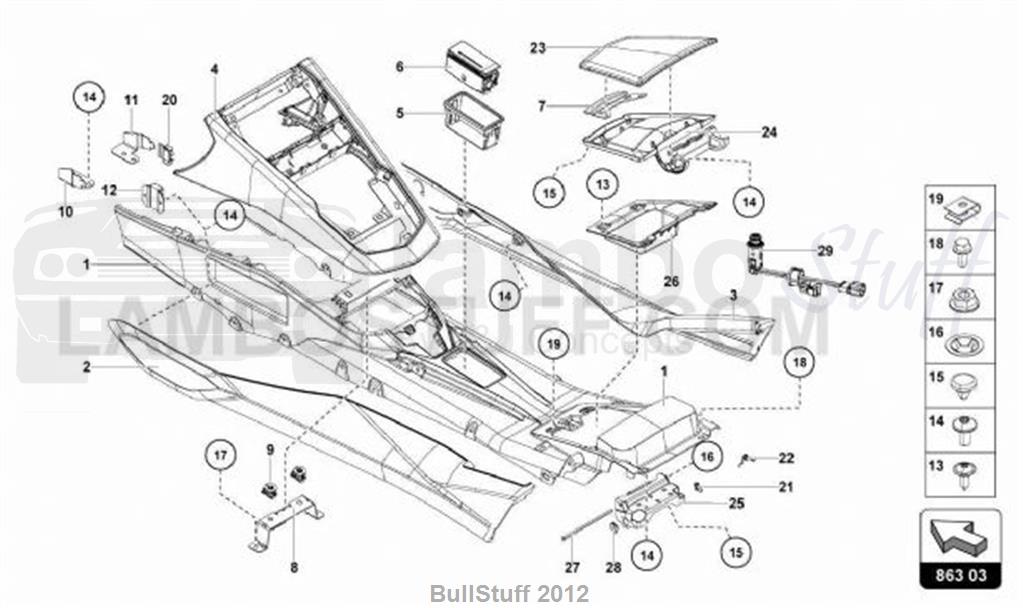

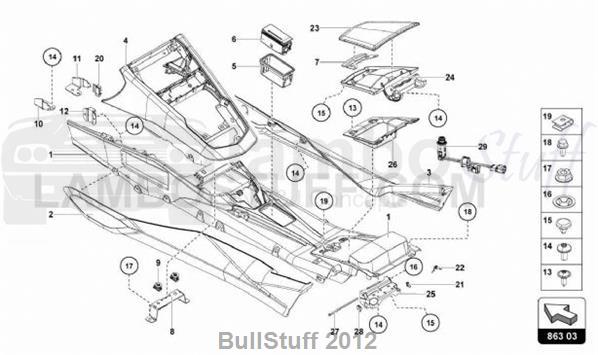

TAV: 863.03.00 - TUNNEL

2018 Lamborghini AVENTADOR S ROADSTER CANADA TUNNEL (863.03.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 475863242D CENTER CONSOLE LHD LEADER SMOKER
CENTRE CONSOLE, LOWER PART (WITH ASHTRAY - LEATHER INTERIOR - SUPPLY VIN- LHD)
1 req Avail to order
Our Price: $2,817.36
1 475863242F CENTER CONSOLE LHD LEADER NO SMOK
CENTRE CONSOLE, LOWER PART (WITHOUT ASHTRAY - LEATHER INTERIOR - SUPPLY VIN- LHD)
1 req Avail to order
Our Price: $2,564.64
1 475863242K CENTRE CONSOLE, LOWER PART (GDX) 1 req
1 475863242L CENTRE CONSOLE, LOWER PART (GDX) 1 req
1 475863244D CENTER CONSOLE LHD
CENTRE CONSOLE, UPPER PART (WITH CUP HOLDER-GSX)
1 req Avail to order
Our Price: $596.23
1 475863244F CENTER CONSOLE LHD
CENTRE CONSOLE, UPPER PART (GSX)
1 req Avail to order
Our Price: $596.23
1 475863244K CENTER CONSOLE
CENTRE CONSOLE, UPPER PART (WITH PHONE HOLDER-GSX)
1 req Avail to order
Our Price: $619.63
2 470863667P LINING FIANCH.SX TUNNEL
SIDE PANEL TRIM FOR CENTRE CONSOLE (ALCANTARA WITHOUT CUP HOLDER)
1 req Avail to order
Our Price: $1,333.80
2 470863667S SIDE PANEL TRIM FOR CENTRE CONSOLE (SEMI- ANILINA + Q- CITURA, WITHOUT CUP HOLDER) 1 req
2 470863667T SIDE PANEL TRIM FOR CENTRE CONSOLE (SEMI- ANILINA + Q- CITURA WITH CUP HOLDER) 1 req
3 470863668Q LINING FIANCH.DX TUNNEL
SIDE PANEL TRIM FOR CENTRE CONSOLE (LEATHER WITH CUP HOLDER)
1 req Avail to order
Our Price: $1,333.80
3 470863668R LINING FIANCH.DX TUNNEL
SIDE PANEL TRIM FOR CENTRE CONSOLE (ALCANTARA + Q-CITURA WITH CUP HOLDER)
1 req Avail to order
Our Price: $1,333.80
3 470863668T SIDE PANEL TRIM FOR CENTRE CONSOLE (SEMI- ANILINA + Q- CITURA WITH CUP HOLDER) 1 req
4 470863315A EXTENSION,CENTER C
LINING FOR CONSOLE (LEATHER INTERIOR - SUPPLY VIN)
1 req Avail to order
Our Price: $1,137.24
5 472863849 BRACKET
CORNER TRIM
1 req Avail to order
Our Price: $111.38
6 4G8857406A6PS ASHTRAY
ASHTRAY (SOUL (BLACK))
1 req Avail to order
Our Price: $52.96
ASHTRAY
7 470868186 FINGER PLATE
T-BAR
1 req Avail to order
Our Price: $87.70
8 470863253 BRACKET
ATTACHMENT BARS (CENTER)
1 req Avail to order
Our Price: $20.22
9 8E0806193 RETAINING PART
COMPENSATING PIECE ( 3,4MM)
2 req Current Stock: 1
Our Price: $11.10
RETAINING PART
10 470863583 BRACKET
ATTACHMENT BARS (LEFT FRONT)
1 req Avail to order
Our Price: $12.92
11 470863584 BRACKET
ATTACHMENT BARS (RIGHT FRONT)
1 req Avail to order
Our Price: $12.92
12 470863346 BRACKET
BRACKET
2 req Avail to order
Our Price: $23.40
13 N90986803 FLANGE TAPPING
HEXAGON SOCKET HEAD PANEL BOLT (4,2X13)
4 req Current Stock: 18
Our Price: $2.00
FLANGE TAPPING
14 N10653801 HEXALOBULAR SOCKETM5X8
HEXAGON SOCKET HEAD BOLT (M5X8.0)
16 req Avail to order
Our Price: $2.00
15 N91092001 Please Check Manual for description
STOP BUFFER (4,5X2,2X8,6)
2 req Avail to order
Our Price: $2.00
16 N90657502 CLAMPING WASHER
CLAMPING WASHER (5X11,75)
1 req Avail to order
Our Price: $2.00
17 N01508210 HEXAGON FLANGE NUT
HEXAGON COLLAR NUT (M6)
3 req Avail to order
Our Price: $2.00
18 N10653201 HEXAGON FLANGE
HEX COLLARED BOLT (M6X16)
2 req Avail to order
Our Price: $2.00
HEXAGON FLANGE
19 N0154487 SPEED NUT
SPEED NUT (4,2X16,3X11)
4 req Current Stock: 2
Our Price: $2.00
SPEED NUT
20 4D0857949A GROMMET
GROMMET
2 req Avail to order
Our Price: $6.01
21 470863285 SPRING
SPRING (LEFT)
1 req Avail to order
Our Price: $32.48
22 470863286 SPRING
SPRING (RIGHT)
1 req Avail to order
Our Price: $32.48
23 470863761 COVER
COVER FOR DRAWER (LEATHER INTERIOR - SUPPLY VIN-LEATHER (STANDARD))
1 req Avail to order
Our Price: $385.63
23 470863761A COVER
COVER FOR DRAWER (ALCANTARA UPHOLSTERY - SUPPLY VIN-ALCANTARA)
1 req Avail to order
Our Price: $638.35
23 470863761B COVER TUNNEL COVER RIV.
COVER FOR DRAWER (SUPPLY VIN-CARBON EFFECT)
1 req Avail to order
Our Price: $638.35
23 470863761C COVER
COVER FOR DRAWER
1 req Avail to order
Our Price: $638.35
24 470863273A COVER,CENTER
TRIM (INNER)
1 req Avail to order
Our Price: $197.50
25 475861839A BRACKET
SECURING BRACKET
1 req Avail to order
Our Price: $42.03
26 470863300A TRAY
GLOVE COMPARTMENT
1 req Avail to order
Our Price: $135.72
27 470863348 PIVOT
PIN
1 req Avail to order
Our Price: $28.22
28 418880324 FRICTIONING MECHANISM
BRAKE ELEMENT
2 req Avail to order
Our Price: $13.20
29 8J0919303 CIGAR LIGHTER
CIGARETTE LIGHTER (LIGHTER)
1 req Avail to order
Our Price: $18.60
CIGAR LIGHTER
29 8J0919303A CIGAR LIGHTER
SOCKET (OUTLET 12V)
1 req Avail to order
Our Price: $15.43
30 8T0853107 CLAMP
CLIP
6 req Avail to order
Our Price: $2.00
31 N10602101 SCREW
HEXAGON SOCKET FLAT HEAD BOLT
10 req Avail to order
Our Price: $2.00
32 N10721401 SCREW
OVAL HD. SELF-TAPP FITT. SCREW
3 req Avail to order
Our Price: $2.00
33 N10405604 HEXALOBULAR SOCKET
OVAL HEXAGON SOCKET HEAD BOLT
4 req Avail to order
Our Price: $2.00
34 475863253A BRACKET
ARM
1 req Avail to order
Our Price: $45.07
35 N10653201 HEXAGON FLANGE
HEX COLLARED BOLT (M6X16)
2 req Avail to order
Our Price: $2.00
HEXAGON FLANGE

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
