2017 AVENTADOR SV LP750-4 COUPE - AUSTRALIA

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Avail to order Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER	Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item
470012257	DEMOUNTING HOOK DEMOUNTING HOOK	Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL	Avail to order Our Price: $359.54
69195290	TOOL KIT FOR REMOVING THE GRILLE TOOL KIT FOR REMOVING THE GRILLE BUMPER NET TOOL	Avail to order Our Price: $393.04
61195080	TOOL FOR TOP DEAD CENTER LP700 TOP DEAD CENTER GAUGE. TOOL FOR TOP DEAD CENTER LP700	Avail to order Our Price: $260.54

Open All

Select Group and TAV

< Previous Next >

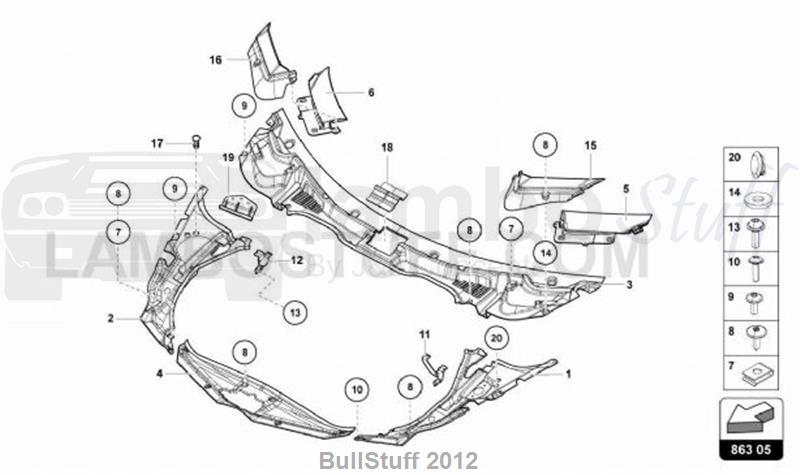

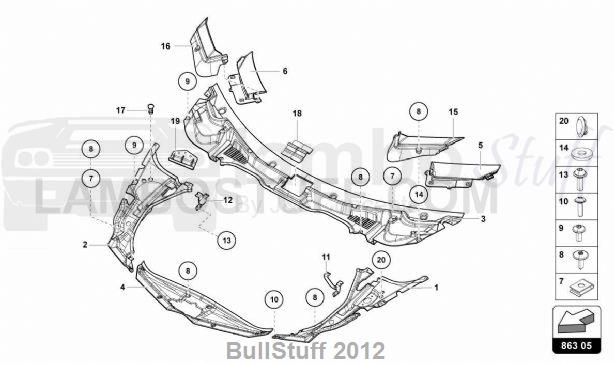

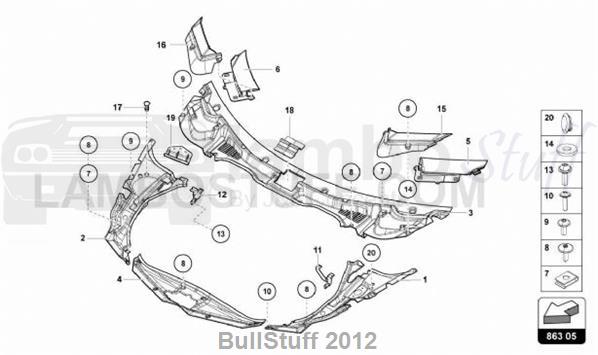

TAV: 863.05.00 - LUGGAGE COMP. FLOOR COVERING

2017 Lamborghini AVENTADOR SV LP750-4 COUPE AUSTRALIA LUGGAGE COMP. FLOOR COVERING (863.05.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470857109D	COVER SIDE COVER LUGGAGE LUGGAGE COMPARTMENT COVER (LEFT)	1 req	Avail to order Our Price: $56.80
2	470857110C	SIDE COVER LUGGAGE, RH LUGGAGE COMPARTMENT COVER (RIGHT)	1 req	Avail to order Our Price: $284.36
3	472819413E	PLENUM PANEL COVER COVER ( RHD)	1 req	Avail to order Our Price: $424.30
4	470857161C	COVER COP.SERRAT.COF.ANT COVER - LOCK (FRONT)	1 req	Avail to order Our Price: $96.62
4	470857161D	COVER COP.SERRAT.COF.ANT COVER - LOCK (FRONT)	1 req	Avail to order Our Price: $127.59
5	470819103E	AIR INTAKE GRILLE FRONT BONNET AIR INTAKE GRILLE (LEFT)	1 req	Avail to order Our Price: $194.57
6	470819104E	AIR INTAKE GRILLE FRONT BONNET AIR INTAKE GRILLE (RIGHT)	1 req	Avail to order Our Price: $194.57
7	N90834301	CLIP CLIP NUT (4,8X17X11,3)	6 req	Current Stock: 2 Our Price: $2.00
8	N90775001	FLANGE TAPPING HEXAGON SOCKET HEAD PANEL BOLT (4,8X16)	6 req	Current Stock: 9 Our Price: $2.17
9	N90807405	HEXALOBULAR SOCKET FLANGE BOLT HEX SOCKET OVAL HEAD COLLARED (M5X18)	6 req	Current Stock: 2 Our Price: $2.00
10	N10661002	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M6X20)	4 req	Current Stock: 18 Our Price: $2.00
11	470853397A	RETAINING RAIL MOUNTING RAIL FOR TRIM STRIP (LEFT)	1 req	Avail to order Our Price: $55.61
12	470853398A	RETAINING RAIL MOUNTING RAIL FOR TRIM STRIP (RIGHT)	1 req	Avail to order Our Price: $55.61
13	N10558102	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)	4 req	Current Stock: 9 Our Price: $4.54
14	WHT003407	WASHER WASHER (6,4X16X2)	4 req	Current Stock: 15 Our Price: $2.00
15	470853505D	MOULDING COVER (LEFT)	1 req	Avail to order Our Price: $500.23
15	470853509E	MOLDING,SIDE PANEL CARBON COVER (TRIM ELEMENTS STANDARD IN CARBON-LEFT)	1 req	Avail to order Our Price: $3,369.45
15	470853509F	MOLDING,SIDE PANELCOPERT.GRIGLIA COVER (SV-LEFT)	1 req	Avail to order Our Price: $3,533.46
15	470853509G	MOLDING,SIDE PANELCOPERT.GRIGLIA COVER (TRIM ELEMENTS STANDARD IN BLACK-LEFT)	1 req	Avail to order Our Price: $35.66
16	470853506D	MOULDING COVER (RIGHT)	1 req	Avail to order Our Price: $521.07
16	470853510E	MOLDING,SIDE PANEL CARBON COVER (EXTERNAL CARBON-RIGHT)	1 req	Avail to order Our Price: $3,369.45
16	470853510F	MOLDING,SIDE PANEL COVER (SV-RIGHT)	1 req	Avail to order Our Price: $3,533.46
16	470853510G	MOLDING,SIDE PANELCOPERT.GRIGLIA COVER (RIGHT)	1 req	Avail to order Our Price: $35.66
17	470819945B	ADAPTER REGOLAZ.FARI COVER	4 req	Avail to order Our Price: $13.25
17	893803593A	PLUG BUNGS (20)	2 req	Current Stock: 3 Our Price: $4.99
18	470815715C	COVER SU COPRICURVANO COVER	1 req	Avail to order Our Price: $20.55
19	470810381B	BRACKET PEDESTR.PROTECTION CARRIER	1 req	Avail to order Our Price: $20.70
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
