2017 AVENTADOR SV LP750-4 COUPE - AUSTRALIA

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Avail to order Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER	Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item
470012257	DEMOUNTING HOOK DEMOUNTING HOOK	Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL	Avail to order Our Price: $359.54
69195290	TOOL KIT FOR REMOVING THE GRILLE TOOL KIT FOR REMOVING THE GRILLE BUMPER NET TOOL	Avail to order Our Price: $393.04
61195080	TOOL FOR TOP DEAD CENTER LP700 TOP DEAD CENTER GAUGE. TOOL FOR TOP DEAD CENTER LP700	Avail to order Our Price: $260.54

Open All

Select Group and TAV

< Previous Next >

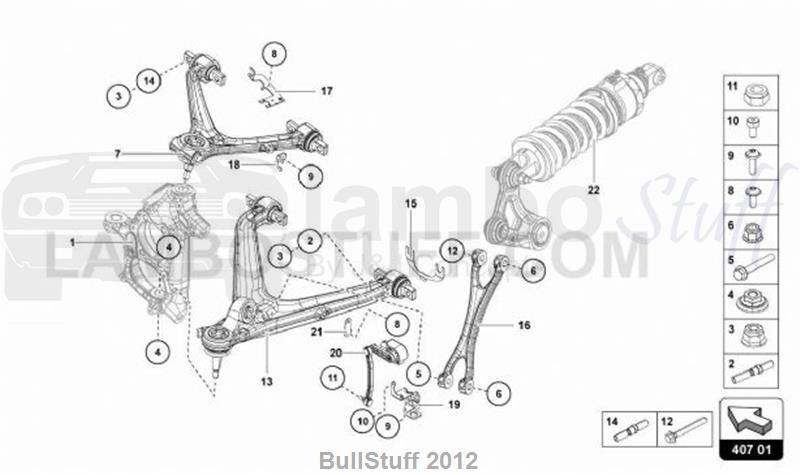

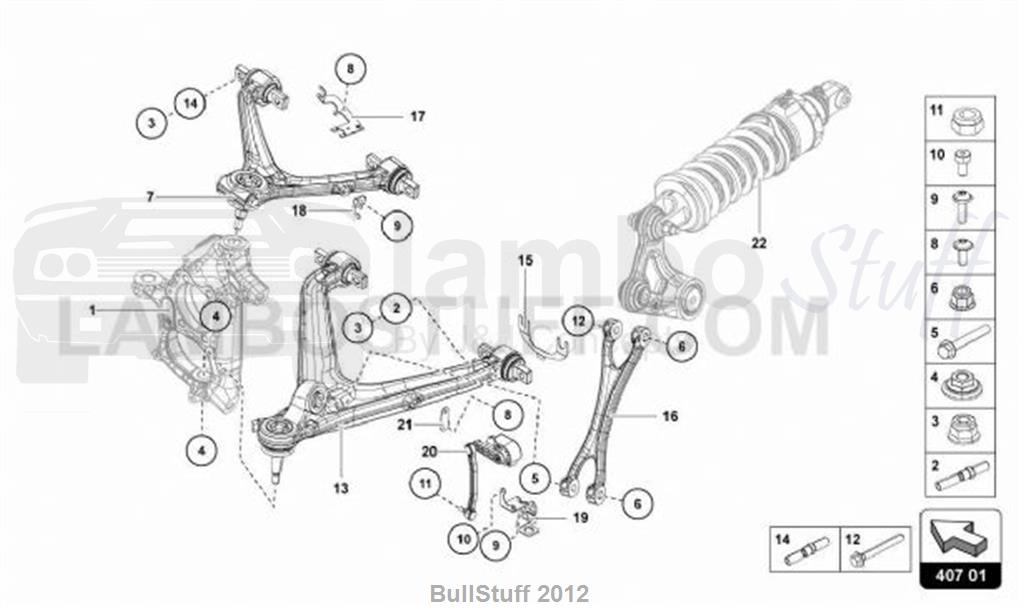

TAV: 407.01.00 - SUSPENSION

2017 Lamborghini AVENTADOR SV LP750-4 COUPE AUSTRALIA SUSPENSION (407.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0		411-010)	0 req
1		WHEEL BEARING HOUSING (SEE ILLUSTRATION :- 407-020)	0 req
2	WHT005396	TAP END STUD THREADED PIN (M10X1,25- M10X45)	8 req	Avail to order Our Price: $32.01
3	N10272302	HEX.NUT W/ FLANGE HEXAGON COLLAR NUT SELF-LOCKING (M10)	16 req	Avail to order Our Price: $2.53
4	WHT004898	HEXAGON FLANGE NUT W.WASHER HEXAGON COLLAR NUT SELF-LOCKING (M14X1,5)	4 req	Current Stock: 14 Our Price: $6.48
5	N10736901	HEXAGON FLANGE BOLT HEXAGON BOLT (M12X1,5X95)	2 req	Avail to order Our Price: $83.97
6	N10106402	HEX.NUT W/FLANGE LOCKING ELEM. HEXAGON COLLAR NUT SELF-LOCKING (M12X1,5)	4 req	Avail to order Our Price: $2.68
7	470407505G	CONTROL ARM,FRONT ANT.SUP.SX CRASH PART WISHBONE (LEFT UPPER)	1 req	Avail to order Our Price: $1,195.48
7	470407506G	CONTROL ARM,FRONT ANT. SUP.DX WISHBONE (RIGHT UPPER)	1 req	Avail to order Our Price: $1,195.48
8	N91055501	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M5X12)	4 req	Current Stock: 20 Our Price: $2.00
9	N10714801	HEXALOBULAR SOCKET FILLISTER HEAD BOLT WITH MULTI-POINT SOCKET HEAD (M6X18)	6 req	Avail to order Our Price: $2.00
10	N10434301	PAN HEAD BOLT SOCKET HEAD BOLT (M5X10 N 104 343)	4 req	Avail to order Our Price: $2.00
11	N01118312	HEX.HEAD CLAMPING NUT HEXAGON NUT, SELF-LOCKING (M6)	2 req	Avail to order Our Price: $2.17
12	N10640301	HEXAGON FLANGE HEX COLLARED BOLT (M12X1,5X100)	2 req	Avail to order Our Price: $7.89
13	470407151H	TRACK CONTROL ARM CRASH PART WISHBONE (CONTACT YOUR AREA MANAGER-LEFT LOWER)	1 req	Avail to order Our Price: $1,682.31
13	470407152H	TRACK CONTROL ARM WISHBONE (CONTACT YOUR AREA MANAGER-RIGHT LOWER)	1 req	Avail to order Our Price: $1,682.31
14	WHT005397	TAP END STUD THREADED PIN (M10X1,25- M10X39)	8 req	Avail to order Our Price: $43.10
15	470407203E	BACKING PLATE SPESS.CAMBER 3,0 BALANCING PLATE (3 MM)	4 req	Avail to order Our Price: $22.41
15	470407203F	SHIM SPESS.CAMBER 1 BALANCING PLATE (1 MM)	4 req	Avail to order Our Price: $30.37
15	470407203G	SHIM SPESS.CAMBER 0.5 BALANCING PLATE (0,5 MM)	4 req	Avail to order Our Price: $29.93
16	470413383B	PUSH ROD INSULATION STRIP	2 req	Avail to order Our Price: $308.92
17	470971003	CABLE HOLDER BRACKET (LEFT)	1 req	Avail to order Our Price: $52.56
17	470971004	CABLE HOLDER BRACKET (RIGHT)	1 req	Avail to order Our Price: $52.56
18	470611845	BRACKET,BRAKE HOSE BRACKET	2 req	Avail to order Our Price: $25.68
19	470611851B	BRACKET,BRAKE LINEPOTENZIOMETRI BRACKET (LEFT)	1 req	Avail to order Our Price: $21.15
19	470611852B	BRACKET,BRAKE LINEPOTENZIOMETRI BRACKET (RIGHT)	1 req	Avail to order Our Price: $20.40
20	470941273A	SENSOR,HEADLIGHT- ASS.POTENZIOMETRO POSITION SENSOR (LEFT AND RIGHT)	2 req	Avail to order Our Price: $129.82
22		GAS SHOCK ABSORBER, ELECTRONICALLY CONTROLLED (SEE ILLUSTRATION :-	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
