2017 Lamborghini AVENTADOR S USA WING PROTECTOR (821.02.00)

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

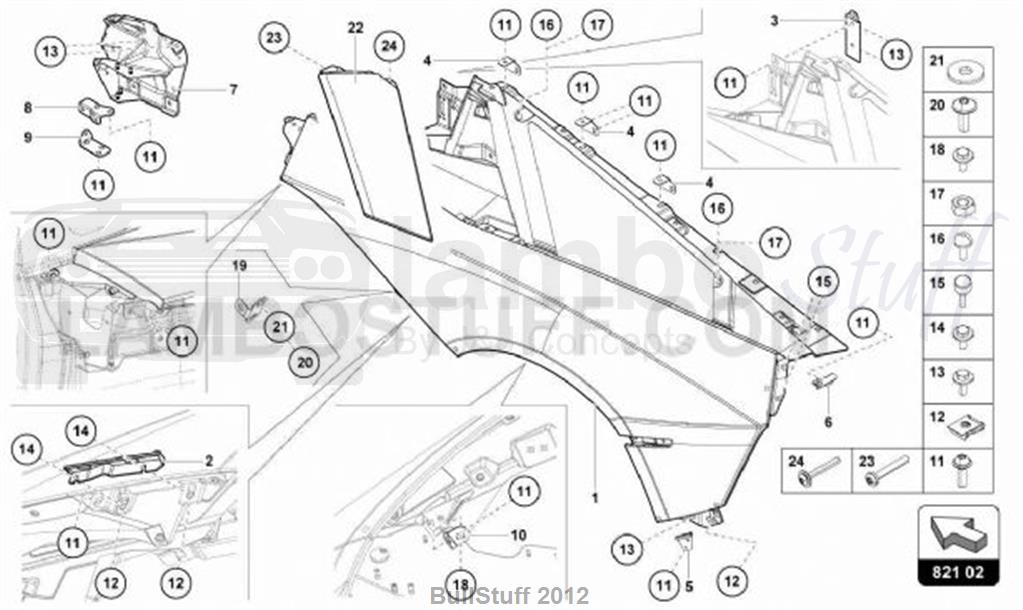

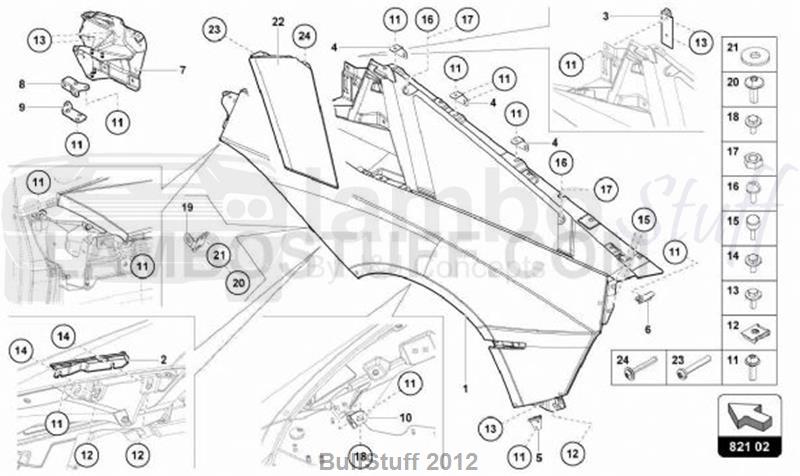

TAV: 821.02.00 - WING PROTECTOR

2017 Lamborghini AVENTADOR S USA WING PROTECTOR (821.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470854959J	COVER,FENDER LINING FOR FENDER (CONTACT YOUR AREA MANAGER-LEFT REAR)	1 req	Avail to order Our Price: $5,022.85
1	470854960K	COVER,FENDER LINING FOR FENDER (CONTACT YOUR AREA MANAGER-RIGHT REAR)	1 req	Avail to order Our Price: $5,022.85
2	470853795A	MOUNTING PLATE SECURING BRACKET (LEFT)	1 req	Avail to order Our Price: $29.86
2	470853796A	MOUNTING PLATE RIPORTO PARAF.POST SECURING BRACKET (RIGHT)	1 req	Avail to order Our Price: $149.98
3	470853587A	BRACKET FIX 854 959 MUD WING COMPENSATION PLATE (LEFT)	1 req	Avail to order Our Price: $41.70
3	470853588A	BRACKET FIX 854 960 MUD WING COMPENSATION PLATE (RIGHT)	1 req	Avail to order Our Price: $39.83
4	470853945A	BRACKET POST. REAR FENDER MUD WING COMPENSATION PLATE	6 req	Avail to order Our Price: $15.93
5	470853231	BRACKET MUD WING COMPENSATION PLATE (LEFT)	1 req	Avail to order Our Price: $31.94
5	470853232	BRACKET MUD WING COMPENSATION PLATE (RIGHT)	1 req	Avail to order Our Price: $31.94
6	470821141	BRACKET,FENDER MUD WING COMPENSATION PLATE (LEFT)	1 req	Avail to order Our Price: $871.11
6	470821142	BRACKET,FENDER MUD WING COMPENSATION PLATE (RIGHT)	1 req	Avail to order Our Price: $871.11
7	470857289A	MOUNTING MUD WING COMPENSATION PLATE (LEFT)	1 req	Avail to order Our Price: $298.51
7	470857290A	MOUNTING MUD WING COMPENSATION PLATE (RIGHT)	1 req	Avail to order Our Price: $298.51
8	470857371B	RETAINING PLATE FIX.SERRATURA CARRIER (LEFT)	1 req	Avail to order Our Price: $34.52
8	470857372B	RETAINING PLATE FIX SERRATURA CARRIER (RIGHT)	1 req	Avail to order Our Price: $34.52
9	470857155B	BRACKET SERRATURA CARRIER (LEFT)	1 req	Avail to order Our Price: $56.69
9	470857156B	BRACKET SERRATURA CARRIER (RIGHT)	1 req	Avail to order Our Price: $56.69
10	470813755C	BRACKET ABSTUETZ KUEHLER MUD WING COMPENSATION PLATE (LEFT)	1 req	Avail to order Our Price: $7.68
10	470813756C	BRACKET ABSTUETZ KUEHLER MUD WING COMPENSATION PLATE (RIGHT)	1 req	Avail to order Our Price: $7.68
11	N10558102	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)	36 req	Current Stock: 11 Our Price: $4.24
12	N90688703	SNAP NUT CLAMP SPEED NUT (M6X24X16)	6 req	Current Stock: 2 Our Price: $2.00
13	N10009507	HEX. BOLT WITH WASHER HEXAGON HEAD BOLT (COMBI) (M6X18)	4 req	Current Stock: 6 Our Price: $2.00
14	N90898101	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X14)	4 req	Avail to order Our Price: $2.30
15	470115627	STOPPER PASSHUELSE STOP BUFFER	4 req	Avail to order Our Price: $31.22
16	410853809	BUFFER MOUNTING BUFFER	4 req	Avail to order Our Price: $42.84
17	N01100518	HEX.NUT HEXAGON NUT (M5)	4 req	Avail to order Our Price: $4.09
18	N10661002	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M6X20)	4 req	Current Stock: 18 Our Price: $2.00
19	470853647A	BRACKET MUD WING COMPENSATION PLATE (LEFT)	1 req	Avail to order Our Price: $20.96
19	470853648A	BRACKET MUD WING COMPENSATION PLATE (RIGHT)	1 req	Avail to order Our Price: $20.96
20	N90780903	SOCKET SCREW OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	4 req	Current Stock: 1 Our Price: $2.00
21	N01166623	WASHER WASHER (6,4X18X1,6)	4 req	Avail to order Our Price: $2.00
22	470854965A	COVER,FENDER COP.PARAF.SUP.SX LINING FOR FENDER (LEFT REAR)	1 req	Avail to order Our Price: $3,350.95
22	470854966A	COVER,FENDER COP.PARAF.SUP.DX LINING FOR FENDER (RIGHT REAR)	1 req	Avail to order Our Price: $3,350.95
23	N10405702	screw HEXAGON SOCKET HEAD BOLT (M6X45)	2 req	Current Stock: 7 Our Price: $2.87
24	N10483102	HEXALOBULAR SOCKET HEX SOCKET HEAD BOLT (COMBI) (M6X50)	2 req	Avail to order Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
