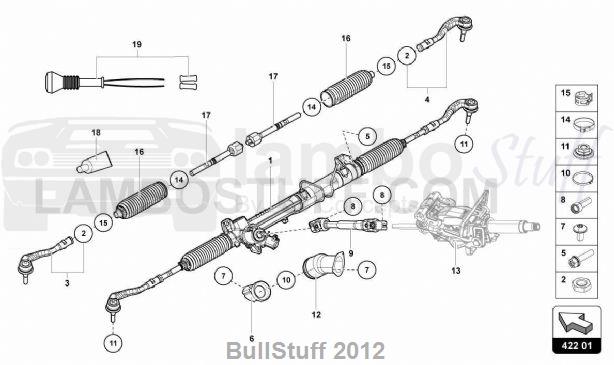

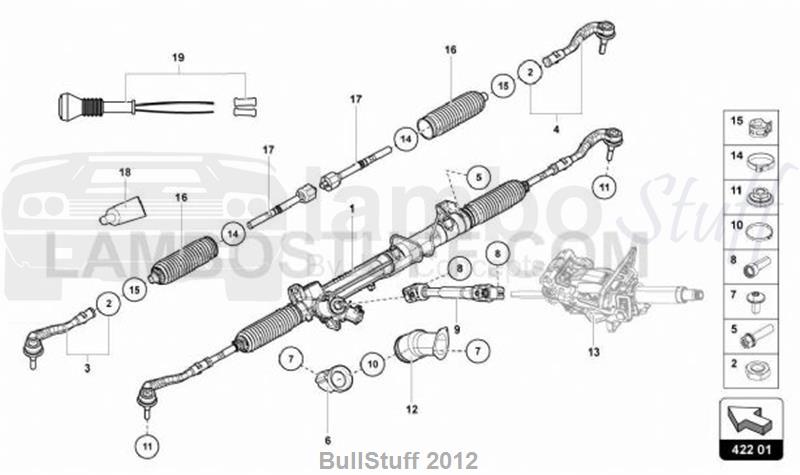

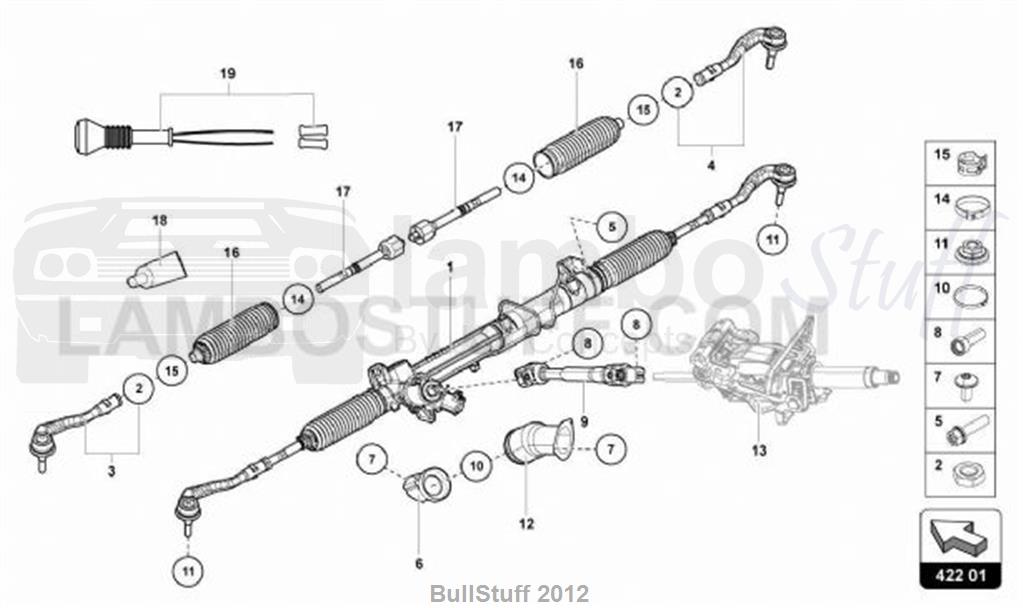

TAV: 422.01.00 - STEERING ROD

2017 Lamborghini AVENTADOR S USA STEERING ROD (422.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0		'R 8K0 B')	0 req
0		'L 8K0 B')	0 req
1	471422061K	STEERING BOX SCAT.GUIDA STD LHD STEERING ROD ( LHD)	1 req	Avail to order Our Price: $12,205.51
2	N01116418	HEX.NUT HEXAGON NUT (M16X1,5)	2 req	Avail to order Our Price: $2.00
3	8K0422817B	BALL JOINT TIE ROD END (LEFT 29 MM	1 req	Avail to order Our Price: $145.67
4	8K0422818B	BALL JOINT TIE ROD END (RIGHT 29 MM	0 req	Avail to order Our Price: $145.67
5	WHT005436A	DUO BOLT W.WASHER M10X44 MULTI-POINT SOCKET HEAD BOLT WITH COLLAR (M10X44)	4 req	Avail to order Our Price: $53.89
6	470422170A	BRACKET COVER	1 req	Avail to order Our Price: $185.13
7	N10586402	HEXALOBULAR SOCKET FLANGE BOLT SOCKET HEAD HEXAGON BOLT WITH CONE (M5X10)	4 req	Avail to order Our Price: $3.59
8	N10518405	12-POINT SOCKET BOLT SOCKET HEAD BOLT WITH MULTI- POINT INNER DRIVE, SELF-LOCK. (M8X30)	2 req	Avail to order Our Price: $3.44
9	471419753D	STEERING SHAFT INTERMEDIATE STEERING SHAFT	1 req	Avail to order Our Price: $1,083.50
10	N10753601	CLAMP CLAMP (69,5X7X0,6)	1 req	Current Stock: 3 Our Price: $4.81
11	WHT004898	HEXAGON FLANGE NUT W.WASHER HEXAGON COLLAR NUT SELF-LOCKING (M14X1,5)	2 req	Current Stock: 14 Our Price: $6.24
12	471422326A	SEAL COVER	1 req	Avail to order Our Price: $119.41
13		STEERING COLUMN (SEE ILLUSTRATION :- 419-010)	0 req
14		CLAMP (NO PART - INCLUED IN REF.:- 1)	2 req
15		CLAMP (NO PART - INCLUDED IN REF.:- 1)	2 req
16		BOOT FOR TIE ROD (NO PART - INCLUDED IN REF.:- 1)	2 req
17		TRACK ROD (NO PART - INCLUDED IN REF.:- 1)	2 req
18		GREASE (NO PART - INCLUDED IN REF.:- 1)	1 req
19	470498001A	CONNECTOR 1 SET ASSEMBLY PARTS	1 req	Avail to order Our Price: $764.91
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
