2017 Lamborghini AVENTADOR S ARABIA WHEEL HOUSING (810.01.00)

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

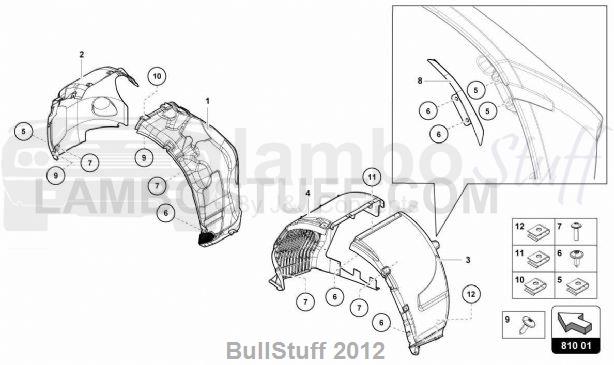

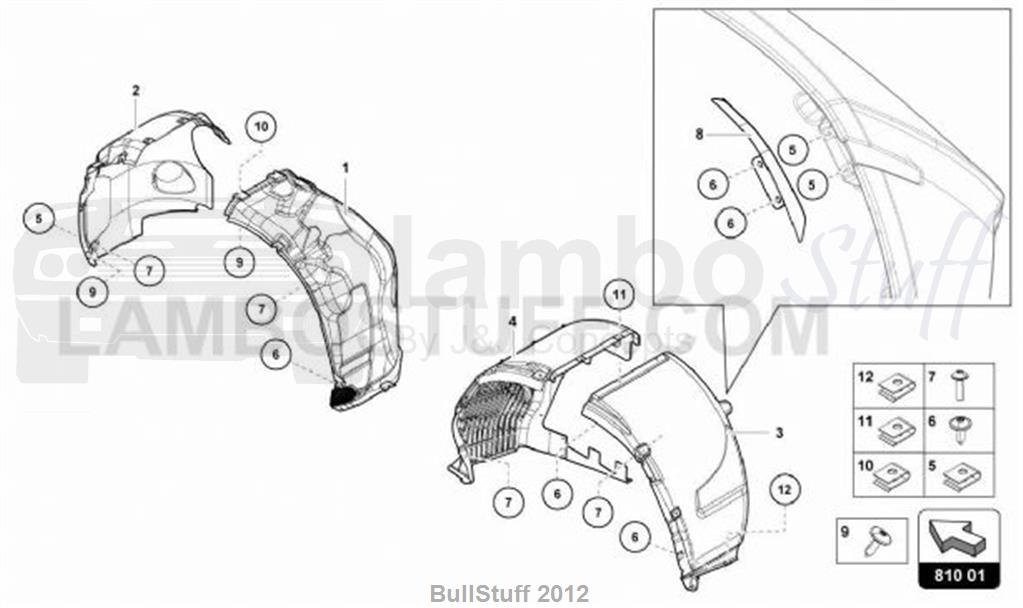

TAV: 810.01.00 - WHEEL HOUSING

2017 Lamborghini AVENTADOR S ARABIA WHEEL HOUSING (810.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0		TAIWAN, SOUTH KOREA AND CHINA-RIGHT FRONT	0 req
0		R134A)	0 req
0		TAIWAN, SOUTH KOREA AND CHINA)	0 req
1	470821177C	WHEEL HOUSING WHEEL HOUSING LINER (LEFT FRONT)	1 req	Avail to order Our Price: $416.18
1	470821178C	WHEEL HOUSING WHEEL HOUSING LINER (RIGHT FRONT)	1 req	Avail to order Our Price: $413.31
2	470821171B	WHEEL HOUSING WHEEL HOUSING LINER (LEFT FRONT)	1 req	Avail to order Our Price: $285.59
2	470821172C	WHEEL HOUSING WHEEL HOUSING LINER (RIGHT FRONT - VALID ALSO FOR MARKET RUSSIA,PHILIPPINES,AZERBAIJAN,VIETNAM, MEXICO, CHILE, BRAZIL,	1 req	Avail to order Our Price: $285.59
2	470821172C	WHEEL HOUSING WHEEL HOUSING LINER (VALID ALSO FOR MARKET RUSSIA, PHILIPPINES, AZERBAIJAN, VIETNAM, MEXICO, CHILE, BRAZIL,	1 req	Avail to order Our Price: $285.59
3	470810985B	WHEEL HOUSING WHEEL HOUSING LINER (LEFT REAR)	1 req	Avail to order Our Price: $1,499.68
3	470810986B	WHEEL HOUSING WHEEL HOUSING LINER (RIGHT REAR)	1 req	Avail to order Our Price: $1,427.92
4	470810981E	WHEEL HOUSING WHEEL HOUSING LINER (LEFT REAR)	1 req	Avail to order Our Price: $2,145.47
4	470810982E	WHEEL HOUSING WHEEL HOUSING LINER (RIGHT REAR)	1 req	Avail to order Our Price: $2,145.47
5	N0154487	SPEED NUT SPEED NUT (4,2X16,3X11)	44 req	Current Stock: 6 Our Price: $2.00
6	N90986803	FLANGE TAPPING HEXAGON SOCKET HEAD PANEL BOLT (4,2X13)	38 req	Avail to order Our Price: $2.00
7	N10661002	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M6X20)	22 req	Current Stock: 18 Our Price: $2.00
8	470806077A	WING ADAPTER TRIM FOR WHEEL APERTURE (LEFT)	1 req	Avail to order Our Price: $24.31
8	470806078A	WING ADAPTER TRIM FOR WHEEL APERTURE (RIGHT)	1 req	Avail to order Our Price: $24.31
8		TRIM FOR WHEEL APERTURE (VALID FOR JAPAN MARKET)	0 req
9	N90775001	FLANGE TAPPING HEXAGON SOCKET HEAD PANEL BOLT (4,8X16)	10 req	Current Stock: 9 Our Price: $2.01
10	N90834301	CLIP CLIP NUT (4,8X17X11,3)	10 req	Avail to order Our Price: $2.00
11	N90698803	SNAP NUT CLAMP ST4.2X16X12.3 SPEED NUT (4,2X16X12)	1 req	Avail to order Our Price: $2.00
12	N90688703	SNAP NUT CLAMP SPEED NUT (M6X24X16)	2 req	Current Stock: 2 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
