2017 AVENTADOR LP700-4 ROADSTER - EUROPE

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
4D0906321C	FUEL FILTER FILTER		Avail to order Our Price: $40.12
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $190.57
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $190.57
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19

Sensors

PN	Item
4E0927804	SEE PN 4E0927804F ABS SENSOR RIGHT	Avail to order Our Price: $45.07
4E0927803	ABS SENSOR LEFT ABS SENSOR LEFT	Current Stock: 2 Our Price: $45.07
470998161	COLD JOINT KIT Set of two 470919197C	Avail to order Our Price: $924.67

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

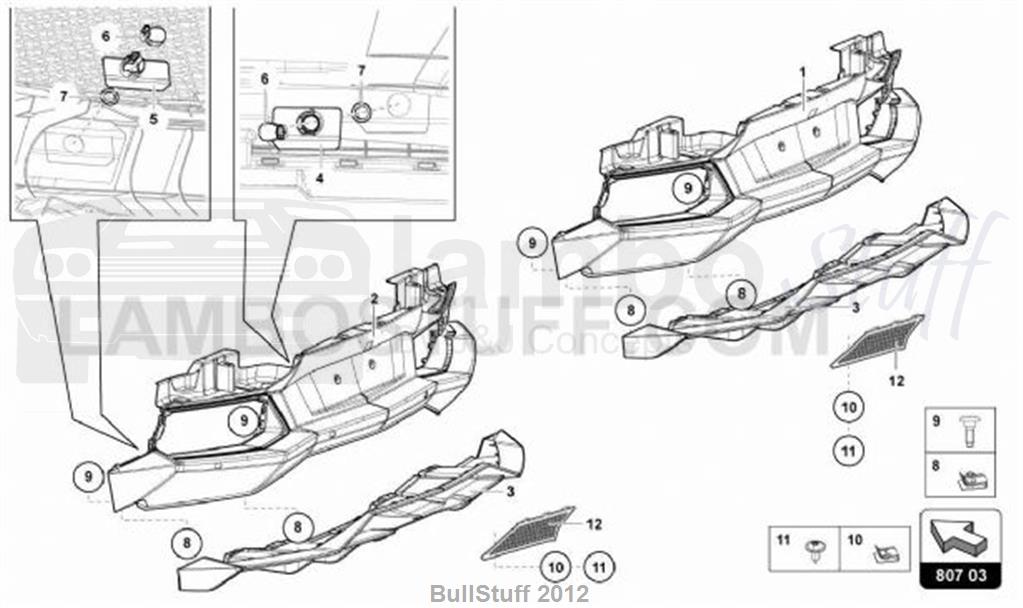

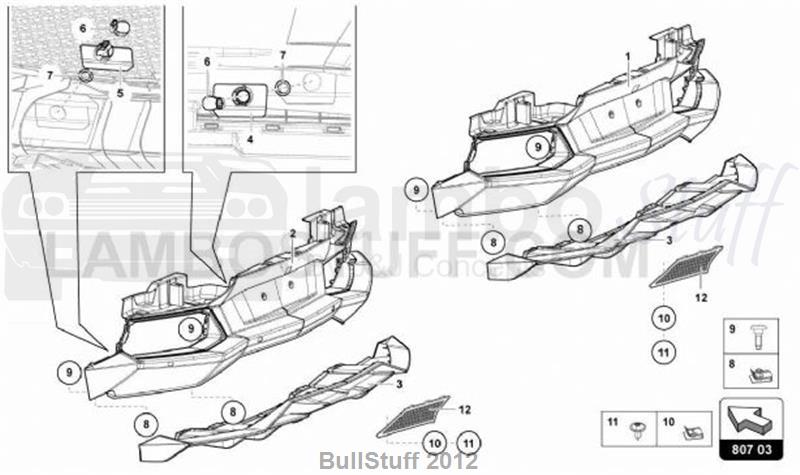

TAV: 807.03.00 - BUMPER, COMPLETE

2017 Lamborghini AVENTADOR LP700-4 ROADSTER EUROPE BUMPER, COMPLETE (807.03.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470807301J	REAR BUMPER CRASH PART BUMPER (CONTACT YOUR AREA MANAGER-REAR)	1 req	Avail to order Our Price: $10,328.71
2	470807301K	REAR BUMPER PARAURTI POST CRASH PART BUMPER (PARCKING SENSOR - CONTACT YOUR AREA MANAGER-REAR)	1 req	Avail to order 2 Used Available Our Price: $10,936.28
3	470807539B	BUMPER BAR CRASH PART CROSS MEMBER (REAR)	1 req	Current Stock: 1 Our Price: $10,440.34
3	470807539C	BUMPER BAR CRASH PART CROSS MEMBER (EXTERNAL CARBON-REAR)	1 req	Avail to order Our Price: $18,813.25
4	470919289A	MOUNTING,SENSOR SENSOR BRACKET (CENTER, LEFT)	1 req	Avail to order Our Price: $176.52
4	470919290A	MOUNTING,SENSOR SENSOR BRACKET (CENTER, RIGHT)	1 req	Avail to order Our Price: $176.52
5	470919329A	MOUNTING,SENSOR SENSOR BRACKET (SIDE, LEFT)	1 req	Avail to order Our Price: $176.52
5	470919330A	MOUNTING,SENSOR SENSOR BRACKET (SIDE, RIGHT)	1 req	Avail to order Our Price: $176.52
6	1S0919275	SENSOR,PARK DISTANCE CONTROL SENSOR	4 req	Avail to order Our Price: $130.31
7	1T0919133C	GASKET SEAL RING	4 req	Current Stock: 19 Our Price: $8.47
8	N0154487	SPEED NUT SPEED NUT (4,2X16,3X11)	14 req	Current Stock: 6 Our Price: $2.00
9	N90698606	FLANGE TAPPING HEXAGON SOCKET HEAD PANEL BOLT (4,2X16)	14 req	Avail to order Our Price: $2.00
10	N90170803	SPEED NUT SPEED NUT (4,2X13X11)	6 req	Current Stock: 3 Our Price: $2.00
11	N91136801	screw HEXAGON SOCKET HEAD PANEL BOLT (4,2X11)	6 req	Current Stock: 8 Our Price: $2.00
12		GRILLE (NOT AVAILABLE FOR THIS MY-LEFT REAR)	1 req
12		GRILLE (NOT AVAILABLE FOR THIS MY-RIGHT REAR)	1 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
