2017 AVENTADOR LP700-4 ROADSTER - EUROPE

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
4D0906321C	FUEL FILTER FILTER		Avail to order Our Price: $40.12
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $190.57
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $190.57
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22

Sensors

PN	Item
4E0927804	SEE PN 4E0927804F ABS SENSOR RIGHT	Avail to order Our Price: $45.07
4E0927803	ABS SENSOR LEFT ABS SENSOR LEFT	Current Stock: 2 Our Price: $45.07
470998161	COLD JOINT KIT Set of two 470919197C	Avail to order Our Price: $924.67

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

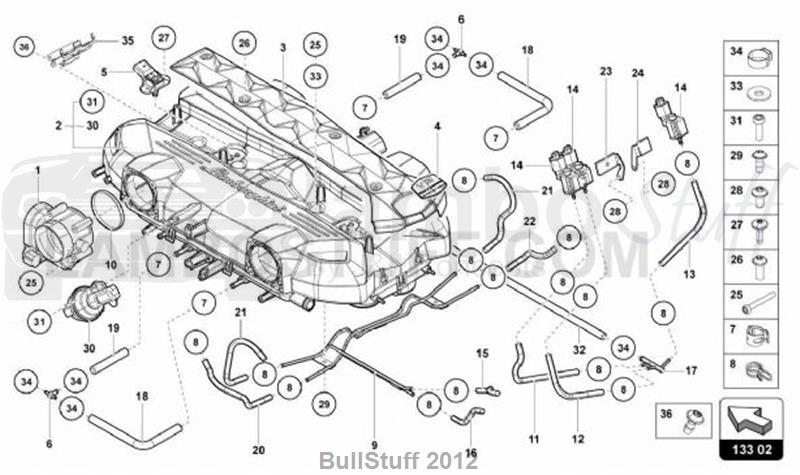

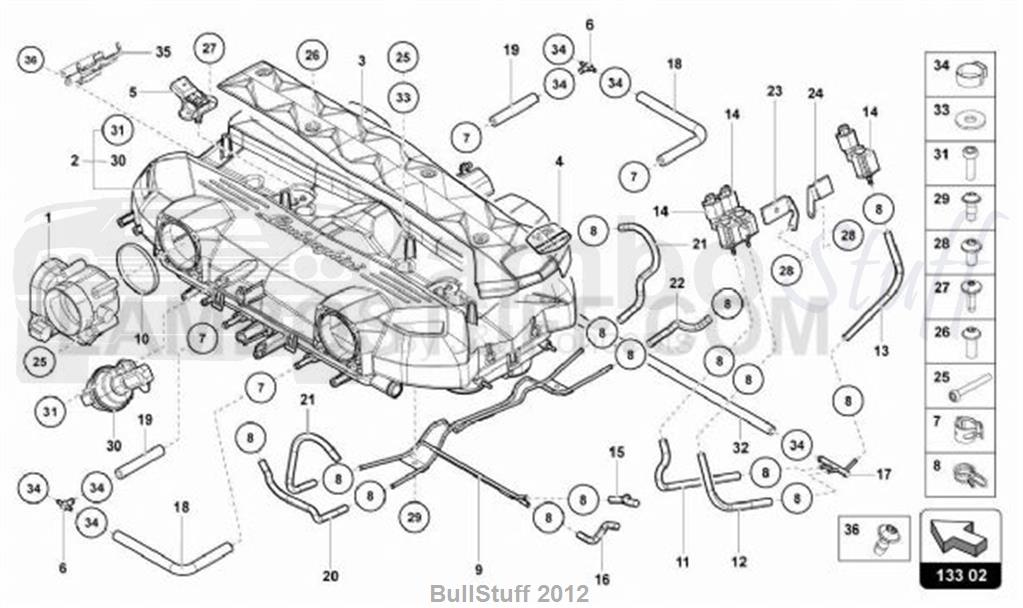

TAV: 133.02.00 - INTAKE MANIFOLD

2017 Lamborghini AVENTADOR LP700-4 ROADSTER EUROPE INTAKE MANIFOLD (133.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	07C133062C	THROTTLE VALVE THROTTLE VALVE	4 req	Avail to order Our Price: $1,099.29
2	07M133433M	COVER INTAKE MANIFOLD	1 req	Avail to order Our Price: $2,561.65
3	07M103927K	COVER COVER (CARBON FIBER)	1 req	Avail to order Our Price: $3,037.86
3	07M103927L	COVER COVER (STANDARD)	1 req	Avail to order Our Price: $265.50
4	07M103115K	CLOSING PLATE EMBLEM	1 req	Avail to order Our Price: $49.80
5	06B906051	TEMPERATURE - MAP SENSOR PRESSURE SENSOR	2 req	Avail to order Our Price: $118.83
7	N90686701	SPRING CLAMP SPRING BAND CLAMP (14X12)	10 req	Avail to order Our Price: $1.94
8	400127217	SECURING CLIP CLAMP	18 req	Avail to order Our Price: $2.00
9	07M133085C	TUBE VACUUM PIPE	1 req	Avail to order Our Price: $258.33
10	07M129268	GASKET SEAL	4 req	Avail to order Our Price: $27.49
11	07M133727B	MOLDED HOSE VACUUM HOSE	1 req	Avail to order Our Price: $13.35
12	470131209	PRESSURE LINE PRESSURE PIPE	1 req	Avail to order Our Price: $17.73
13	470131201	PRESSURE LINE CONNECTING HOSE	1 req	Avail to order Our Price: $15.50
14	037906283C	ELECTRIC SWITCH SOLENOID VALVE (BLACK)	3 req	Current Stock: 4 Our Price: $129.02
15	07M131846C	HOSE INTAKE HOSE	1 req	Avail to order Our Price: $6.53
16	07M131847C	HOSE INTAKE HOSE	1 req	Avail to order Our Price: $6.53
17	470131585	CONNECTING PIECE CONNECTION PIECE	1 req	Avail to order Our Price: $147.10
18	07M131850B	HOSE VACUUM HOSE	2 req	Avail to order Our Price: $19.74
19	07M131208A	PRESSURE LINE VACUUM HOSE	2 req	Avail to order Our Price: $62.79
20	07M133605A	MOLDED HOSE VACUUM HOSE (BLUE)	2 req	Avail to order Our Price: $17.44
21	07M133727B	MOLDED HOSE VACUUM HOSE	2 req	Avail to order Our Price: $13.35
22	07M133605B	MOLDED HOSE VACUUM HOSE	1 req	Avail to order Our Price: $8.55
23	07M906287E	BRACKET BRACKET	1 req	Avail to order Our Price: $28.71
24	07M906303	HALTER BRACKET	1 req	Avail to order Our Price: $25.40
25	N10470704	HEXALOBULAR SOCKET ROUND HD. SCREW (M6X50)	16 req	Avail to order Our Price: $2.00
26	N10721401	SCREW OVAL HD. SELF-TAPP FITT. SCREW (6X16)	4 req	Avail to order Our Price: $2.00
27	N91136801	screw HEXAGON SOCKET HEAD PANEL BOLT (4,2X11)	4 req	Current Stock: 8 Our Price: $2.00
28	N90638102	SCREW ROUND HD. SCREW (M6X12)	2 req	Current Stock: 12 Our Price: $2.00
29	N90925202	SCREW HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING (6X16)	2 req	Avail to order Our Price: $2.00
30		THROTTLE VALVE POSITIONER (CANNOT BE SOLD SEPARATELY)	4 req
31		1 SET BOLTS (CANNOT BE SOLD SEPARATELY)	8 req
32	470131175	PRESSURE LINE PIPE	1 req	Avail to order Our Price: $47.01
33	N01166623	WASHER WASHER (6,4X18X1,6)	4 req	Avail to order Our Price: $2.00
34	N10196901	LUG-TYPE HOSE CLAMP	7 req	Avail to order Our Price: $2.00
35	470971280A	BRACKET CARRIER	1 req	Avail to order Our Price: $33.52
36	N10683901	SCREW OVAL SOCKET HEAD BOLT WITH HEX DRIVE (TP6.0X12.0-Q-6X12)	2 req	Avail to order Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
