2016 AVENTADOR LP700-4 ROADSTER - ARABIA

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
4D0906321C	FUEL FILTER FILTER		Avail to order Our Price: $40.12
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $190.57
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $190.57
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19

Sensors

PN	Item
4E0927804	SEE PN 4E0927804F ABS SENSOR RIGHT	Avail to order Our Price: $45.07
4E0927803	ABS SENSOR LEFT ABS SENSOR LEFT	Current Stock: 2 Our Price: $45.07
470998161	COLD JOINT KIT Set of two 470919197C	Avail to order Our Price: $924.67

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

TAV: 251.02.00 - CATALYTIC CONVERTER

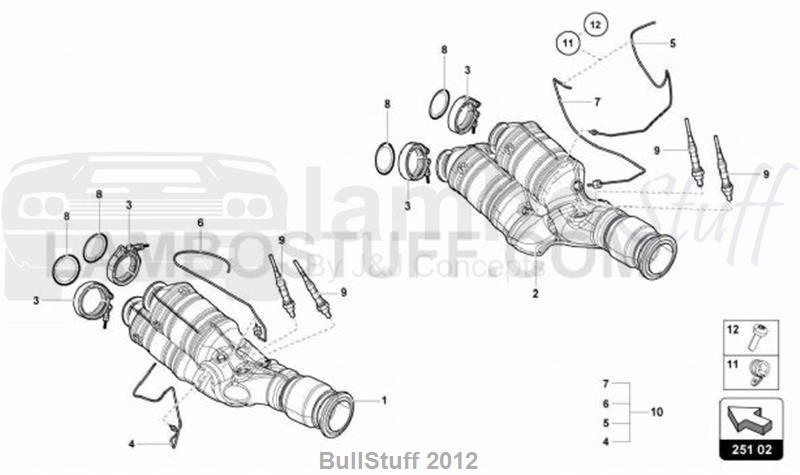

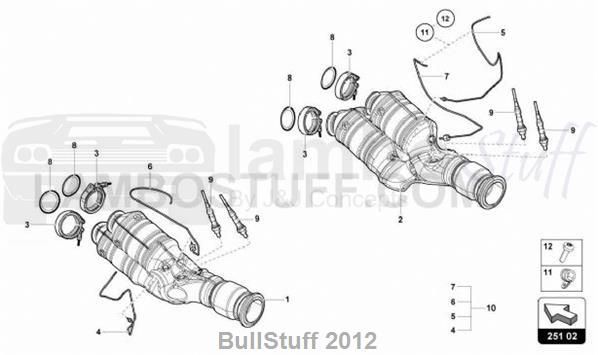

2016 Lamborghini AVENTADOR LP700-4 ROADSTER ARABIA CATALYTIC CONVERTER (251.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0	470998102	TEMPERATURE SENSOR KIT - up to VIN GLA04223 REPAIR SET FOR TEMPERATURE SENSOR (L73X-A.04. 16 - FROM VIN	1 req	Avail to order Our Price: $606.50
0		CLA0091 - UNTIL VIN GLA04223)	0 req
0		10)	0 req
0		10)	0 req
0		10)	0 req
1	07M131777F	PRE-CATALYTIC SALD.SX CATALYTIC CONVERTER (LEFT)	1 req	Avail to order Our Price: $7,024.80
2	07M131778D	PRE-CATALYTIC CATALYTIC CONVERTER (RIGHT)	1 req	Avail to order Our Price: $7,024.80
3	07M251189A	PIPE CLAMP CLIP	4 req	Avail to order Our Price: $229.62
4	470919529D	TEMPERATURE SENSOR LH TEMPERATURE SENSOR (FROM VIN GLA04224-LEFT FRONT)	1 req	Current Stock: 1 Our Price: $387.49
4		TEMPERATURE SENSOR (UNTIL VIN GLA04223, INCLUDED IN REF.:-LEFT	1 req
5	470919529E	TEMPERATURE SENSOR RH TEMPERATURE SENSOR (FROM VIN GLA04224-RIGHT FRONT)	1 req	Avail to order Our Price: $400.39
5		TEMPERATURE SENSOR (UNTIL VIN GLA04223, INCLUDED IN REF.:-RIGHT	1 req
6	470919523D	TEMPERATURE SENSOR LH TEMPERATURE SENSOR (FROM VIN GLA04224-LEFT REAR)	1 req	Avail to order Our Price: $371.70
6		TEMPERATURE SENSOR (UNTIL VIN GLA04223, INCLUED IN REF.:-LEFT 10)	1 req
7	470919523E	TEMPERATURE SENSOR RH TEMPERATURE SENSOR (FROM VIN GLA04224-RIGHT REAR)	1 req	Current Stock: 1 Our Price: $377.43
7		TEMPERATURE SENSOR (UNTIL VIN GLA04223, INCLUDED IN REF.:-RIGHT	1 req
8	07M251261	GASKET SEAL	4 req	Avail to order Our Price: $53.17
9	06A906262AT	O2 SENSOR-LAMBDA PROBE LAMBDA PROBE (REAR)	4 req	Avail to order Our Price: $144.23
10	470998102	TEMPERATURE SENSOR KIT - up to VIN GLA04223 REPAIR SET FOR TEMPERATURE SENSOR (UNTIL VIN GLA04223)	1 req	Avail to order Our Price: $606.50
11	N0206026	HOLDING CLIP CLAMP (15X15)	1 req	Avail to order Our Price: $2.00
12	N10124308	screw OVAL HEXAGON SOCKET HEAD BOLT (M6X20)	1 req	Current Stock: 33 Our Price: $1.87
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
