2015 AVENTADOR SV LP750-4 COUPE - AUSTRALIA

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

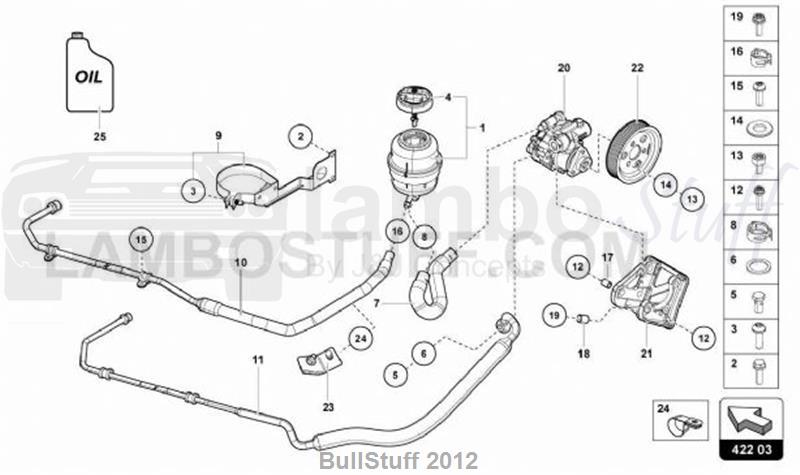

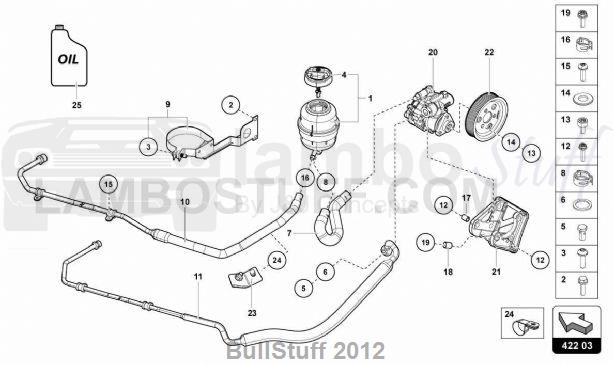

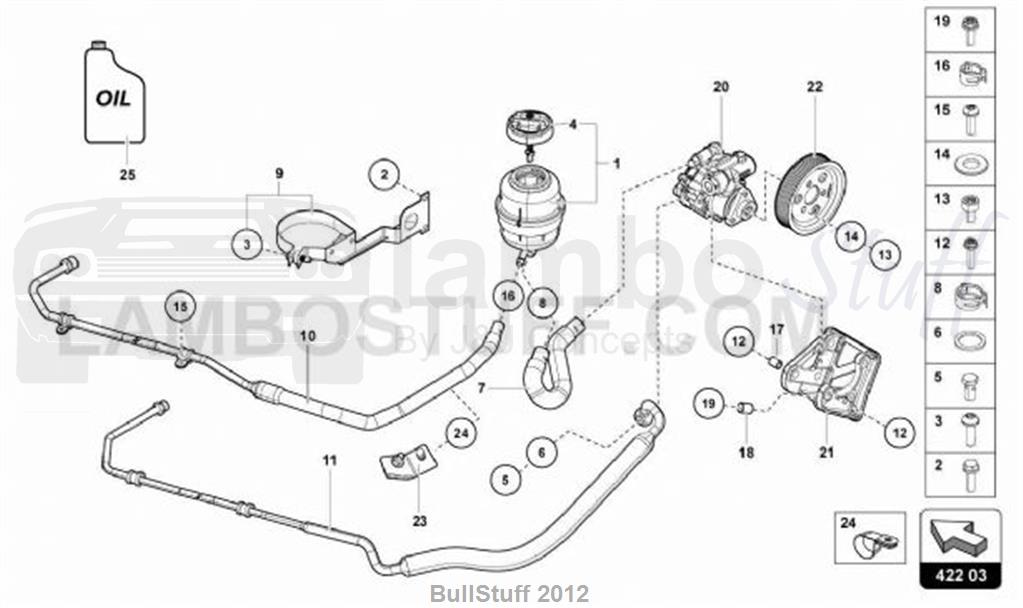

TAV: 422.03.00 - FOR POWER STEERING

2015 Lamborghini AVENTADOR SV LP750-4 COUPE AUSTRALIA FOR POWER STEERING (422.03.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	420422371B	OIL RESERVOIR OIL CONTAINER	1 req	Avail to order Our Price: $161.45
2	N0901486	HEX. BOLT WITH HEXAGON HEAD BOLT (COMBI) (M6X15)	2 req	Avail to order Our Price: $2.00
3	N10535501	HEXAGON SOCKET HEAD BOLT (COMBI) (M6X30)	1 req
4	420422376B	SCREW COVER BUNGS	1 req	Avail to order Our Price: $273.39
5	WHT000507	BANJO BOLT BANJO BOLT (M16X28)	1 req	Avail to order Our Price: $12.21
6	N0138487	O-RING SEAL RING (16X22)	2 req	Avail to order Our Price: $3.23
7	470422843D	SUCTION LINE OIL HOSE	1 req	Avail to order Our Price: $78.79
8	N90686901	CLAMP SPRING BAND CLAMP (23X12)	2 req	Avail to order Our Price: $5.89
9	476422493F	BRACKET,FLUID CONTAINER BRACKET FOR FLUID RESERVOIR	1 req	Avail to order Our Price: $170.06
10	470422857J	RETURN HOSE RETURN HOSE	1 req	Avail to order Our Price: $368.82
11	470422893E	FLEXIBLE HOSE SUPPLY PIPE	1 req	Avail to order Our Price: $426.23
12	N10533601	12-POINT SOCKET FLANGE BOLT SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	6 req	Avail to order Our Price: $3.01
13	N91143901	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M8X16)	3 req	Avail to order Our Price: $2.95
14	WHT003045	WASHER WASHER (8,4X17X1,6)	3 req	Avail to order Our Price: $25.83
15	N10124304	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X20)	2 req	Current Stock: 16 Our Price: $2.00
16	N90770201	SPRING CLAMP SPRING BAND CLAMP (17X12)	1 req	Current Stock: 2 Our Price: $3.88
17	470145219	SLEEVE SPACER SLEEVE	3 req	Avail to order Our Price: $1,750.83
18	07M103143A	SLEEVE DOWEL SLEEVE	2 req	Avail to order Our Price: $35.17
19	N10689301	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M8X25)	3 req	Current Stock: 4 Our Price: $3.16
20	470145156A	VANE TYPE PUMP HYDRAULIC PUMP	1 req	Avail to order Our Price: $3,889.12
21	470145879A	BRACKET RETAINER FOR VANE PUMP	1 req	Avail to order Our Price: $2,985.01
22	470145235A	PULLEY POLY V-BELT PULLEY	1 req	Current Stock: 1 Our Price: $1,367.66
23	470422484	BRACKET BRACKET	1 req	Avail to order Our Price: $41.98
24	N02061610	CLAMP	1 req
25	900000140	NLA (No Longer Available) CENTR. HYDRAULIC OIL	1 req	*See Description
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
