2014 AVENTADOR LP700-4 COUPE - ENGLAND

Maintenance Parts:

Belts

PN	Item	Diagram
07M903137C	RIBBED V-BELT RIBBED V-BELT		Avail to order Our Price: $33.97

Brakes

PN	Item	Diagram
470698151	FRONT BRAKE PAD SET FRONT BRAKE PAD SET		Current Stock: 2 Our Price: $1,379.45
470698451	REAR BRAKE PAD SET REAR BRAKE PAD SET		Current Stock: 2 Our Price: $1,140.16

Drivetrain

PN	Item
07M105269C	SEE PN 07M105269D BALANCED CLUTCH MECHANISM	Avail to order Our Price: $7,378.78
07M115561	see PN 07M115561B Oil Filter Cartridge	Avail to order Our Price: $41.52
0CE141671A	CONCENTRIC SLAVE CYLINDER LP700 CONCENTRIC SLAVE CYLINDER	Current Stock: 1 Our Price: $1,010.88
0CE311675A	CLUTCH SENSOR - MASTER CYLINDER CLUTCH SENSOR - MASTER CYLINDER	Current Stock: 2 Our Price: $887.33
079905381	TRANSDUCER POS. TRANSDUCER POS.	Avail to order Our Price: $338.83
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO	Avail to order Our Price: $41.52

Fuel-Air

PN	Item	Diagram
4D0906321C	FUEL FILTER FILTER		Current Stock: 1 Our Price: $32.73
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 5 Our Price: $139.82

Fuses-Bulbs-Relays

PN	Item	Diagram
N01713118	FUSE Please Check your Part Manual for a Description		Current Stock: 18 Our Price: $2.00
N0177532	LAMP BULB LAMP BULB		Avail to order Our Price: $2.00

Ignition

PN	Item
7P0915105	BATTERY BATTERY	Avail to order Our Price: $486.09
470905619	SPARK PLUG SPARK PLUG	Avail to order Our Price: $86.80
470905619A	SPARK PLUG SPARK PLUG	Avail to order Our Price: $88.96

Misc

PN	Item
0R8340113	AVENTADOR CENTRAL LOCK CONVERSION KIT AVENTADOR CENTRAL LOCK CONVERSION KIT	Avail to order Our Price: $5,428.13
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $281.78
470898013	BLACK 73X CENTRAL LOCK CONVERSION KIT BLACK 73X CENTRAL LOCK CONVERSION KIT	Avail to order Our Price: $5,428.13
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $45.59
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $180.46
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $180.46
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $7.79

Sensors

PN	Item
059919523A	TEMPERATURE SENDER TEMPERATURE SENDER	Current Stock: 13 Our Price: $57.25
06A906262AT	O2 SENSOR-LAMBDA PROBE LAMBDA PROBE	Current Stock: 1 Our Price: $346.85
07L905163A	SEE PN 07L905163C PHASE SENSOR	Avail to order Our Price: $30.42
07L919561B	OIL PRESSURE GAUGE SENDER OIL PRESSURE GAUGE SENDER	Avail to order Our Price: $714.17
4E0927803	ABS SENSOR LEFT ABS SENSOR LEFT	Current Stock: 5 Our Price: $37.49
4E0927804	SEE PN 4E0927804F ABS SENSOR RIGHT	Avail to order Our Price: $37.49
4F0907275D	See PN 7PP907275F WHEEL ELECTRONICS	Avail to order Our Price: $162.86

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 3 Our Price: $103.90

Open All

Select Group and TAV

< Previous Next >

TAV: 109.01.00 - LOWER HEAD TIMING SYSTEM

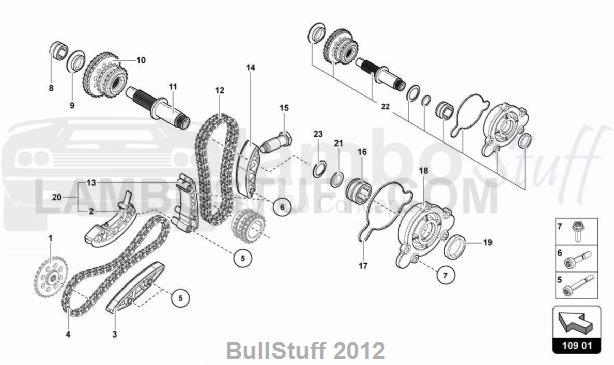

2014 Lamborghini AVENTADOR LP700-4 COUPE ENGLAND LOWER HEAD TIMING SYSTEM (109.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1		GEAR WHEEL (NOT AVAILABLE)	0 req
2		CHAIN TIGHTENER (CANNOT BE SOLD SEE REF. 20)	0 req
3	07M115235B	GUIDE RAIL SHOE	1 req	Avail to order Our Price: $120.28
4	07M109120B	ROLLER CHAIN LOWER TIMING CHAIN	1 req	Avail to order Our Price: $153.04
5	WHT005010	12-POINT SOCKET SCREW M8X60	3 req	Avail to order Our Price: $43.57
6	WHT005401	MULTI-TOOTH SOCKET FIT BOLT SCREW M8X44	2 req	Avail to order Our Price: $56.16
7	N10689302	12-POINT SOCKET FLANGE BOLT SCREW M8X25	5 req	Avail to order Our Price: $2.47
8		BEARING (NOT AVAILABLE)	0 req
9	07M109350B	SPACER RING DIST.ALBERO INTERM SPACER	1 req	Avail to order Our Price: $102.02
10	07M109567D	DOUBLE GEAR ROCCHETTO INTERMED GEAR	1 req	Avail to order Our Price: $420.26
11	07M109225G	DRIVE FLANGE SHAFTALBERO INTERMEDIO SHAFT	1 req	Avail to order Our Price: $658.94
12	07M109229A	BUSH CHAIN CHAIN	1 req	Avail to order Our Price: $275.18
13		SHOE (CANNOT BE SOLD SEE REF. 20)	0 req
14	07M109077C	SPROCKET SHOE	1 req	Avail to order Our Price: $115.13
15	03F109507B	CHAIN TENSIONER CHAIN TIGHTENER WITH SEAL RING	1 req	Avail to order Our Price: $67.04
16	07M109248	BUSH BEARING	1 req	Avail to order Our Price: $186.73
17	07M103147	Gasket GASKET	1 req	Avail to order Our Price: $25.65
18	07M103171F	SEALING FLANGE COVER	1 req	Avail to order Our Price: $377.21
19	07M103070	SEAL OIL SEAL	1 req	Avail to order Our Price: $53.16
20	07M109498	CHAIN TENSIONER ASSEMBLY CHAIN TIGHTENER+SHOE	1 req	Avail to order Our Price: $304.20
21	07M109133C	BRACKET WASHER	1 req	Avail to order Our Price: $12.17
22		KIT (VALID FOR A MY 12)	0 req
23	07M109264A	BEARING BEARING	1 req	Avail to order Our Price: $28.69
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
