2010 MURCIELAGO REVENTON ROADSTER - CANADA

Maintenance Parts:

Belts

PN	Item	Diagram
07M903137A	RIBBED V-BELT RIBBED V-BELT		Avail to order Our Price: $110.70

Brakes

PN	Item
400698451	Brake Pad Kit Rear - Murcielago - Gallardo - Sold as 2 pair Rear Brake Pad Kit Set of 2 Pair for both Rear Rotors	Avail to order Our Price: $733.51
410615115D	E-Brake Pad - Late Diablo - Murcielago Sold Each E-Brake Pad Murcielago and late Diablo Sold Each	Current Stock: 3 Our Price: $57.73
410798041A	Brake Pad Set Rear Carboceramic - Murcielago Brake Pad Set Rear Carboceramic - Murcielago Sold as 2 pair for both rear rotors.	Avail to order Our Price: $1,337.57
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G	Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item
410837987	SHOCK ABSORBER SHOCK ABSORBER	Current Stock: 1 Our Price: $145.46
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89

Drivetrain

PN	Item
07M105269	MURCIELAGO LP640/670 CLUTCH (MANUAL AND EGEAR) BALANCED MECHANISM CLUTCH MURCIELAGO LP640 CLUTCH (MANUAL AND EGEAR)	Avail to order Our Price: $8,284.95
086141671L	THROW OUT BEARING - EGEAR CONCENTRIC SLAVE CYLINDER IF REPLACING ORIGINAL 04-08 ALLARDO EQUIPMENT ALSO SEE PN: N10124306 X3	Avail to order Our Price: $2,114.04
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO	Current Stock: 2 Our Price: $104.15
N0138495	O-RING DRAIN PLUG WASHER O-RING	Current Stock: 53 Our Price: $3.51

Fuel-Air

PN	Item
07M133843	Air Filter - LM002, Countach, Diablo, Murcielago Please Check your Part Manual for a Description For performance filters see PN: 07M133843A	Avail to order Our Price: $31.69
400201511A	Fuel Filter - Diablo - Gallardo - Murcielago FUEL FILTER	Current Stock: 10 Our Price: $293.29
07M906031A	INJECTOR INJECTOR	Avail to order Our Price: $244.16
07M133843A	Air Filter - SPORT PERFORMANCE FILTER Performance filter replacement for 07M133843 Air Filter - Murcielago SV LP 670-4	Avail to order Our Price: $782.61
07M133843KN	K&N Air Filter - LM002, Countach, Diablo, Murcielago K&N's replacement air filters are designed to increase horsepower and acceleration while providing excellent filtration. These filters are washable and reusable and are custom designed to fit into your existing factory air box. Their drop-in design means adding performance is simple.	Avail to order Our Price: $70.48
410805396	FILTER BOX Please Check your Part Manual for a Description	Current Stock: 1 Our Price: $151.85
410820367A	PARTICULATE FILTER PARTICULATE FILTER	Current Stock: 2 Our Price: $71.57
N10445602	BULB BULB	Avail to order Our Price: $17.64

Fuses-Bulbs-Relays

PN	Item
006617095	Bulb for license plate lamp Bulb LAMP SV8,5-8 5W	Current Stock: 42 Our Price: $11.09
N10445703	HEADLIGHT BULB HEADLIGHT BULB	Current Stock: 8 Our Price: $200.99
N01713118	FUSE FUSE	Current Stock: 18 Our Price: $2.00
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.17
N0177532	LAMP BULB LAMP BULB	Avail to order Our Price: $2.00
N10525502	FUSE STRIP FUSE STRIP	Avail to order Our Price: $6.33

Gaskets

PN	Item	Diagram
0R1470106	GEAR BOX SUPPORT-GASKET SET GEAR BOX SUPPORT		Avail to order Our Price: $4,309.97
600940141L	latch Gasket Left latch Gasket Set Left This is the rubber/plastic gasket that is located on the Left side between the outer door latch and the door frame		Current Stock: 5 Our Price: $24.28

Ignition

PN	Item
7P0915105	BATTERY BATTERY	Avail to order Our Price: $604.06
07M905115B	IGNITION COIL IGNITION COIL	Current Stock: 1 Our Price: $204.71
410905619	Spark Plug All Murcielgos Spark Plug - Murcielago, Murcielago LP640 - LP 670-4 - Reventon Sold Each	Current Stock: 2 Our Price: $54.57

Misc

PN	Item
401955425C	WIPER BLADE (GALLARDO / MURCIELAGO) WIPER BLADE	Current Stock: 1 Our Price: $117.47
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98

Sensors

PN	Item
07L905163A	SEE PN 07L905163C PHASE SENSOR	Avail to order Our Price: $39.01
086141297	CLUTCH SENSOR CLUTCH SENSOR	Avail to order Our Price: $497.25
07L919561B	OIL PRESSURE GAUGE SENDER OIL PRESSURE GAUGE SENDER	Avail to order Our Price: $917.08
086927321	Crank/Flywheel/Timing Sensor ELECTROMAGNETIC PROBE	Avail to order Our Price: $130.42
036906262J	FRONT OXYGEN SENSOR FRONT OXYGEN SENSOR	Current Stock: 4 Our Price: $439.19
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
07L919501A	Water Temperature Sensor Water Temperature Sensor	Current Stock: 3 Our Price: $375.18
07M905381	Phase Sensor Phase Sensor	Avail to order Our Price: $697.09
1K2945511	BRAKE PEDAL SWITCH SWITCH BRAKE PEDAL	Avail to order Our Price: $29.33
400698137	Worn Pads Sensor Worn Pads Sensor	Current Stock: 2 Our Price: $127.14
400907475A	PEDAL VALUE (Potentiometer) PEDAL VALUE	Avail to order Our Price: $1,987.50
410919529	TEMPERATURE SENSOR TEMPERATURE SENSOR	Current Stock: 2 Our Price: $409.41
410919529A	TEMPERATURE SENSOR - MURCIELAGO TEMPERATURE SENSOR	Avail to order Our Price: $394.53
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72

Tools and Tookits

PN	Item	Diagram
61195072	CAMSHAFT MECHANICAL PHASE TOOL CAMSHAFT MECHANICAL PHASE TOOL		Avail to order Our Price: $1,972.62
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

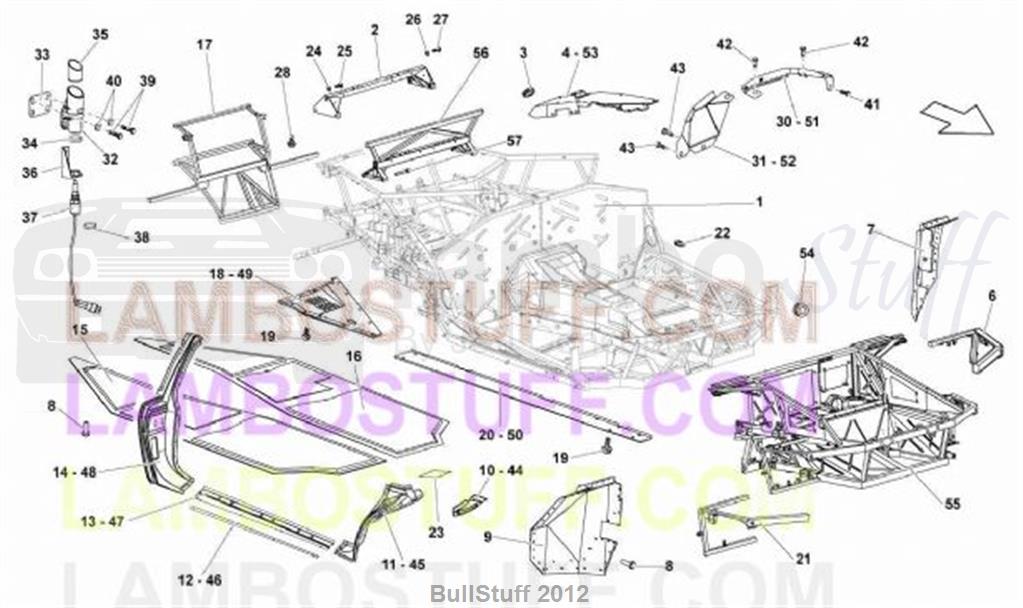

TAV: 825.01.00 - FRAME ELEMENTS

2010 Lamborghini MURCIELAGO REVENTON ROADSTER CANADA FRAME ELEMENTS (825.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Murcielago Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1		COMPLETE FRAME (CANNOT BE SOLD SEPARATELY)	0 req
2		CROSS MEMBER (NOT FOR LP640 ROADSTER MODEL)	0 req
3	400821189	grommet PLUG	4 req	Avail to order Our Price: $2.90
4	410813766A	SIDE PANEL RH SHEET	1 req	Avail to order Our Price: $210.67
6	0041013497	LEFT FRONT CHASSIS PART LEFT FRONT FRAME	1 req	Avail to order Our Price: $1,219.30
7	417809153	wheelhouse LEFT FRONT WHEELARCH, REAR PART	1 req	Avail to order Our Price: $13,895.26
8	202	RIVET	0 req
8	410821316	Check Manual for Description RIVET	66 req	Avail to order Our Price: $7.08
9	417809154	wheelhouse RIGHT FRONT WHEELARCH, REAR PART	1 req	Avail to order Our Price: $13,895.26
10	410809440A	CONNECTING PIECE RIGID UPPER CONNECTION	1 req	Avail to order Our Price: $249.37
11	410805047	DOOR RING SKELETON PART FRONT LEFT COVERING	1 req	Avail to order Our Price: $2,977.52
12	410831165	DOOR FRAME CONNECTION PLATE OUTER LOWER LEFT PROFILE	1 req	Avail to order Our Price: $91.26
13	410801256	DOOR RING SKELETON PART CENTER RIGHT COVERING	1 req	Avail to order Our Price: $808.41
14	417809225	PANEL REAR LEFT COVERING	1 req	Avail to order Our Price: $787.56
15	410825219	panel BOARD	1 req	Avail to order Our Price: $8,058.36
16	410825220	panel BOARD	1 req	Avail to order Our Price: $8,058.36
17		REAR FRAME (NOT FOR REVENTON ROADSTER MODEL)	0 req
18	410825216	RIGHT REAR BOTTOM PANEL RIGHT REAR SIDE MEMBER BOTTOM	1 req	Avail to order Our Price: $1,853.51
19	WHT003069	SCREW SCREW M6X20	11 req	Avail to order Our Price: $48.16
20	410825211	BOTTOM PANEL LEFT FRONT SIDE MEMBER BOTTOM	1 req	Current Stock: 1 Our Price: $1,481.32
21	0041013498	RIGHT FRONT CHASSIS PART RIGHT FRONT FRAME	1 req	Avail to order Our Price: $1,219.30
22	410821801	CAP PLUG	1 req	Avail to order Our Price: $39.91
23	410837267	FRONT PART DOOR LID	2 req	Avail to order Our Price: $608.90
24		WASHER (NOT FOR LP640 ROADSTER MODEL)	0 req
25		SCREW M8X45 (NOT FOR LP640 ROADSTER MODEL)	0 req
26		WASHER (NOT FOR LP640 ROADSTER MODEL)	0 req
27		SCREW M8X50 (NOT FOR LP640 ROADSTER MODEL)	0 req
28		SCREW M8X45 (NOT FOR REVENTON ROADSTER MODEL)	0 req
30	410810610	sheet RH SHEET	1 req	Avail to order Our Price: $116.58
31	417803830	bracket RH SHEET	1 req	Avail to order Our Price: $121.04
32	417871459	SUPPORT SUPPORT	2 req	Avail to order Our Price: $463.01
33	417871279	specer SPACER	2 req	Avail to order Our Price: $21.37
34	417813395	gasket RUBBER BUFFER	1 req	Avail to order Our Price: $2.00
35	417871180	bush BUSHING	1 req	Avail to order Our Price: $89.03
36	417813763	bracket SUPPORT	1 req	Avail to order Our Price: $73.55
37	417959727	BRAKE LIGHT SWITCH SWITCH	1 req	Avail to order Our Price: $61.72
38	417813395A	GROMMET RUBBER BUFFER	1 req	Avail to order Our Price: $2.00
39	WHT001194	HEXAGON SOCKET SCREW M5X14	8 req	Current Stock: 6 Our Price: $2.00
40	WHT001187	Washer 10x5.3x1 Uni 6952 Cat-A WASHER	8 req	Current Stock: 8 Our Price: $2.00
41	N90807405	HEXALOBULAR SOCKET FLANGE BOLT SCREW M5X18	2 req	Current Stock: 2 Our Price: $2.00
42	N90847903	HEXAGON FLANGE SCREW M6X15	4 req	Avail to order Our Price: $2.00
43	N90807405	HEXALOBULAR SOCKET FLANGE BOLT SCREW M5X18	4 req	Current Stock: 2 Our Price: $2.00
44	410809439A	CONNECTING PIECE RIGID UPPER CONNECTION	1 req	Avail to order Our Price: $207.69
45	410805048	DOOR RING SKELETON PART FRONT RIGHT COVERING	1 req	Current Stock: 1 Our Price: $2,977.52
46	410831166	DOOR FRAME CONNECTION PLATE OUTER LOWER RIGHT PROFILE	1 req	Avail to order Our Price: $103.77
47	410801255	DOOR RING SKELETON PART CENTER LEFT COVERING	1 req	Avail to order Our Price: $808.41
48	417809226	PANEL REAR RIGHT COVERING	1 req	Avail to order Our Price: $787.56
49	410825215A	DRAG REDUCTION LEFT REAR SIDE MEMBER BOTTOM	1 req	Current Stock: 1 Our Price: $2,173.59
50	410825210	BOTTOM PANEL RIGHT FRONT SIDE MEMBER BOTTOM	1 req	Current Stock: 1 1 Used Available Our Price: $1,481.32
51	410810609	sheet LH SHEET	1 req	Avail to order Our Price: $116.58
52	417803829	bracket LH SHEET	1 req	Avail to order Our Price: $121.04
53	410813765	SHEET LH SHEET	1 req	Avail to order Our Price: $276.91
54	410805746	fairlead FAIRLEAD (E-GEAR)	1 req	Avail to order Our Price: $3.43
55	410898045	FRAME FRONT FRAME (SEE IDENTITY PLATE PROCEDURE)	1 req	Avail to order Our Price: $25,286.60
56		CROSS MEMBER (FOR SUPERVELOCE MODEL )	0 req
57		SCREW M8X65 (FOR SUPERVELOCE MODEL)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
