2021 HURACAN EVO SPYDER - EUROPE

Maintenance Parts:

Tools and Tookits

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $317.22

Open All

Select Group and TAV

< Previous Next >

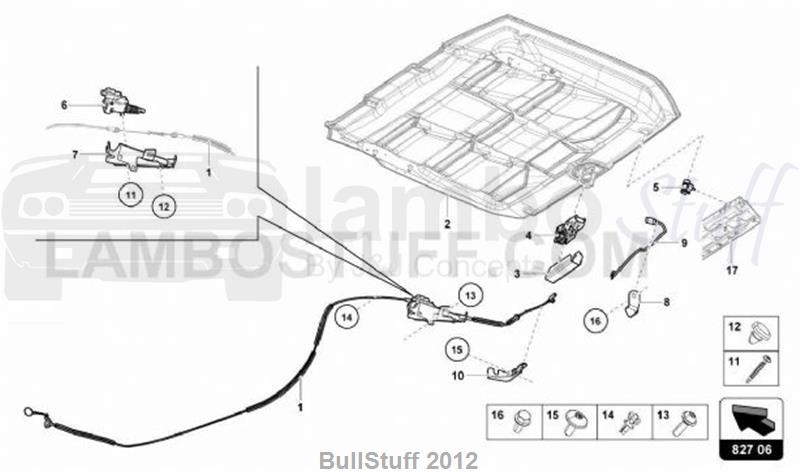

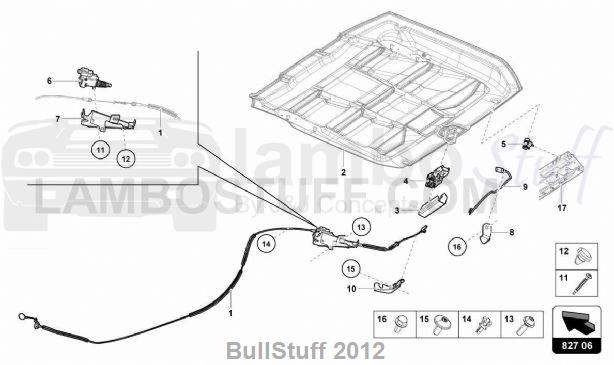

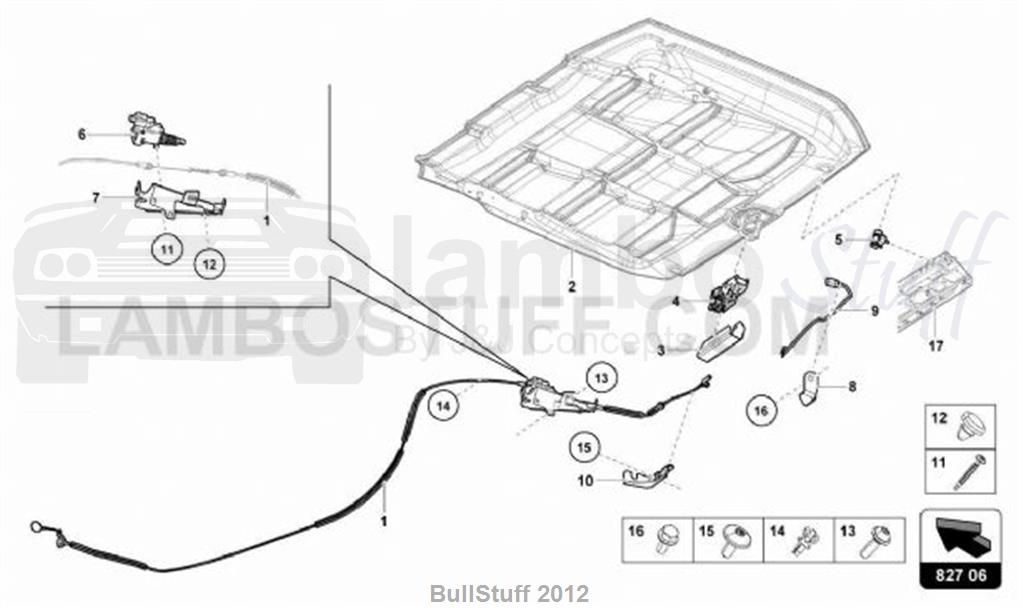

TAV: 827.06.00 - REAR LID

2021 Lamborghini HURACAN EVO SPYDER EUROPE REAR LID (827.06.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4T7827531B	BOWDEN CABLE BOWDEN CABLE	1 req	Avail to order Our Price: $199.48
2		REAR LID (SEE ILLUSTRATION : 827.05)	0 req
3	470825099	HEAT SHIELD HEAT SHIELD	1 req	Avail to order Our Price: $89.56
4	1K1823509E	HOOD LATCH BONNET LOCK-LOWER PART	1 req	Avail to order Our Price: $98.88
5	8P4827239B	ADJUSTING BUFFER STOP BUFFER	1 req	Avail to order Our Price: $8.76
6	420810773	CONTROL ELEMENT TANKKLAPPE THROTTLE CONTROL ELEMENT	1 req	Avail to order Our Price: $130.45
7	4T7827606A	RETAINING PART ARM	1 req	Avail to order Our Price: $48.79
8	4T0971303A	BRACKET CONN.SERRAT.POST. BRACKET	1 req	Avail to order Our Price: $19.31
9		CONTACT SWITCH (INCLUDED IN REF.4)	1 req
10	4T7827909	BRACKET BRACKET	1 req	Avail to order Our Price: $24.76
11	N90739704	SCREW PANEL SCREW	2 req	Current Stock: 16 Our Price: $2.00
12	470861147	CATCH STOP BUFFER (4,5X2,2X8,6)	2 req	Avail to order Our Price: $14.42
13	N10558102	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)	2 req	Current Stock: 11 Our Price: $4.24
14	N90997501	HOSE SUPPORT 6 HOSE BRACKET (6/4,8-6 BLACK)	2 req	Avail to order Our Price: $2.00
15	N90643905	HEXAGON HEAD BOLT HEXAGON HEAD BOLT (COMBI) (M8X25)	2 req	Avail to order Our Price: $2.15
16	N10653201	HEXAGON FLANGE HEX COLLARED BOLT (M6X16)	1 req	Current Stock: 12 Our Price: $2.01
17		CROSS MEMBER (SEE ILLUSTRATION : 805.03-REAR)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
