2021 HURACAN EVO SPYDER 2WD - EUROPE

Maintenance Parts:

Brakes

PN	Item	Diagram
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G		Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0823359	GAS SPRING GAS SPRING	Current Stock: 2 Our Price: $82.49
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32
079115561J	SPIN-ON FILTER SPIN-ON FILTER	Avail to order Our Price: $83.92
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series	Current Stock: 7 Our Price: $89.92
1K0906283A	EGR VALVE ELECTR.CHANGEOVER EGR VALVE	Current Stock: 3 Our Price: $72.36

Fuel-Air

PN	Item
4T0133843	FILTER ELEMENT FILTER ELEMENT FILTER ELEMENT	Avail to order Our Price: $477.90
06E906051K	FUEL PRESSURE SENSOR FUEL PRESSURE SENSOR	Current Stock: 1 Our Price: $123.28
4s0819439	Filter Element Filter Element	Current Stock: 6 Our Price: $104.52
07L127025S	FUEL PUMP FUEL PUMP	Avail to order Our Price: $695.26

Gaskets

PN	Item	Diagram
N0138493	WASHER WASHER		Current Stock: 47 Our Price: $4.18

Ignition

PN	Item	Diagram
0BZ911024D	STARTER STARTER		Current Stock: 1 Our Price: $1,307.14

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
4S0906262F	LAMBDA PROBE BACK RIGHT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $571.69
4S0906262G	LAMBDA PROBE BACK LEFT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $343.91
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98

Open All

Select Group and TAV

< Previous Next >

TAV: 121.03.00 - COOLANT HOSES AND PIPES

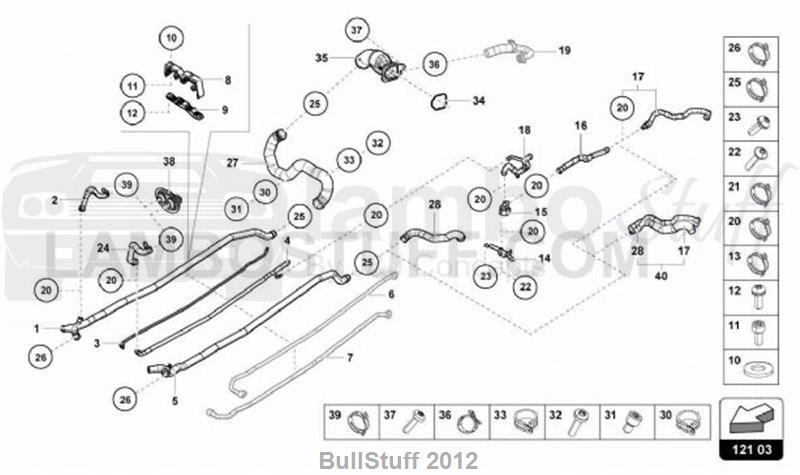

2021 Lamborghini HURACAN EVO SPYDER 2WD EUROPE COOLANT HOSES AND PIPES (121.03.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4S0121400F	COOLANT PIPE VORLAUF TUNNEL COOLANT PIPE	1 req	Avail to order Our Price: $299.24
1	4S0121400F	COOLANT PIPE VORLAUF TUNNEL COOLANT PIPE	1 req	Avail to order Our Price: $299.24
2	4S0819372A	HEATING HOSE HZG-VL COOLANT HOSE	1 req	Avail to order Our Price: $23.97
2	4S0819372A	HEATING HOSE HZG-VL COOLANT HOSE	1 req	Avail to order Our Price: $23.97
3	4S0121465F	BREATHER PIPE TUNNEL COOLANT PIPE	1 req	Avail to order Our Price: $53.38
3	4S0121465F	BREATHER PIPE TUNNEL COOLANT PIPE	1 req	Avail to order Our Price: $53.38
4	4S0819270G	HEATER CIRCUIT RUECKLAUF TUNNEL COOLANT PIPE	1 req	Avail to order Our Price: $126.40
4	4S0819270G	HEATER CIRCUIT RUECKLAUF TUNNEL COOLANT PIPE	1 req	Avail to order Our Price: $126.40
5	4S0121485F	COOLANT PIPE RUECKLAUF TUNNEL COOLANT PIPE	1 req	Avail to order Our Price: $258.31
5	4S0121485F	COOLANT PIPE RUECKLAUF TUNNEL COOLANT PIPE	1 req	Avail to order Our Price: $258.31
6		REFRIGERANT PIPE (SEE ILLUSTRATION : 206.01)	0 req
6		REFRIGERANT PIPE (SEE ILLUSTRATION : 206.01)	0 req
7		REFRIGERANT PIPE (SEE ILLUSTRATION : 206.01)	0 req
7		REFRIGERANT PIPE (SEE ILLUSTRATION : 206.01)	0 req
8	4S0121305C	BRACKET OBERSCHALE RETAINER, UPPER PART	1 req	Avail to order Our Price: $42.66
8	4S0121305C	BRACKET OBERSCHALE RETAINER, UPPER PART	1 req	Avail to order Our Price: $42.66
9	4S0121079B	CENTRAL TUNNEL HOSE LOWER SUPPORT RETAINER, LOWER PART	3 req	Avail to order Our Price: $25.76
9	4S0121079B	CENTRAL TUNNEL HOSE LOWER SUPPORT RETAINER, LOWER PART	3 req	Avail to order Our Price: $25.76
10		CUP WASHER	9 req
10		CUP WASHER	9 req
11	N91084801	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT (M6X18)	6 req	Current Stock: 18 Our Price: $2.00
11	N91084801	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT (M6X18)	6 req	Current Stock: 18 Our Price: $2.00
12	N10471803	SCREW HEXAGON SOCKET HEAD PANEL BOLT	9 req	Avail to order Our Price: $2.00
12	N10471803	SCREW HEXAGON SOCKET HEAD PANEL BOLT	9 req	Avail to order Our Price: $2.00
13	N90687101	SPRING CLAMP SPRING BAND CLAMP (32X12)	8 req	Avail to order Our Price: $8.49
13	N90687101	SPRING CLAMP SPRING BAND CLAMP (32X12)	8 req	Avail to order Our Price: $8.49
14	4S0820536A	BRACKET THERMOMANAGEMENT BRACKET FOR ADDITIONAL COOLANT PUMP	1 req	Avail to order Our Price: $25.62
14	4S0820536A	BRACKET THERMOMANAGEMENT BRACKET FOR ADDITIONAL COOLANT PUMP	1 req	Avail to order Our Price: $25.62
15	06H121601N	AUXILIARY COOLANT WASSERUMWAELZPUMPE ADDITIONAL COOLANT PUMP	1 req	Avail to order Our Price: $175.68
15	06H121601N	AUXILIARY COOLANT WASSERUMWAELZPUMPE ADDITIONAL COOLANT PUMP	1 req	Avail to order Our Price: $175.68
16	4S0819375C	HEATING HOSE WUP3 - 819.350 COOLANT HOSE (LOWER)	1 req	Avail to order Our Price: $38.86
16	4S0819375C	HEATING HOSE WUP3 - 819.350 COOLANT HOSE (LOWER)	1 req	Avail to order Our Price: $38.86
17		COOLANT HOSE (INCLUDED IN REF.: 40)	1 req
17		COOLANT HOSE (INCLUDED IN REF.: 40)	1 req
18	4S0819342A	HEATING HOSE HZG-RUECKLAUF COOLANT PIPE	1 req	Avail to order Our Price: $42.73
18	4S0819342A	HEATING HOSE HZG-RUECKLAUF COOLANT PIPE	1 req	Avail to order Our Price: $42.73
19		COOLER FOR COOLANT (SEE ILLUSTRATION : 121.05)	0 req
19		COOLER FOR COOLANT (SEE ILLUSTRATION : 121.05)	0 req
20	N90687001	SPRING CLAMP SPRING BAND CLAMP (27X12)	9 req	Avail to order Our Price: $8.12
20	N90687001	SPRING CLAMP SPRING BAND CLAMP (27X12)	9 req	Avail to order Our Price: $8.12
21	N90770201	SPRING CLAMP SPRING BAND CLAMP (17X12)	2 req	Current Stock: 2 Our Price: $4.18
21	N90770201	SPRING CLAMP SPRING BAND CLAMP (17X12)	2 req	Current Stock: 2 Our Price: $4.18
22	WHT002306	PAN HEAD BOLT TP3.5X12.0 SELF-TAPPING SCREW (3,5X12)	8 req	Avail to order Our Price: $2.00
22	WHT002306	PAN HEAD BOLT TP3.5X12.0 SELF-TAPPING SCREW (3,5X12)	8 req	Avail to order Our Price: $2.00
23	N91096701	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	8 req	Current Stock: 8 Our Price: $2.00
23	N91096701	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	8 req	Current Stock: 8 Our Price: $2.00
24	4S0819374B	Heating Hose Hzg-Rl COOLANT HOSE	1 req	Avail to order Our Price: $20.40
24	4S0819374B	Heating Hose Hzg-Rl COOLANT HOSE	1 req	Avail to order Our Price: $20.40
25	N90926501	SPRING CLAMP SPRING BAND CLAMP (47X12)	4 req	Avail to order Our Price: $11.02
25	N90926501	SPRING CLAMP SPRING BAND CLAMP (47X12)	4 req	Avail to order Our Price: $11.02
26	N90687201	SPRING CLAMP SPRING BAND CLAMP (40X12)	4 req	Avail to order Our Price: $3.35
26	N90687201	SPRING CLAMP SPRING BAND CLAMP (40X12)	4 req	Avail to order Our Price: $3.35
27	4S0121101C	COOLANT HOSE VL MOTOR - 103 COOLANT HOSE	1 req	Avail to order Our Price: $60.08
27	4S0121101C	COOLANT HOSE VL MOTOR - 103 COOLANT HOSE	1 req	Avail to order Our Price: $60.08
28		VENT HOSE (INCLUDED IN REF.: 40)	1 req
28		VENT HOSE (INCLUDED IN REF.: 40)	1 req
29	N90926501	SPRING CLAMP SPRING BAND CLAMP (47X12)	2 req	Avail to order Our Price: $11.02
29	N90926501	SPRING CLAMP SPRING BAND CLAMP (47X12)	2 req	Avail to order Our Price: $11.02
30	N90687201	SPRING CLAMP SPRING BAND CLAMP (40X12)	2 req	Avail to order Our Price: $3.35
30	N91048501	RETAINING CLAMP A1-54X20 CLAMP (54X20)	1 req	Avail to order Our Price: $6.63
30	N90687201	SPRING CLAMP SPRING BAND CLAMP (40X12)	2 req	Avail to order Our Price: $3.35
30	N91048501	RETAINING CLAMP A1-54X20 CLAMP (54X20)	1 req	Avail to order Our Price: $6.63
31	N10544703	HEXALOBULAR SOCKETM6X10 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD (M6X10)	1 req	Avail to order Our Price: $2.00
31	N10544703	HEXALOBULAR SOCKETM6X10 SOCKET HEAD BOLT WITH INNER HEX ROUND HEAD (M6X10)	1 req	Avail to order Our Price: $2.00
32	N91071701	SCREW HEXAGON SOCKET FLAT HEAD BOLT (M6X25)	1 req	Avail to order Our Price: $2.00
32	N91071701	SCREW HEXAGON SOCKET FLAT HEAD BOLT (M6X25)	1 req	Avail to order Our Price: $2.00
33	N90942301	HOLDING CLIP CLAMP (48X15)	1 req	Avail to order Our Price: $10.94
33	N90942301	HOLDING CLIP CLAMP (48X15)	1 req	Avail to order Our Price: $10.94
34	07L103121R	GASKET SEAL	1 req	Avail to order Our Price: $17.87
34	07L103121R	GASKET SEAL	1 req	Avail to order Our Price: $17.87
35	07L121127C	WATER CONNECTION WATER CONNECTION	1 req	Avail to order Our Price: $317.11
35	07L121127C	WATER CONNECTION WATER CONNECTION	1 req	Avail to order Our Price: $317.11
36	N90926401	SPRING CLAMP SPRING BAND CLAMP (19X12)	1 req	Avail to order Our Price: $4.18
36	N90926401	SPRING CLAMP SPRING BAND CLAMP (19X12)	1 req	Avail to order Our Price: $4.18
37	N10700201	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT (M6X22)	3 req	Current Stock: 17 Our Price: $3.28
37	N10700201	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT (M6X22)	3 req	Current Stock: 17 Our Price: $3.28
38	4H0819699D	DOUBLE GROMMET DOUBLE GROMMET	1 req	Avail to order Our Price: $7.82
38	4H0819699D	DOUBLE GROMMET DOUBLE GROMMET	1 req	Avail to order Our Price: $7.82
39	N90686902	SPRING CLAMP SPRING BAND CLAMP (23X12)	2 req	Avail to order Our Price: $6.33
39	N90686902	SPRING CLAMP SPRING BAND CLAMP (23X12)	2 req	Avail to order Our Price: $6.33
40	4S0122109	COOLANT HOSE RL MOTOR COOLANT HOSE	1 req	Avail to order Our Price: $94.98
40	4S0122109	COOLANT HOSE RL MOTOR COOLANT HOSE	1 req	Avail to order Our Price: $94.98
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
