2021 HURACAN EVO SPYDER 2WD - AUSTRALIA

Maintenance Parts:

Brakes

PN	Item	Diagram
4S0698151K	SET OF BRAKE PADS FOR CARBOCERAMIC DISC SET OF BRAKE PADS FOR DISC CARBOCERAMIC BRAKES OLD PN 4E0698151G		Current Stock: 1 Our Price: $948.35

Common repairs and upgrades

PN	Item
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0823359	GAS SPRING GAS SPRING	Current Stock: 2 Our Price: $82.49
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32
079115561J	SPIN-ON FILTER SPIN-ON FILTER	Avail to order Our Price: $83.92
079198405E	Oil Filter Gallardo/Huracan LP Series Oil Filter Gallardo LP Series	Current Stock: 7 Our Price: $89.92
1K0906283A	EGR VALVE ELECTR.CHANGEOVER EGR VALVE	Current Stock: 3 Our Price: $72.36

Fuel-Air

PN	Item
4T0133843	FILTER ELEMENT FILTER ELEMENT FILTER ELEMENT	Avail to order Our Price: $477.90
06E906051K	FUEL PRESSURE SENSOR FUEL PRESSURE SENSOR	Current Stock: 1 Our Price: $123.28
4s0819439	Filter Element Filter Element	Current Stock: 6 Our Price: $104.52
07L127025S	FUEL PUMP FUEL PUMP	Avail to order Our Price: $695.26

Gaskets

PN	Item	Diagram
N0138493	WASHER WASHER		Current Stock: 47 Our Price: $4.18

Ignition

PN	Item	Diagram
0BZ911024D	STARTER STARTER		Current Stock: 1 Our Price: $1,307.14

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
4S0906262F	LAMBDA PROBE BACK RIGHT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $571.69
4S0906262G	LAMBDA PROBE BACK LEFT O2 SENSOR LAMBDA PROBE LSU 4.9	Current Stock: 1 Our Price: $343.91
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98

Open All

Select Group and TAV

< Previous Next >

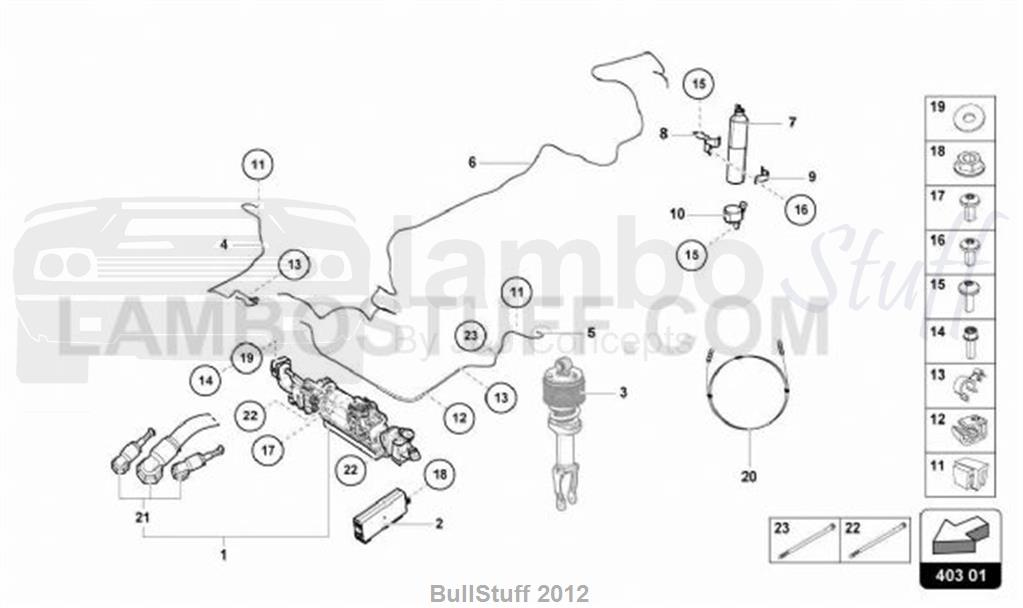

TAV: 403.01.00 - LIFTING DEVICE

2021 Lamborghini HURACAN EVO SPYDER 2WD AUSTRALIA LIFTING DEVICE (403.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0		CONNECTOR 415 907 050 4 WITH 1X VOSS- CONNECTOR 893 803 821 0	0 req
0		(FOR TUBE Ø6))	0 req
1	4T0616007A	COMPRESSOR UNIT HYDRAULIC PUMP	1 req	Avail to order Our Price: $4,535.15
2	4S0959257A	EL.CONTROL UNIT LIFTSYSTEM DIA.0D0 CONTROL UNIT (FROM VIN 5186)	1 req	Avail to order Our Price: $1,304.16
3		SHOCK ABSORBER (SEE ILLUSTRATION : 411.01)	0 req
4	4S0616620A	PIPE VENTILBLOCK-AKTUAT PRESSURE HOSE (RIGHT FRONT)	1 req	Avail to order Our Price: $17.58
5	4S0616619A	PIPE VENTILBLOCK-AKTUAT PRESSURE HOSE (LEFT FRONT)	1 req	Avail to order Our Price: $20.26
6		PRESSURE HOSE (CANNOT BE SOLD; INCLUDED IN REF.: 20-REAR RHD)	0 req
7	4S0616203	PRESSURE MSS PRESSURE ACCUMULATOR	1 req	Avail to order Our Price: $416.86
8	4S0616250B	BRACKET ARM	1 req	Avail to order Our Price: $83.38
9	4S0616251A	BRACKET SPANGE ARM	1 req	Avail to order Our Price: $51.00
10	4S0616249B	BRACKET ARM	1 req	Avail to order Our Price: $192.05
11	5M0971838A	CABLE TIE BASE CABLE TIE WITH TERMINAL SOCKET (AMR + LS-4,6X200MM HORIZONTAL 1-3MM 90 DEGREE ANGLE)	5 req	Avail to order Our Price: $2.84
12	7LP611794	BRACKET 1-FACH BRACKET	5 req	Avail to order Our Price: $1.94
13	N10567002	SWIVEL CLIP A01-4XC01-14 CABLE TIES	5 req	Avail to order Our Price: $2.39
14	N91048802	12-POINT SOCKET SCREW WITH INT. SERRATIONS (M8X20)	2 req	Current Stock: 9 Our Price: $38.19
15	N91096801	HEXALOBULAR SOCKET HEXAGON SOCKET FLAT HEAD BOLT (M6X20)	3 req	Current Stock: 6 Our Price: $2.00
16	N90780904	HEXALOBULAR SOCKETM6X16 OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	1 req	Avail to order Our Price: $2.00
17	N10714801	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X18)	1 req	Avail to order Our Price: $2.00
18	N10017304	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M5)	1 req	Current Stock: 16 Our Price: $2.01
19	N90033308	WASHER WASHER (8.4X20X2.5)	1 req	Avail to order Our Price: $2.00
20	4E0698141	REPAIR KIT REPAIR SET FOR AIR CHANNEL (4X1)	1 req	Avail to order Our Price: $128.34
21	4T0698030	PIPE JOINT KIT 1 SET REMOVABLE HOUSING (3X L- CONNECTOR 415 910 053 4 WITH 3X VOSS- CONNECTOR 893 803 820 0 (FOR TUBE Ø4) 1X L-	1 req	Avail to order Our Price: $647.62
22	893971850C	CABLE TIE CABLE TIES (4,6X200)	2 req	Current Stock: 1 Our Price: $2.00
23	N90937701	clip CABLE TIES (4.6X193 OUTER)	2 req	Current Stock: 4 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
