Maintenance Parts:

Tools and Tookits

PN Item Diagram
400093050D CTEK US-CD BATTERY CHARGER
Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month
Avail to order
Our Price: $317.22
CTEK US-CD BATTERY CHARGER
Open All

Select Group and TAV

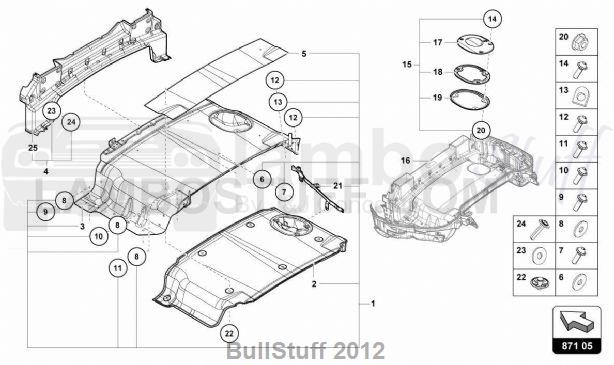

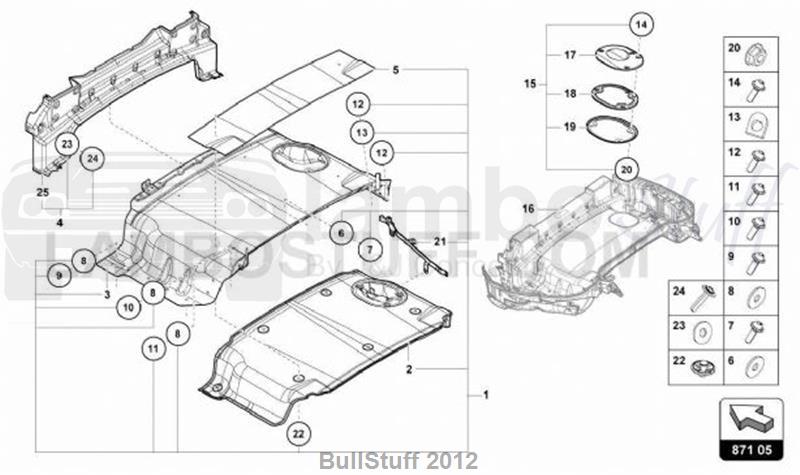

TAV: 871.05.00 - SOFT TOP BOX TRAY

2020 Lamborghini HURACAN PERFORMANTE SPYDER USA SOFT TOP BOX TRAY (871.05.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 4T7825095 KIT ROOF CONTAINER WITH FIXING
SOFT TOP BOX TRAY
1 req Avail to order
Our Price: $2,396.91
1 4T7825095 KIT ROOF CONTAINER WITH FIXING
SOFT TOP BOX TRAY
1 req Avail to order
Our Price: $2,396.91
2 COMPARTMENT BASE ELEMENT (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
2 COMPARTMENT BASE ELEMENT (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
3 BLANKET (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
3 BLANKET (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
4 4T7825359 KIT COVER CROSSBEAM WITH FIXING
CROSS MEMBER FOR ROOF BOX
1 req Avail to order
Our Price: $592.53
4 4T7825359 KIT COVER CROSSBEAM WITH FIXING
CROSS MEMBER FOR ROOF BOX
1 req Avail to order
Our Price: $592.53
5 BLANKET (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1-INNER) 0 req
5 BLANKET (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1-INNER) 0 req
6 CUP WASHER (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
6 CUP WASHER (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
7 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
7 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
8 CUP WASHER (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
8 CUP WASHER (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
9 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
9 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
10 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
10 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
11 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
11 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
12 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
12 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
13 ARM (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
13 ARM (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
14 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
14 BALL SCREW (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
15 4T7825182 KIT COVER ROOF CONTAINER
FLAP FOR SOFT TOP BOX
1 req Avail to order
Our Price: $193.54
15 4T7825182 KIT COVER ROOF CONTAINER
FLAP FOR SOFT TOP BOX
1 req Avail to order
Our Price: $193.54
16 CROSS MEMBER FOR ROOF BOX (SEE ILLUSTRATION : 871.02) 1 req
16 CROSS MEMBER FOR ROOF BOX (SEE ILLUSTRATION : 871.02) 1 req
17 COVER FLAP (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
17 COVER FLAP (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
18 SEAL (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
18 SEAL (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
19 INLAY (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
19 INLAY (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
20 NUT (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
20 NUT (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 15) 0 req
21 RETAINING BASE (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
21 RETAINING BASE (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
22 HOSE CLAMP (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
22 HOSE CLAMP (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
23 CUP WASHER (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
23 CUP WASHER (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
24 FLAT HEAD BOLT WITH HEXAGON SOCKET HEAD, THREAD FORMING (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
24 FLAT HEAD BOLT WITH HEXAGON SOCKET HEAD, THREAD FORMING (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 1) 0 req
25 CROSS MEMBER FOR ROOF BOX (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 4) 0 req
25 CROSS MEMBER FOR ROOF BOX (CANNOT BE SOLD SEPARATELY - INCLUDED IN REF.: 4) 0 req

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
