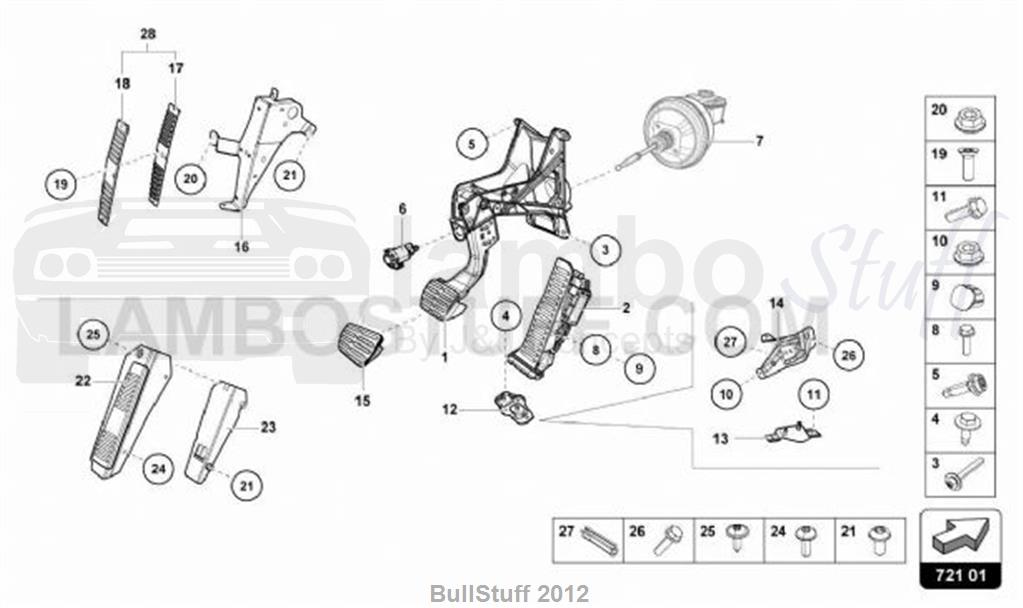

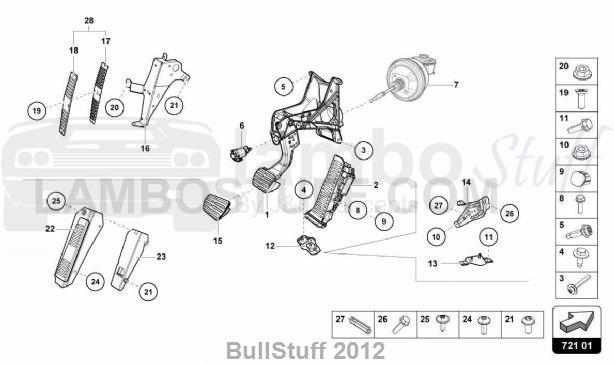

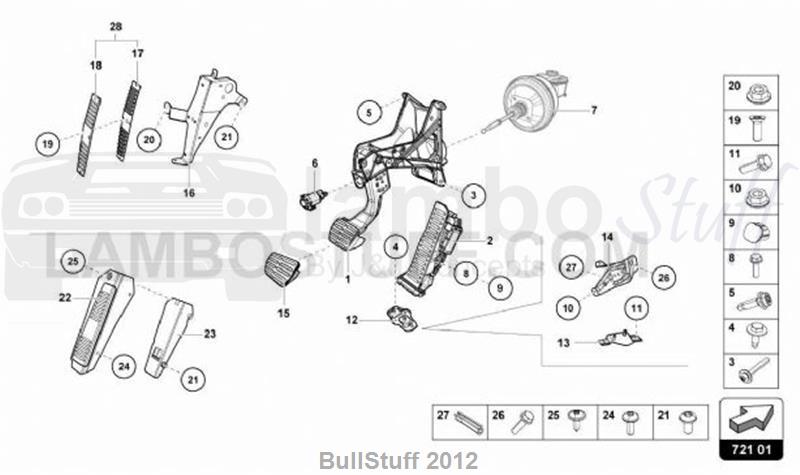

TAV: 721.01.00 - BRAKE AND ACCEL. LEVER MECH.

2020 Lamborghini HURACAN EVO SPYDER AUSTRALIA BRAKE AND ACCEL. LEVER MECH. (721.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 4S2723031C PEDAL CLUSTER
BRAKE PEDAL ( RHD) 		1 req Avail to order
Our Price: $492.24
2 1K1723503AK ACCELERATOR MODULE
ACCELERATOR PEDAL WITH ELECTRONIC MODULE 		1 req Avail to order
Our Price: $214.55
3 N10483102 HEXALOBULAR SOCKET
HEX SOCKET HEAD BOLT (COMBI) (M6X50) 		2 req Avail to order
Our Price: $2.00
4 N10752901 HEXALOBULAR SOCKETM5X18
FILLISTER HD. BOLT (M5X18) 		5 req Avail to order
Our Price: $2.00
5 N10719301 12-POINT SOCKET
SOCKET HEAD COLLARED BOLT WITH INNER MULTIPOINT HEAD (M8X28) 		1 req Avail to order
Our Price: $3.16
6 4F0945459B SENSOR
BRAKE LIGHT SENSOR (4 PIN) 		1 req Current Stock: 3
Our Price: $38.04
SENSOR
7 BRAKE SERVO (SEE ILLUSTRATION : 612.02) 0 req
8 N10653301 HEXAGON FLANGE BOLT
HEX COLLARED BOLT (M6X20) 		6 req Current Stock: 17
Our Price: $2.15
HEXAGON FLANGE BOLT
9 1K0721989 CAP
CAP 		1 req Avail to order
Our Price: $2.00
10 N01508210 HEXAGON FLANGE NUT
HEXAGON COLLAR NUT (M6) 		1 req Current Stock: 17
Our Price: $1.94
11 N10752901 HEXALOBULAR SOCKETM5X18
FILLISTER HD. BOLT (M5X18) 		4 req Avail to order
Our Price: $2.00
12 BRACKET (FOR RHD SEE REF.13- RHD) 0 req
13 4S2721188D BRACKET GPM RL UNTEN
BRACKET ( RHD) 		1 req Avail to order
Our Price: $20.10
14 4S2721187C BRACKET GPM RL OBEN
BRACKET ( RHD) 		1 req Avail to order
Our Price: $58.77
15 4S0723131 PEDAL PAD BREMSPEDAL
CAP FOR FOOT BRAKE PEDAL 		4 req Avail to order
Our Price: $42.05
16 BRACKET FOR FOOTREST (FOR LHD CARS ONLY- RHD) 0 req
17 NOISE INSULATION PLATE (FOR LHD CARS ONLY- RHD) 0 req
18 FOOT REST (FOR LHD CARS ONLY) 0 req
19 HEX SOCKET COUNTERSUNK BOLT (FOR LHD CARS ONLY) 0 req
20 HEXAGON COLLAR NUT (FOR LHD CARS ONLY) 0 req
21 N91096701 HEXALOBULAR SOCKET
OVAL HEXAGON SOCKET HEAD BOLT (M6X16 RHD) 		1 req Current Stock: 8
Our Price: $2.00
22 4T2864777A COVER
COVER ( RHD) 		1 req Avail to order
Our Price: $188.01
23 4T2864775C BRACKET-FOOT
BLANKET ( RHD) 		1 req Avail to order
Our Price: $234.65
24 N90900402 HEXALOBULAR SOCKETM6X20
HEX SOCKET OVAL HEAD COLLARED (M6X20) 		1 req Avail to order
Our Price: $2.00
25 N10000402 SELF-TAPPING SCREWST4.8X16-S2-L
OVAL HEAD PANEL SCREW (B4,8X16) 		1 req Avail to order
Our Price: $18.37
26 N10082908 HEXAGON HEAD BOLT M6X16-S1-N
HEX COLLARED BOLT (M6X16) 		2 req Avail to order
Our Price: $2.00
27 823881763 PROTECTIVE EDGING
EDGE PROTECTION 		2 req Avail to order
Our Price: $3.59
28 FOOT REST (FOR RHD CARS SEE REF. 22) 1 req

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
