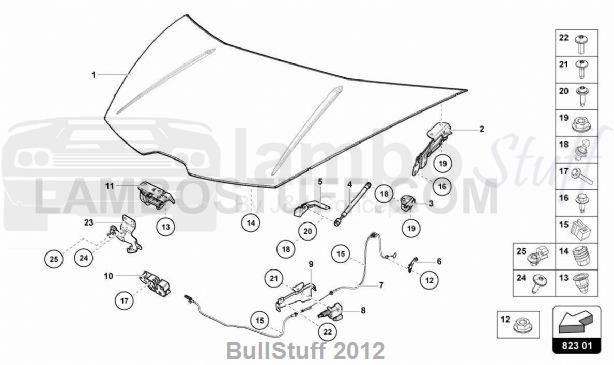

TAV: 823.01.00 - BONNET

2020 Lamborghini HURACAN EVO SPYDER 2WD AUSTRALIA BONNET (823.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item # PN Item Qty Req *
1 4T0823021C HOOD
BONNET (CONTACT YOUR AREA MANAGER) 		1 req Current Stock: 1
Our Price: $5,948.49
2 4T0823301B LEFT FRONT HOOD HINGE
HINGE (LEFT) 		1 req Avail to order
Our Price: $239.66
2 4T0823302B RIGHT FRONT HOOD HINGE
HINGE (RIGHT) 		1 req Avail to order
Our Price: $239.66
3 4T0823351B BEARING
ARM 		1 req Avail to order
Our Price: $44.92
4 4T0823359 GAS SPRING
GAS FILLED STRUT 		1 req Avail to order
Our Price: $77.27
5 4T0805669C BRACKET SCHEINWERFER OBEN
ATTACHMENT BARS (LEFT) 		1 req Avail to order
Our Price: $60.78
5 4T0805670C BRACKET SCHEINWERFER OBEN
ATTACHMENT BARS (RIGHT) 		1 req Avail to order
Our Price: $55.19
6 4T0819549 BRACKET
BRACKET 		1 req Avail to order
Our Price: $16.73
7 4T0823531B BOWDEN CABLE ANTERIORE
BOWDEN CABLE 		1 req Avail to order
Our Price: $153.56
8 420959782 ENTRIEGELUNGSMOTORTKL UN FKL
SERVOMOTOR 		1 req Avail to order
Our Price: $42.70
9 4T0819967 BRACKET
ARM (LEFT) 		1 req Avail to order
Our Price: $55.76
9 4T0819968 BRACKET
ARM (RIGHT) 		1 req Avail to order
Our Price: $53.82
10 1K1823509E HOOD LATCH
BONNET LOCK-LOWER PART (WITH WIRING HARNESS) 		1 req Avail to order
Our Price: $98.88
HOOD LATCH
11 1Q0823480 SAFETY HOOK
CATCH HOOK (FRONT) 		1 req Avail to order
Our Price: $40.41
SAFETY HOOK
12 N91205301 PREV.TORQUE TYPE
HEXAGON FLANGE NUT, SELF-LOCKING (M6) 		3 req Avail to order
Our Price: $2.23
13 WHT001308 CLAMPING CAP NUT M6
CAP NUT, SELF-LOCKING 		3 req Avail to order
Our Price: $2.37
14 4E0823481 RUBBER BUFFER
STOP BUFFER (LEFT A. RIGHT) 		2 req Avail to order
Our Price: $2.58
15 3D0971497D MOUNTING
CABLE TIE WITH TERMINAL SOCKET (1-3MM VERTICAL OUTER) 		4 req Avail to order
Our Price: $2.66
16 N90863802 HEXAGON HEAD BOLT M8X22-S1
HEXAGON HEAD BOLT (COMBI) (M8X25) 		4 req Current Stock: 6
Our Price: $2.00
17 N10553804 HEX. BOLT WITH
HEXAGON HEAD BOLT (COMBI) (M6X45) 		2 req Current Stock: 3
Our Price: $1.94
18 895827439D BALL PIN
BALL STUD 		4 req Avail to order
Our Price: $7.39
19 N90798805 HEXAGON FLANGE NUT
HEXAGON COLLAR NUT (M8) 		2 req Current Stock: 19
Our Price: $2.15
HEXAGON FLANGE NUT
20 N90900401 HEXALOBULAR SOCKET M6x20
HEX SOCKET OVAL HEAD COLLARED (M6X20) 		2 req Current Stock: 2
Our Price: $2.00
HEXALOBULAR SOCKET M6x20
21 N90739704 SCREW
PANEL SCREW (5X22) 		2 req Current Stock: 16
Our Price: $2.00
SCREW
22 N91042302 HEXALOBULAR SOCKETM6X16
OVAL HEXAGON SOCKET HEAD BOLT (M6X16) 		4 req Avail to order
Our Price: $2.00
23 MOUNTING BAR (ONLY FOR USA AND CANADA MARKET) 0 req
24 HEX SOCKET OVAL HEAD COLLARED (ONLY FOR USA AND CANADA MARKET) 0 req
25 SECURING ELEMENT (ONLY FOR USA AND CANADA MARKET) 0 req
26 6H0862247 VERBINDUNGSELEMENT
CONNECTING PIECE 		1 req Avail to order
Our Price: $2.00

* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
