2020 HURACAN EVO COUPE - AUSTRALIA

Maintenance Parts:

Tools and Tookits

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $317.22

Open All

Select Group and TAV

< Previous Next >

TAV: 121.05.00 - COOLER FOR COOLANT

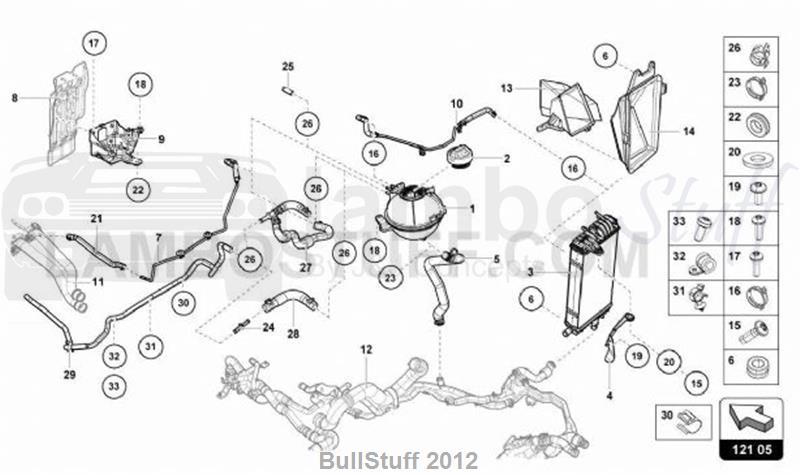

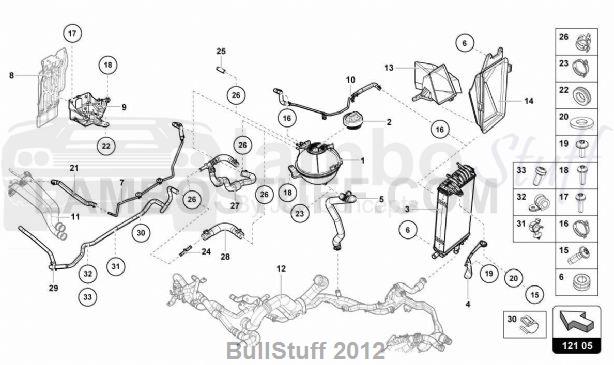

2020 Lamborghini HURACAN EVO COUPE AUSTRALIA COOLER FOR COOLANT (121.05.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Huracan Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	4S0121403B	EXPANSION TANK RESERVOIR	1 req	Avail to order Our Price: $142.08
2	420121321	COVER END CAP	1 req	Avail to order Our Price: $138.06
3	4S0121212B	AUXILIARY RADIATORIM SIDEBLADE RE. ADDITIONAL COOLER FOR COOLANT (RIGHT)	1 req	Avail to order Our Price: $364.52
4	4S0121256B	BRACKET ZWK IM SIDEBLADE BRACKET FOR ADDITIONAL COOLANT RADIATOR	1 req	Avail to order Our Price: $15.87
5	4S0121106A	COOLANT HOSE AGB BEFUELLSCHL. COOLANT HOSE	1 req	Avail to order Our Price: $43.64
6	4S0121275B	BEARING KUEHLER RUBBER BUSH	4 req	Avail to order Our Price: $7.68
7	4S0121081M	COOLANT HOSE HWK LB624 BREATHER LINE	1 req	Avail to order Our Price: $49.87
8		RETAINING BASE (CANNOT BE SOLD SEPARATELY - INCLUDED IN REAR PANEL)	0 req
9	4S0121214C	BRACKET AGB ADAPTER RETAINER FOR RESERVOIR	1 req	Avail to order Our Price: $114.10
10	4S0121081N	COOLANT HOSE ZWK SB RE BREATHER LINE (RIGHT)	1 req	Avail to order Our Price: $37.03
11		COOLANT PIPE (SEE ILLUSTRATION : 121.03)	0 req
12		COOLANT PIPE (SEE ILLUSTRATION : 121.04)	0 req
13	4T0121694C	AIR DUCT ELEMENT TEIL WATER RH FL AIR GUIDE (RIGHT)	1 req	Avail to order Our Price: $68.41
14	4T0121694	AIR DUCT ELEMENT AIR GUIDE (RIGHT)	1 req	Avail to order Our Price: $83.64
15	N90731503	SCREW HEXAGON SOCKET HEAD PANEL BOLT (6X25)	1 req	Avail to order Our Price: $2.00
16	N91184901	NLA (No Longer Available) SPRING BAND CLAMP (14X12)	2 req	*See Description
17	N91096801	HEXALOBULAR SOCKET HEXAGON SOCKET FLAT HEAD BOLT (M6X20)	1 req	Current Stock: 6 Our Price: $2.00
18	N91069601	HEXALOBULAR SOCKETM6X22 HEXAGON SOCKET FLAT HEAD BOLT (M6X22)	1 req	Current Stock: 14 Our Price: $2.00
19	N91096701	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	2 req	Current Stock: 8 Our Price: $2.00
20	14	WASHER (6,2X24X2)	0 req
21		COOLANT PIPE (INCLUDED IN REF. 7)	1 req
22	4H0121585	GROMMET RUBBER BUSH	1 req	Avail to order Our Price: $2.30
23	N90687001	SPRING CLAMP SPRING BAND CLAMP (27X12)	2 req	Avail to order Our Price: $7.53
24	4S0121140	HOSE CONNECTOR HOSE CONNECTOR	1 req	Avail to order Our Price: $3.01
25		BUNGS (NO PART - VALID FOR ANOTHER MODEL)	0 req
26	N90686701	SPRING CLAMP SPRING BAND CLAMP (14X12)	3 req	Avail to order Our Price: $1.94
27		VENT HOSE (NO PART - VALID FOR SPYDER MODEL)	0 req
28	8K0121107AE	COOLANT HOSE R4 TDI COOLANT HOSE	1 req	Avail to order Our Price: $17.87
29	07L121086G	COOLANT HOSE VENT HOSE	1 req	Avail to order Our Price: $69.61
30	07L133847	CLAMP HOSE BRACKET	1 req	Current Stock: 9 Our Price: $2.00
31	N10743901	SECURING PIN SWIVEL PIN	1 req	Avail to order Our Price: $3.30
32	N0206208	CLAMP CLAMP	1 req	Avail to order Our Price: $3.88
33	N10451408	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	1 req	Avail to order Our Price: $2.00
34	N10661002	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M6X20)	2 req	Current Stock: 18 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
