2021 AVENTADOR SVJ COUPE - AUSTRALIA

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Ignition

PN	Item	Diagram
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item	Diagram
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

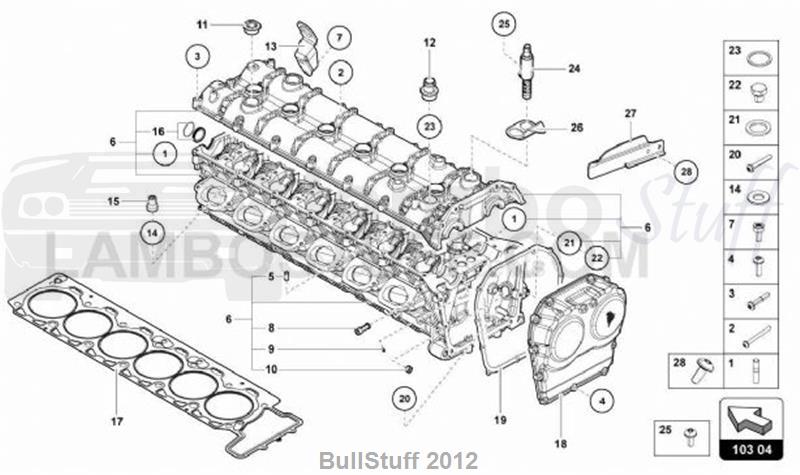

TAV: 103.04.00 - CYLINDER HEAD WITH STUDS AND CENTERING SLEEVES

2021 Lamborghini AVENTADOR SVJ COUPE AUSTRALIA CYLINDER HEAD WITH STUDS AND CENTERING SLEEVES (103.04.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	18	THREADED PIN (M8X25)	0 req
2	28	HEXAGON SOCKET FLAT HEAD BOLT (M6X60)	0 req
3	15	ROUND HD. SCREW (M6X35X16)	0 req
4	11	OVAL HEXAGON SOCKET HEAD BOLT (M6X20)	0 req
5	07M101110	BUSH CENTRE SLEEVE	4 req	Avail to order Our Price: $684.84
6	07M103066L	CYLINDER HEAD CYLINDER HEAD (RIGHT)	1 req	Avail to order Our Price: $11,997.48
7	N91137001	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M10X28)	2 req	Avail to order Our Price: $18.54
8	07M109291E	PLUG BUNGS	2 req	Avail to order Our Price: $127.00
9	07M109291	PLUG BUNGS	2 req	Avail to order Our Price: $54.35
10	07M109291D	PLUG BUNGS	8 req	Avail to order Our Price: $105.56
11	07M103037A	PLUG BUNGS	3 req	Avail to order Our Price: $72.21
12	07M103037C	PLUG CONNECTION PIECE	1 req	Avail to order Our Price: $73.17
13	07M199080D	SHACKLE HOOKS	1 req	Avail to order Our Price: $54.79
14	14	WASHER (11,5X25,0X2,5)	0 req
15	14	NUT (M11X1)	0 req
16	07M103113B	COVER END CAP	2 req	Avail to order Our Price: $308.18
17	07M103148E	CYLINDER HEAD GSKT CYLINDER HEAD GASKET (RIGHT)	1 req	Avail to order Our Price: $5,977.38
18	07M109153M	COVER END CAP (RIGHT)	1 req	Avail to order Our Price: $2,575.56
19	07M109091D	GASKET SEAL (RIGHT)	1 req	Avail to order Our Price: $224.07
20	N10405702	screw HEXAGON SOCKET HEAD BOLT (M6X45)	2 req	Current Stock: 7 Our Price: $2.00
21	N0138302	washer SEAL RING (8X12)	2 req	Current Stock: 17 Our Price: $3.51
22	N0102358	HEXAGON HEAD BOLT HEXAGON BOLT (M8X10)	2 req	Avail to order Our Price: $171.22
23	WHT000674	WASHER WASHER (30X36X1)	1 req	Current Stock: 3 Our Price: $2.84
24	06E109257AA	CONTROL VALVE CONTROL VALVE	2 req	Avail to order Our Price: $141.13
25	N91068201	HEXALOBULAR SOCKET HEXAGON SOCKET FLAT HEAD BOLT (M4X10)	2 req	Current Stock: 6 Our Price: $2.00
26	07M109185	BRACKET ARM	1 req	Avail to order Our Price: $36.56
27	07M133927A	SHIELD HEAT SHIELD	1 req	Avail to order Our Price: $24.28
28	N90780903	SOCKET SCREW OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	2 req	Current Stock: 1 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
