2019 Lamborghini AVENTADOR S USA EXHAUST SYSTEM (251.01.00)

Maintenance Parts:

Common repairs and upgrades

PN	Item	Diagram
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter		Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO		Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615		Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Avail to order Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item	Diagram
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER		Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month		Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID		Current Stock: 1 Our Price: $70.78

Sensors

PN	Item	Diagram
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS		Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,		Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE		Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR		Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR		Avail to order Our Price: $145.31

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL		Avail to order Our Price: $359.54

Open All

Select Group and TAV

< Previous Next >

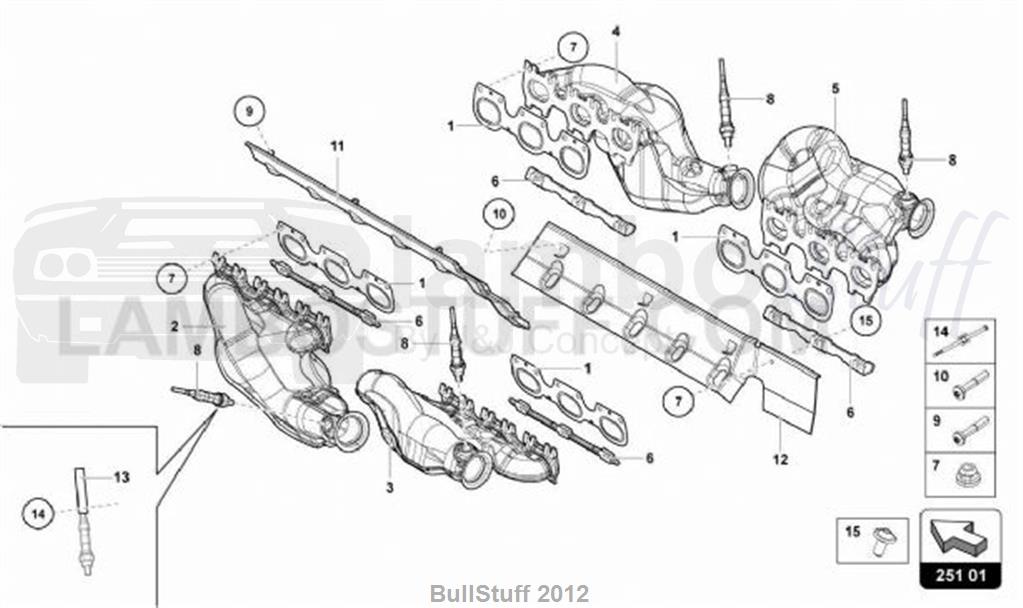

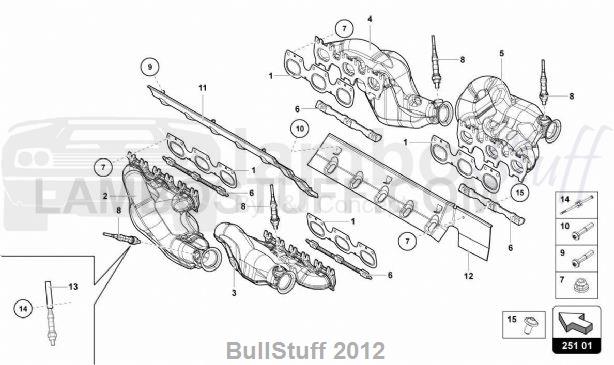

TAV: 251.01.00 - EXHAUST SYSTEM

2019 Lamborghini AVENTADOR S USA EXHAUST SYSTEM (251.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	07M253039B	EXHAUST MANIFOLD G SEAL	4 req	Avail to order Our Price: $75.63
2	07M253171H	EXHAUST MANIFOLD EXHAUST MANIFOLDS (LEFT FRONT)	1 req	Avail to order Our Price: $4,064.32
3	07M253033H	EXHAUST MANIFOLD EXHAUST MANIFOLDS (LEFT REAR)	1 req	Avail to order Our Price: $4,094.10
4	07M253172H	EXHAUST MANIFOLD EXHAUST MANIFOLDS (RIGHT FRONT)	1 req	Avail to order Our Price: $4,064.32
5	07M253034H	EXHAUST MANIFOLD EXHAUST MANIFOLDS (RIGHT REAR)	1 req	Avail to order Our Price: $4,079.21
6	07M253709A	CLAMPING COLLAR ARM	4 req	Avail to order Our Price: $189.07
7	36	HEXAGON NUT, SELF-LOCKING (M8)	0 req
8	07M906262B	LAMBDA PROBE LAMBDA PROBE (FRONT)	4 req	Avail to order Our Price: $388.73
9		OVAL SOCKET HEAD BOLT WITH HEX DRIVE (SEE ILLUSTRATION : 103.04)	0 req
10		OVAL SOCKET HEAD BOLT WITH HEX DRIVE (SEE ILLUSTRATION : 103.04)	0 req
11	470103753	SHIELD HEAT SHIELD (LEFT)	1 req	Avail to order Our Price: $652.08
12	470103754	SHIELD HEAT SHIELD (RIGHT)	1 req	Avail to order Our Price: $652.08
13	470972837A	PROTECTIVE PART HOSE REINFORCEMENT (WOOL BLANKET)	4 req	Avail to order Our Price: $25.84
14	470971850	CABLE TIE CABLE TIES	4 req	Avail to order Our Price: $13.70
15	N10406504	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X12)	1 req	Avail to order Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
