2018 AVENTADOR S ROADSTER - JAPAN

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
4D0906321C	FUEL FILTER FILTER		Avail to order Our Price: $40.12
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

TAV: 260.01.00 - A/C CONDENSER

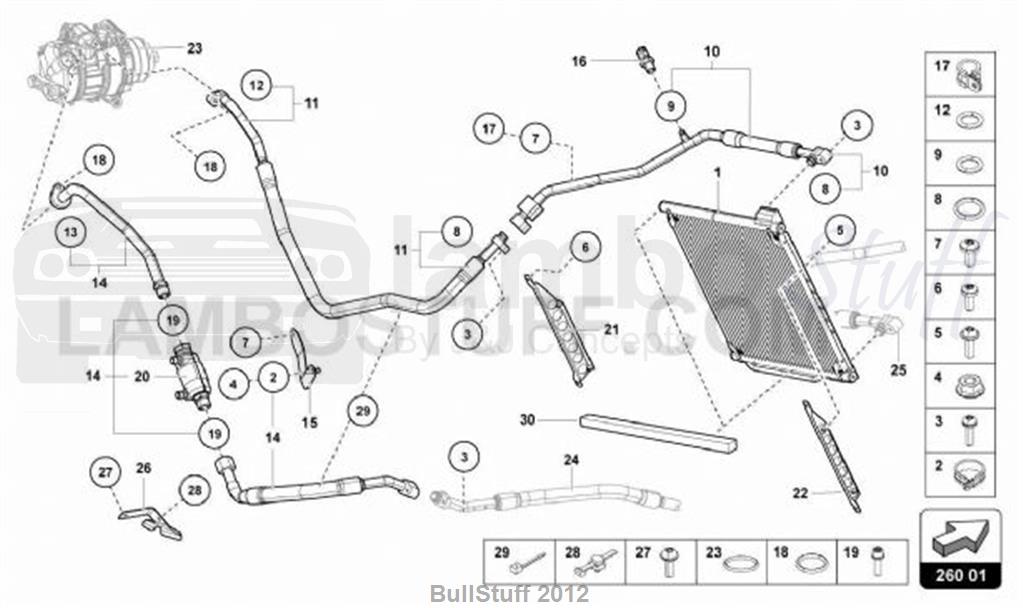

2018 Lamborghini AVENTADOR S ROADSTER JAPAN A/C CONDENSER (260.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470260401A	CONDENSER A/C CONDENSER	1 req	Avail to order Our Price: $987.35
2	N90942301	HOLDING CLIP CLAMP (48X15)	1 req	Avail to order Our Price: $10.19
3	N10347204	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT, SELF-LOCKING (M6X25)	3 req	Avail to order Our Price: $2.37
4	N01508213	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	1 req	Current Stock: 4 Our Price: $2.00
5	N10569501	HEXALOBULAR SOCKET ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD (M5X16)	4 req	Avail to order Our Price: $2.23
6	N10451408	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	4 req	Avail to order Our Price: $2.00
7	N91096701	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	2 req	Current Stock: 8 Our Price: $2.00
8	4E0260749B	seal ring SEAL RING (13,7X2,5)	2 req	Current Stock: 2 Our Price: $5.32
9	7H0820896	O-RING O-RING (7,6X1,8)	1 req	Avail to order Our Price: $5.24
10	470260702D	REFRIGERANT LINE FLANGED PIPE	1 req	Avail to order Our Price: $323.62
11	470260701B	REFRIGERANT LINE FLANGED PIPE	1 req	Avail to order Our Price: $396.09
12	4E0260749A	seal ring SEAL RING (11X2,5)	2 req	Current Stock: 7 Our Price: $5.81
13	8E0260749C	seal ring SEAL RING (23,8X2,4)	1 req	Current Stock: 5 Our Price: $4.95
14	470260709C	REFRIGERANT LINE FLANGED PIPE	1 req	Avail to order Our Price: $1,822.58
15	470201809	BRACKET BRACKET	1 req	Avail to order Our Price: $33.80
16	4H0959126A	PRESSURE SENSOR, A/C PRESSURE SENDER	1 req	Avail to order Our Price: $75.06
17	N0206405	HOLDING CLIP CLAMP (18X15)	1 req	Avail to order Our Price: $2.01
18		SEAL RING (NO PART - INCLUED IN REF.:-14X2 14)	0 req
19	N10414402	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (M8X28)	2 req	Avail to order Our Price: $3.01
19		SEAL RING (NO PART - SEE REF.:-14X2 14)	0 req
20		FUEL COOLER (NO PART - INCLUED IN REF.:- 14)	0 req
21	470260427A	BRACKET BRACKET (LEFT)	1 req	Avail to order Our Price: $40.12
22	470260428A	BRACKET BRACKET (RIGHT)	1 req	Avail to order Our Price: $40.04
23		A/C COMPRESSOR (SEE ILLUSTRATION :- 145-020)	0 req
24		FLANGED PIPE (SEE ILLUSTRATION :- 260-020)	0 req
25		FLANGED PIPE (SEE ILLUSTRATION :- 260-020)	0 req
26	470260761	BRACKET BRACKET	1 req	Avail to order Our Price: $38.47
27	N91032702	HEXALOBULAR SOCKET FLANGE BOLT ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD (M6X20)	4 req	Current Stock: 6 Our Price: $2.00
28	3W0971838	CABLE TIE CABLE TIES (4,6X193MM 6,5/0,3-3,0MM)	1 req	Avail to order Our Price: $2.00
29	N10562301	CLAMP CABLE TIES (4,7X194)	2 req	Avail to order Our Price: $2.00
30	470260423	SEAL SPONGE	2 req	Avail to order Our Price: $51.24
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
